Steering Rack Drive Belt 154 Teeth 34mm - BMW 5/6/7 Series - 7806040401

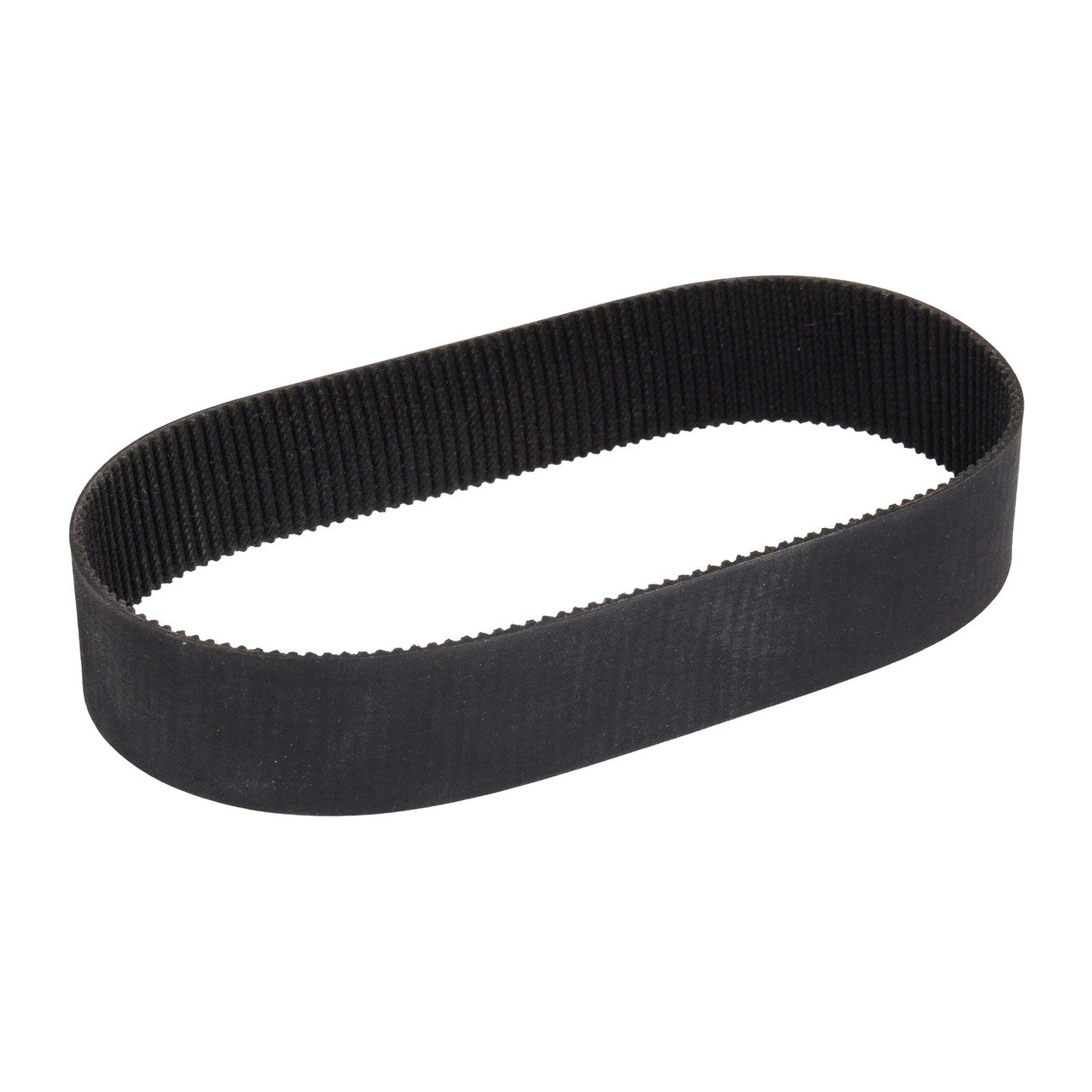

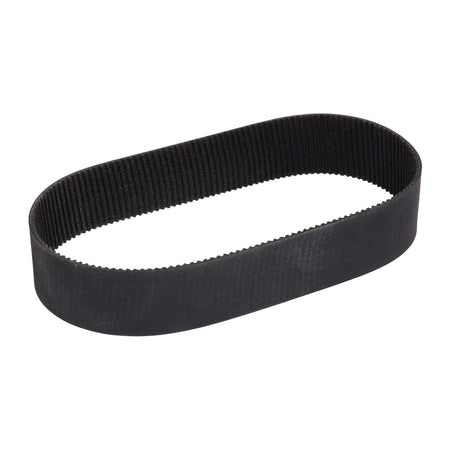

This toothed drive belt is a repair component inside the steering rack on the listed BMW applications. Match the installed rack number, original belt dimensions and angled tooth profile before replacement.

Applications

• BMW 5 Series F10 - 525dX, 528iX
• BMW 5 Series F10 LCI - 520dX B47, 520dX N47N, 525dX, 528iX
• BMW 5 Series F11 - 525dX, 528iX
• BMW 5 Series F11 - LCI 520dX B47, 520dX N47N, 525dX, 528iX
• BMW 5 Series F18 - LCI 528LiX
• BMW 5 Series F07 GT (09/2008 - 06/2013)
• BMW 5 Series F07 GT LCI (08/2012 - 02/2017)
• BMW 5 Series F10 (01/2009 - 06/2013)
• BMW 5 Series F10 LCI (08/2012 - 10/2016)
• BMW 5 Series F11 (01/2009 - 06/2013)
• BMW 5 Series F11 LCI (08/2012 - 02/2017)
• BMW 6 Series F06 Gran Coupé (05/2011 - 02/2015)
• BMW 6 Series F06 Gran Coupé LCI (05/2014 - 09/2018)
• BMW 6 Series F12 (10/2009 - 02/2015)
• BMW 6 Series F12 LCI (05/2014 - 05/2018)
• BMW 6 Series F13 (03/2010 - 02/2015)
• BMW 6 Series F13 LCI (05/2014 - 10/2017)
• BMW 7 Series F01 LCI (05/2011 - 05/2015)
• BMW 7 Series F02 LCI (05/2011 - 05/2015)

When to Inspect the Belt

• Wear, damage or deformation of the original belt.
• Play, unstable operation or a disturbed fit within the mechanism.
• Steering that turns unusually freely or returns poorly to the straight-ahead position.

Inspect the rack to establish the cause; symptoms alone do not identify the belt as the failed component.

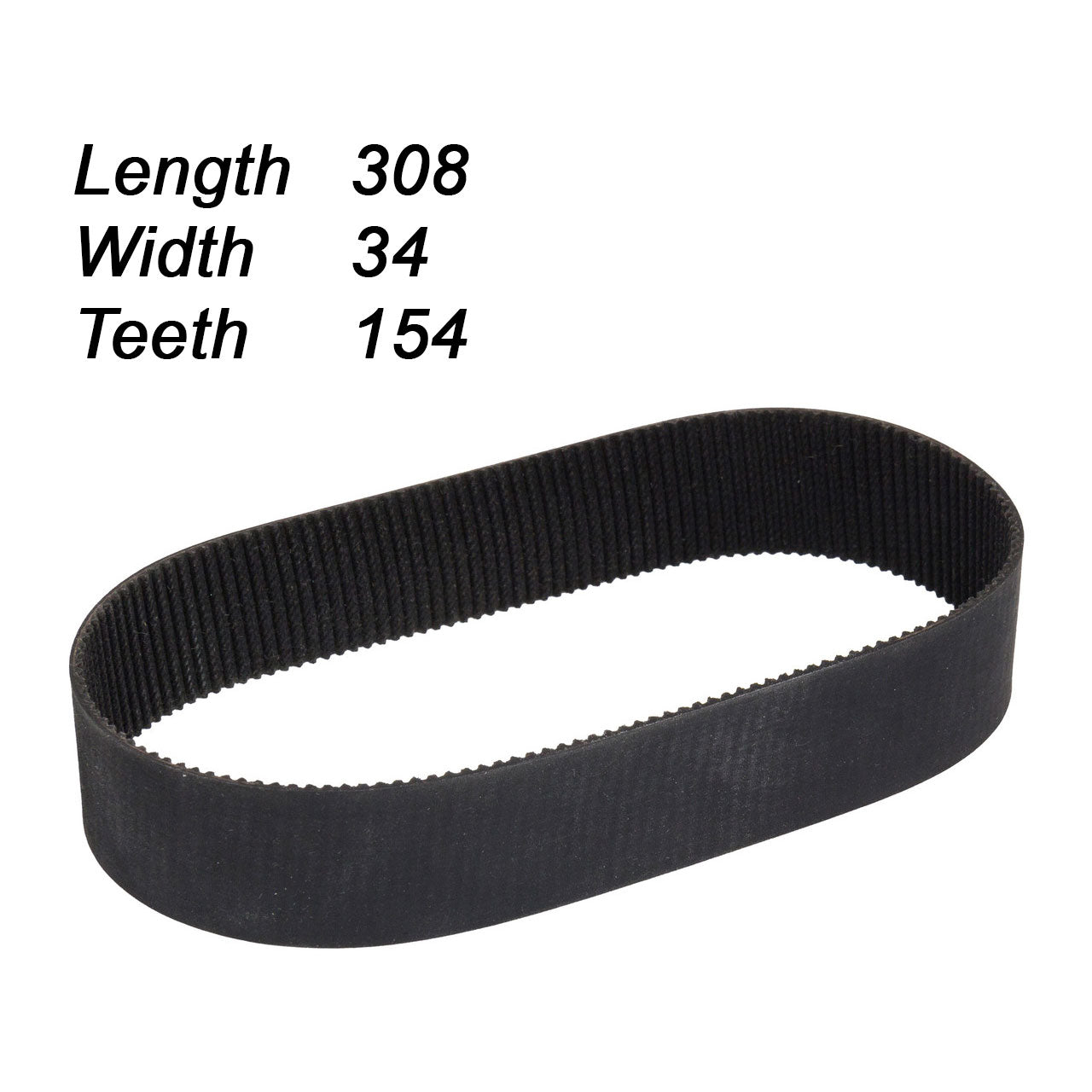

Belt Specifications

• Tooth count: 154.
• Angled tooth profile.
• Width: 34mm.
• Length: 308mm.

Repair Scope and Reference Selection

This product is the drive belt, rather than a complete steering rack. Compare the rack references and belt design before ordering. The related reference list does not establish unrestricted interchange between all rack assemblies.

Additional References

BMW rack reference: 32106854651. Related belt references: HEE4071ERM, HEE4039RM, 7806040401. B47 and N47N are engine designations in the application rows; 525dX and 528iX are vehicle variants, rather than part numbers.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What are the belt dimensions?

Width: 34mm. Length: 308mm.

How many teeth are specified?

154 teeth with an angled tooth profile.

Is a complete steering rack included?

No. This is the replacement drive belt.

What should be checked before ordering?

Compare the installed rack number, original belt dimensions, tooth profile and mounting design.

Part Number / PN

32106883550,32106870791,32106868353,32106865441,32106860180,32106854651,7806040401,HEE4071ERM,HEE4039RM,32106856426,32106860174,32106865433,32106868347,32106870788,32106873500,32106883546

SKU: 7806040401.
