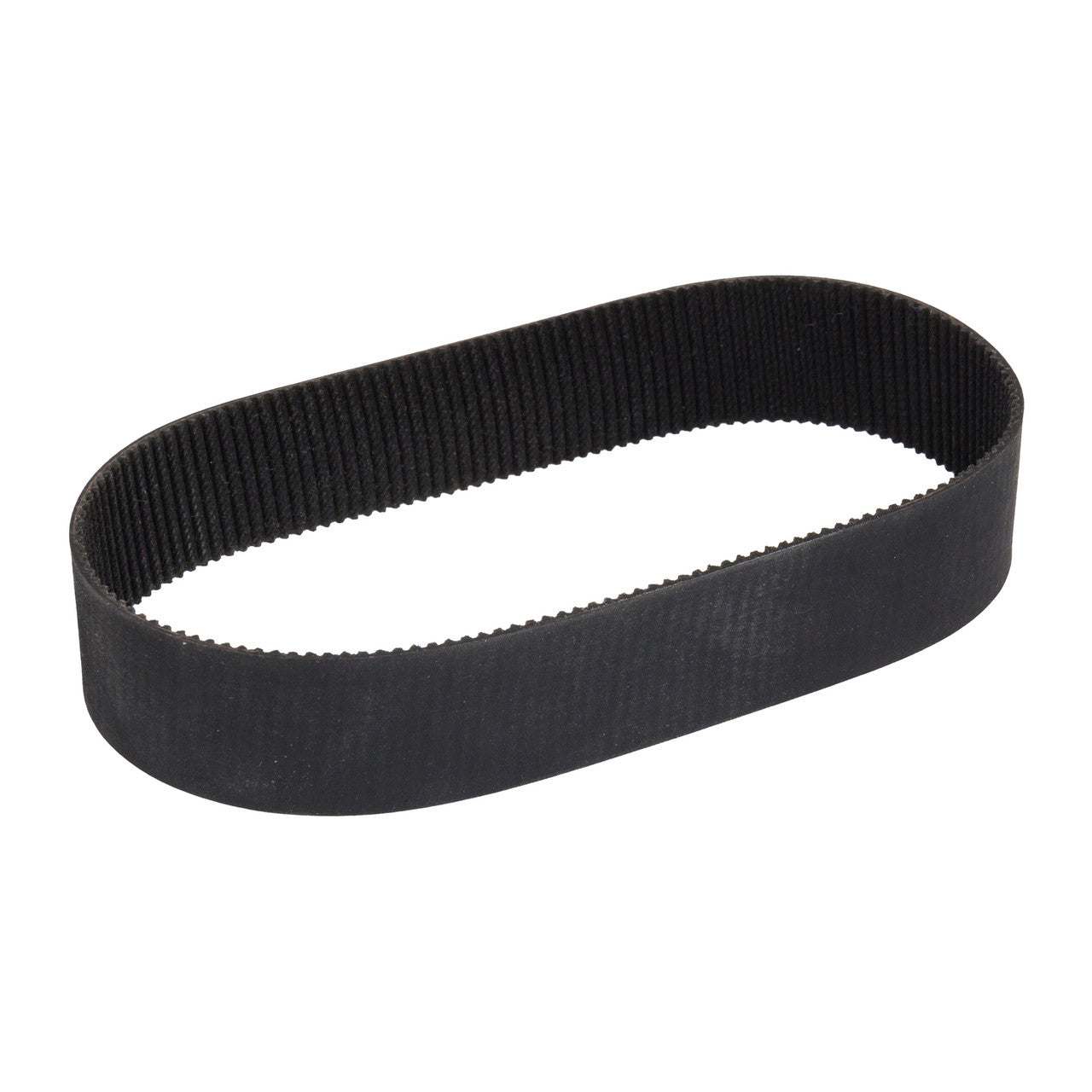

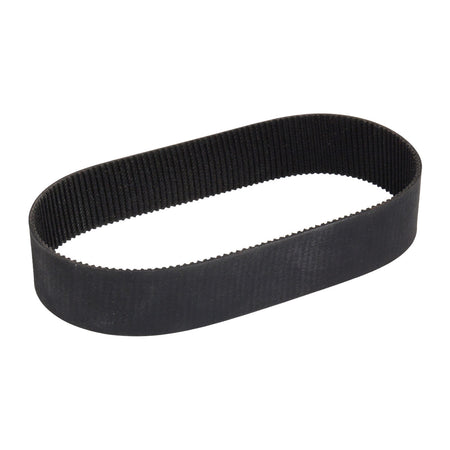

This drive belt is a replacement component for the electric steering rack on the listed applications. Inspect the old belt and rack to confirm wear or damage and match the rack number, belt dimensions and tooth form before ordering.
Applications
- Alfa Romeo Giulia
- Alfa Romeo Stelvio
- Cadillac XT5
- Jeep Grand Cherokee
- GMC Acadia
- Dodge Charger
- Dodge RAM
- Buick Envision
- Buick Enclave
- Chrysler 300 C
- Chrysler Voyager
- Chrysler Pacifica
Version Selection
Belt reference: HEE4126RM. Listed rack references: 05154751AB, 68079506AF, 68242957AE, RL079506AG, 68079506AB, 68230030AD, 05154751AD, 68230030AA, 68242959AD, RL230030AA, 68079506AD, 68242957AD, RL079506AF and 68242957AH. Compare the complete suffix and tooth form.

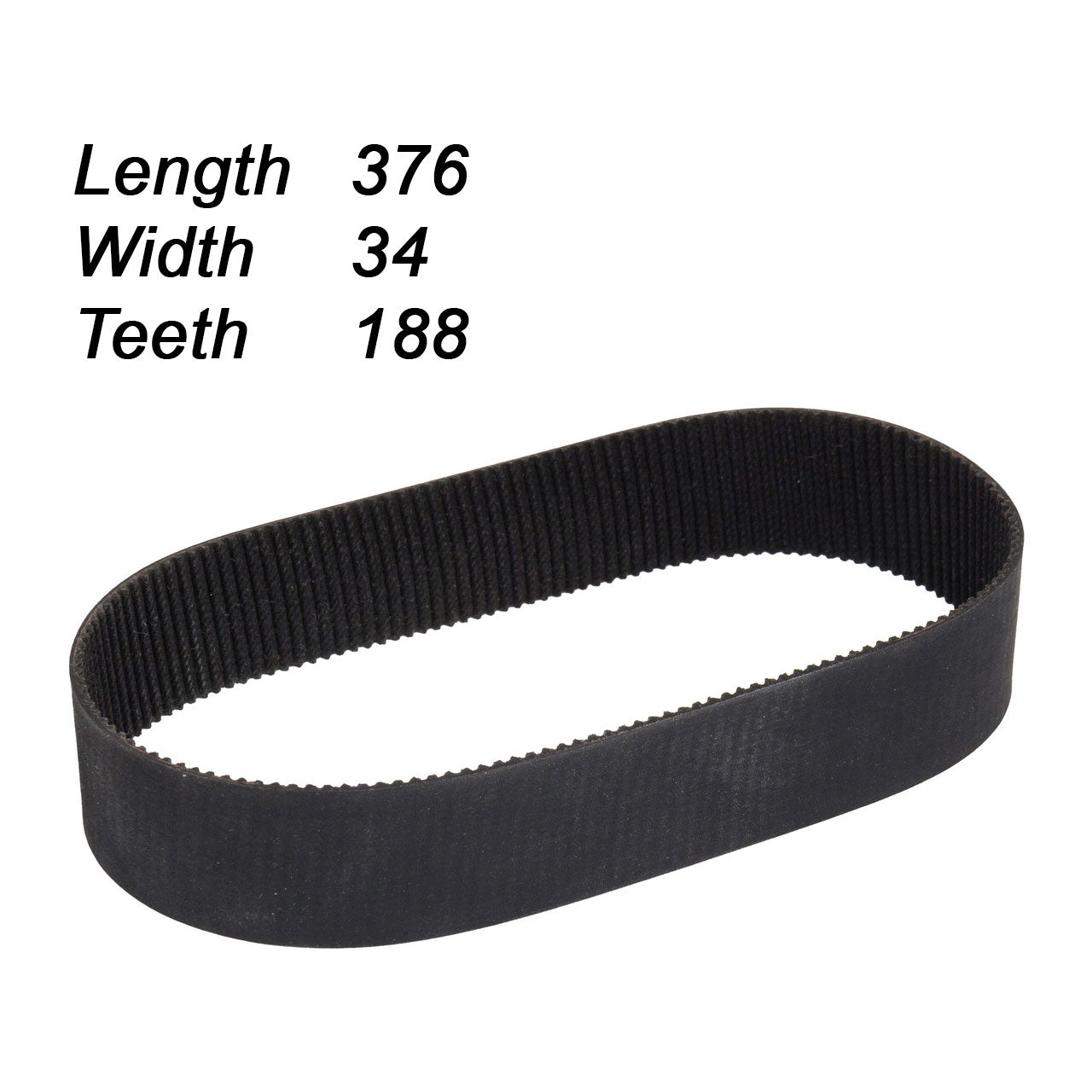

Belt Specifications
- 188 teeth.
- Width: 34mm.
- Length: 376mm.
- Angled teeth.
When to Inspect the Belt
Inspect the belt for wear, damage, deformation or incorrect seating. Check the surrounding rack mechanism when operation becomes unstable. The belt is a separate repair component, rather than a complete steering rack.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
How many teeth does the belt have?
188 angled teeth.
What are the width and length?
Width: 34mm. Length: 376mm.
What should I match before ordering?
Compare the installed rack reference, belt dimensions and tooth form; the vehicle model alone does not confirm the belt version.
Part Number / PN
68079506AF,68242957AE,RL079506AG,68079506AB,68230030AD,05154751AD,68230030AA,68242959AD,RL230030AA,68079506AD,68242957AD,RL079506AF,68242957AH,HEE4126RM,05154751AB
SKU: HEE4126RM.
