Electric Steering Rack Bushing Repair Kit - Honda CR-V - 53601SWCG02

This bushing repair kit is for the electric steering rack on the listed Honda CR-V applications. The described replacement is carried out without removing or fully dismantling the rack; match the original rack before ordering.

Applications

• Honda CR-V - general electric steering rack application context 2007-2018; select by the listed rack reference.
• Honda CR-V III - 2007-2012, 2.0L.
• Honda CR-V IV - 2012-2015, 2.0L / 2.4L.

Compatibility and Fit

Not suitable for diesel vehicles. Fit the bushing on the shaft without play. Product designation: KLCRV34. Rack references: 53601SWCG02 (53601-SWC-G02) and 53601SWCG01 (53601-SWC-G01). Match the original rack design.

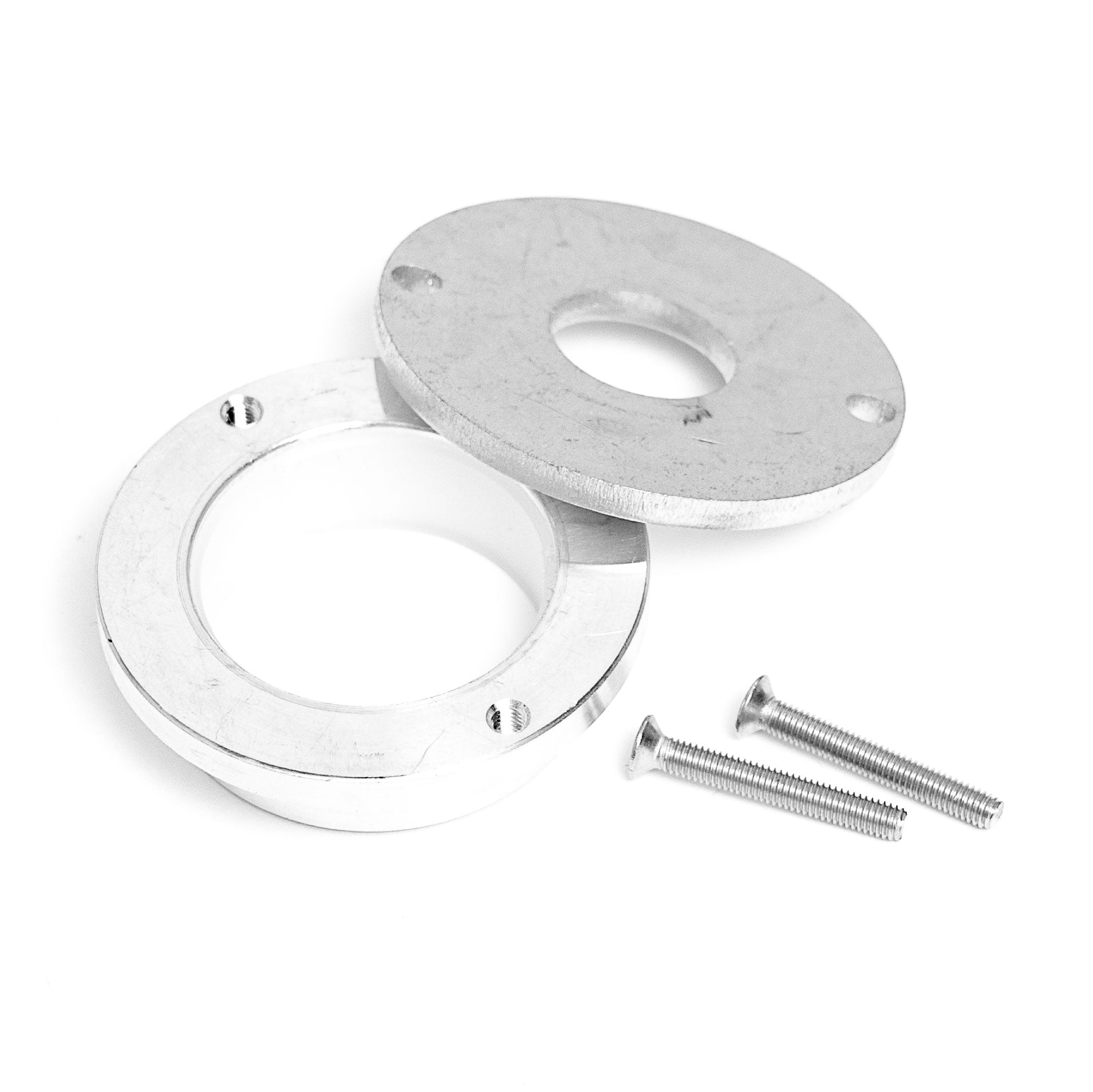

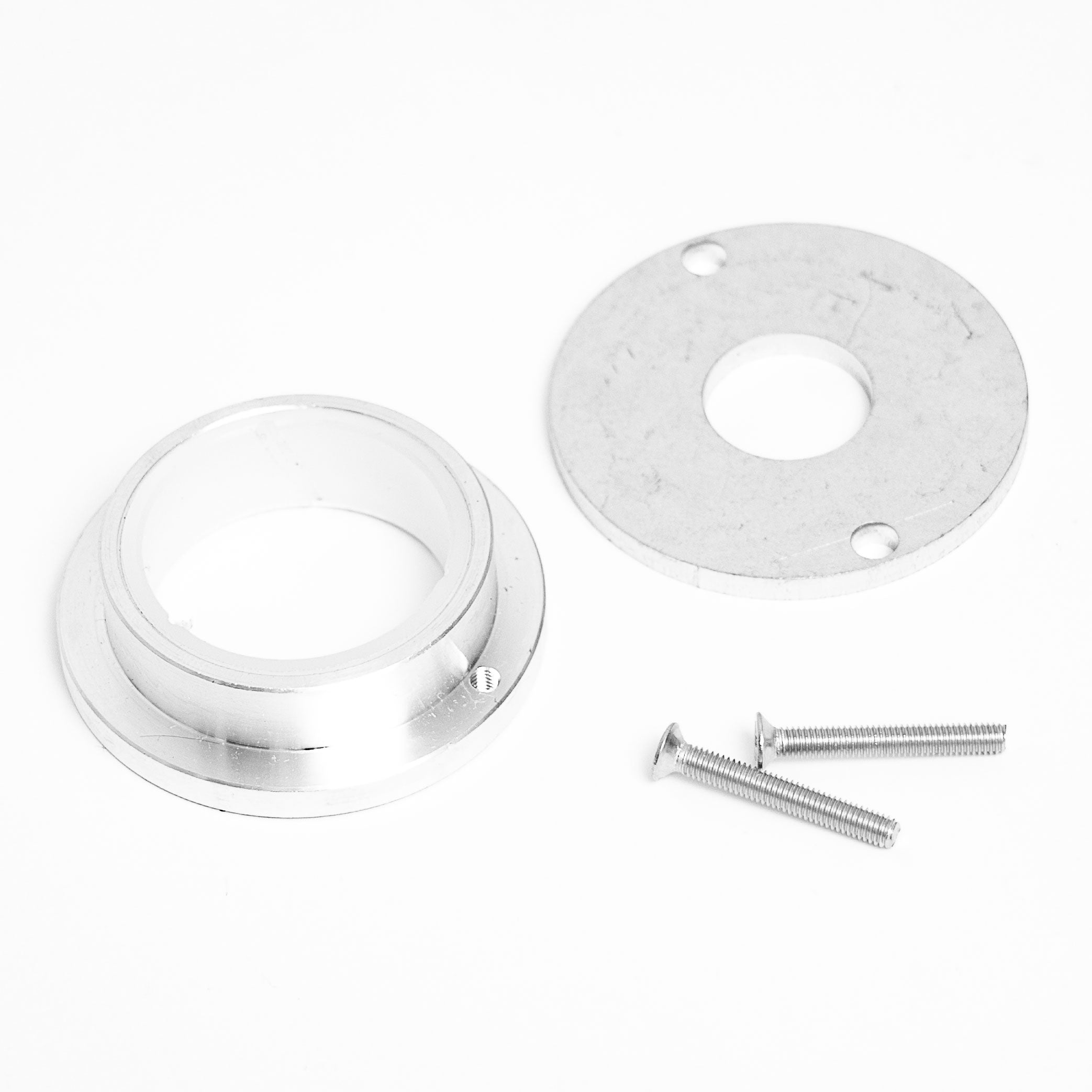

Kit Contents

• Steering rack bushing.
• Extractor and bolts.

Inspection and Repair Scope

Inspect rack knocking, wear, damage, deformation, play, incorrect seating or unstable operation. Confirm the affected component before choosing the repair. This is the bushing kit, rather than a complete rack.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Does this fit diesel vehicles?

No.

Should the bushing have play on the shaft?

No. Fit it without play.

What is supplied?

A steering rack bushing, extractor and bolts.

Part Number / PN

53601SWCG02,53601SWCG01,53416sma003,53413sma003,53600swcg03,53600swcg04,53417sma003,53419s2k003,53418s2k003,53414sma003,53458s2k003,53535sma003

SKU: KLCRV34.

Replacement Procedure

1. Remove the right wheel and clamps and pull back the right rack boot.
2. Disconnect the tie rod only from the rack and remove the rubber damper.
3. Turn the steering fully left.
4. Clean the seating area thoroughly.
5. Center the steering and insert the bushing by hand into its seat for centering. If it does not fit the shaft, wrap fine abrasive paper around a 17mm socket and adjust the insert. The bushing must fit the shaft without play.
6. Refit the tie rod by hand without the retaining ring.
7. Start the vehicle and turn the steering fully right.
8. Lubricate the rack shaft.
9. Remove the tie rod, refit the rubber damper and secure the rod with its locking feature.
10. Refit the boot in its seat and reinstall the wheel.

Extractor and Fit Adjustment

• The extractor plate is used to remove the bushing: secure it with two screws and use the rack shaft to press the bushing out.
• Adjustment option 1: if steering is excessively stiff after installation, turn it fully right with the tie rod removed. The shaft moves inward, giving access to the bushing; use abrasive paper to adjust the inner bushing surface.
• Adjustment option 2: with the shaft recessed inside the rack, attach the extractor plate to the bushing with two bolts. Start the vehicle and turn steering left so the shaft presses the bushing out. Adjust the bushing on the shaft without play and press it back into place.
