Steering Rack Bushing Repair Kit - Honda Accord VIII 2.4L - 53601TL1305

This bushing repair kit is for the passenger-side electric steering rack on the listed Honda 2.4L applications. The described repair is carried out without removing or fully dismantling the rack.

Applications

• Honda Accord VIII - 2008-2012, 2.4L only; CU2 body context.
• Honda Crosstour - 2009-2016 model context; only the 2.4L version with a matching listed electric rack.

Engine Restriction and Selection

Only for the listed 2.4L applications. Not suitable for diesel vehicles. Listed 2.4L engine designations: K24A, K24Z2, K24Z3, K24A1, K24Z1, K24Z4, K24Z6. Match the installed rack and component design; engine designation alone does not establish the required rack version.

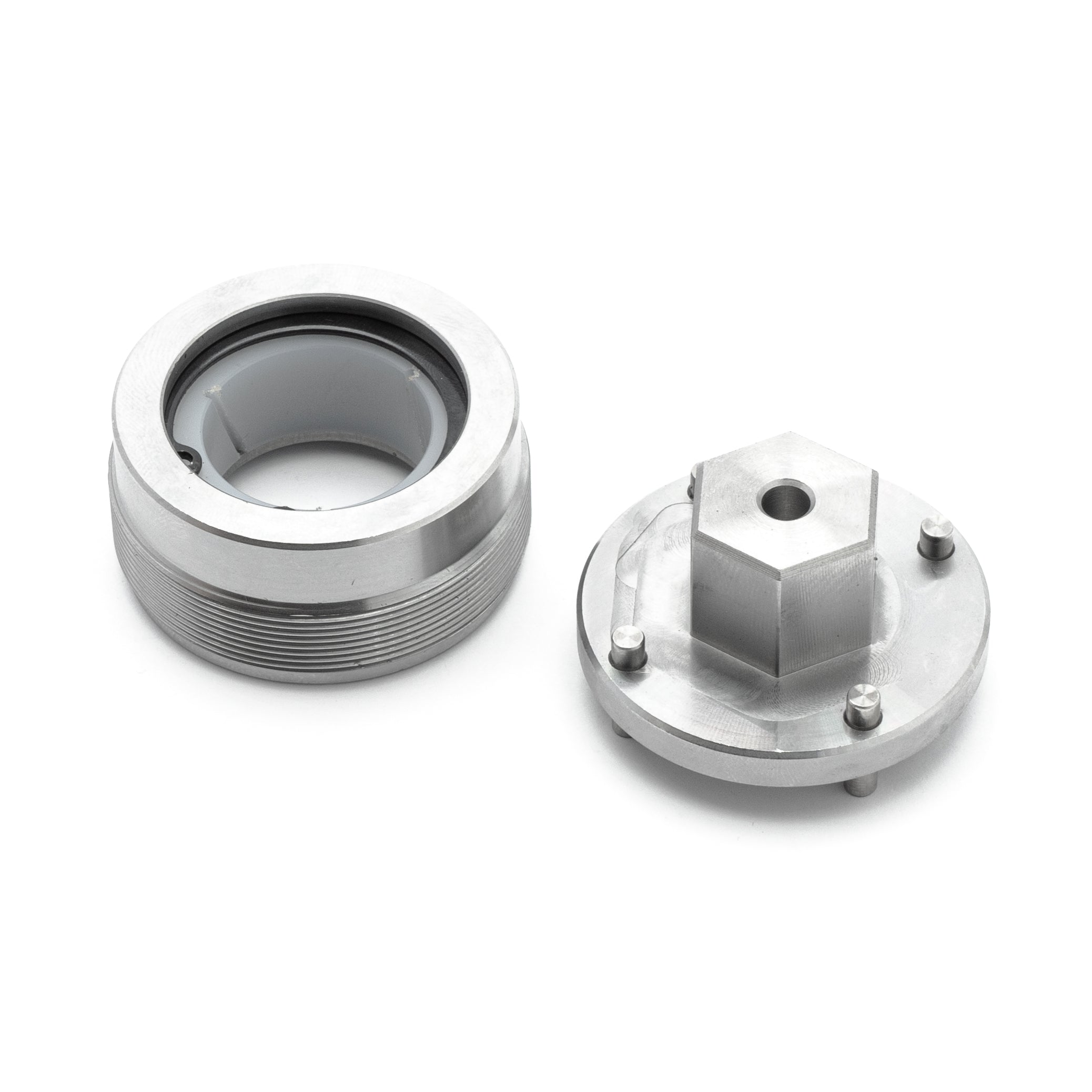

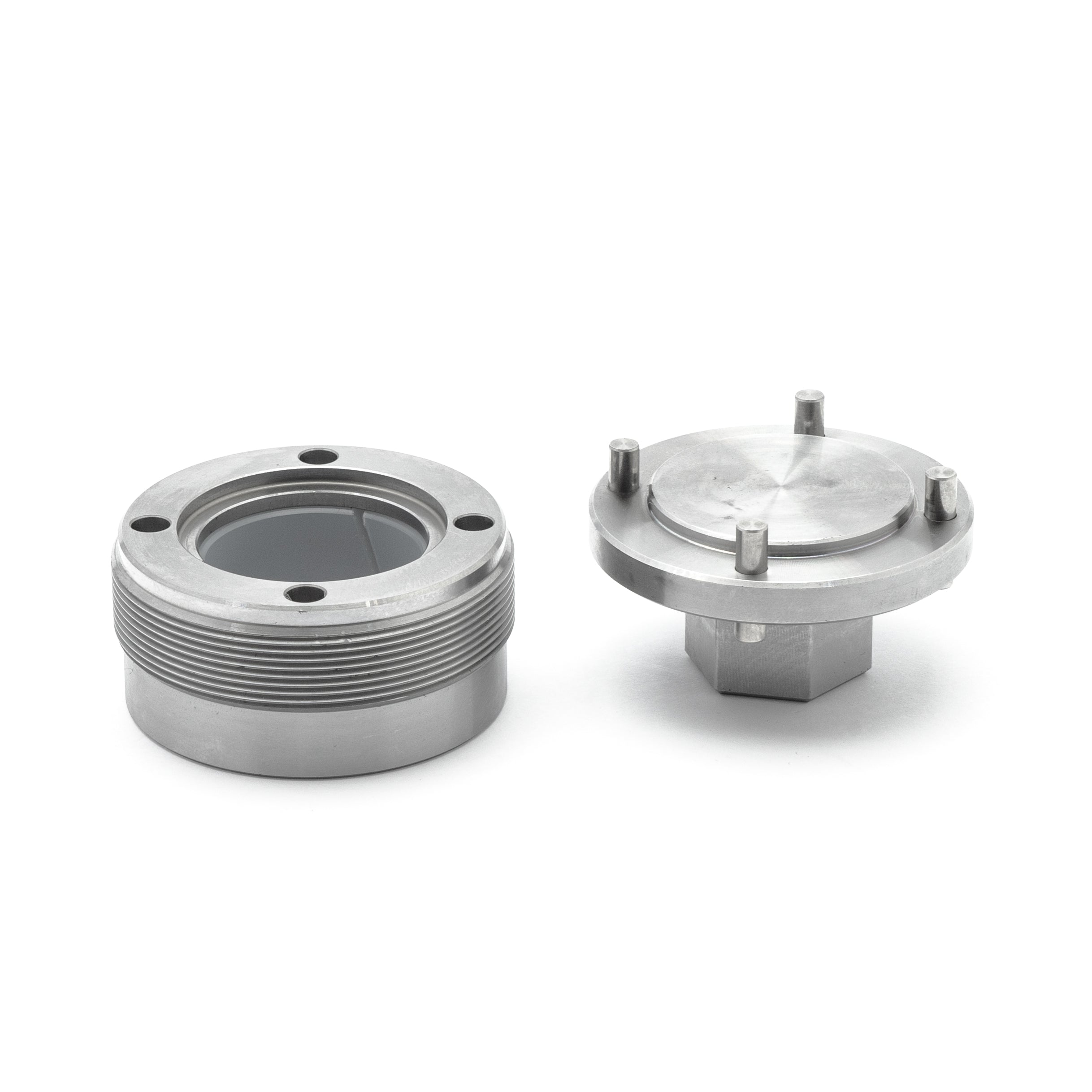

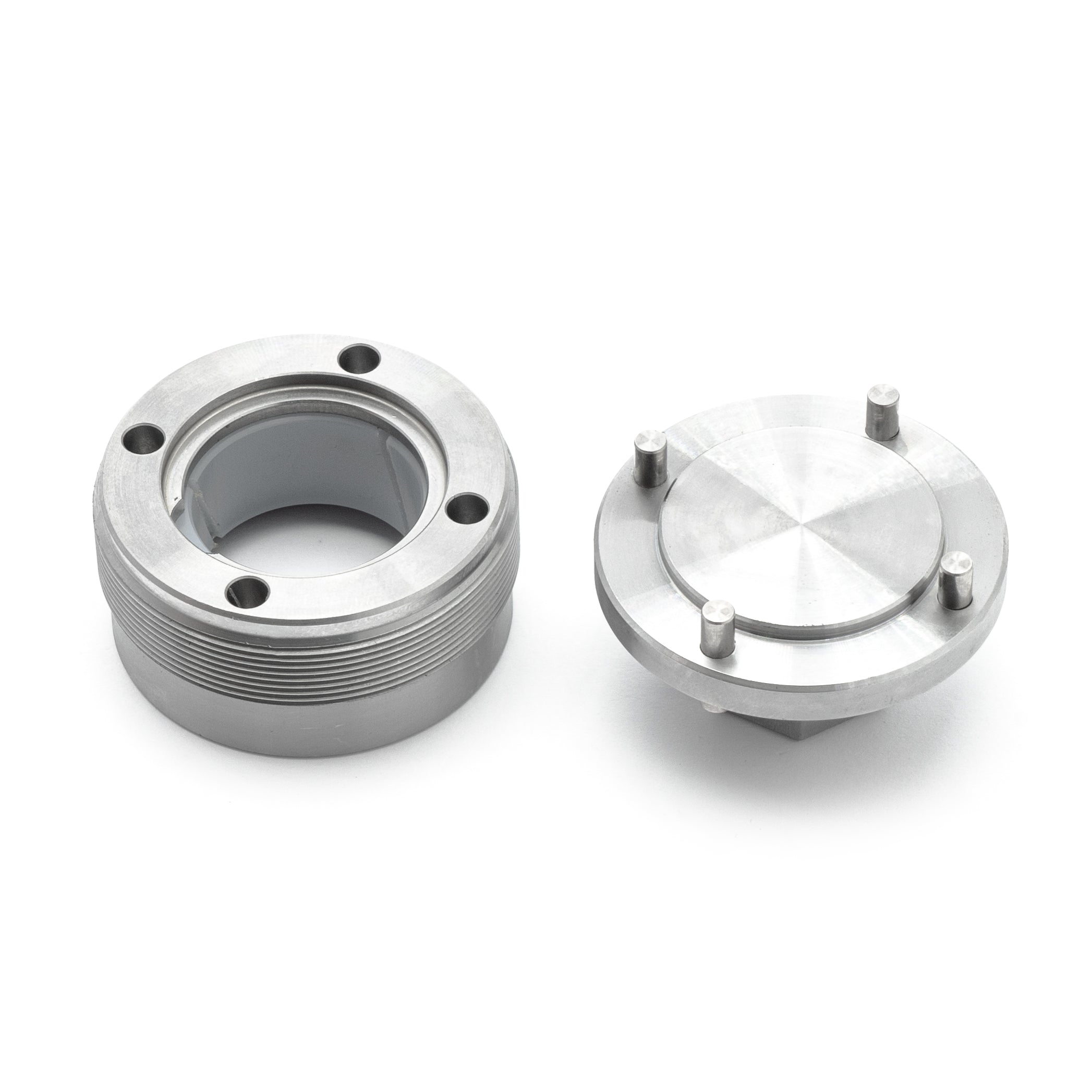

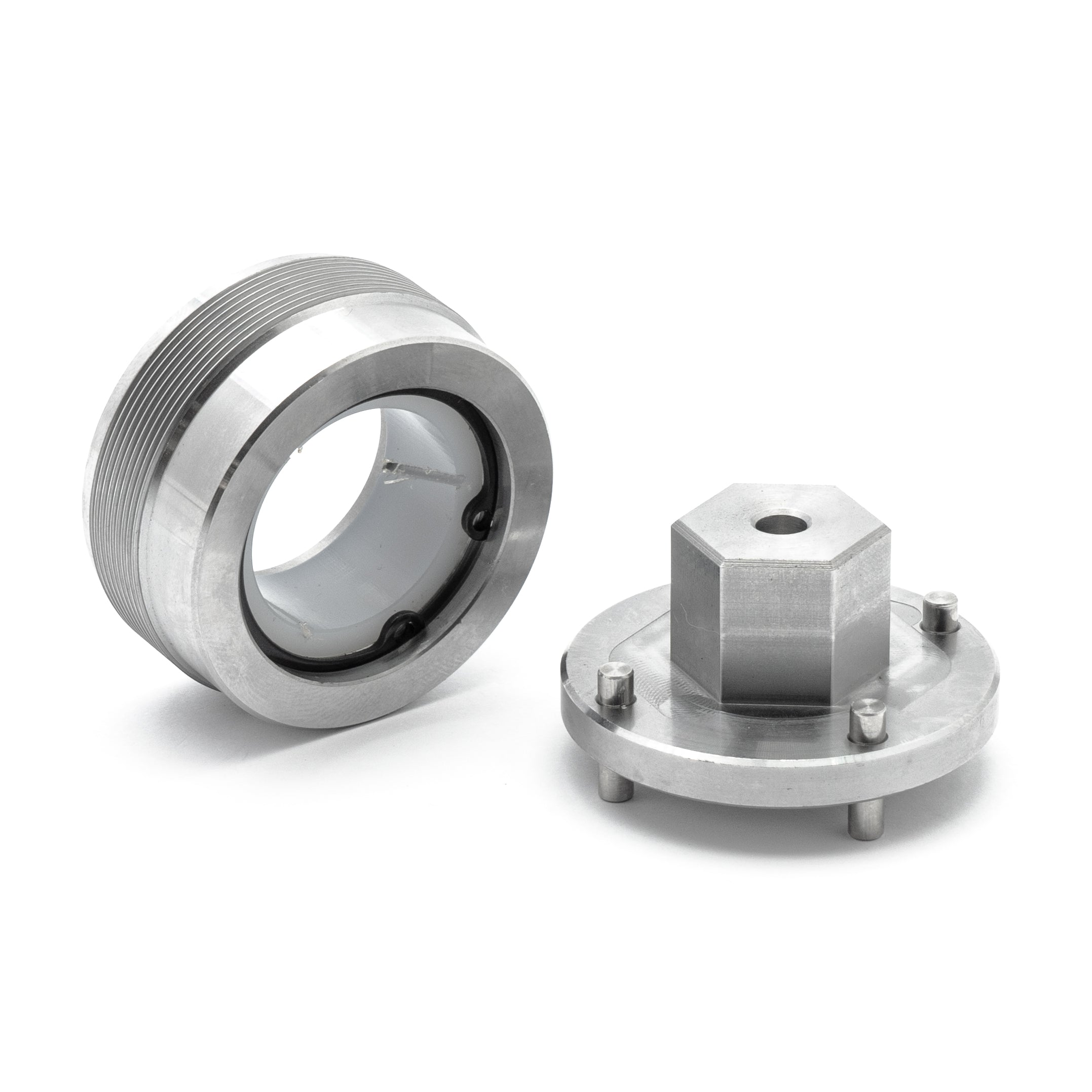

Kit Contents

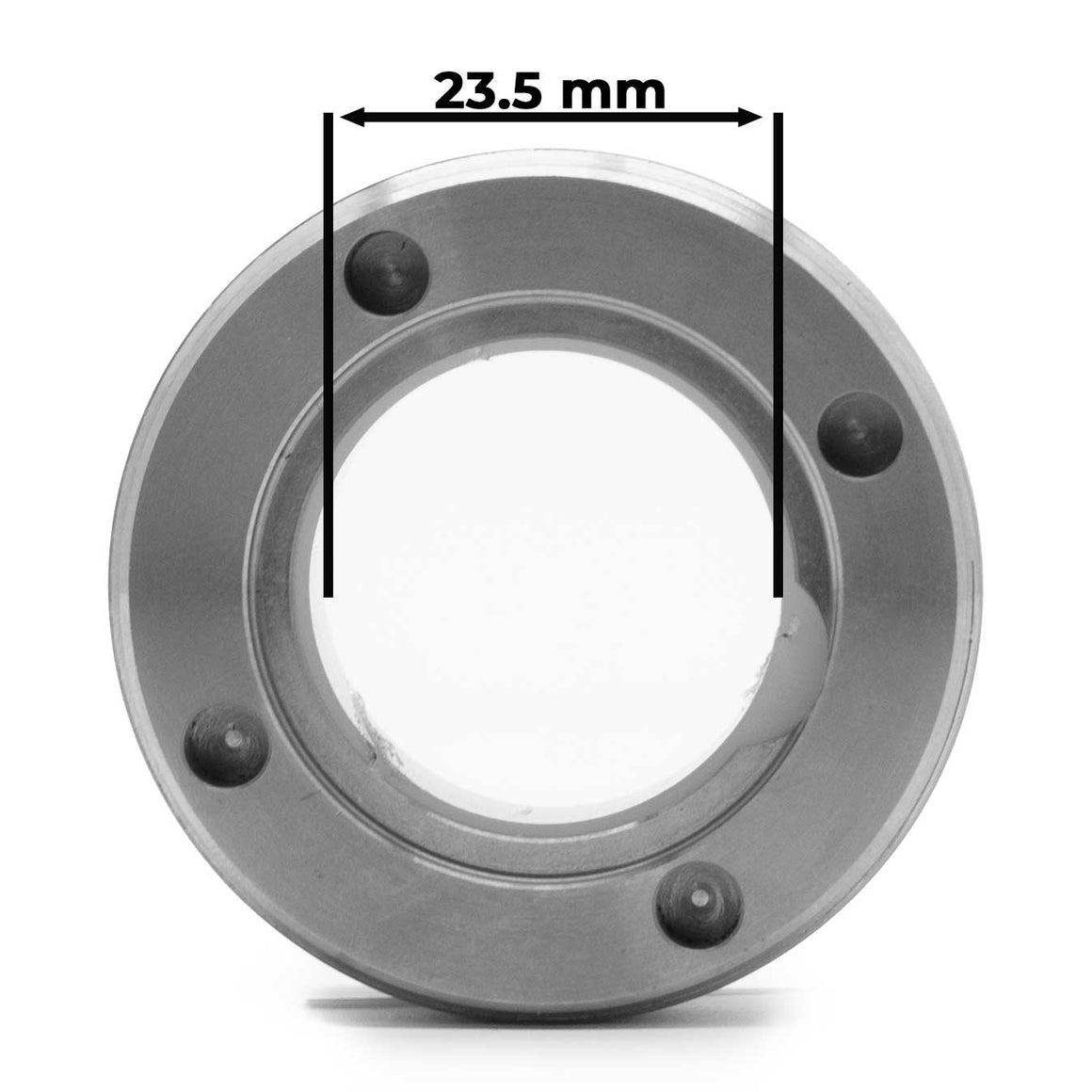

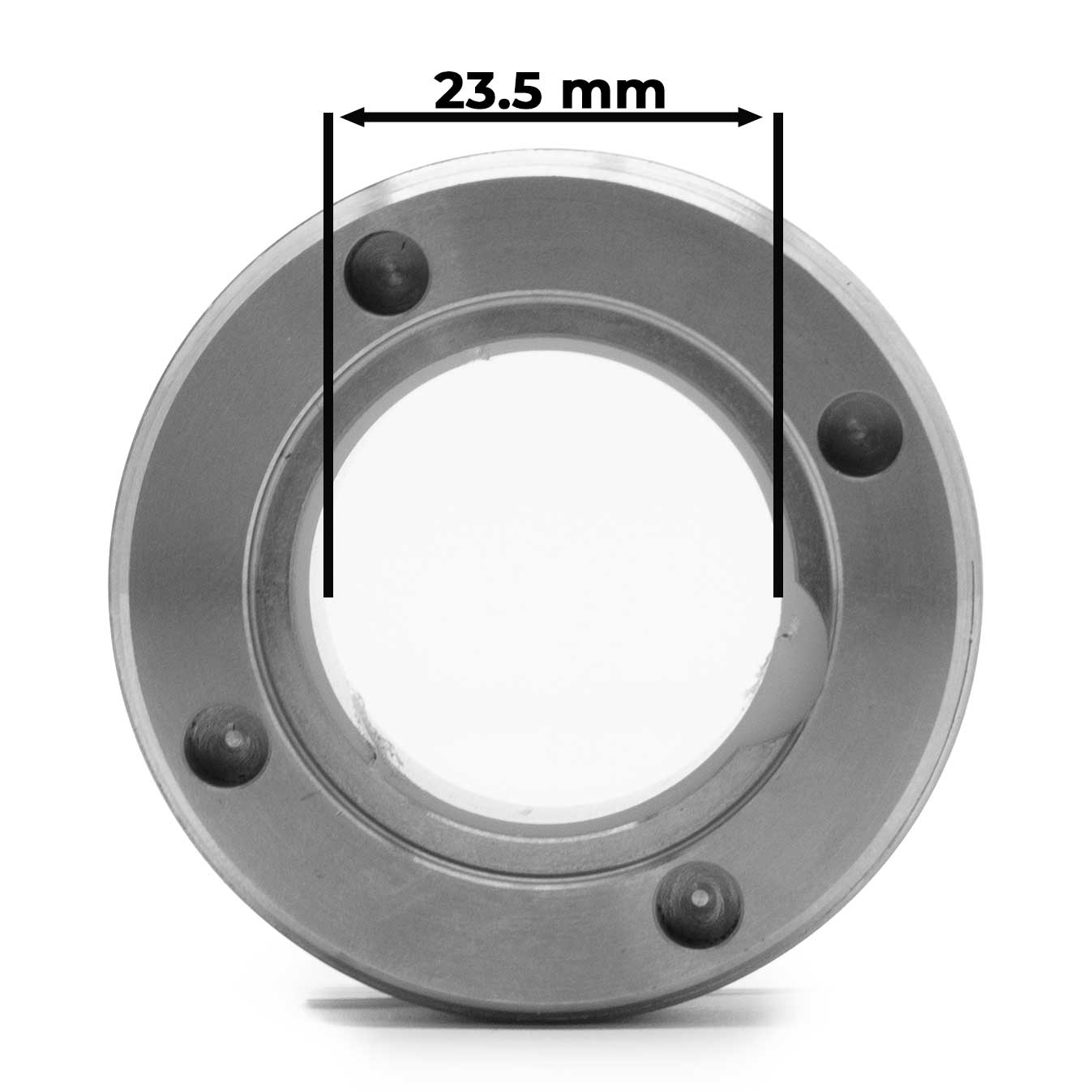

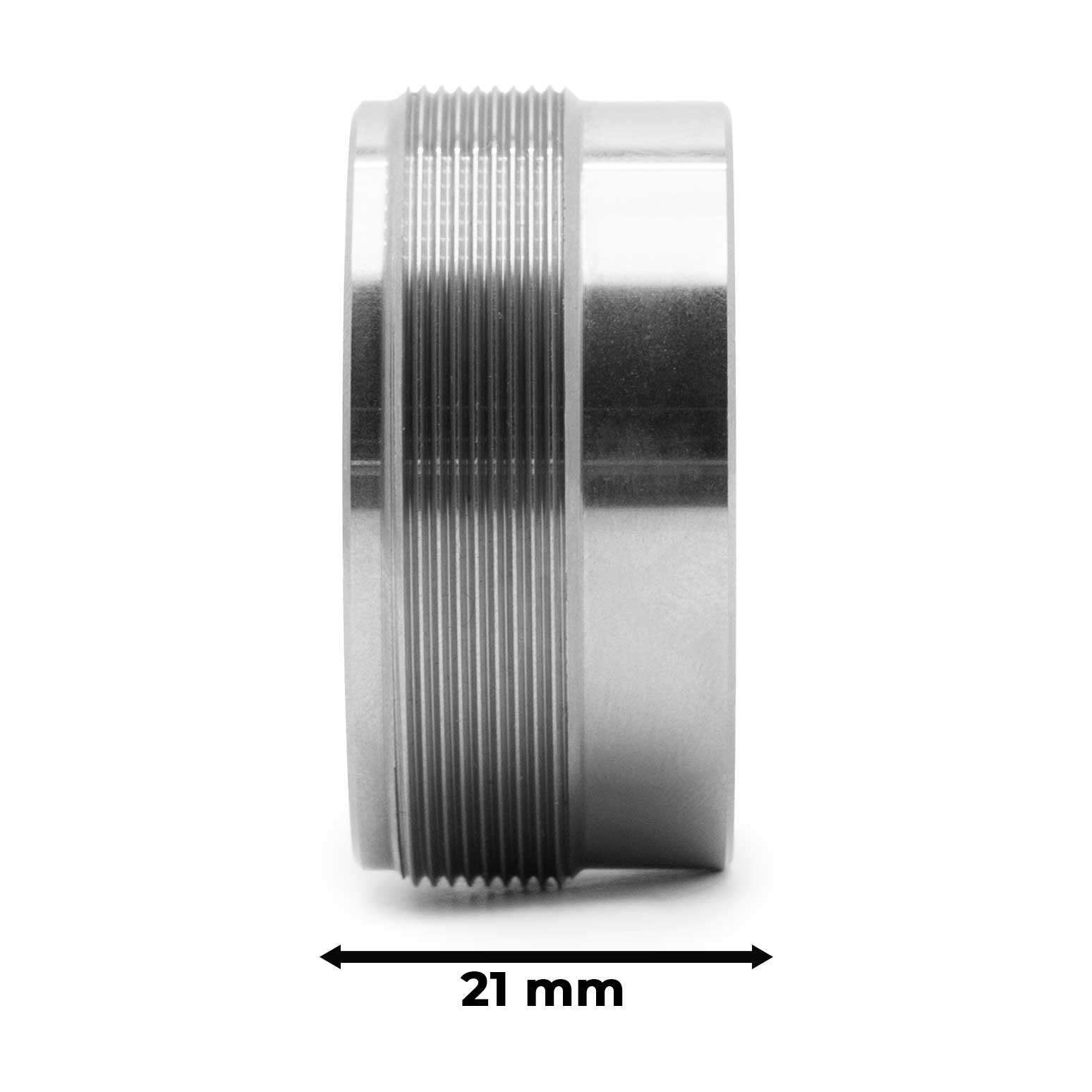

• Steering rack bushing.
• Extractor tool - 17mm socket designation.

Rack Reference Selection

Listed rack / related reference forms: 53601TL1G03, 53601TL1305, 53601TL1G22, 53416TL0G01, 53413SZ3A01, 717521368, KSR045, 171368, TS2188L and R0812. Additional forms: 53601tl1e01, 53601tl3e11 and 53601tl3e12. Match the full original marking.

Inspection and Repair Scope

Inspect passenger-side knocking, wear, damage, deformation, play, incorrect seating or unstable operation. Knocking is described around 100 000 km, but mileage alone does not establish the condition or repair required. This is the bushing repair kit, rather than a complete steering rack.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which engine size is allowed?

Only 2.4L for the listed applications.

Does this fit diesel vehicles?

No. Diesel vehicles are excluded.

What is supplied?

A steering rack bushing and extractor tool.

Which side does the described repair address?

The passenger side of the electric steering rack.

Part Number / PN

53601TL1305,53601TL1G22,53416TL0G01,53413SZ3A01,717521368,171368,TS2188L,53601TL1G03,53601tl1e01,53601tl3e11,53601tl3e12

SKU: KLCU1CU2.

Replacement Procedure

1. Remove the right wheel and clamps and pull the right rack boot back. Disconnect the tie rod only from the rack and remove the rubber damper.
2. Turn the steering fully right.
3. Heat the factory nut seat with a heat gun in circular movements around the housing outline from 10-15cm away to soften thread sealant. Do not direct the heat inside toward the shaft.
4. Fit the extractor, insert a 19mm socket and unscrew the factory nut.
5. Clean sealant from the thread. Use P 1000 abrasive paper to dull the sharp shaft chamfer edge so the kit can fit without damage.
6. Trial-fit the kit on the shaft. If it does not fit, wrap P 2000 abrasive paper around a 16mm socket and adjust the bushing insert so it fits by hand with slight resistance and no play.
7. Apply a drop of sealant to the kit thread and screw it into the rack. Lubricate the rack shaft and the inside of the bushing.
8. Refit and secure the tie rod with its locking feature.
9. Refit the boot in its seat and reinstall the wheel.

• Honda
