Steering Rack Bushing Repair Kit - Honda Accord IX Acura TLX 2.4L - 53601T2FA03

This bushing repair kit is for the passenger-side electric steering rack repair on the listed Honda Accord IX and Acura TLX 2.4L applications. The described repair is carried out without removing the rack.

Applications

• Honda Accord IX - 13-17, 2.4L.
• Acura TLX - 2014-2017, 2.4L.

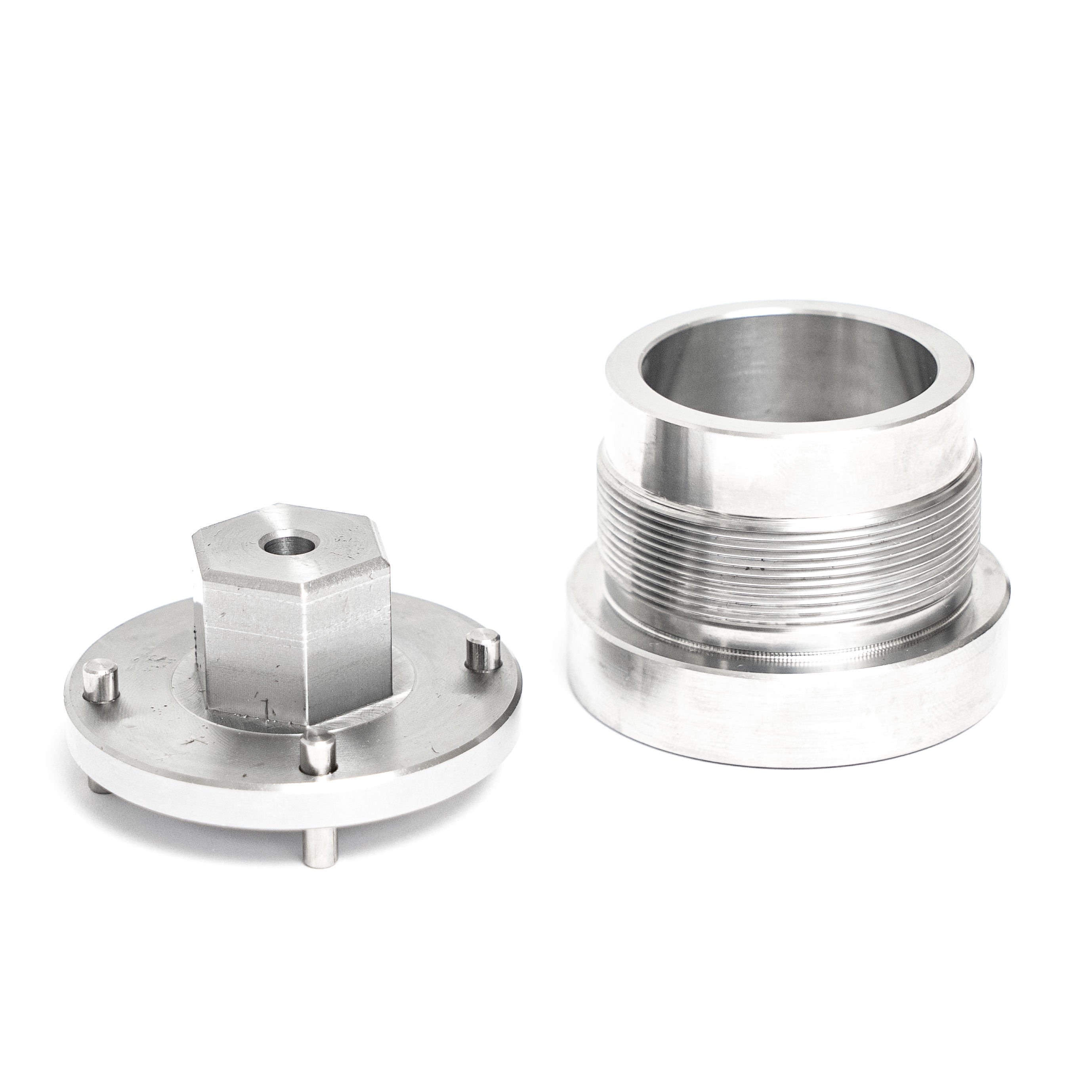

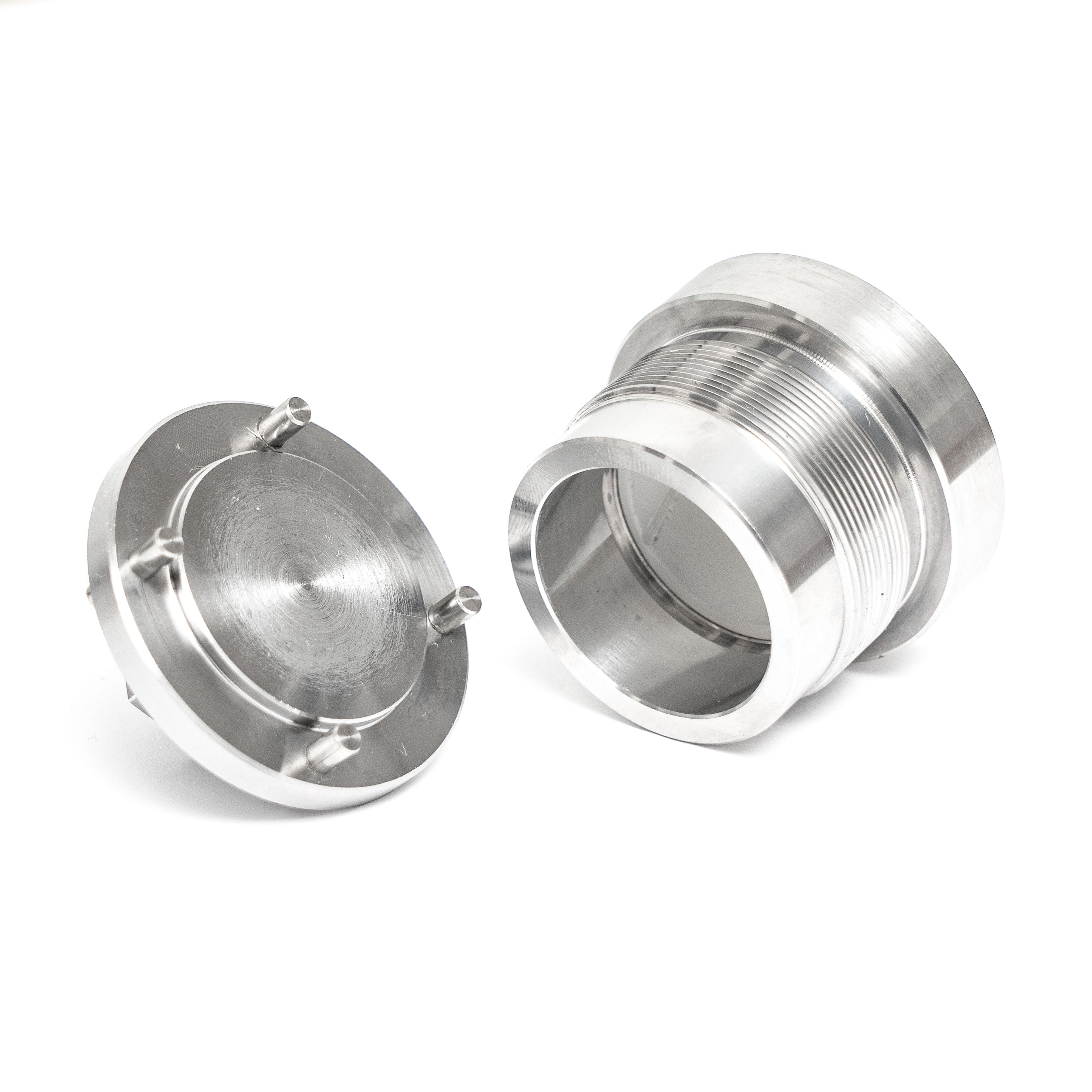

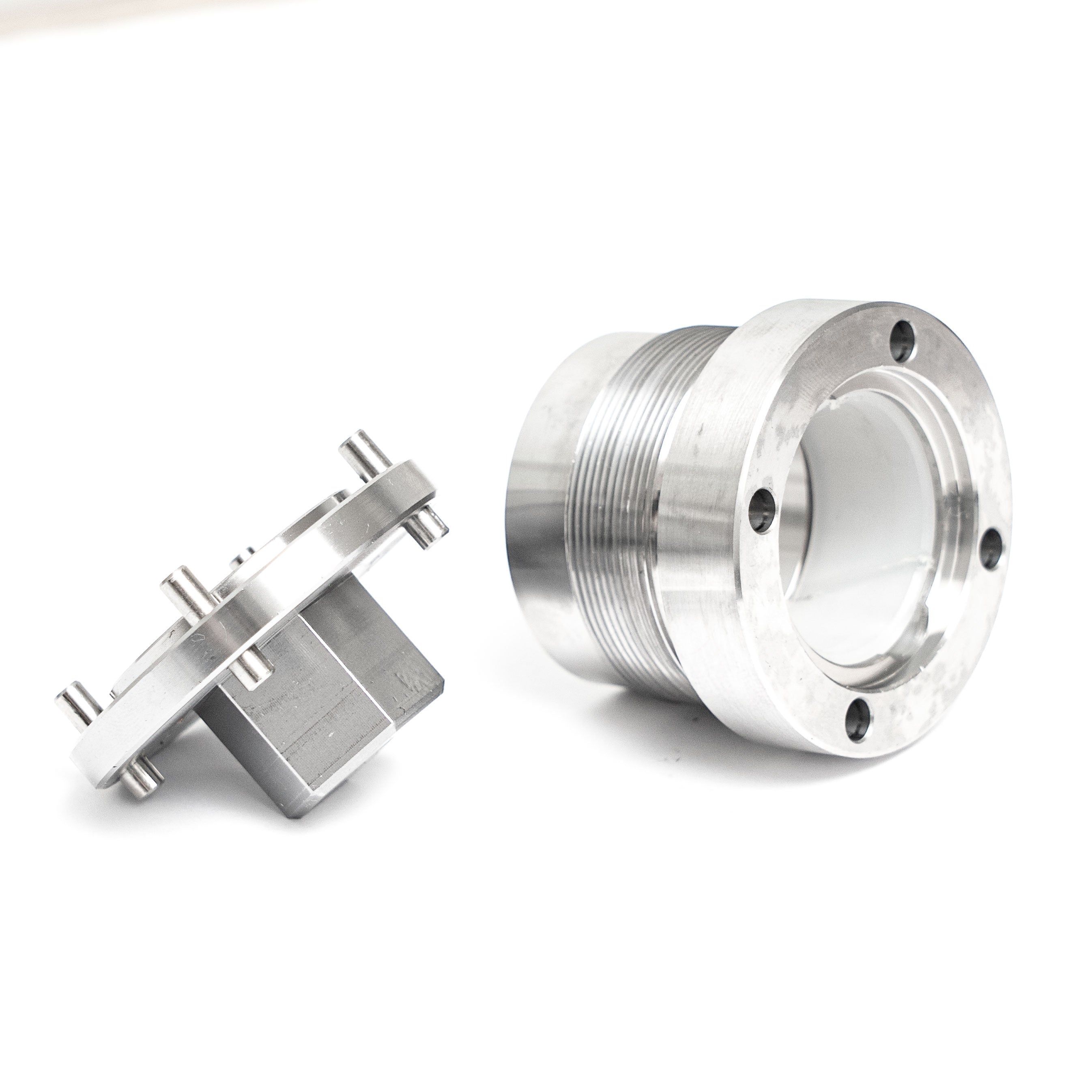

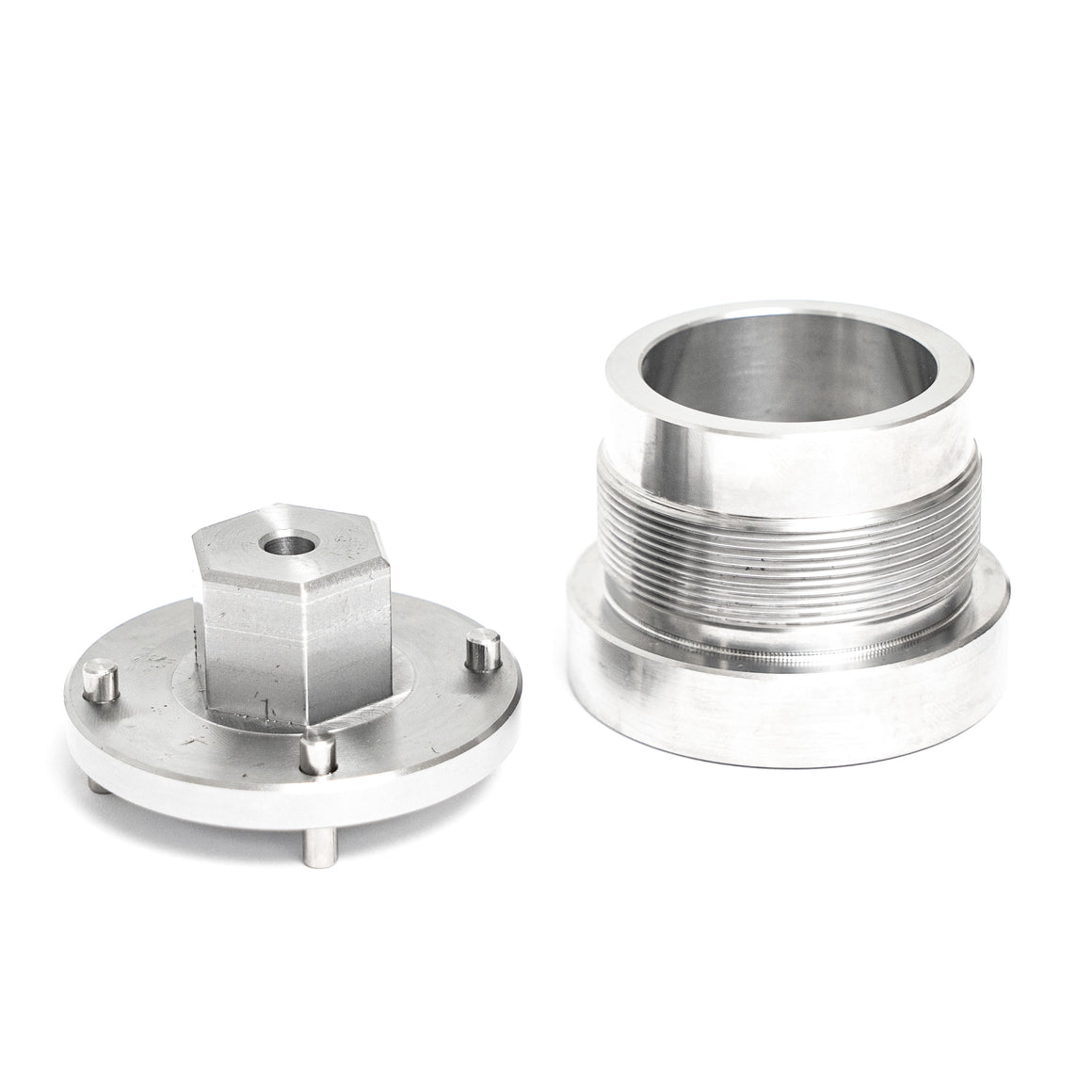

Kit Contents

• Steering rack bushing.
• Extractor tool - 17mm socket designation.

Rack Selection and Repair Scope

Listed rack references: 53601T2FA01, 53601T2FA03, 53601T2FA94, 53601T2FA02, 53601T2FA04 and 53601TZ4A01. Match the exact rack and repair component design. Inspect passenger-side knocking, wear, damage, play, deformation, incorrect seating or unstable operation before choosing this bushing repair. This is a repair kit, rather than a complete rack.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which engine size is listed?

2.4L.

What is included?

A steering rack bushing and extractor tool.

Can the repair be carried out without rack removal?

The described procedure repairs the passenger-side bushing without removing the rack.

Part Number / PN

53601T2FA03,53601T2FA94,53601T2FA02,53601T2FA04,53601T2FA01,53601TZ4A01

SKU: KLACC9.

Replacement Procedure

1. Remove the right wheel and clamps and pull the right rack boot back. Disconnect the tie rod only from the rack and remove the rubber damper.
2. Turn the steering fully to the right.
3. Use a heat gun in circular movements around the housing outline at the factory nut seat, from 10-15cm away, to soften the thread sealant. Do not direct heat inside toward the shaft.
4. Fit the extractor, insert a 19mm socket and unscrew the factory nut.
5. Clean thread sealant from the thread. Use P 1000 abrasive paper to dull the sharp shaft chamfer edge so the kit can pass without damage.
6. Trial-fit the kit on the shaft. If it does not fit, wrap P 2000 abrasive paper around a 17mm socket and adjust the bushing insert so it fits by hand with slight resistance and no play.
7. Apply a drop of sealant to the kit thread and screw it into the rack. Lubricate the rack shaft and inside of the bushing.
8. Refit the tie rod and secure it with its locking feature.
9. Refit the boot in its seat and reinstall the wheel.
