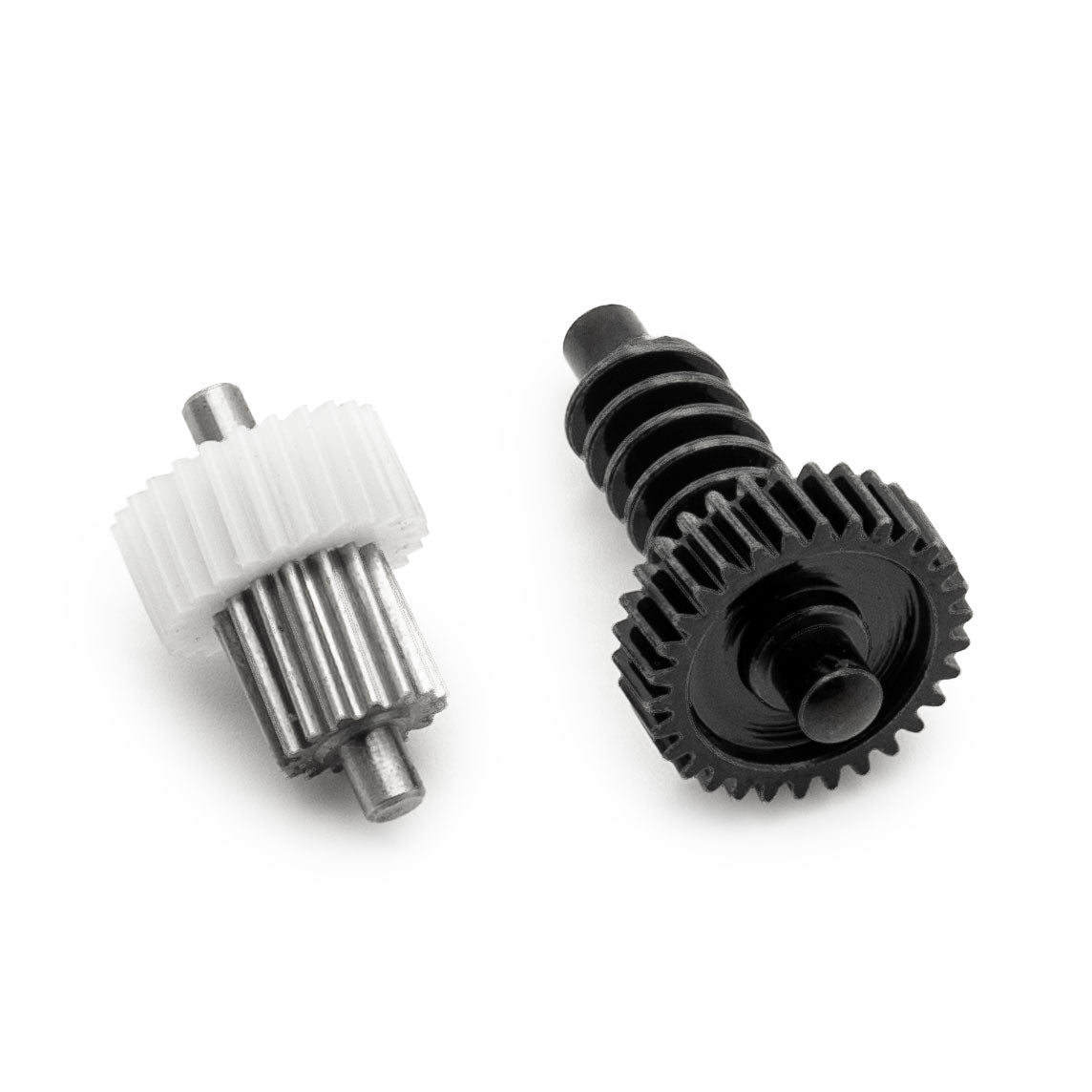

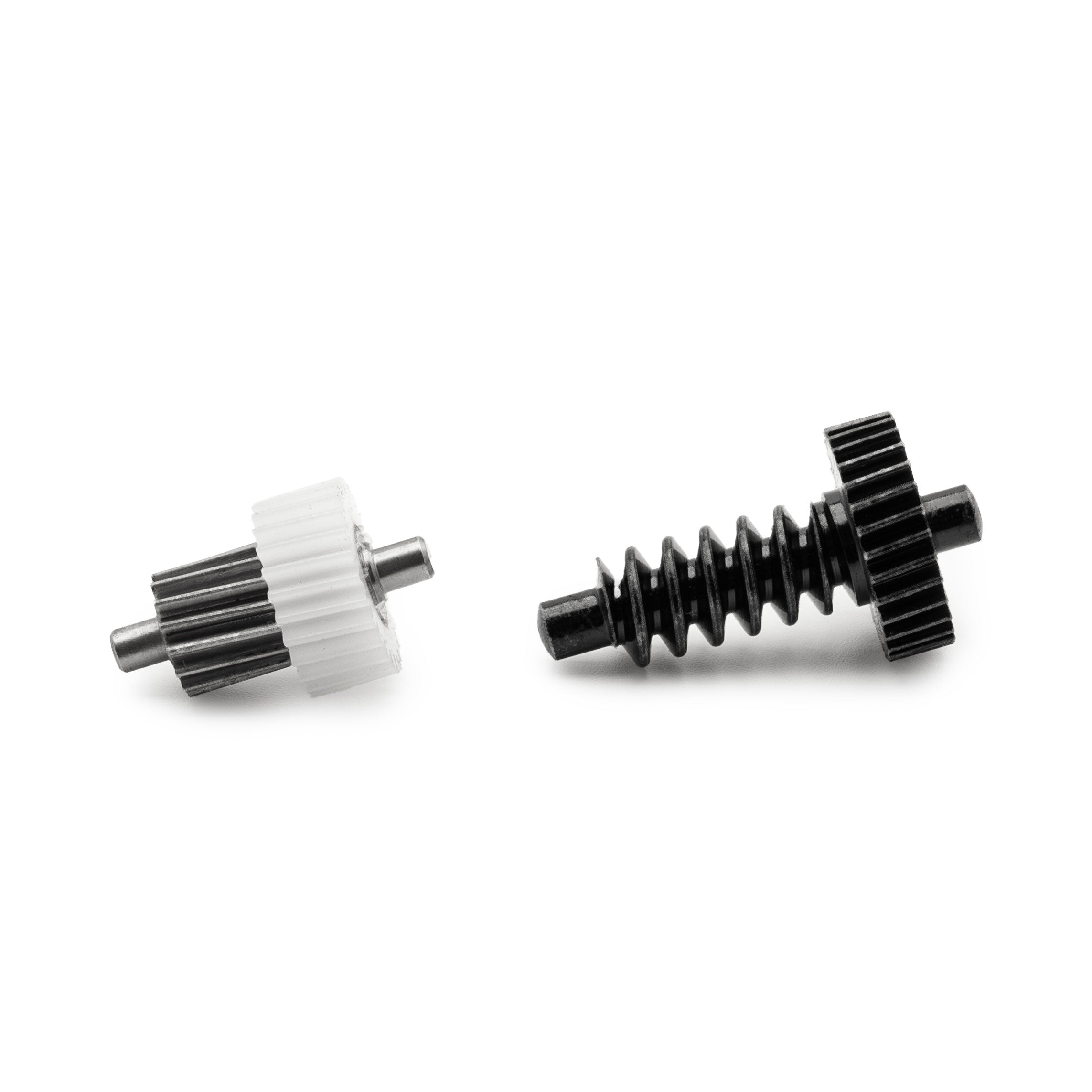

This gear repair kit is for the mirror mechanism on the listed Hyundai and Kia applications. Match the original gear design, marking and tooth counts before ordering.
Applications
- Hyundai Azera.
- Hyundai ELANTRA.
- Hyundai I20 (i20).
- Hyundai Grandeur.
- Hyundai I30 (i30).
- Hyundai Santa Fe - 2012-2018.
- Kia Soul.

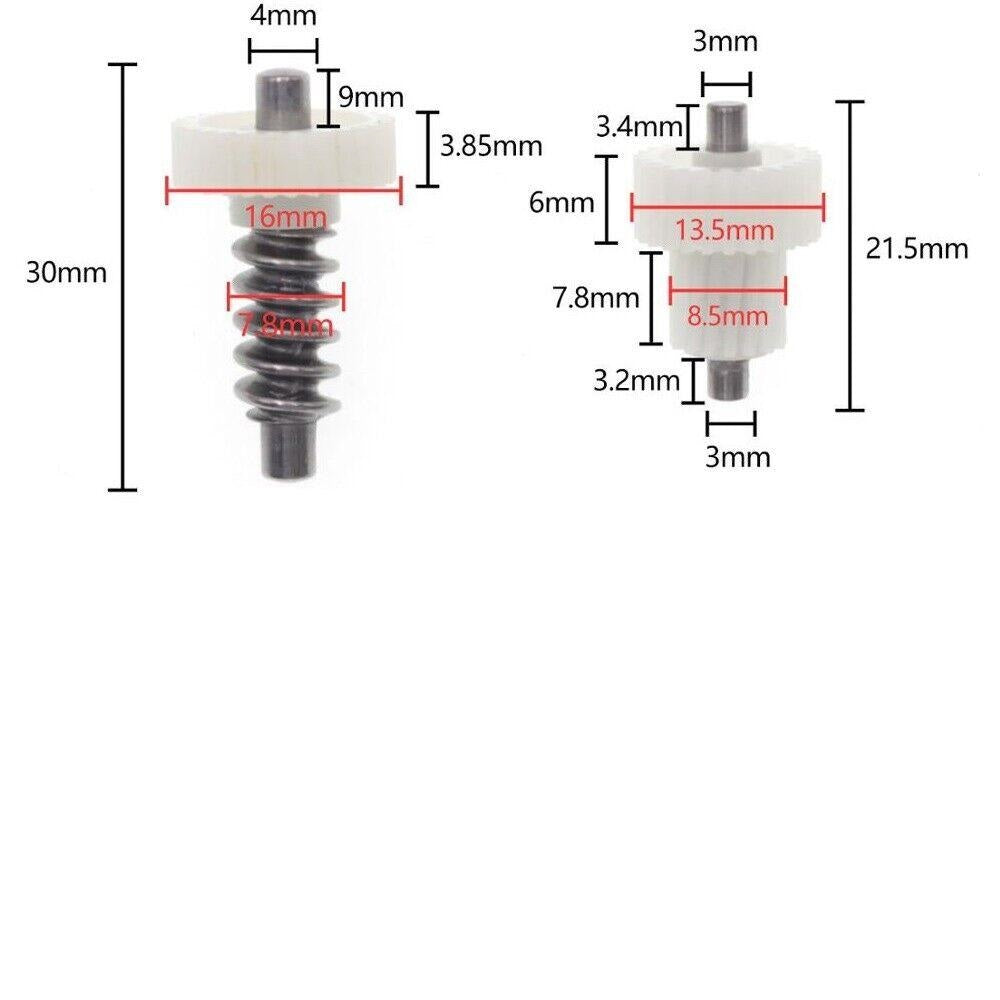

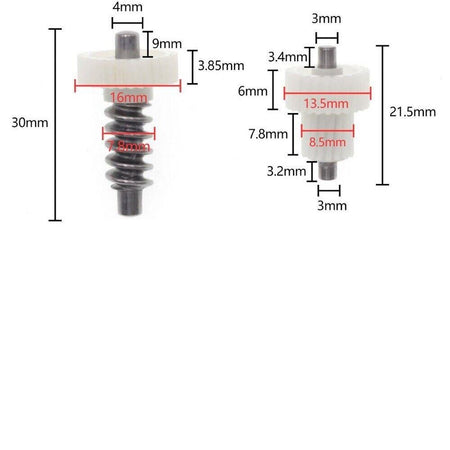

Gear Tooth Counts
- Large circle: 25 teeth.
- Lower circle: 15 teeth.
- Large gear: 30 teeth.
Marking and Inspection
Listed reference / marking forms: FC260SD14270, SD14270 and FC260. Inspect wear, damage, deformation, play and incorrect seating of the original mechanism. Compare the actual gear shape, dimensions and mounting before replacement.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
Are 25, 15 and 30 package quantities?
No. They are tooth counts for the listed gear positions.
Which Santa Fe period is listed?
2012-2018.
Which markings should be compared?
FC260SD14270, SD14270 and FC260, along with the actual gear design.
Part Number / PN
SD14270,FC260SD14270
SKU: KLFC260SD14270.
