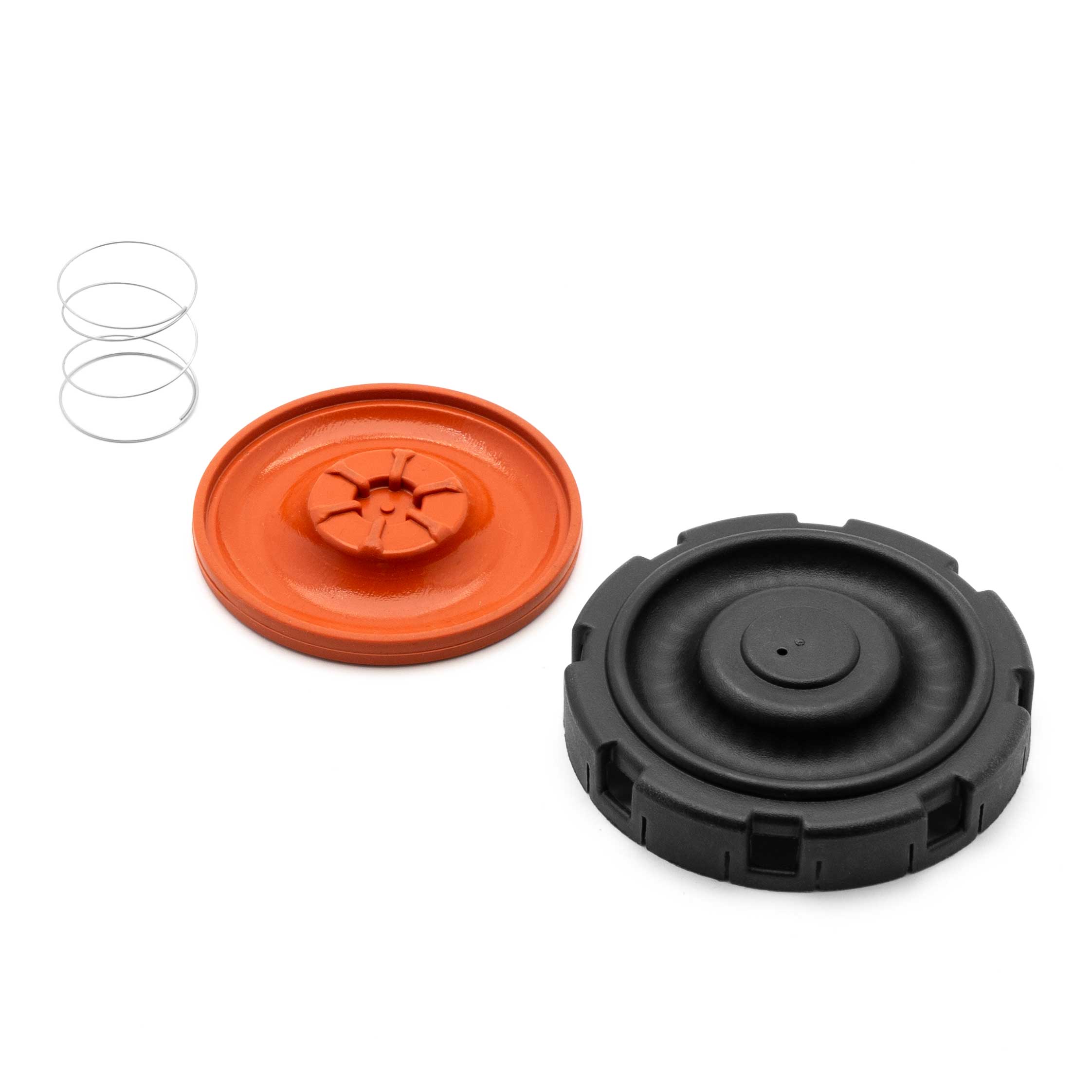

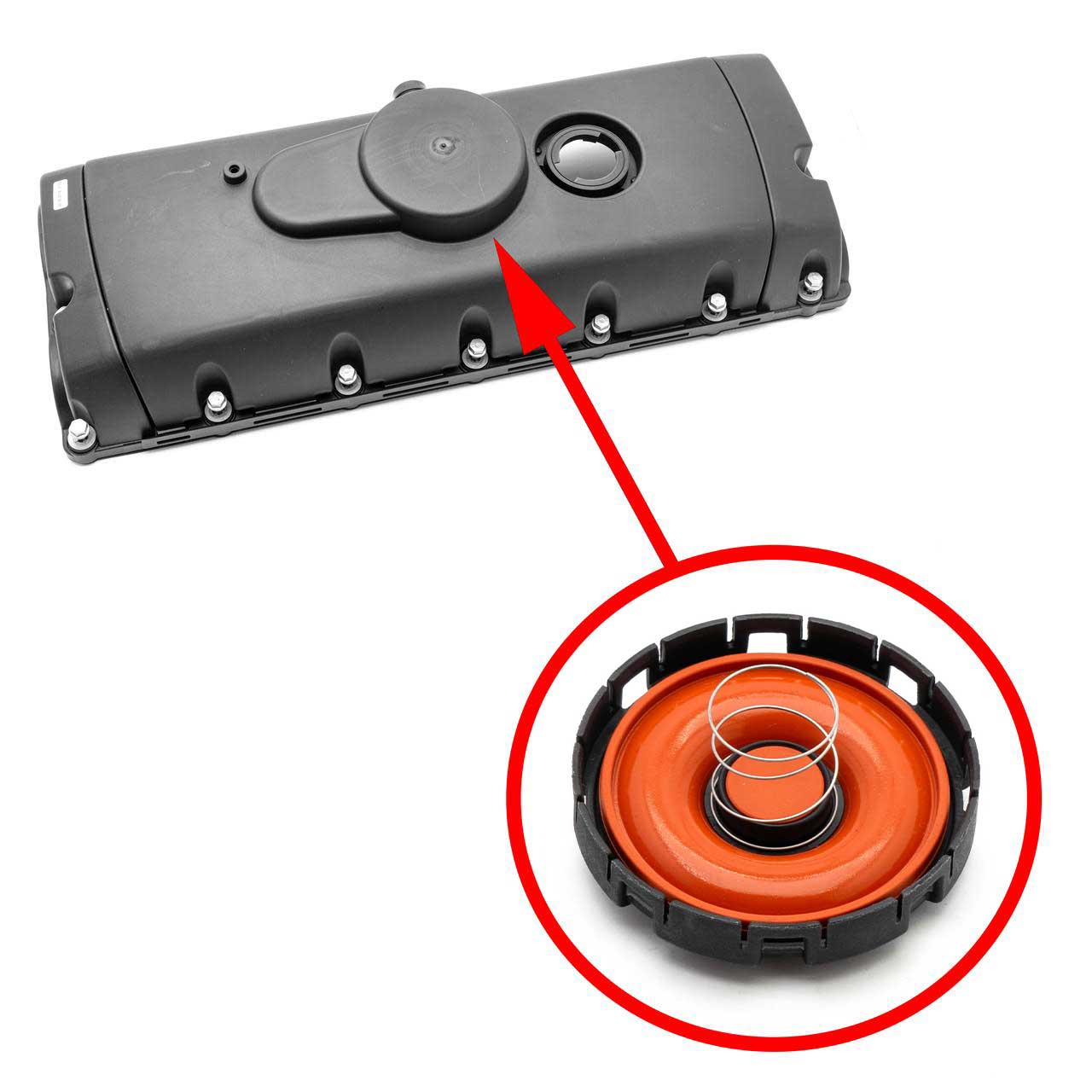

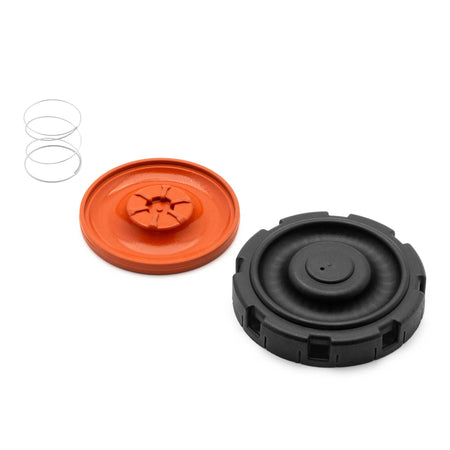

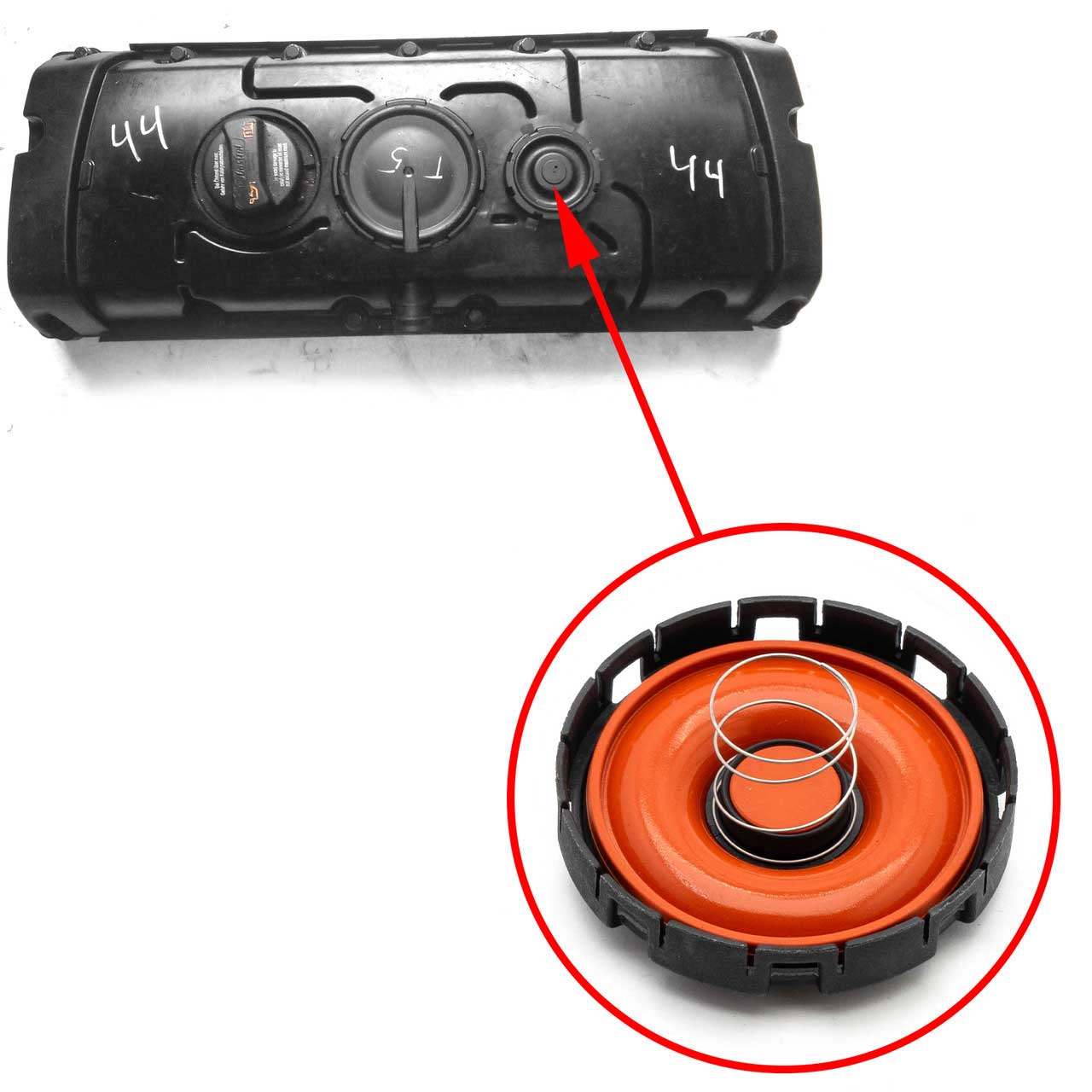

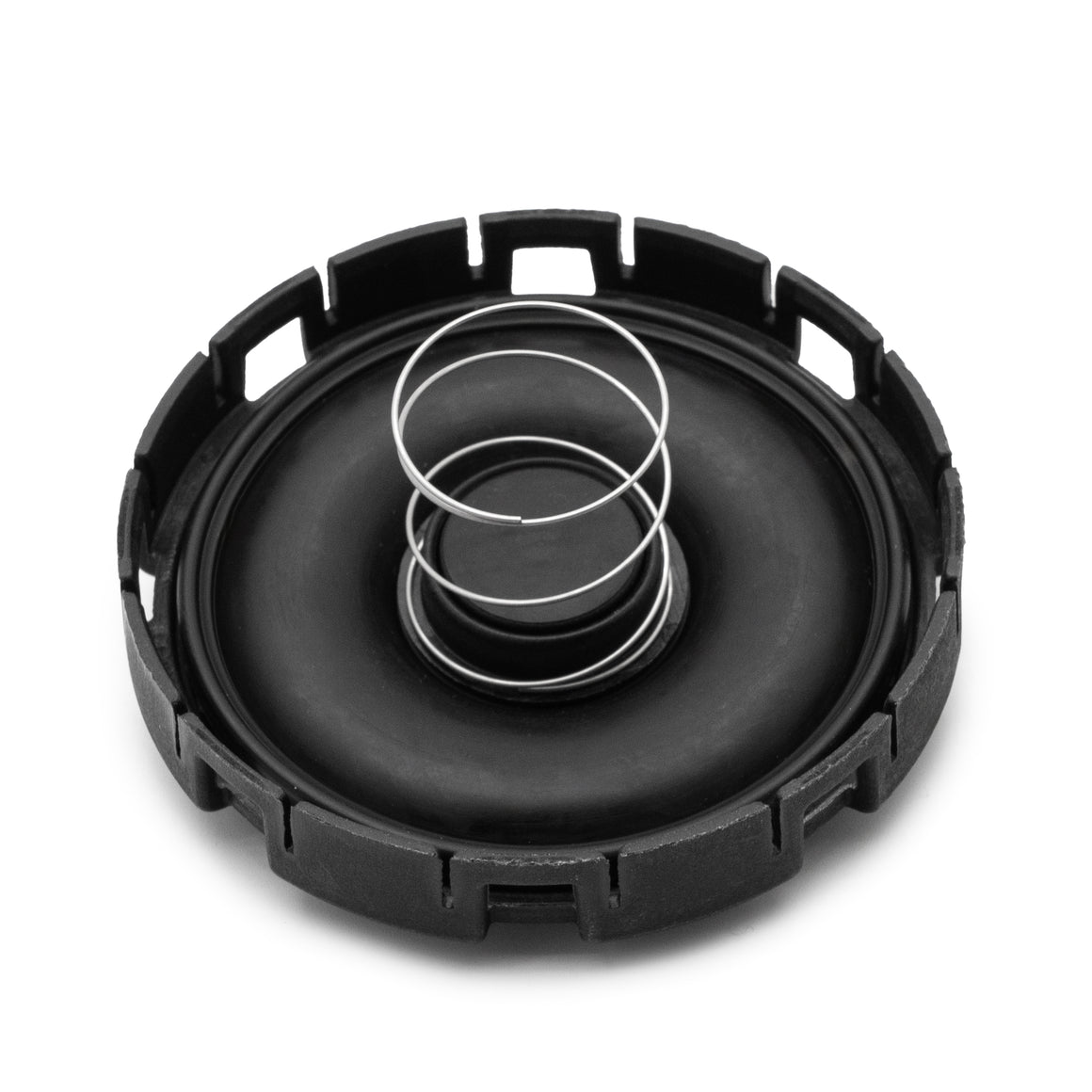

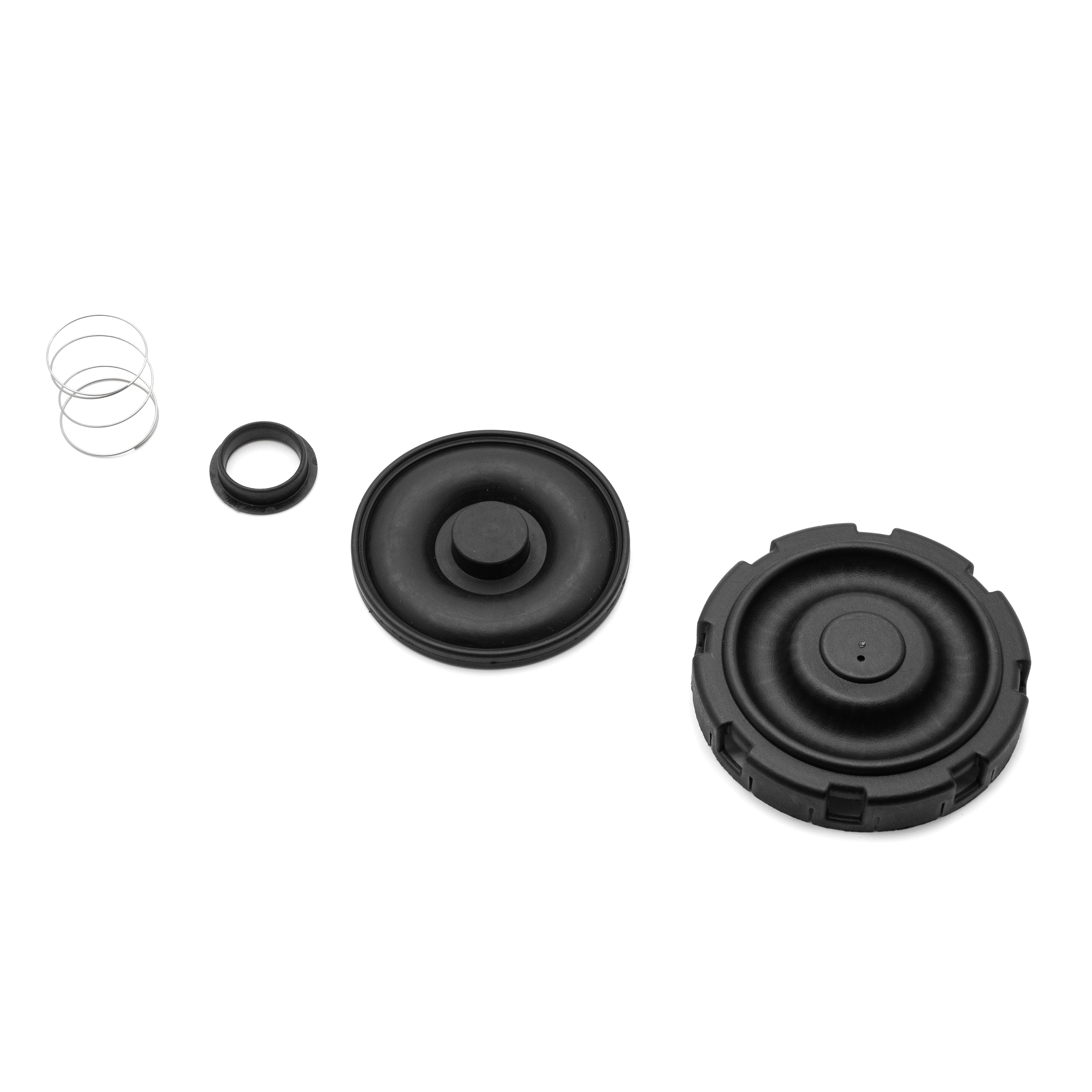

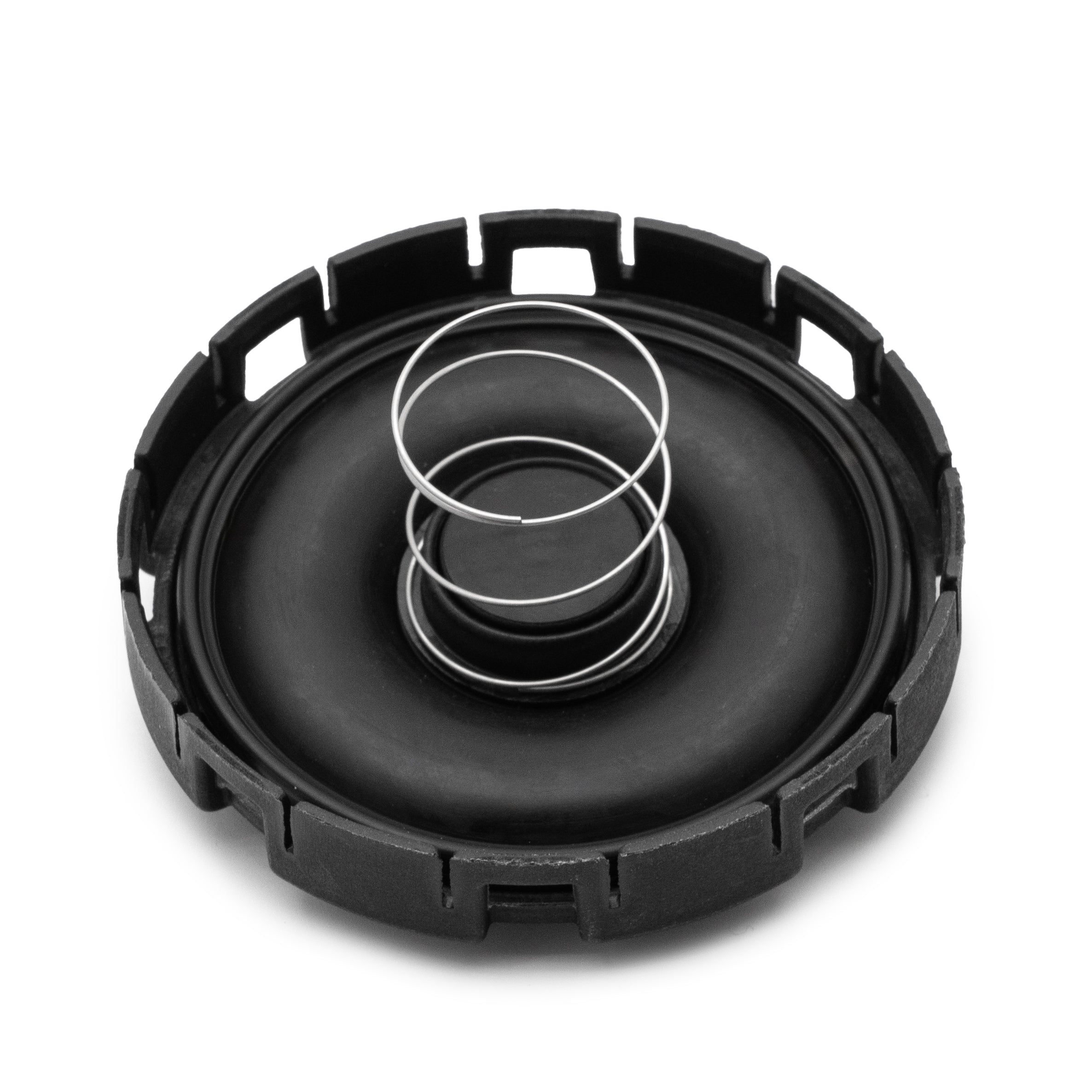

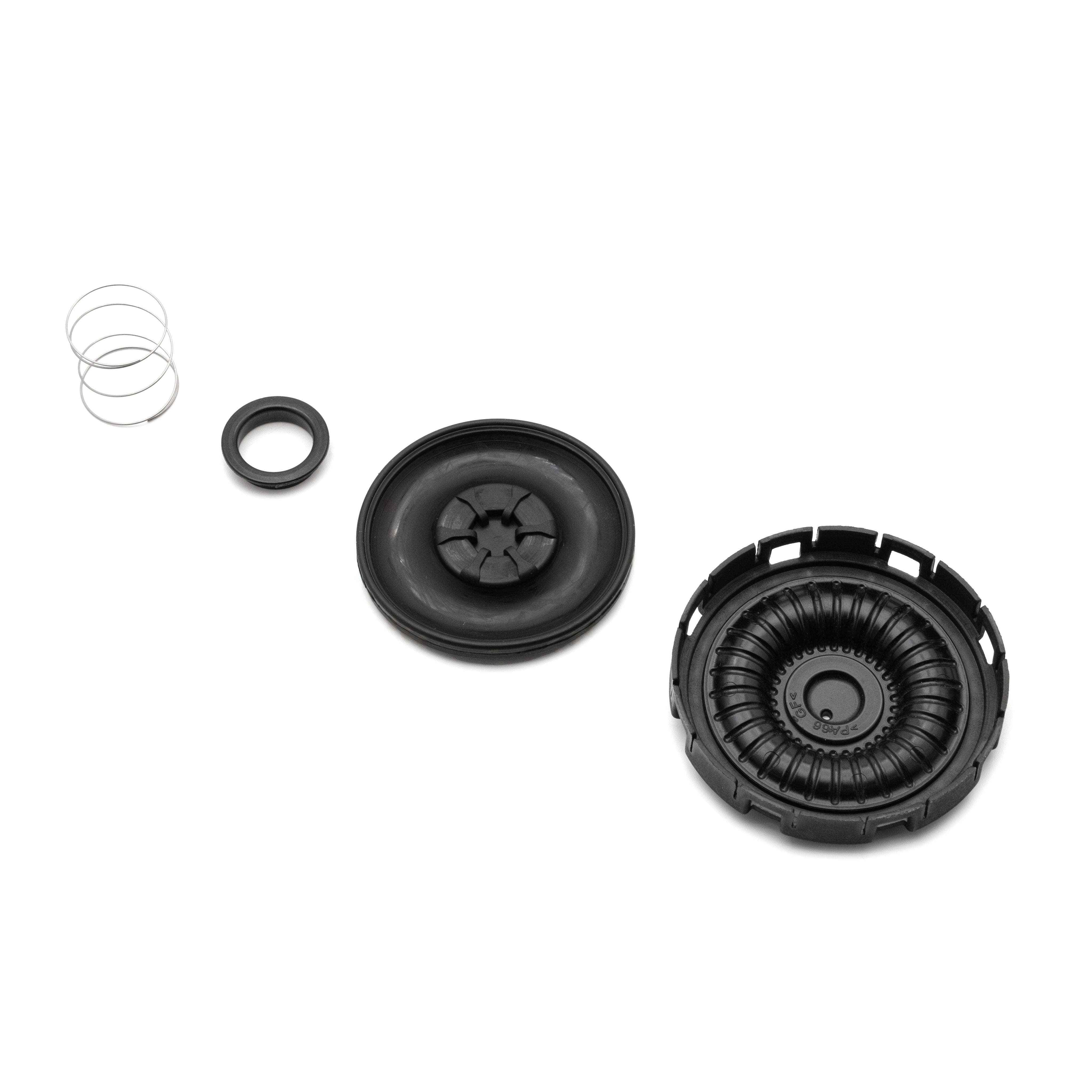

Small Valve Cover Diaphragm Repair Kit 55mm - Audi / VW 2.5 TDI BNZ - for 07Z103503H

This kit is the small 55mm diaphragm repair component for the valve cover on the listed VAG 2.5 TDI BNZ applications. Match the installed cover and small diaphragm design before ordering.

Applications

• VOLKSWAGEN Campmob. (Typ2/Transp./LT) 2004 - 2010
• VOLKSWAGEN Touareg 2006 - 2010
• VOLKSWAGEN Transporter 2006 - 2010
• Audi - match the original valve cover reference and small diaphragm design.

Cover and Diaphragm Selection

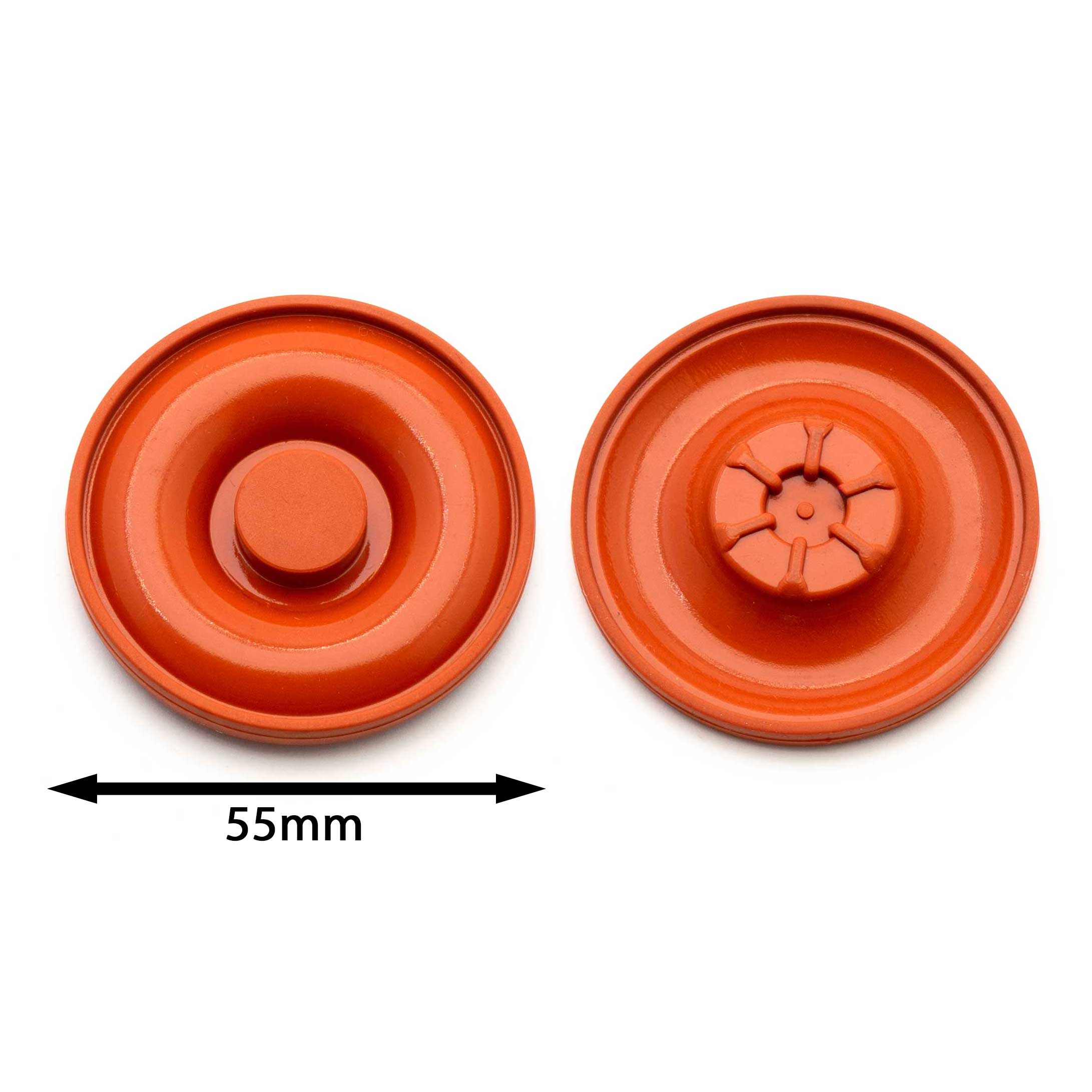

Small diaphragm diameter: 55mm. Cover reference forms: 070103469B, 070103503E and 07Z103503H. Match the original cover marking and repair design.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Repair Scope

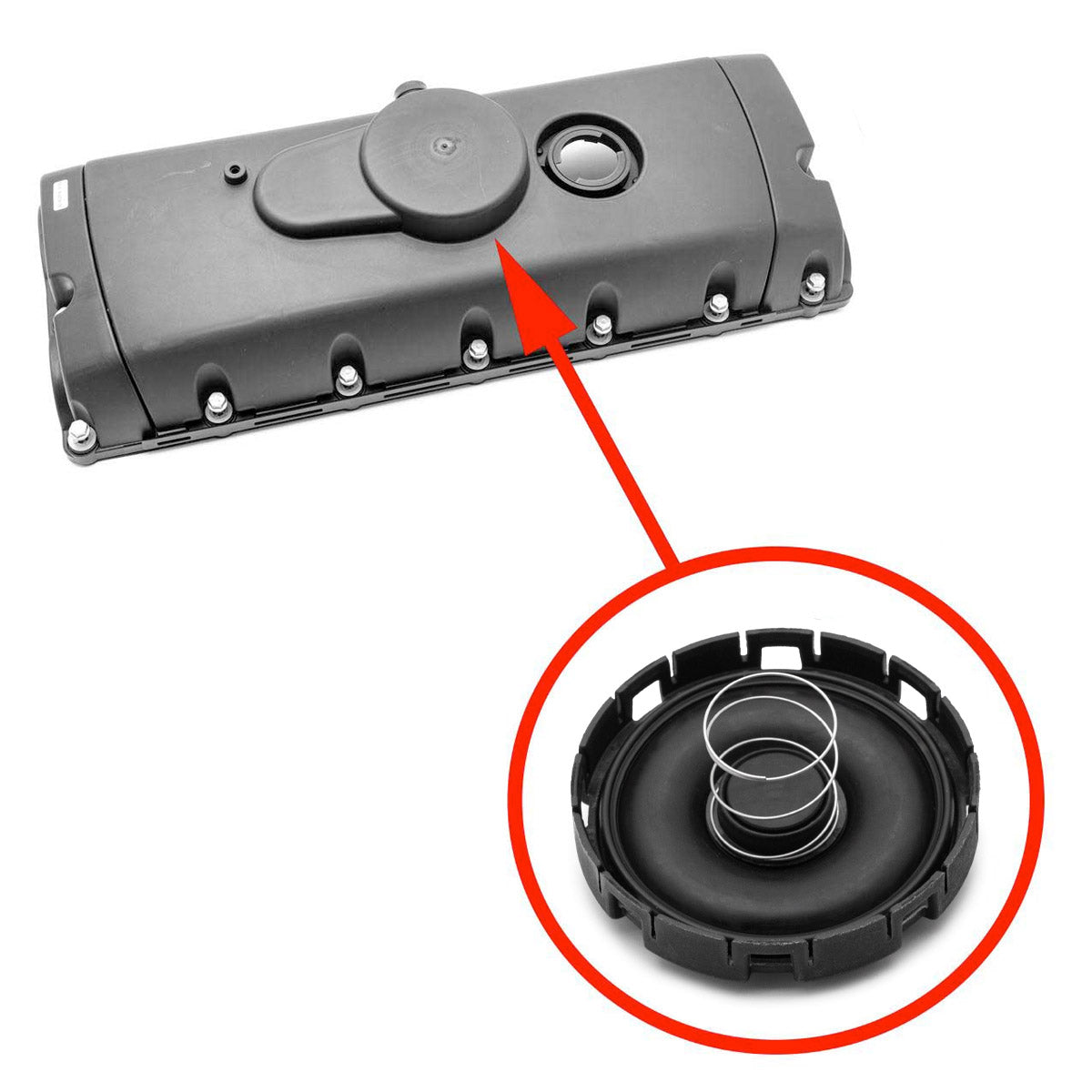

This is the diaphragm repair component, rather than a complete valve cover. Inspect the cover or oil separator housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable if the housing is intact; housing damage can require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What is the small diaphragm diameter?

55mm.

Which engine context is listed?

VAG 2.5 TDI BNZ.

Is the complete valve cover supplied?

No. This is the small diaphragm repair kit.

Part Number / PN

07Z103503H,070103503E,070103469B

SKU: KL07Z103503H1.
