Repair kit for manifold damper regulator VAG 03L129711E 2.0 TDI CR

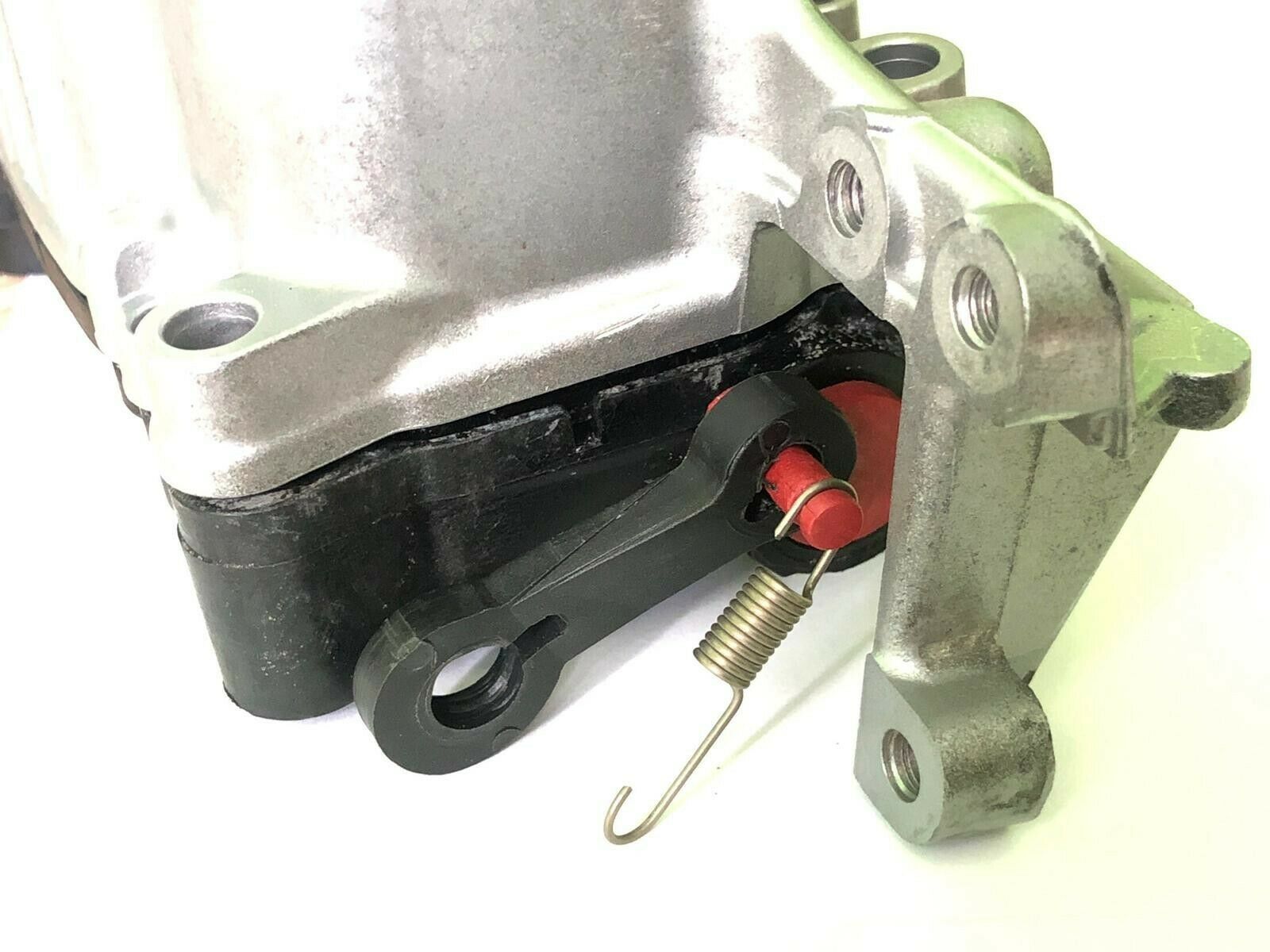

Manifold damper regulator repair kit for 2.0 TDI CR engines from 2008 to 2014 with aluminum intake manifold No. 03L129711E and regulator No. 03L129086

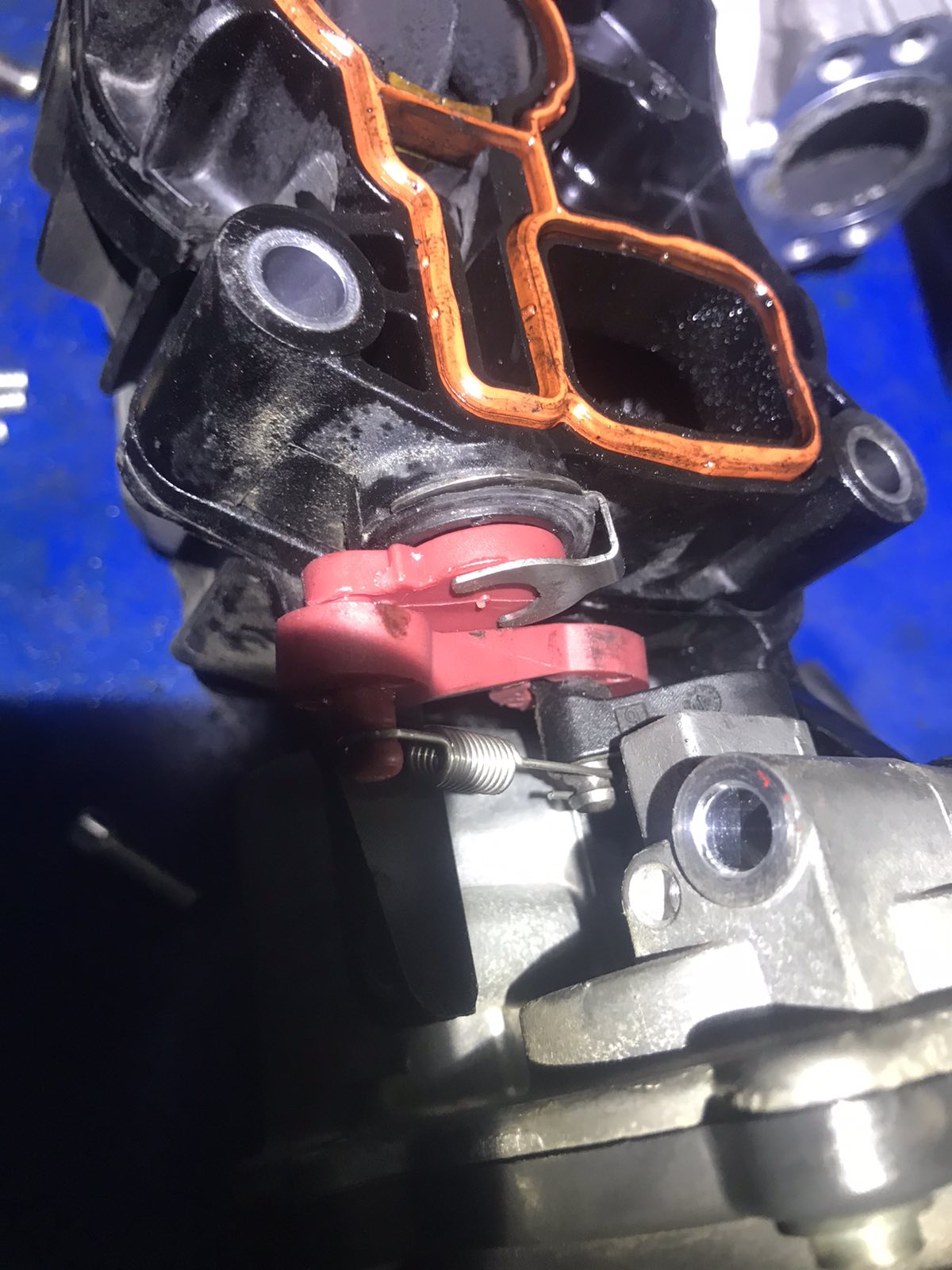

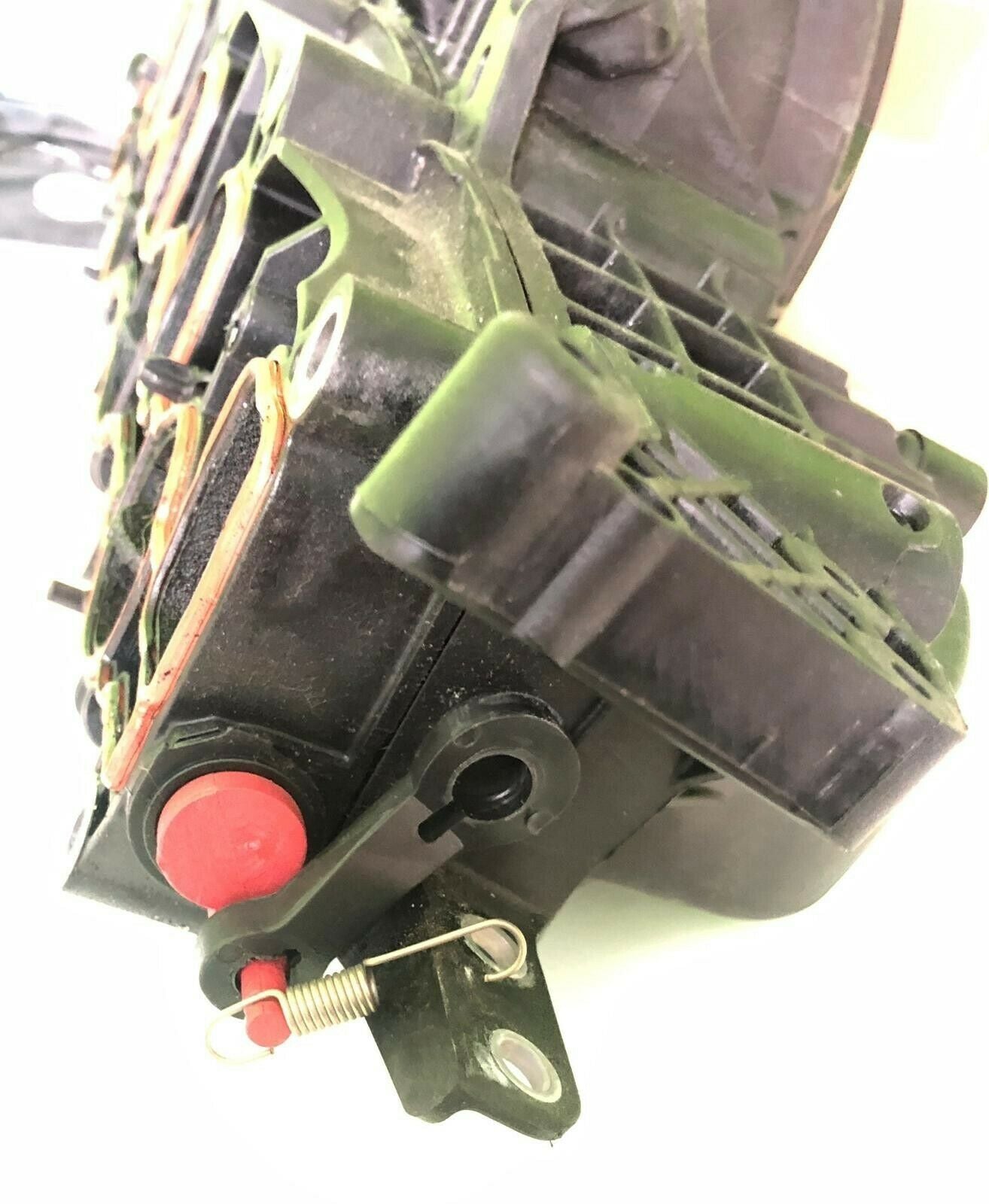

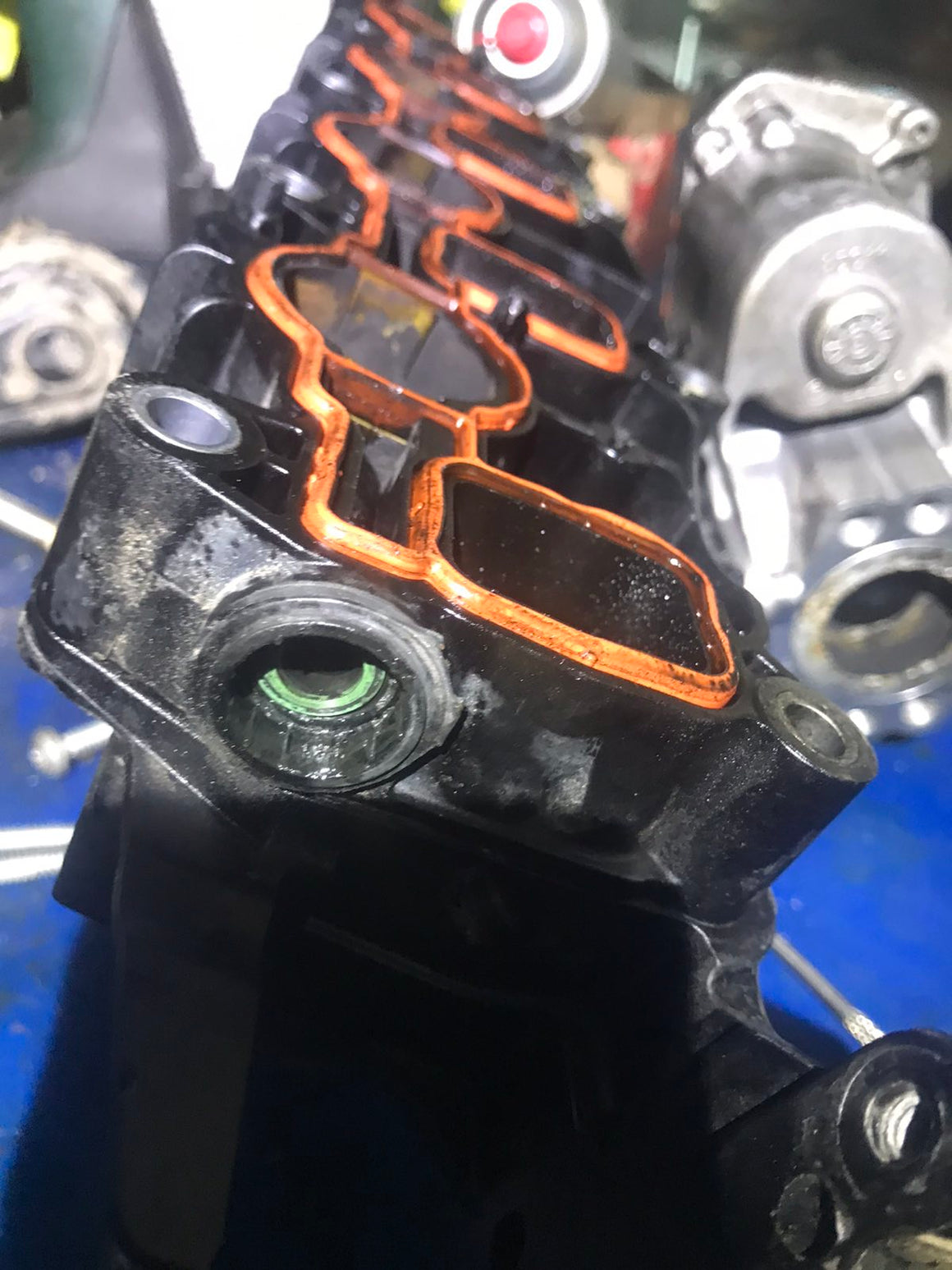

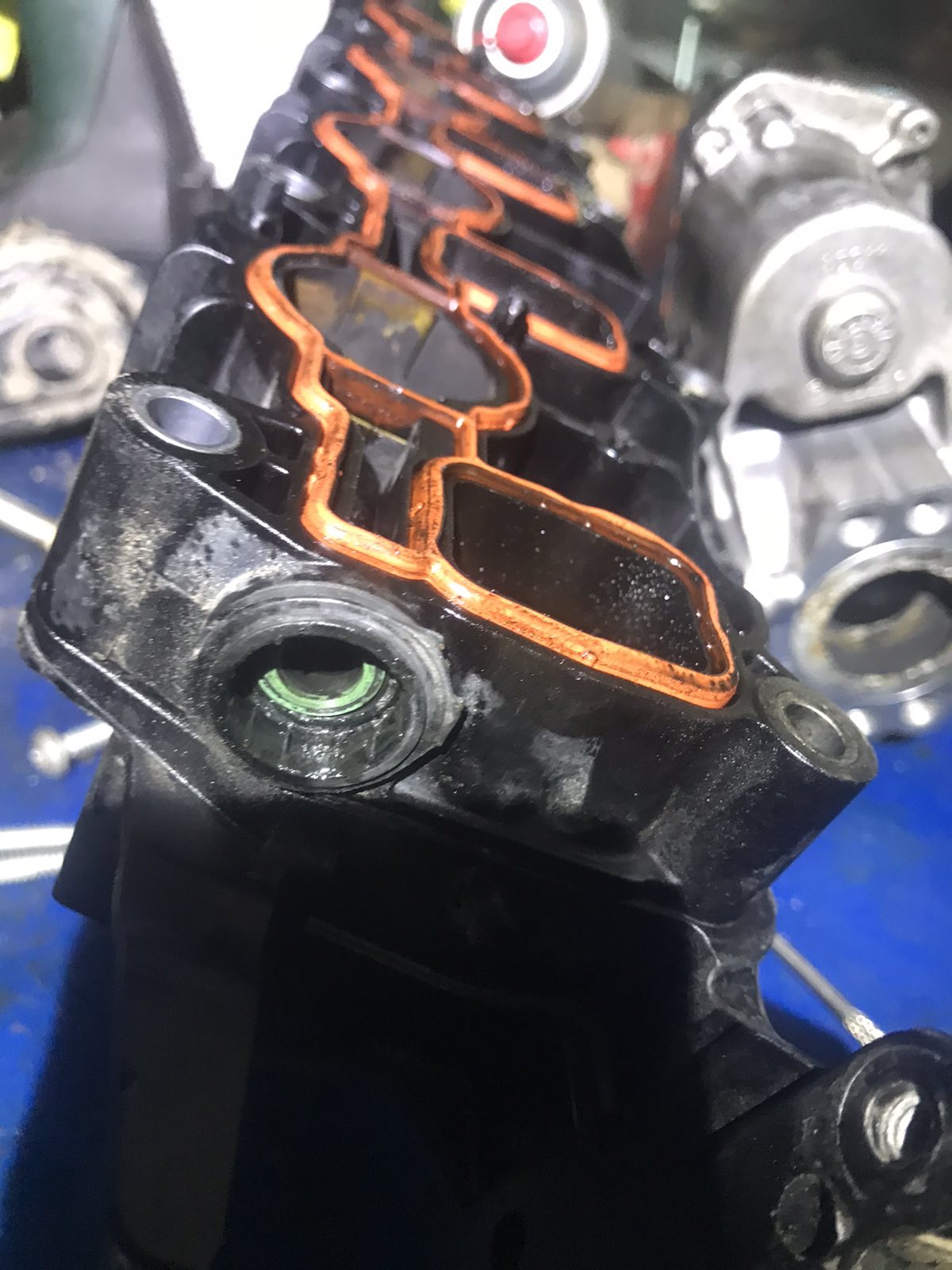

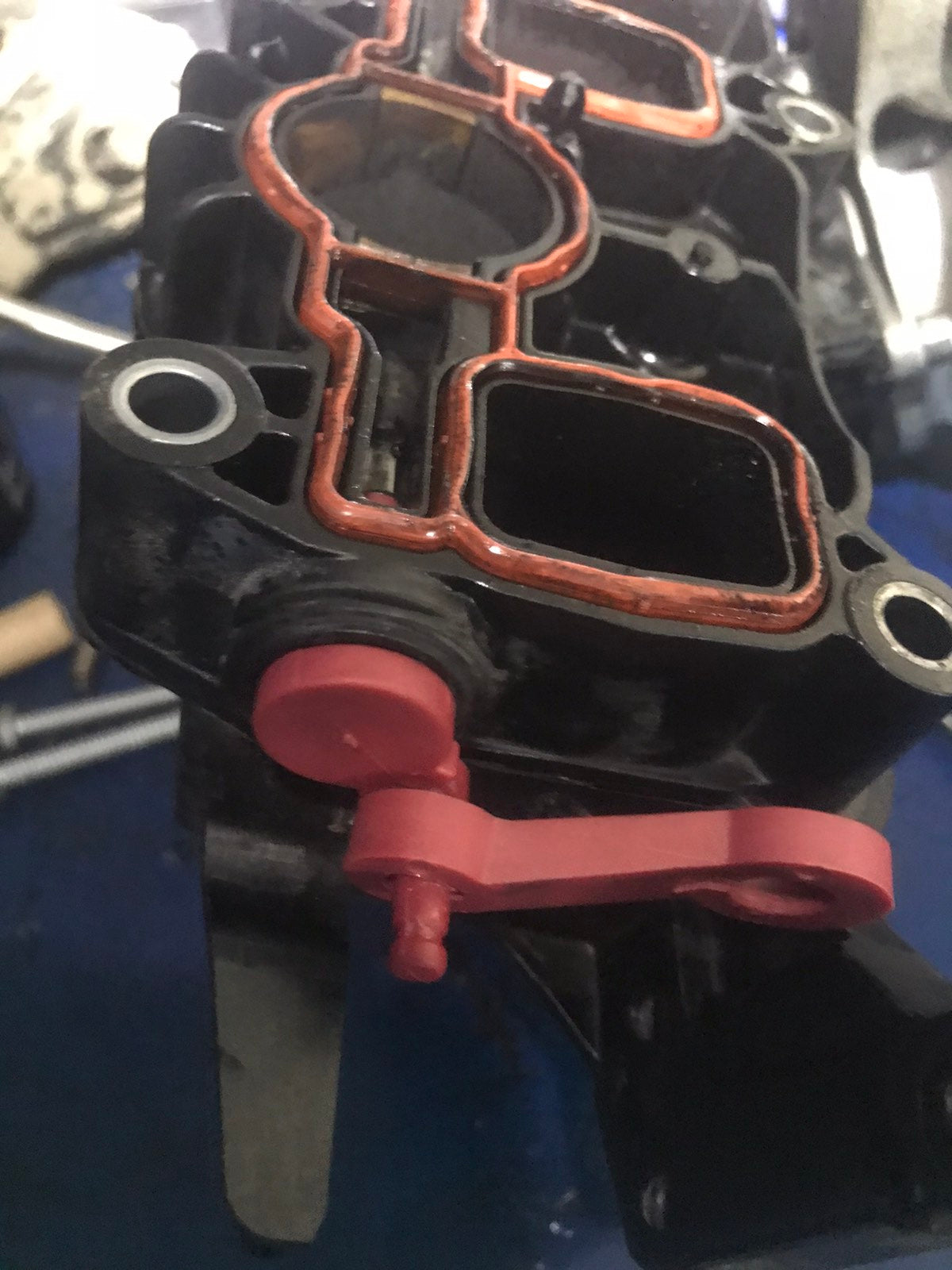

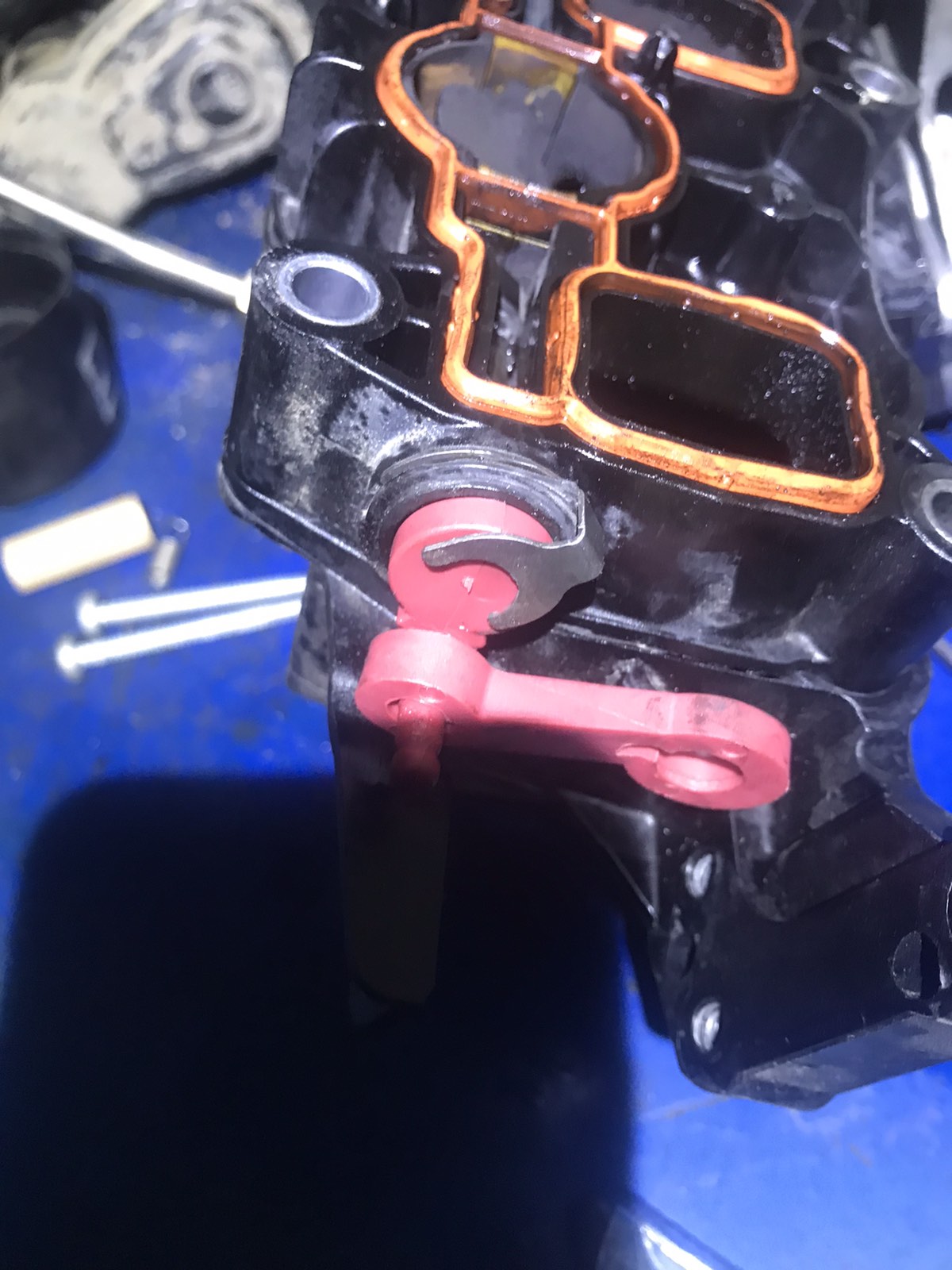

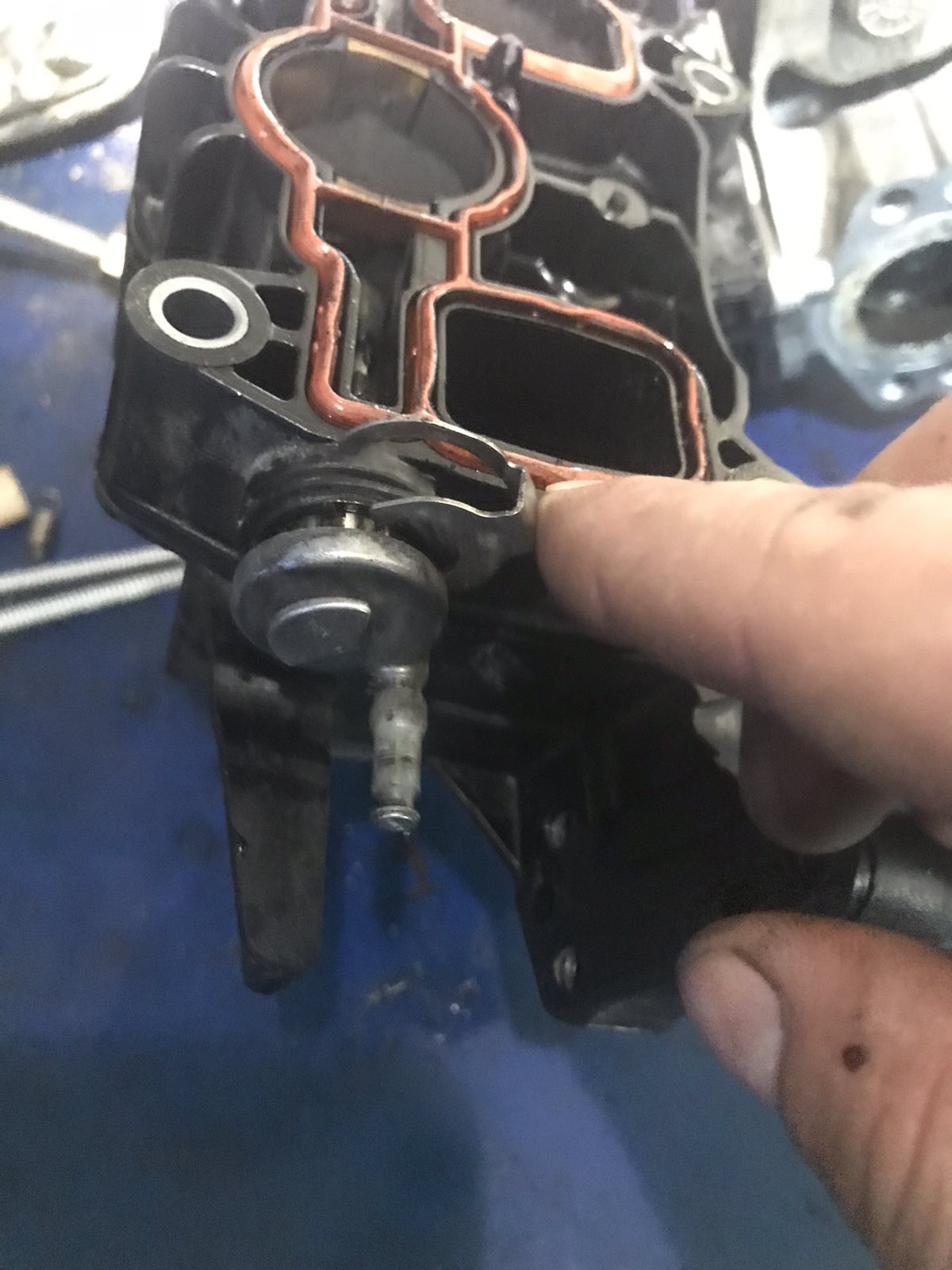

If the plastic stop on the axle (which goes through the manifold) is damaged, the sensor generates an error P2015 and 008213, which means a probable problem with the manifold flap, or a violation in the manifold flap position sensor. Also, if this stop breaks down, there are problems in the operation of the engine, which entails serious consequences.

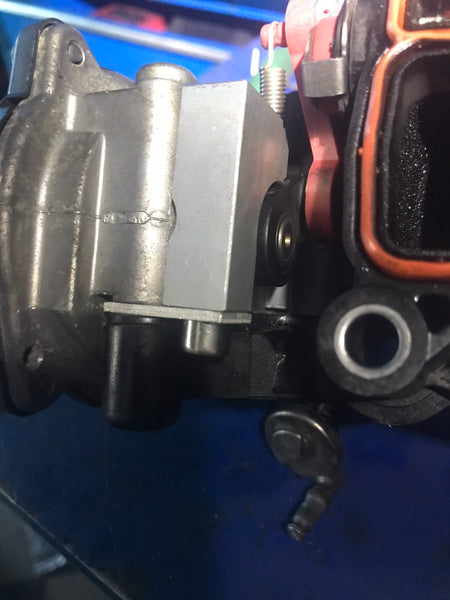

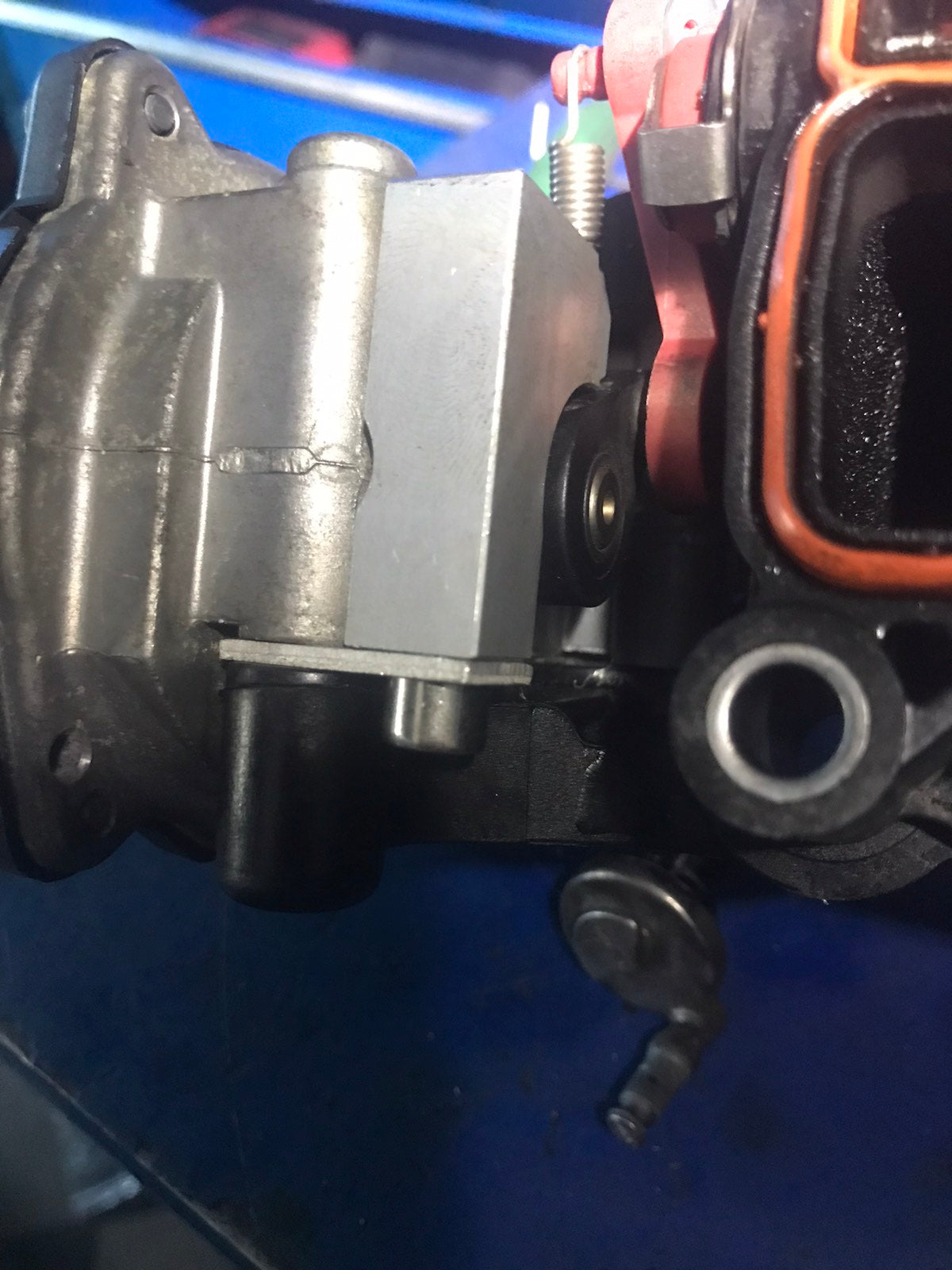

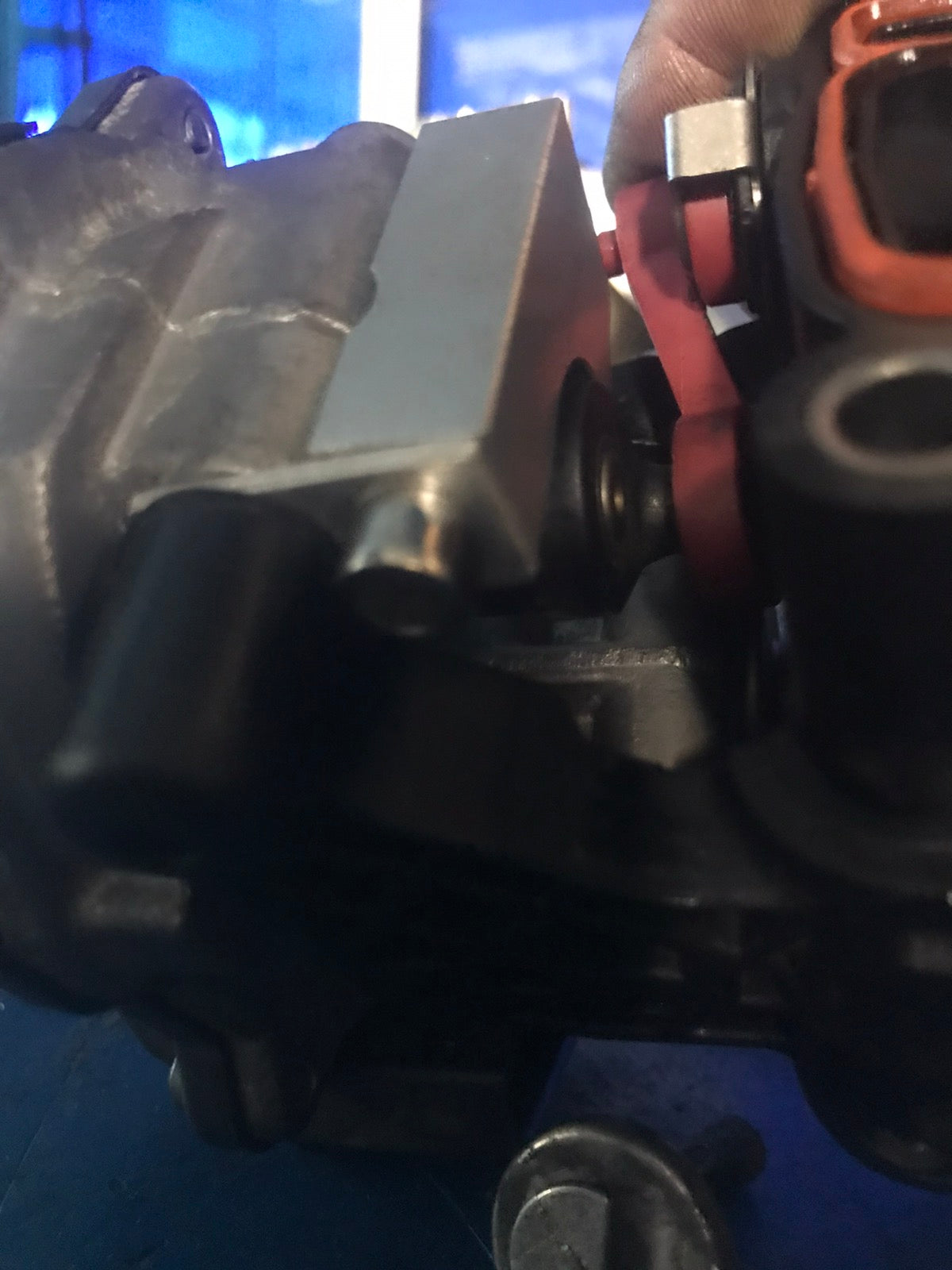

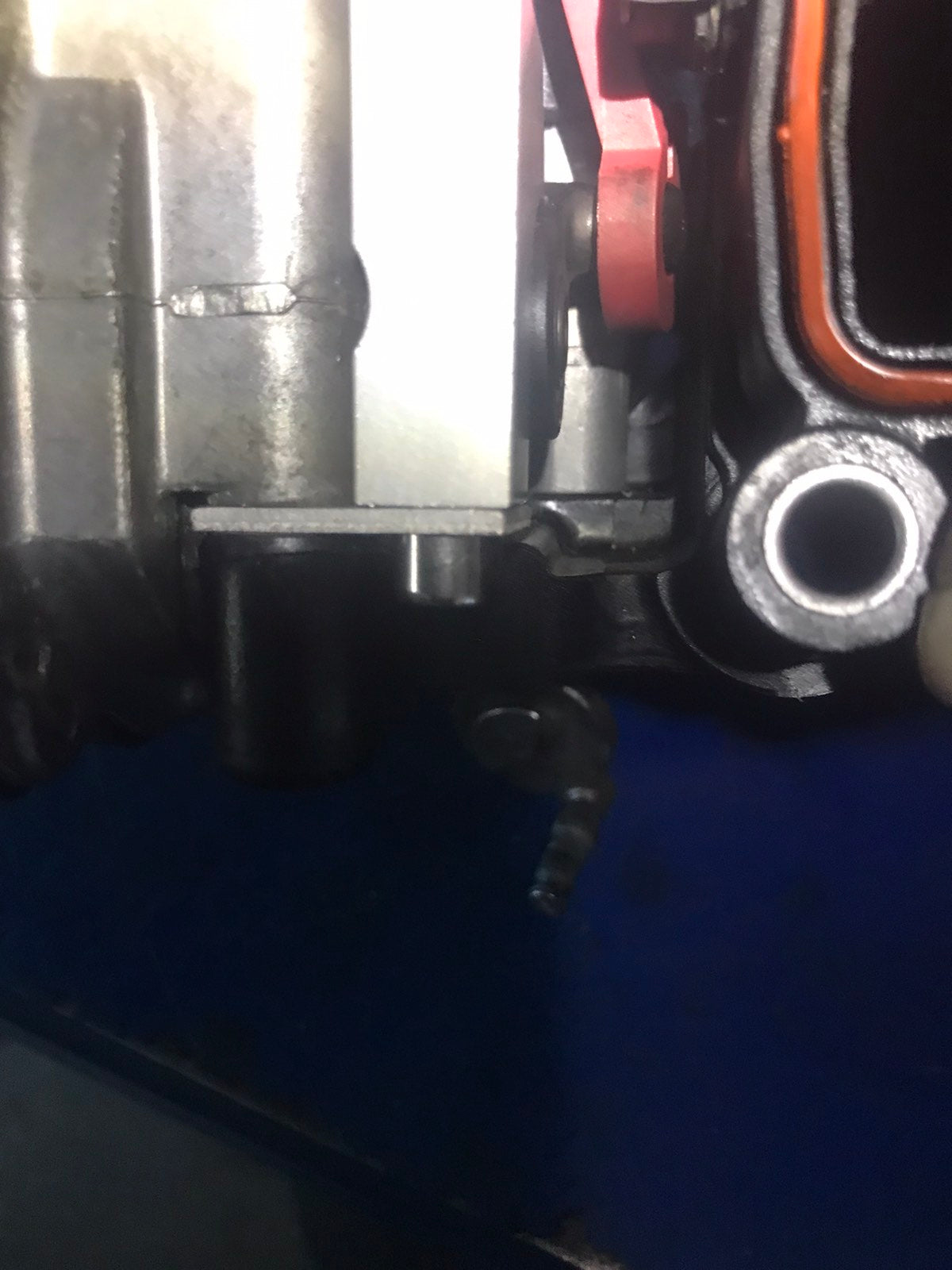

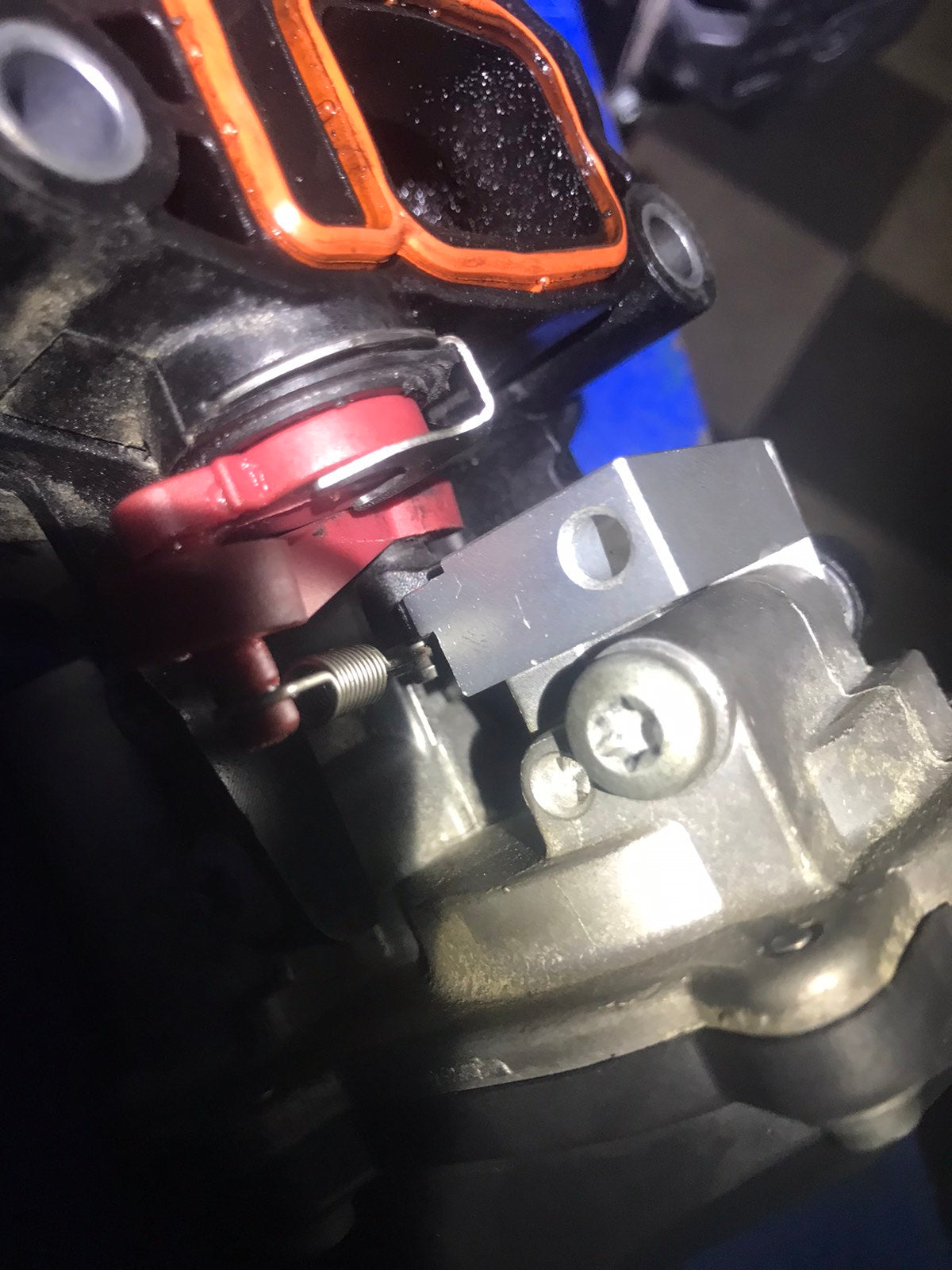

To fix the problem, you just need to install our aluminum limiter, then reset the settings yourself, or wait for them to be fixed after a short run (about 200-300 km). It happens that the error goes out after the first few starts of the motor.

By purchasing this manifold damper regulator repair kit for VAG 03L129711E 2.0 TDI CR from us, you can quickly and efficiently fix the incorrect operation of the manifold. Due to full compliance with the dimensions and characteristics of the original parts, the repair process will take no more than 15-20 minutes. Durable material will allow you to use spare parts for a long time, saving you from such a problem.

Important! Sometimes the P2015 code may have a different source. In this case, this repair kit will not help fix the error.

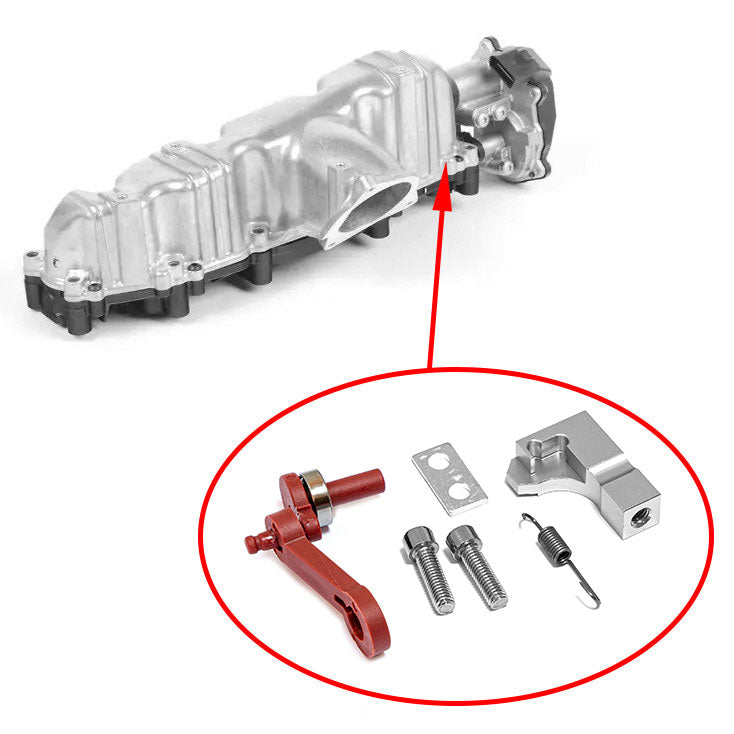

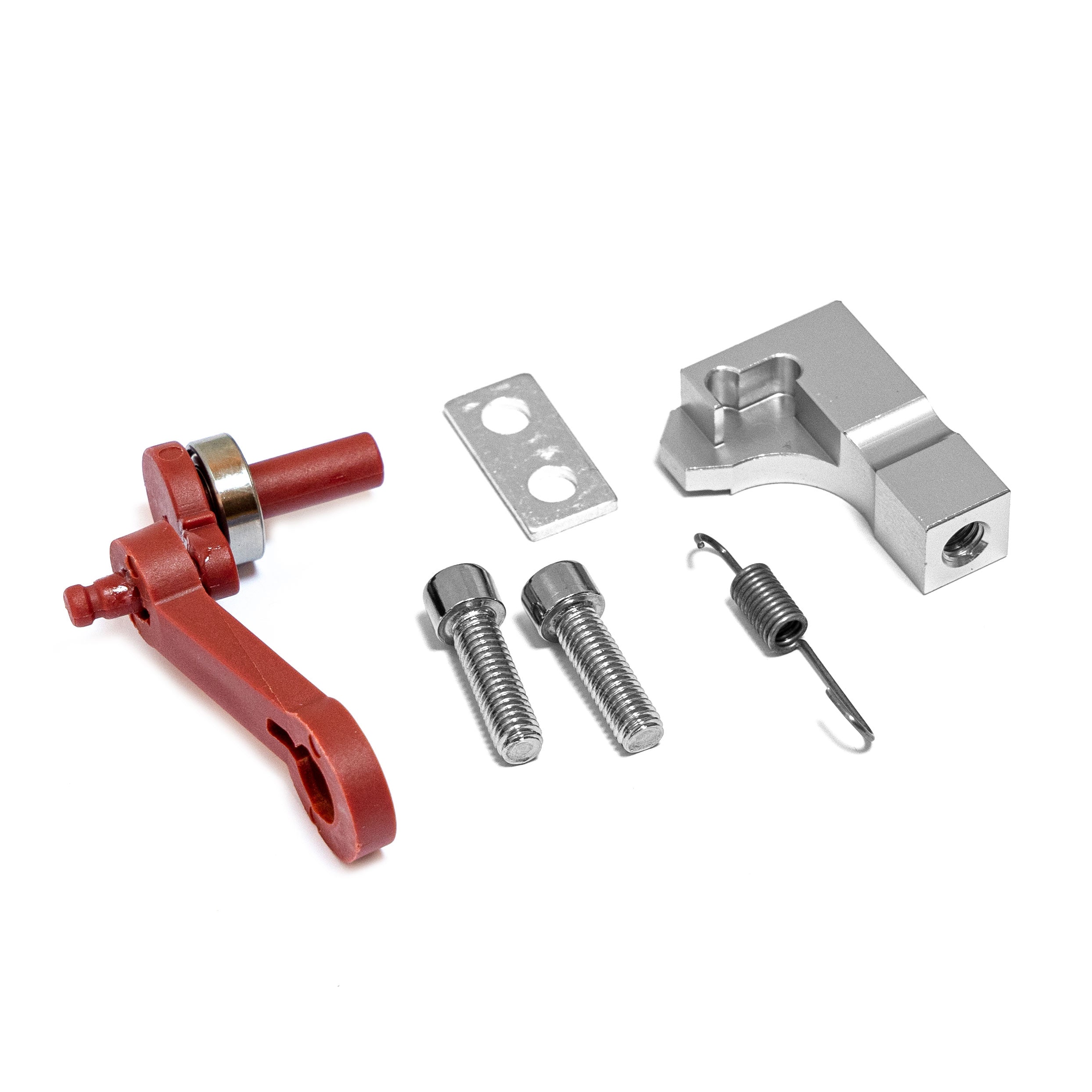

Repair kit includes:

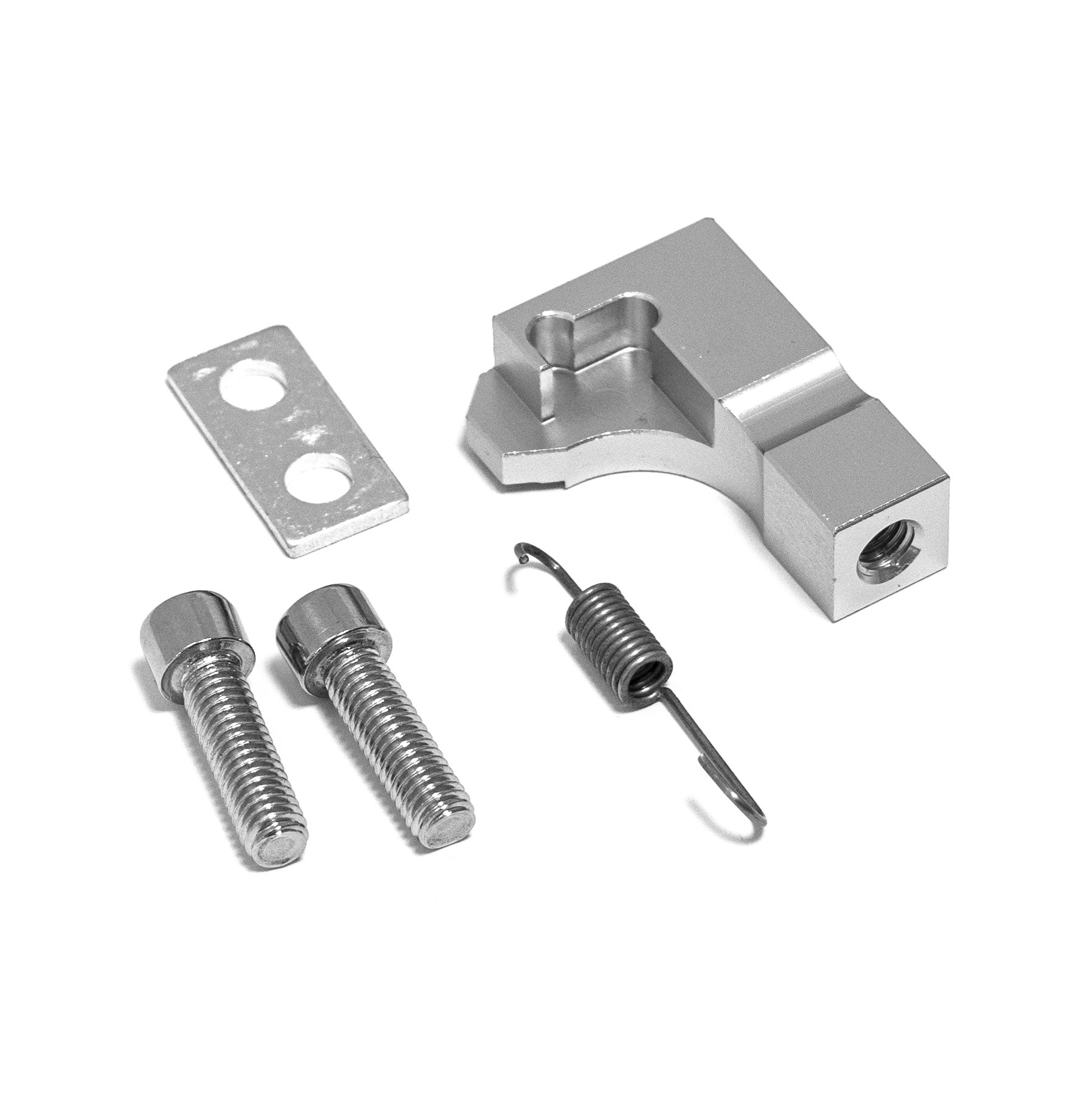

• aluminum stop regulator;
• connecting bracket;
• screw;

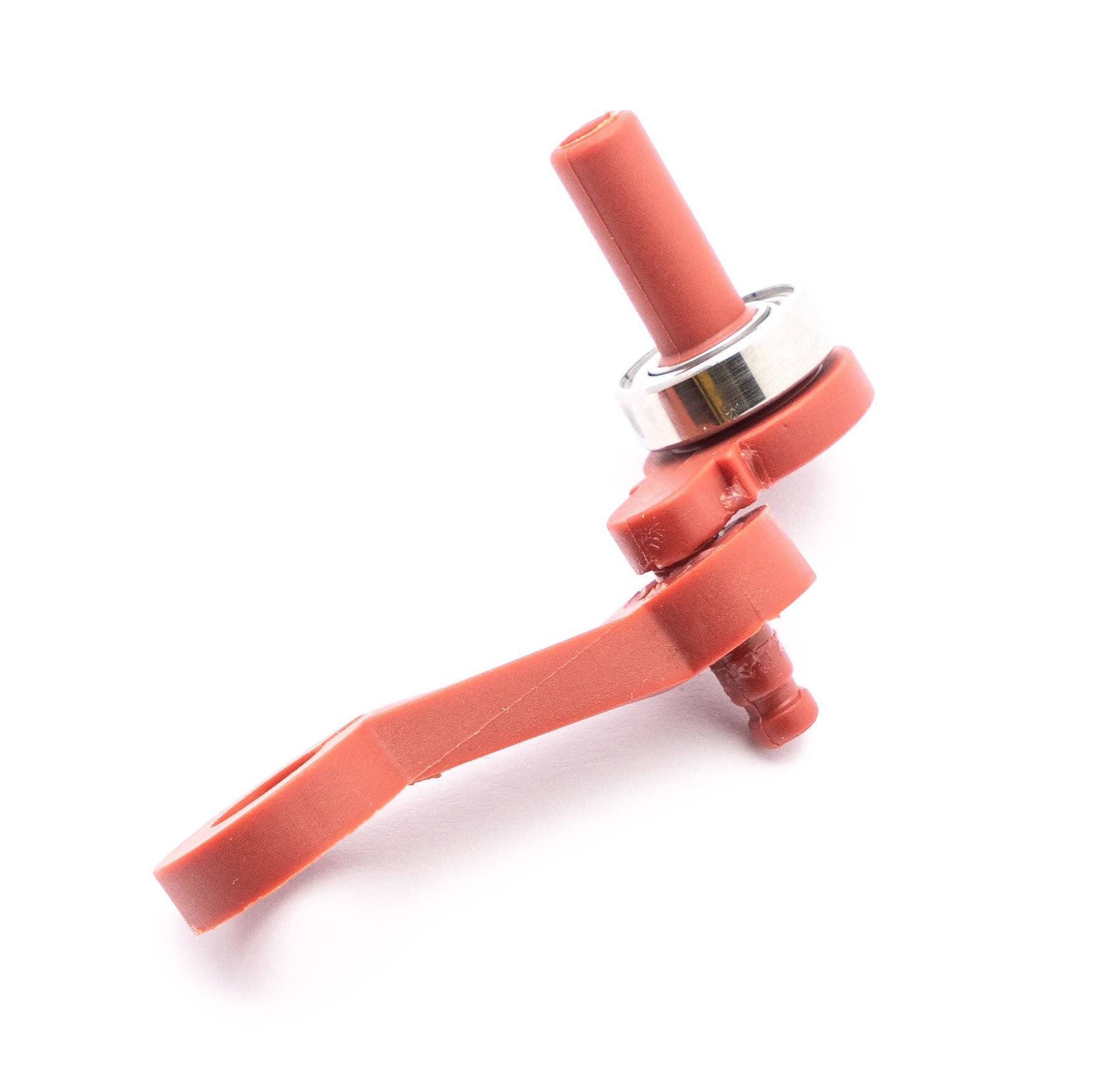

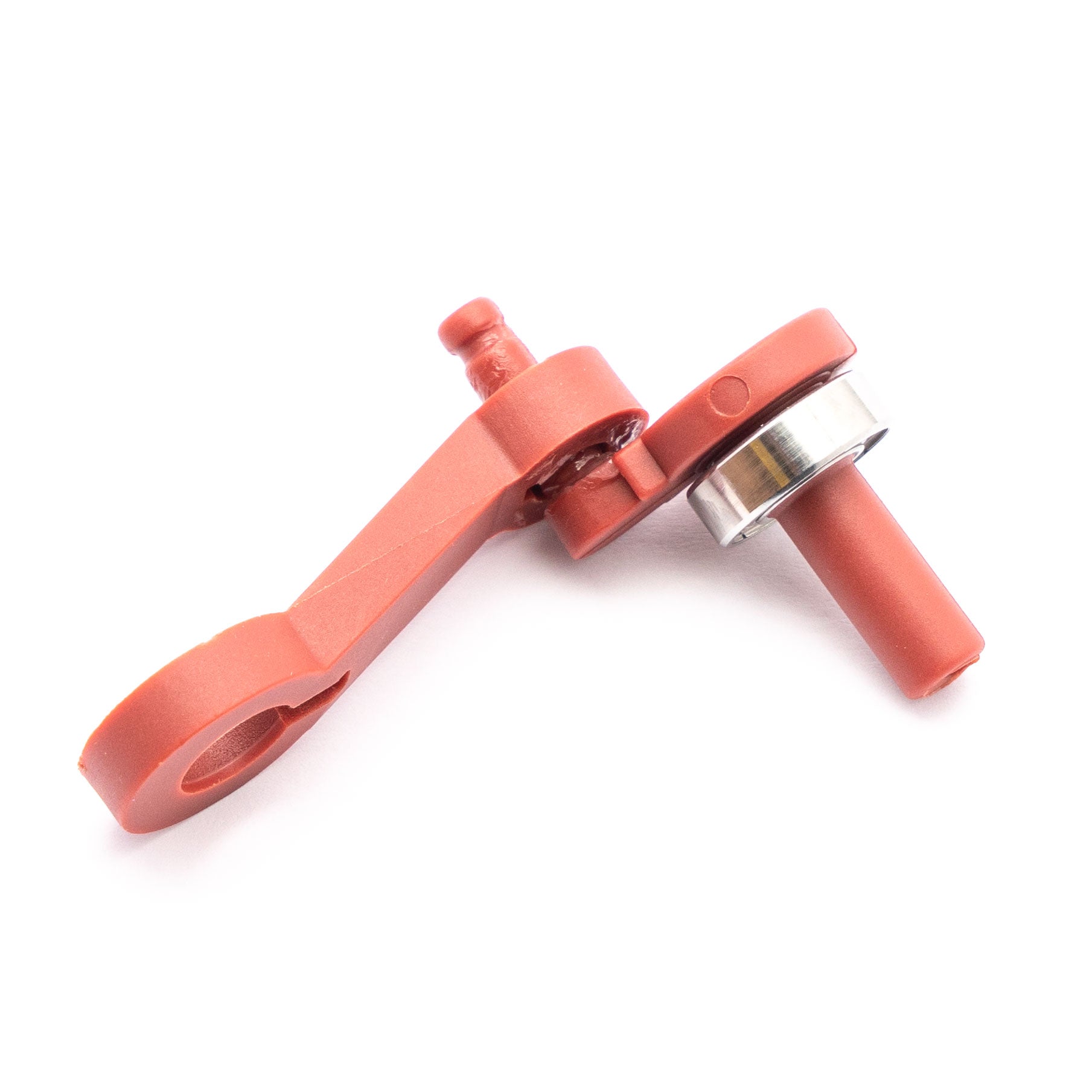

• plastic rod with bearing.

Application:
All engines from VAG 2.0 TDI CR 2008 - 2014 with aluminum manifold No. 03L129711E:

• CAAB 2.0 102 HP
• CAGA 2.0 143 HP
• CAGB 2.0 136 HP
• CAGC 2.0 120 HP
• CAHA 2.0 170 HP
• CAHB 2.0 163 hp
• CBAA 2.0 136 HP
• CBAB 2.0 140 HP
• CBAC 2.0 143 HP
• CBBB 2.0 170 HP
• CBDA 2.0 136 HP
• CBDB 2.0 140 HP
• CBDC 2.0 110 HP
• CEGA 2.0 170 HP
• CJAA 2.0 140 HP
• CMEA 2.0 143 HP


And with regulator №:

• A2C59506246

• A2C53248883
• A2C92454100
• VAG 03L129086
• VAG 03L129086V
• VAG 03L129086V120
• VDO A2C53248883
• VDO A2C59506246

• Seat
• SKODA
• Audi
• Volkswagen
