BMW Heater Valve Seal and Diaphragm Kit - 64116910544

The seals and diaphragms service the internal sealing section of the heater control valves on the BMW applications below. This kit contains no valve cones; select it by the installed valve reference.

Vehicle Applications and Valve References

When to Inspect the Heater Valves

• The heater blows only hot air.
• The heater blows only cold air.
• Cabin temperature cannot be adjusted.
• Left and right air temperatures differ.
• Cabin heating is weak in winter.
• Coolant leaks through the heater valve.

Check the heater valve block to establish the cause. These symptoms do not identify a failed cone or sealing component by themselves.

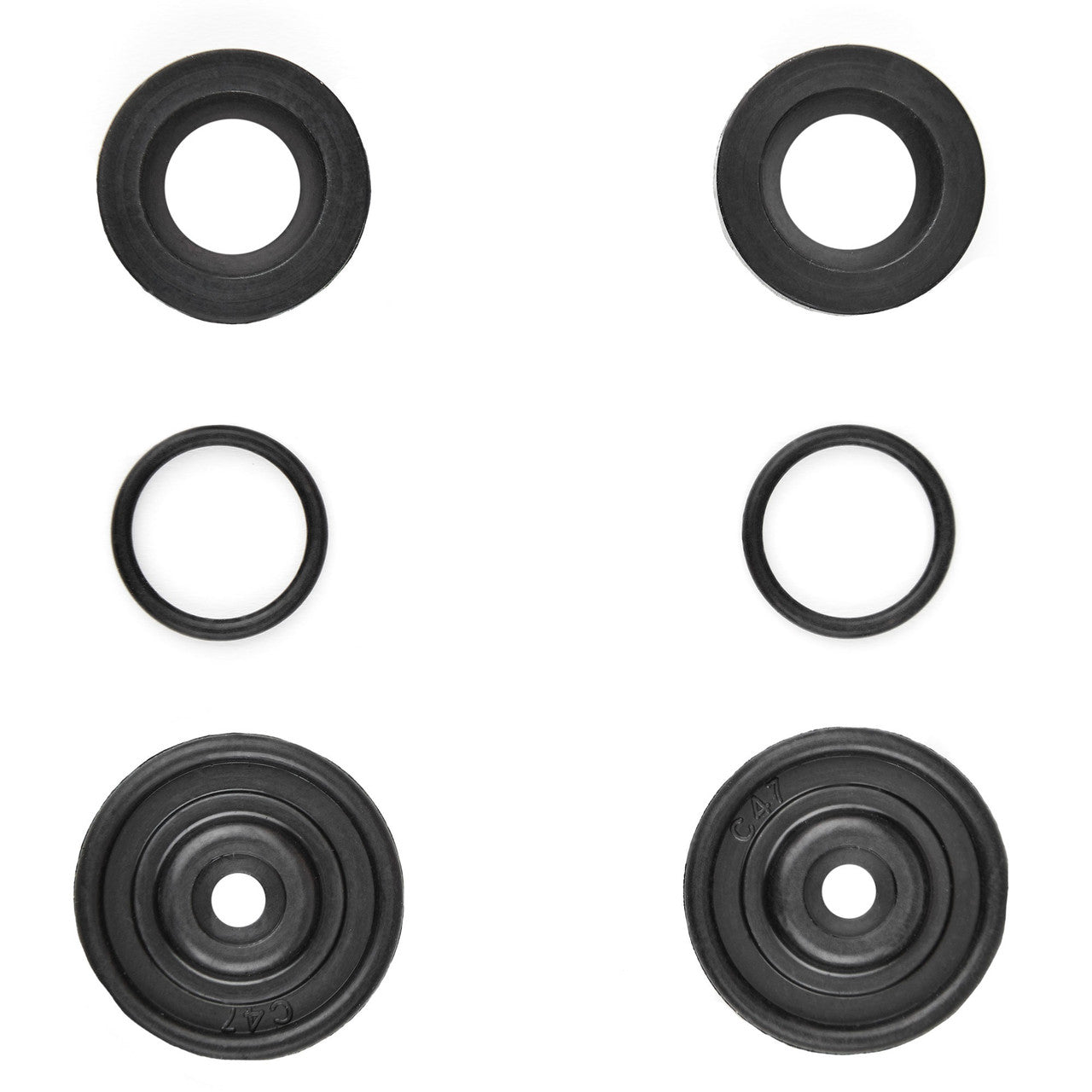

Kit Contents

Seals and diaphragms only. Valve cones are not included.

Valve and Related References

The application table links each model and period to the relevant valve references. The complete valve and related reference list is in Part Number / PN.

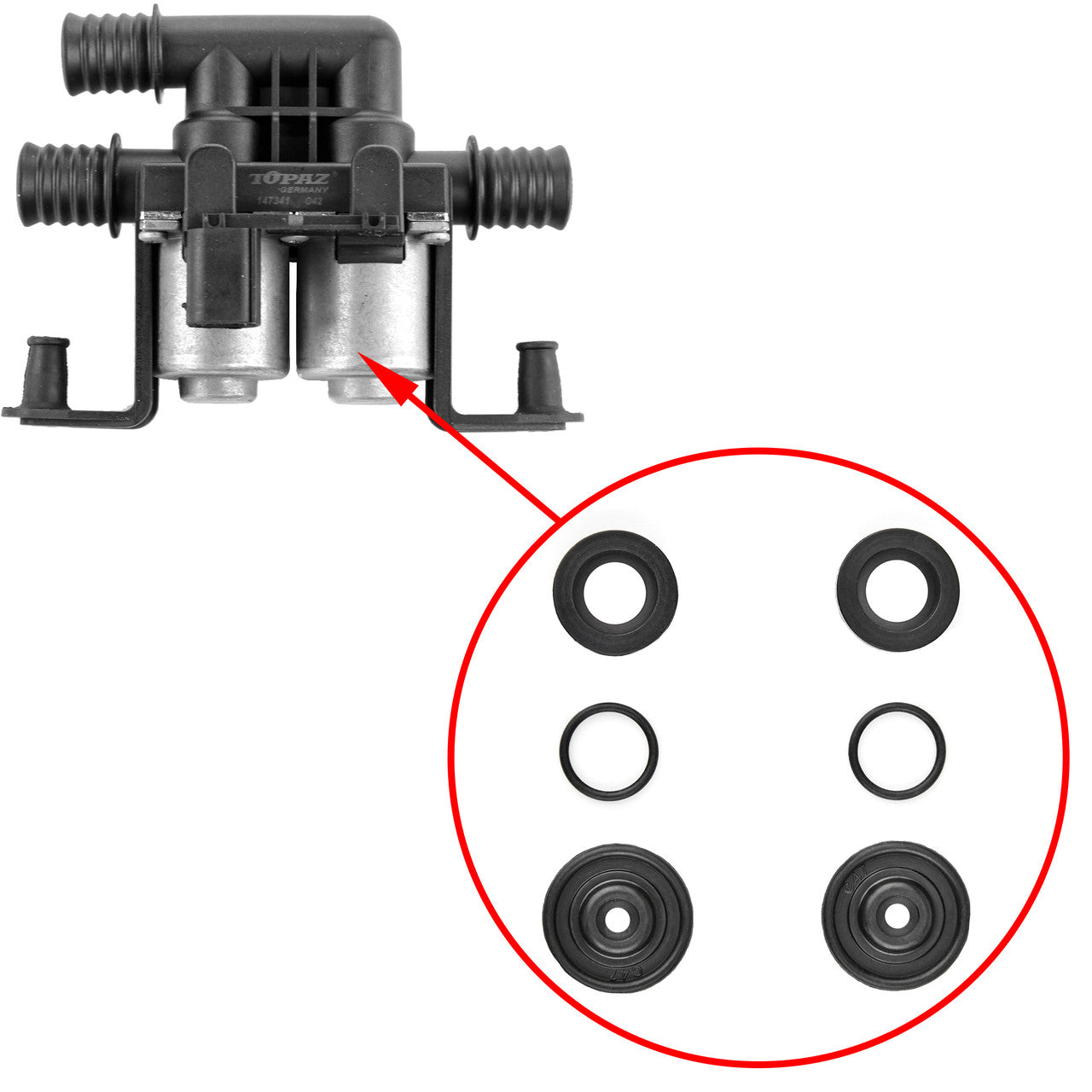

Rubber Sealing Components

The kit includes rubber sealing rings. The rubber is modified for heat resistance. Replace the rubber elements needed for the repair and retain unused components for later servicing.

Repair Scope

The internal repair components can be serviced while retaining a sound housing and serviceable solenoids. Worn seals can cause coolant leakage; inspect the housing because cracks may require replacement of the complete unit.

Important Before Ordering

Compare the installed heater valve OEM/P/N, marking and physical design with the listed references. Different valve versions may be fitted to the same vehicle model.

FAQ

Does VN-70 include valve cones?

No. It contains only seals and diaphragms.

Which BMW X6 Hybrid application is listed?

BMW X6 E72 Hybrid is listed for 10/2008 - 10/2011 with valve reference 64116910544.

Will a seal repair address every heater valve leak?

It can address leakage caused by worn seals when the surrounding parts are serviceable. Inspect the housing for cracks before repair.

Part Number / PN

64116910544, 650066998461

SKU: VN-70.
