BMW Heater Control Valve Seal and Diaphragm Kit - 64118374994

Seals and diaphragms service the internal sealing section of the heater control valves on the BMW applications below. The kit addresses valve sealing and movement problems; it contains no replacement valve cones.

Vehicle Applications and Valve References

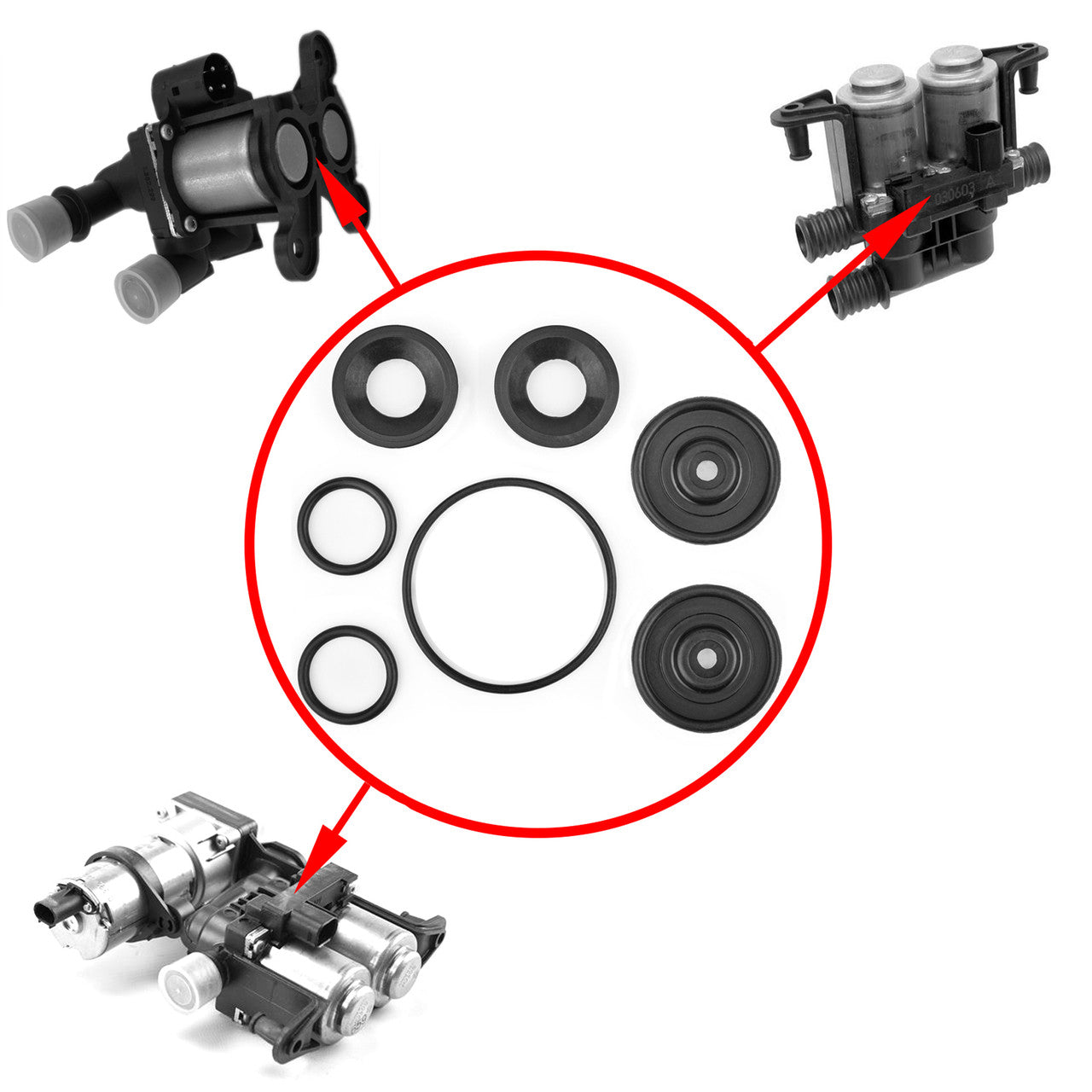

Match the Valve Version

Different heater valve versions can be fitted to BMW 5 Series E39, BMW 7 Series E38, BMW X5 E53 and BMW 5 Series E34. Check the installed valve P/N rather than selecting by vehicle model alone.

When to Inspect the Heater Valves

• The heater blows only hot air.
• The heater blows only cold air.
• Cabin temperature cannot be adjusted.
• Left and right air temperatures differ.
• Cabin heating is weak in winter.
• Coolant leaks through the valve.

These symptoms call for inspection of the heater valves; they are not a diagnosis of seal or diaphragm failure by themselves.

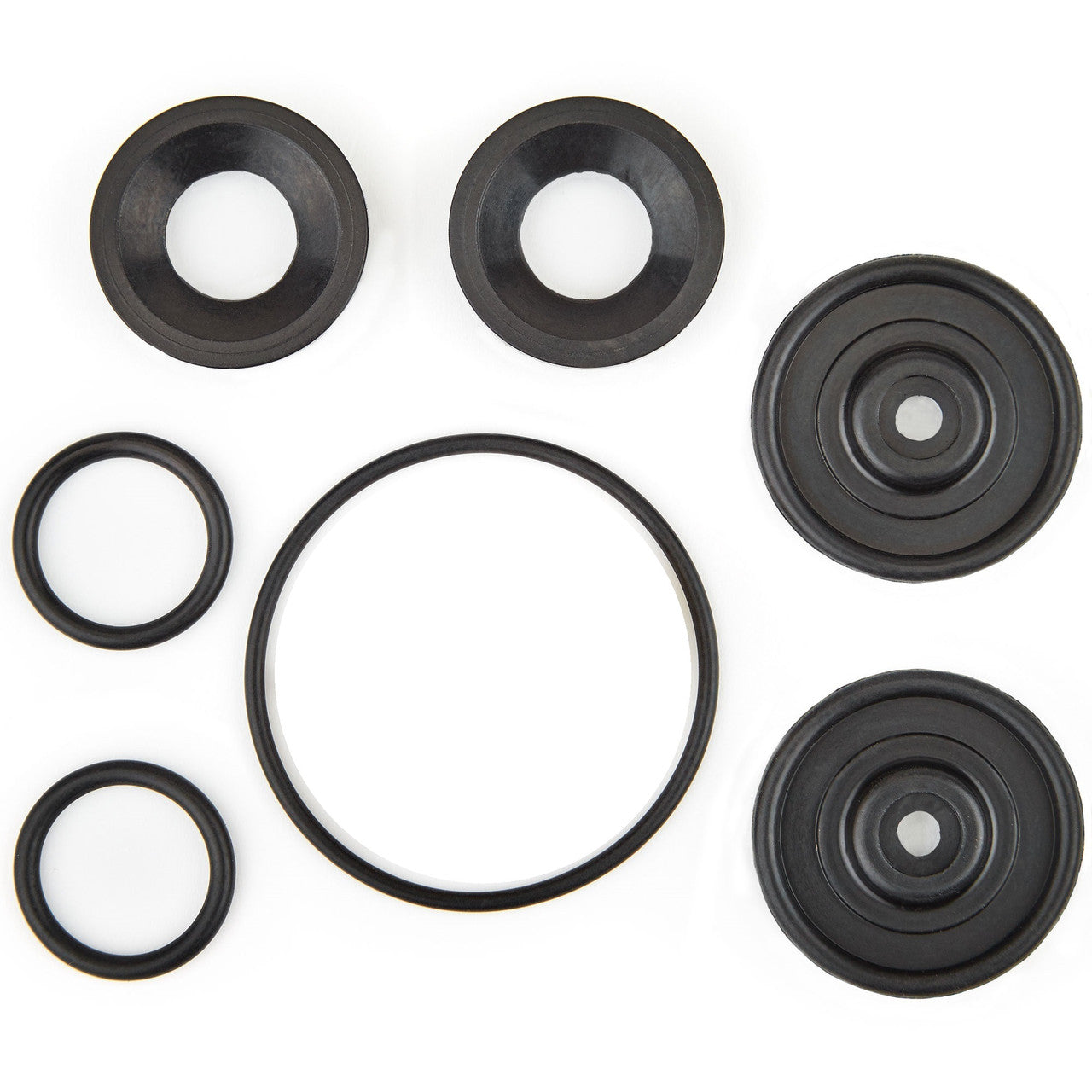

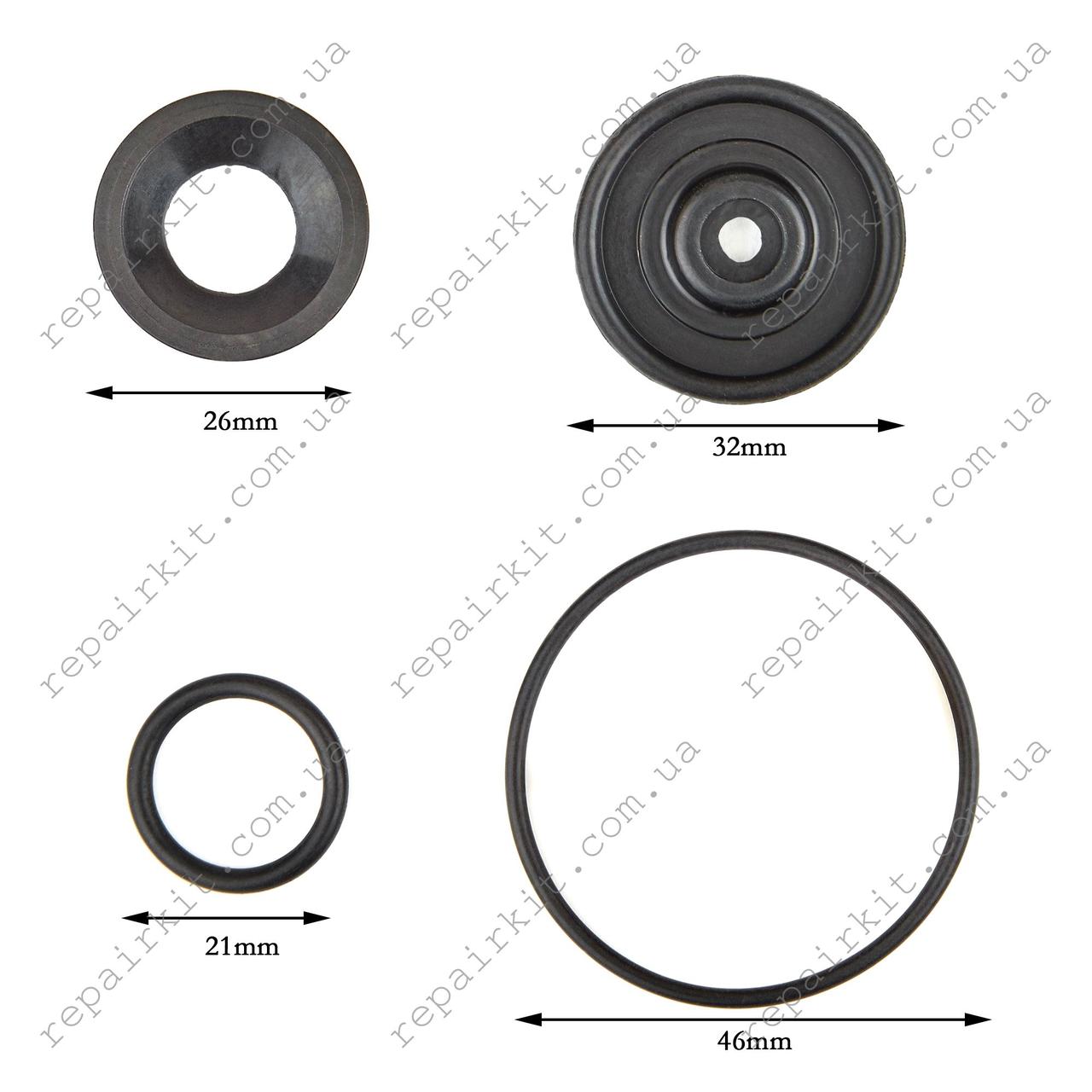

Kit Contents

Seals and diaphragms only. Valve cones are not included.

Valve and Related References

Use the valve references in the application table for selection. Additional listed references are 647409988203, 1147412042 and 1147412137.

SKU: VN-39.

Repair Scope

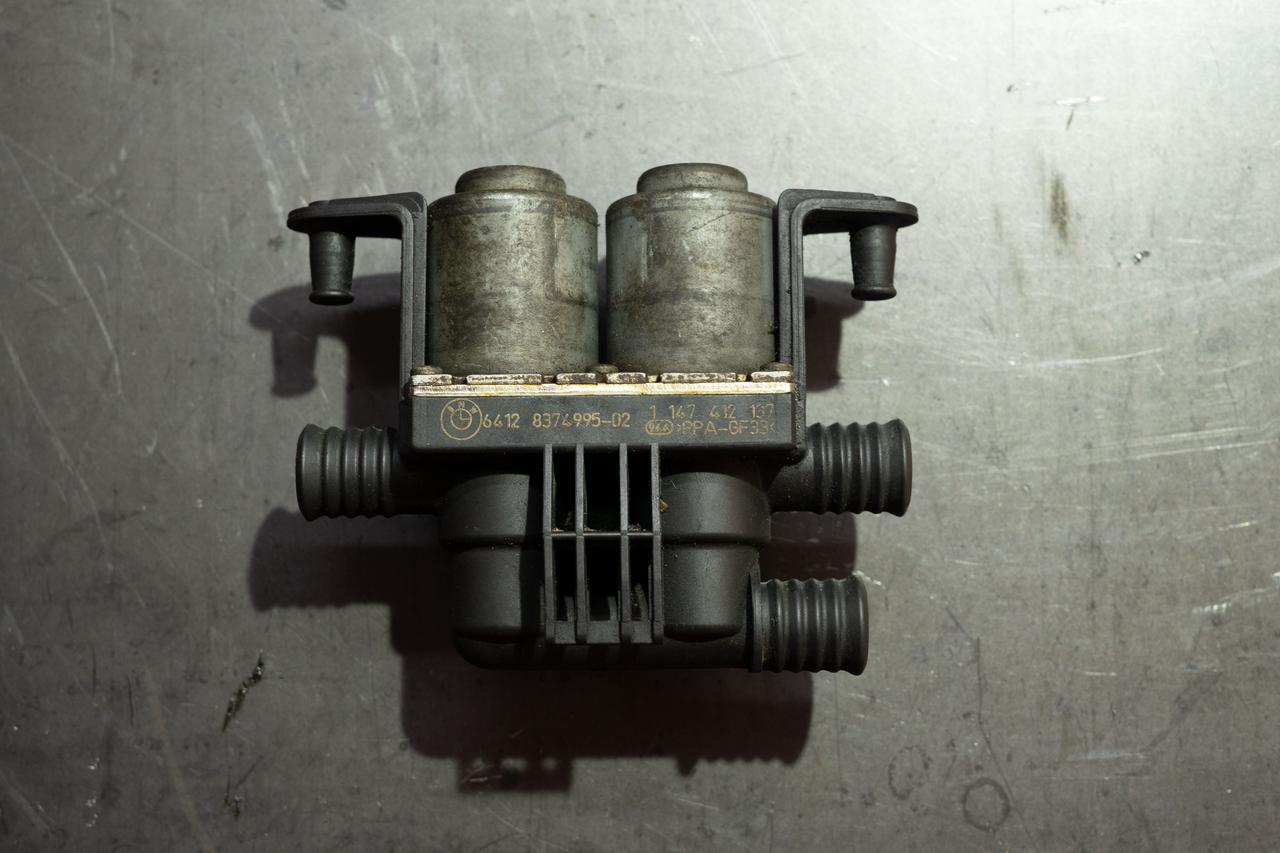

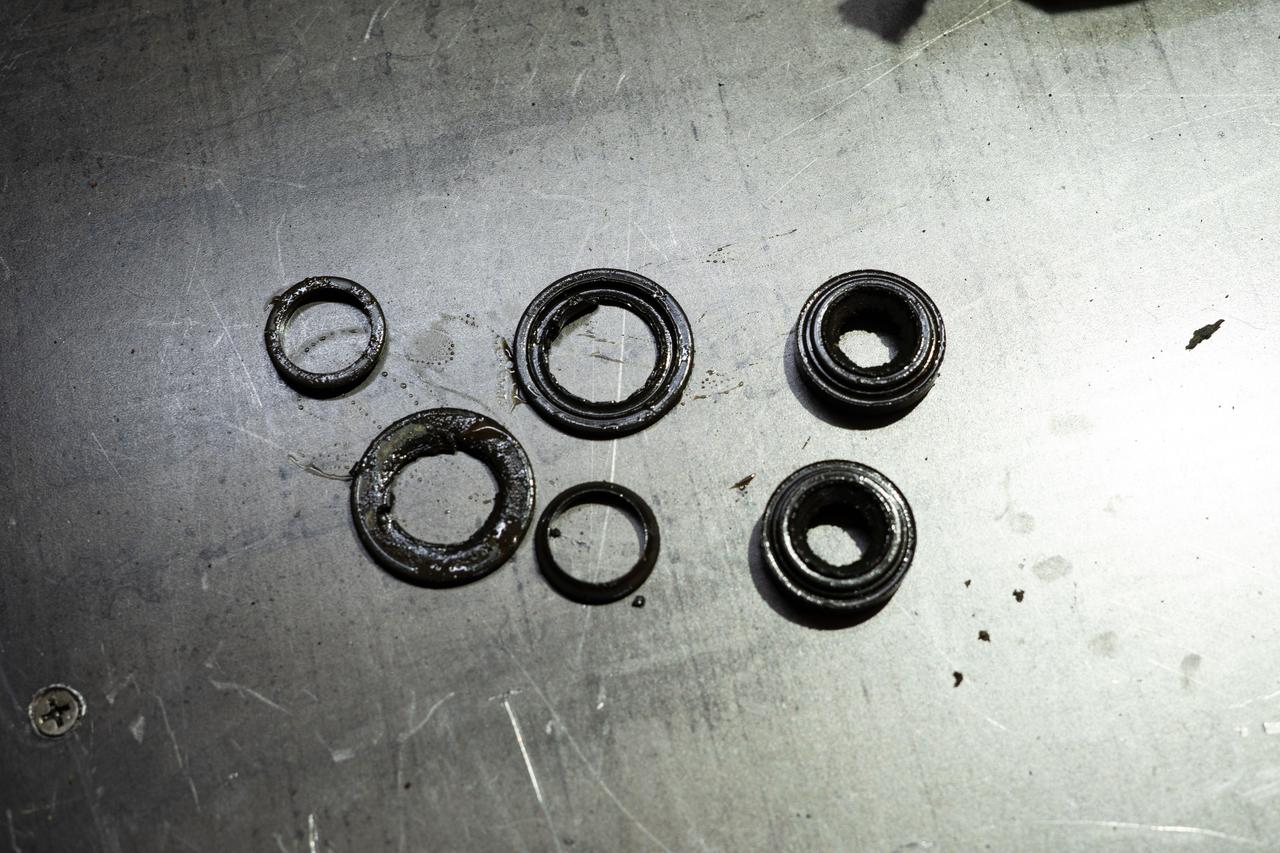

If the valve housing and solenoids are serviceable, the internal sealing components can be replaced without buying the complete heater valve assembly. Seal replacement can address coolant leakage caused by worn seals. A cracked housing may require replacement of the assembly.

Important Before Ordering

Compare the OEM/P/N or marking on your heater valve with the listed references. The installed part number is the primary selection criterion. This VN-39 kit does not include cones.

FAQ

Does VN-39 include valve cones?

No. It contains only seals and diaphragms.

Can it be selected by BMW chassis code alone?

No. Different heater valve versions can be fitted to the listed BMW applications. Compare the valve P/N, such as 64118374994, with the references in the table.

Can the seals help with a coolant leak through the heater valve?

They can address leakage caused by worn valve seals. Check the housing: cracks may require replacement of the complete valve assembly.

Does the complete heater valve block always need replacing?

Not always. If the housing and solenoids are serviceable, the internal sealing components can be replaced separately.

Part Number / PN

64118374994,64118372004,64118391796,64118368462,64118391348,64128374995,64128372016,64128391000,64118391417,64111382299,64111391958,64116908294,64126927915,647409988203,1147412042,1147412137

Heater valve repair kits

• BMW
