Audi A6 / Jaguar S-Type Heater Valve Kit with Cones - 4F1959617

The sealing components and replacement cones service the mechanical section of the heater control valves on the listed Audi A6 and Jaguar S-Type applications. Match the installed valve reference and design before selecting this cone-equipped kit.

Vehicle Applications

• Audi A6 (4F/C6).
• Jaguar S-Type - 1999-2009.

When to Inspect the Heater Valves

• The heater blows only hot air.
• The heater blows only cold air.
• Cabin temperature cannot be adjusted.
• Left and right air temperatures differ.
• Cabin heating is weak in winter.
• Coolant leaks through the heater valve.

Check the heater valve block to establish the cause. These symptoms do not identify a failed cone or sealing component by themselves.

Repair Components

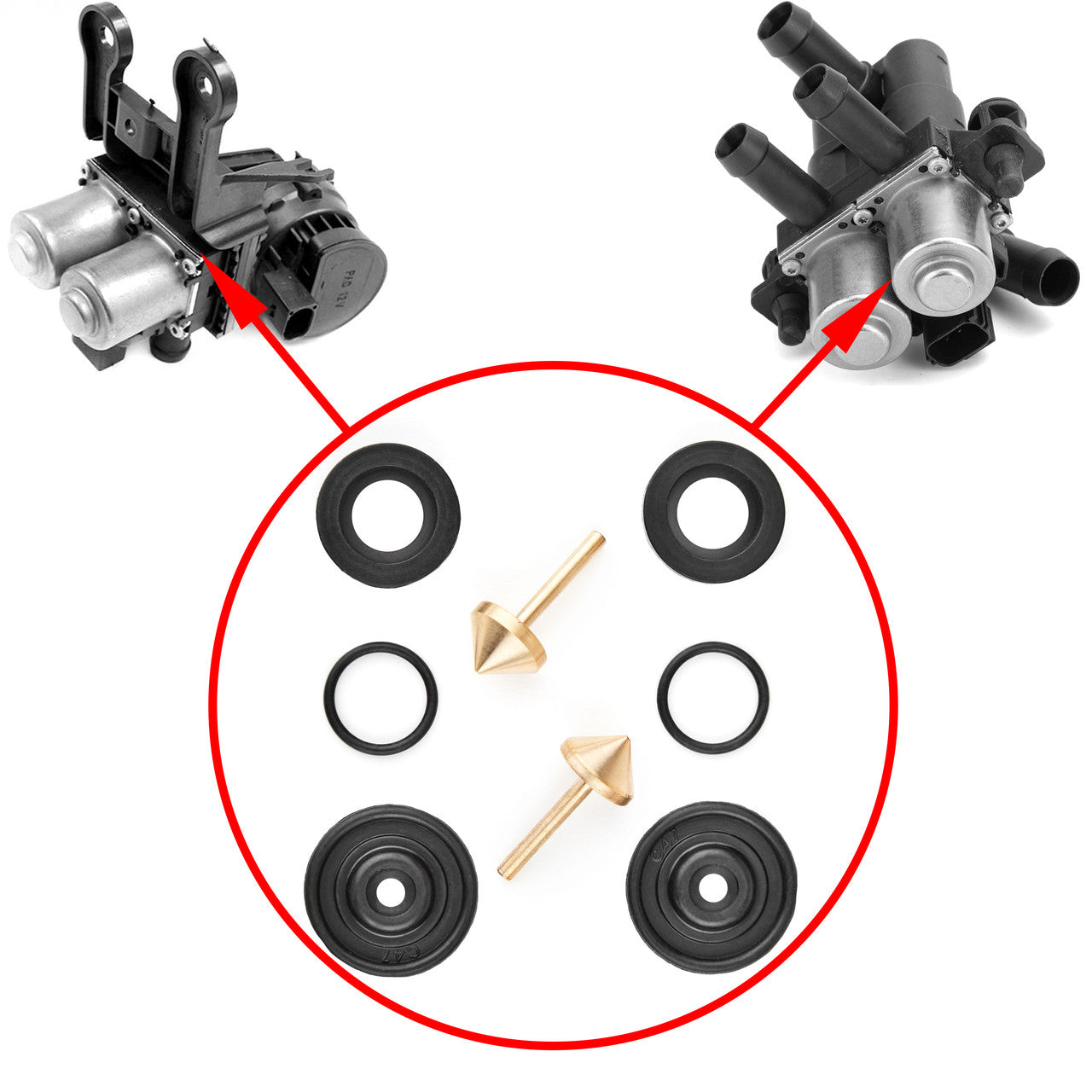

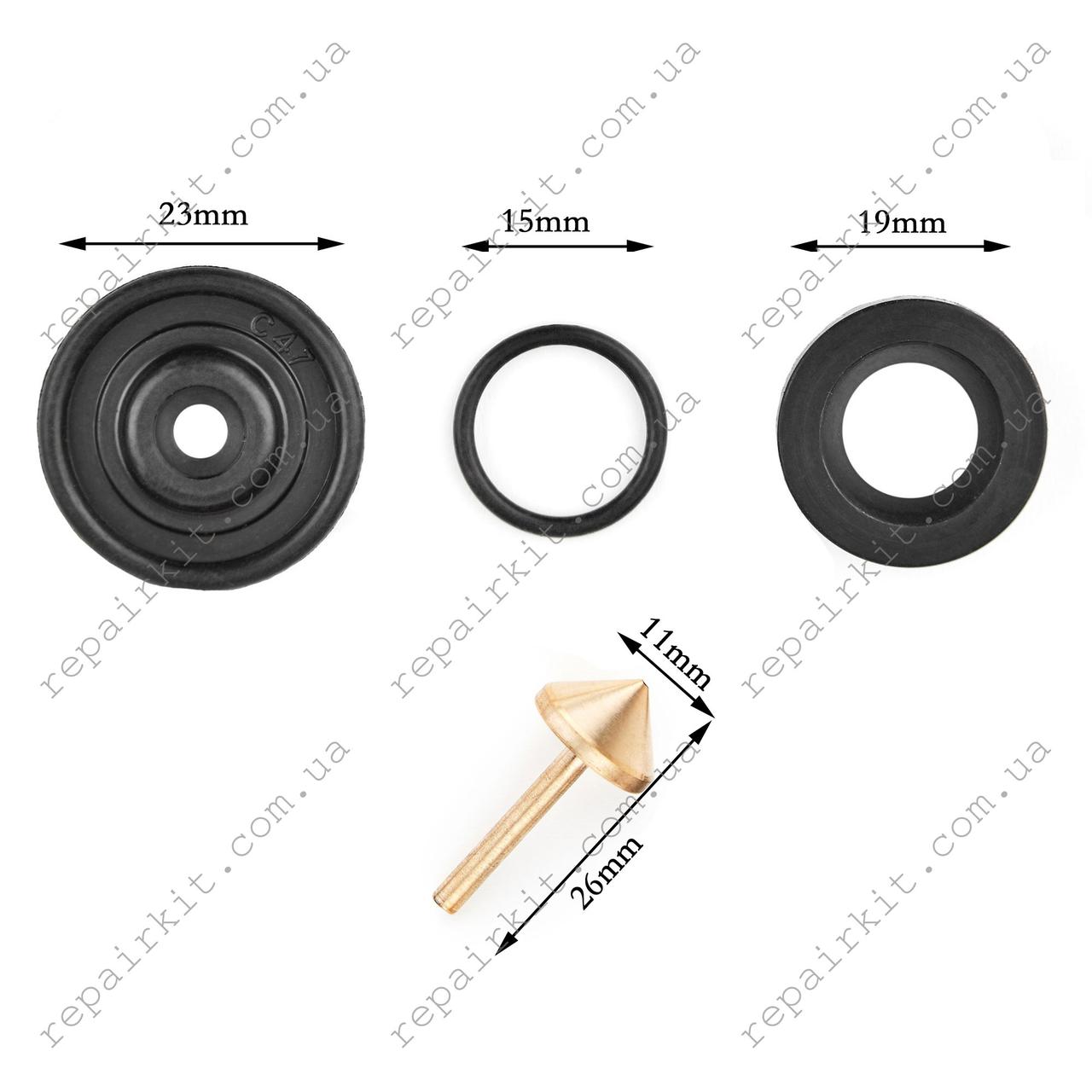

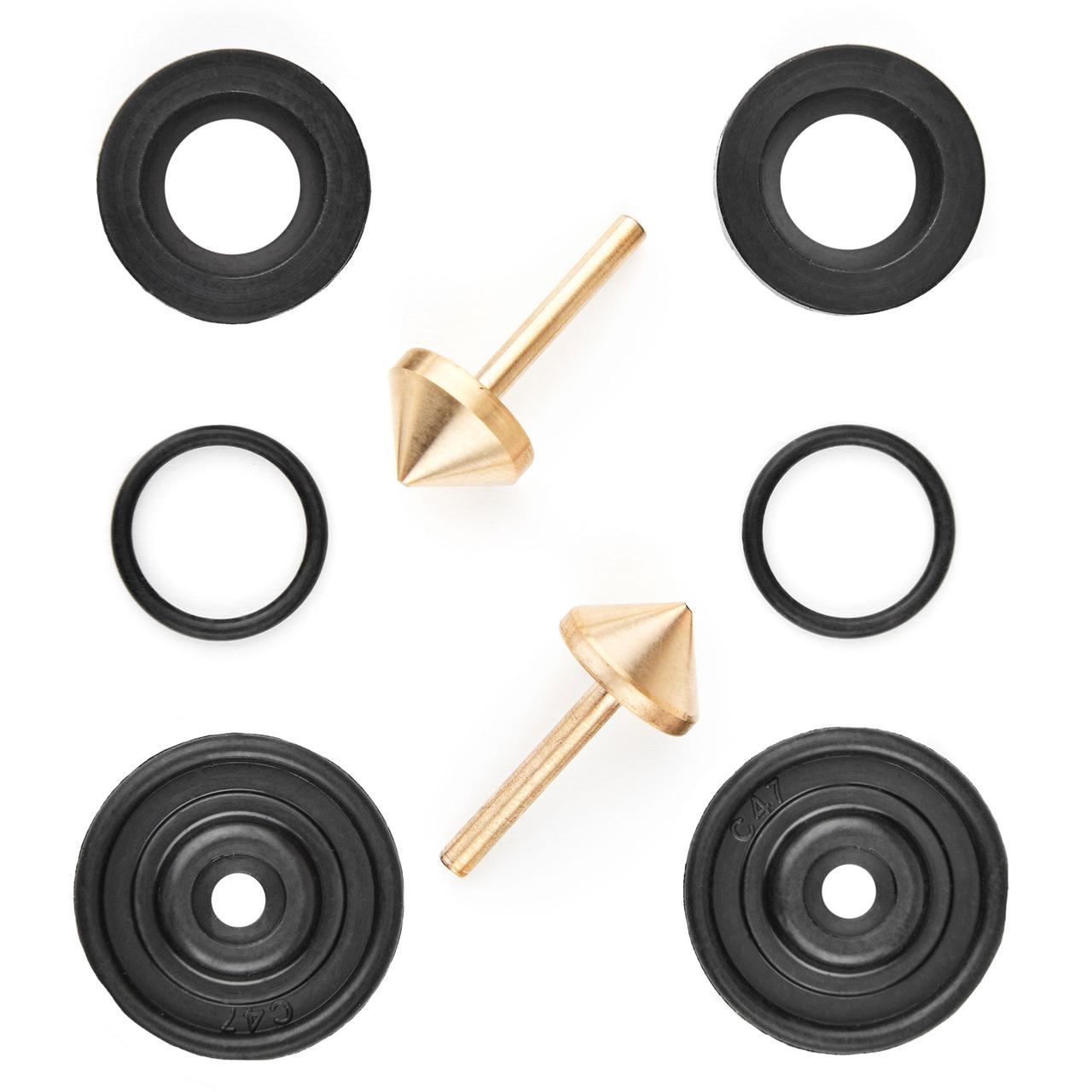

This is the version with valve cones and sealing components.

Valve References

• 4F1959617
• 4F2959617
• XR840091
• XR88043 (1147412148)
• XR822975 (1147412148)
• XR843549 (1147412175)
• XR819388

Additional References

0986338200, 840091.

Repair Scope

The internal repair components can be serviced while retaining a sound housing and serviceable solenoids. Worn seals can cause coolant leakage; inspect the housing because cracks may require replacement of the complete unit.

Important Before Ordering

Compare the installed heater valve OEM/P/N, marking and physical design with the listed references. Different valve versions may be fitted to the same vehicle model.

FAQ

Does VN-J1 include cones?

Yes. VN-J1 is the cone-equipped version with sealing components.

Which Jaguar years are listed?

Jaguar S-Type 1999-2009 is listed.

Which XR references are associated with 1147412148?

XR88043 and XR822975 are each listed with 1147412148.

Which reference is associated with XR843549?

XR843549 is listed with 1147412175.

Part Number / PN

1147412148, XR822975, XR843549, 1147412175, XR819388, 4F1959617, 4F2959617, XR840091, XR88043, 0986338200, 840091

SKU: VN-J1.
