BMW DISA Valve Rebuild Kit – Aluminum Upgrade | M54 2.0 / 2.2 / 2.5L | OEM 11617502269 11617544806

This Manifold Length Modifier, also known as the DISA valve in the BMW E46/E39/E60 M54 2.0, 2.2 and 2.5L (11617502269, 11617544806) is designed to change the length of the intake manifold by opening and closing the damper depending on engine speed and throttle position.

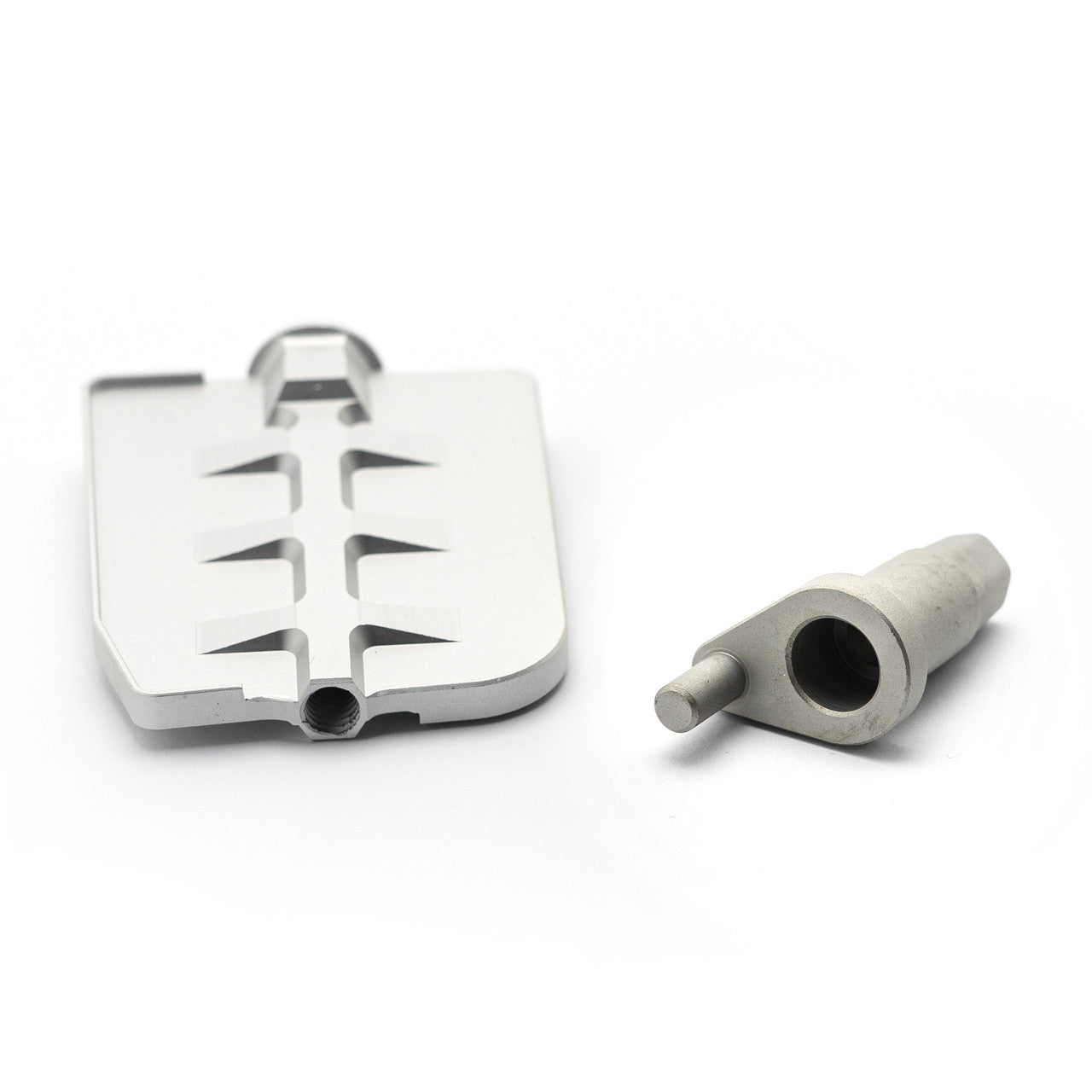

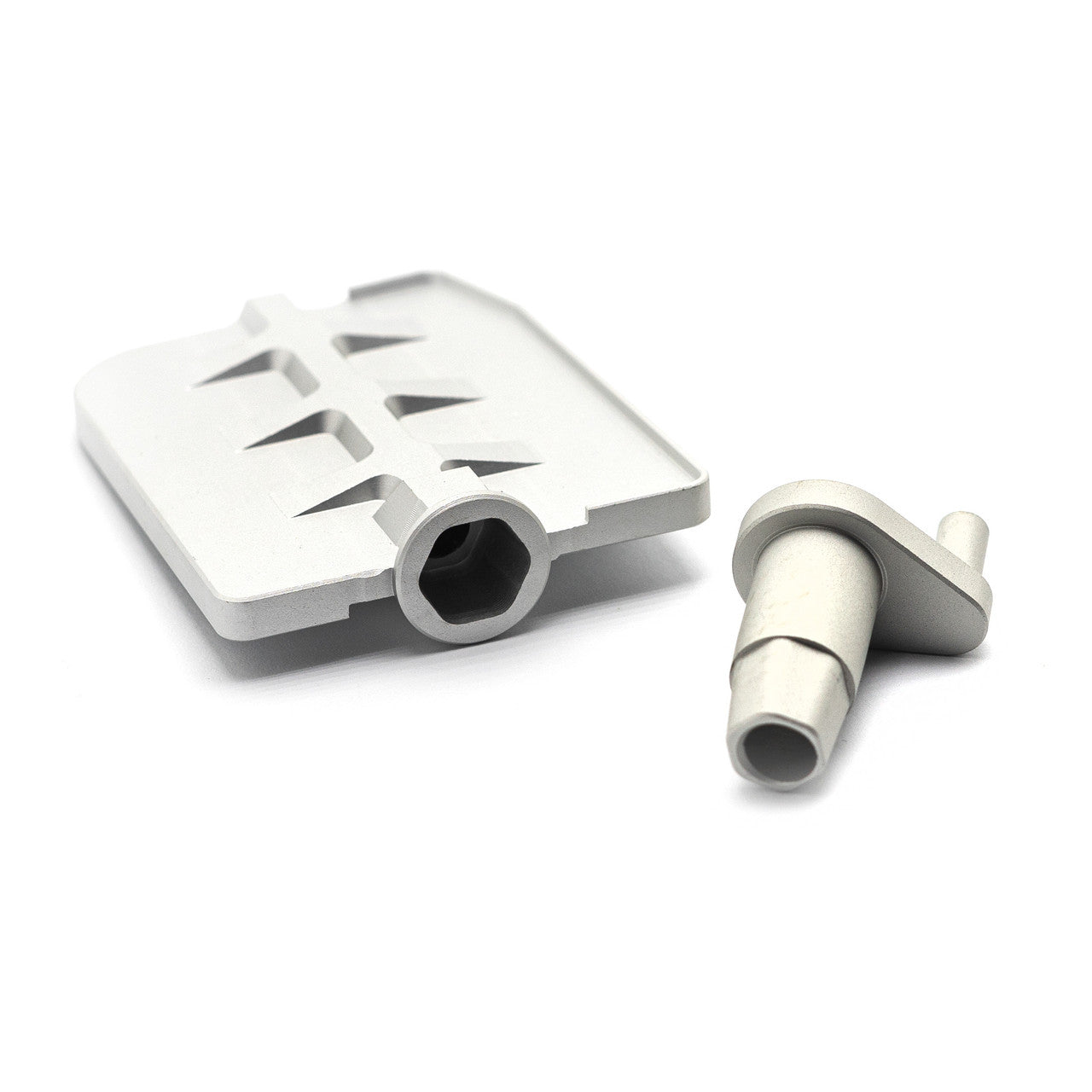

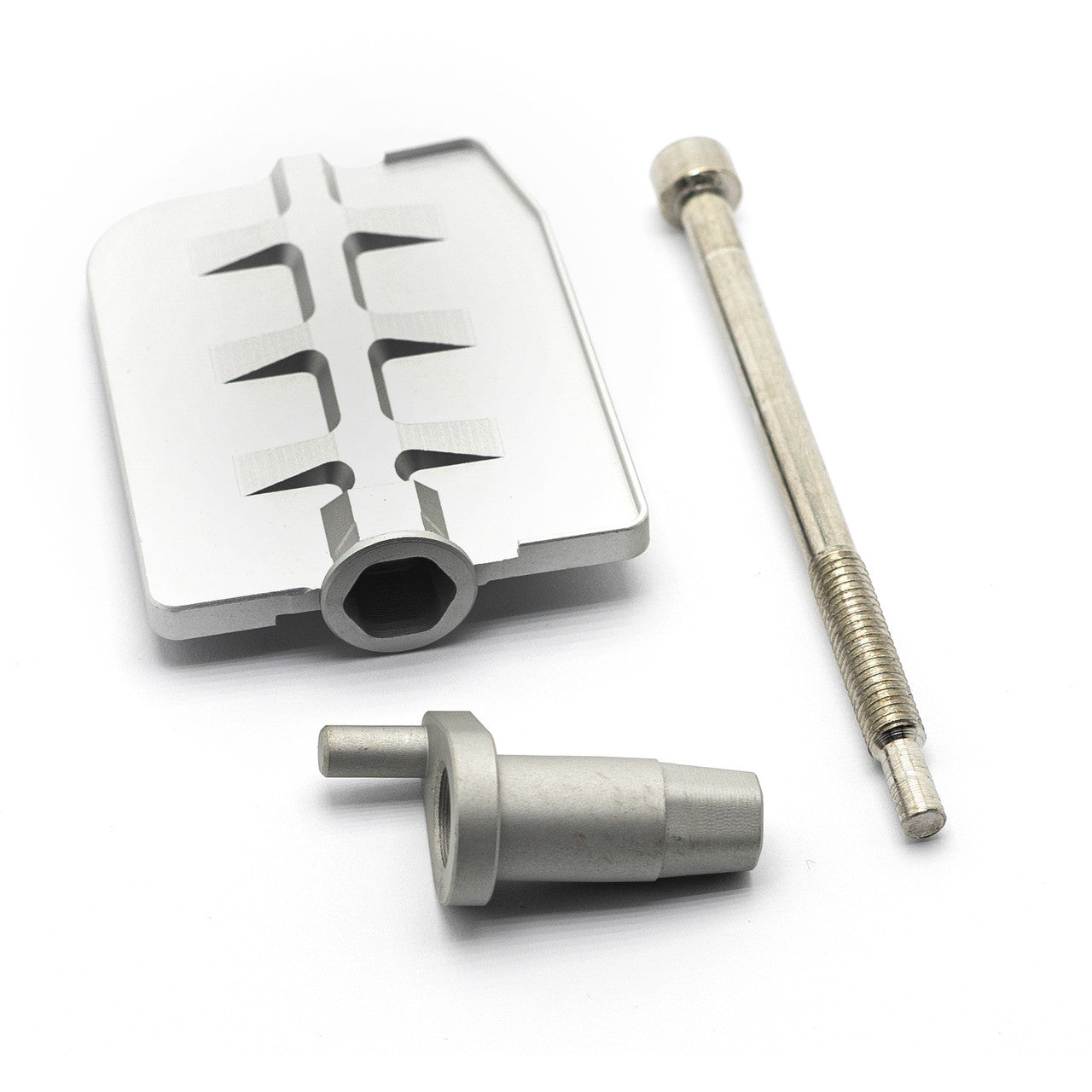

The presented repair kit DISA BMW M54 2.0, 2.2 and 2.5L 11617502269, 11617544806 consists of an aluminum blade, an aluminum crank, a rod, a lock washer and an o-ring (silicone).

In what cases will it be necessary to use this set?

• Valve failure. This is a normal situation caused by the use of plastic materials by the manufacturer. The connection of the lever and the blade comes off and begins to make atypical sounds, similar to a buzz or crackle, which occurs due to the nature of the system. When the valve wears, the connection between the vane and the lever becomes loose, which can cause the vane to fall off and cause serious engine damage. This forces some car owners to drive without a blade, which negatively affects engine performance and increases fuel consumption, so this option is not rational.
• A vacuum valve is installed in the body of the Disa BMW M54 (2.0, 2.2 and 2.5L) block, as a result of which the membrane may tear, which in turn will lead to the stop of the block.

BMW car manufacturers did not provide any other solution to the problem, except for the complete replacement of the Disa system, the cost of which starts from 4500 UAH. Therefore, to eliminate these faults, Clifex has created a repair kit that includes a blade and crank made of aluminum (6061-T6), a rod, a washer, a seal. This kit will help you quickly and efficiently restore the operation of the node. The strength of the connection is provided by a metal rod that connects the blade to the crank arm and prevents vibrations. The rod is also the axis of rotation and guarantees the strength of the structure. All parts are CNC machined and easy to install by hand. Replacing a broken diaphragm with a new one will help avoid problems with valve tightness.

To order a repair kit DISA BMW M54 2.0, 2.2 and 2.5L 11617502269, 11617544806, just fill out a short form on this site or call the specified phone number. Our consultant will help you make a purchase, as well as provide additional advice and recommendations for auto repair.

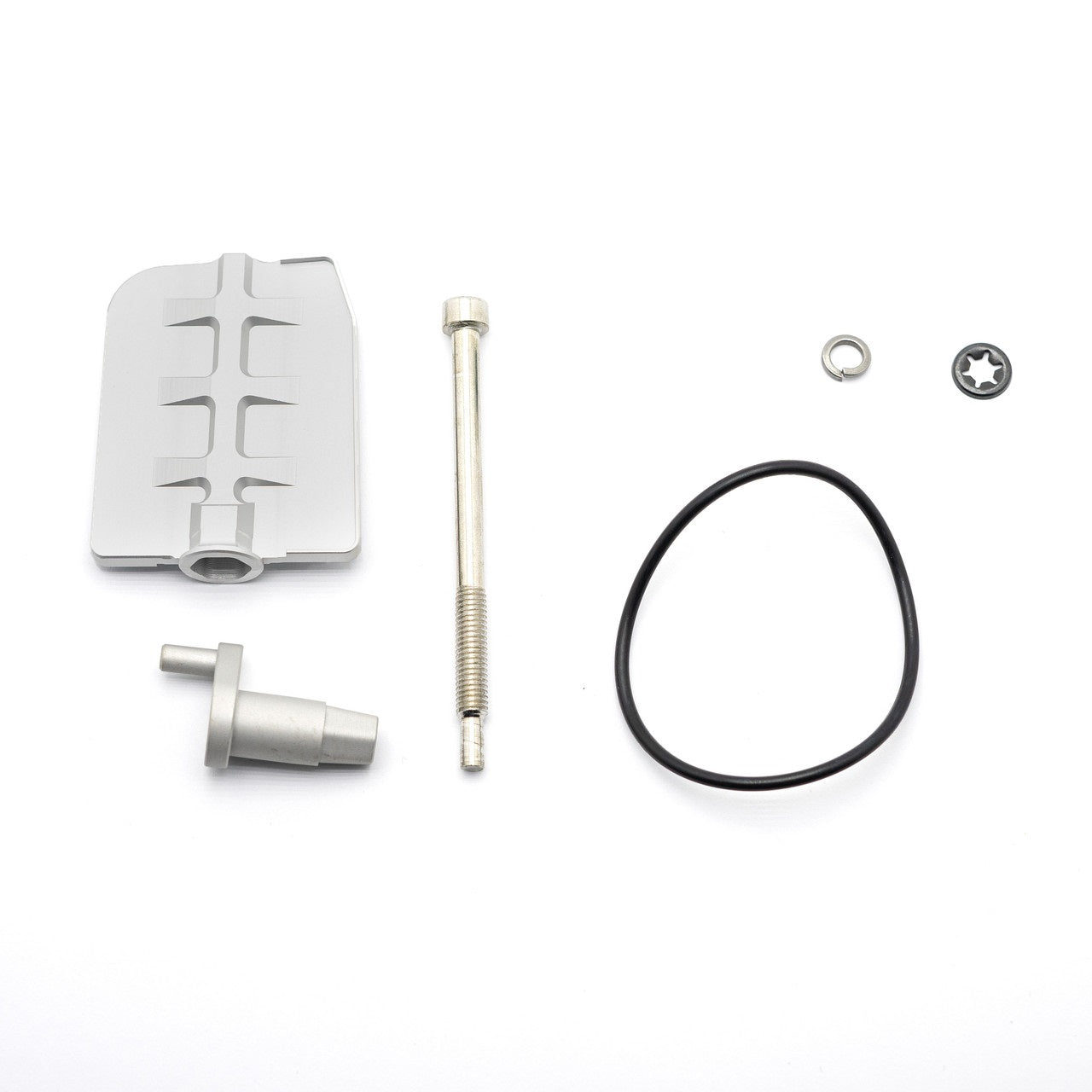

The composition of the Disa kit :

• 1 piece aluminum spatula.
• Aluminum crankshaft arm 1 piece.
• The rod is 1 piece.
• Locking washer 1 piece.
• O-ring (silicone) 1 piece.

OEM DISA BMW:

• 11617544806

• 11617502269

Compatibility:

• 3' E46 (12/1999 — 08/2006)
• 5' E39 (11/1999 — 12/2003)
• 5' E60 (01/2002 — 02/2005)
• 5' E61 (10/2002 — 02/2005)
• X3 E83 (02/2003 — 07/2006)
• Z3 E36 (12/1999 — 06/2002)
• Z4 E85 (01/2002 — 11/2005)

• BMW
