AWD Pump Motor Repair Kit - Kia Hyundai - for 478103B520
Save 17%
In stock
Regular price
$25.00
Sale price
$25.00
Regular price
$30.00
Delivery within the USA
Ships from Miami, FL when the ordered quantity is available in our US warehouse.
USPS Ground Advantage / FedEx
US delivery: typically 2–5 business days after dispatch
Checking warehouse availability…
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns
This repair kit is for the all-wheel-drive pump motor on the listed Kia and Hyundai applications. Match the original pump reference and motor component design before ordering.
Applications
- Hyundai Creta.
- Hyundai ix35.
- Hyundai Santa Fe.
- Hyundai Tucson.
- Kia Sorento.
- Kia Sportage.
Pump References and Fit
Compatible pumps: 478103B520 (47810-3B520 WMC M0017948) and 478103B500 (47810-3B500 MPT M0003915). The kit is described as fitting the matching pump without modification; compare the actual pump version first.

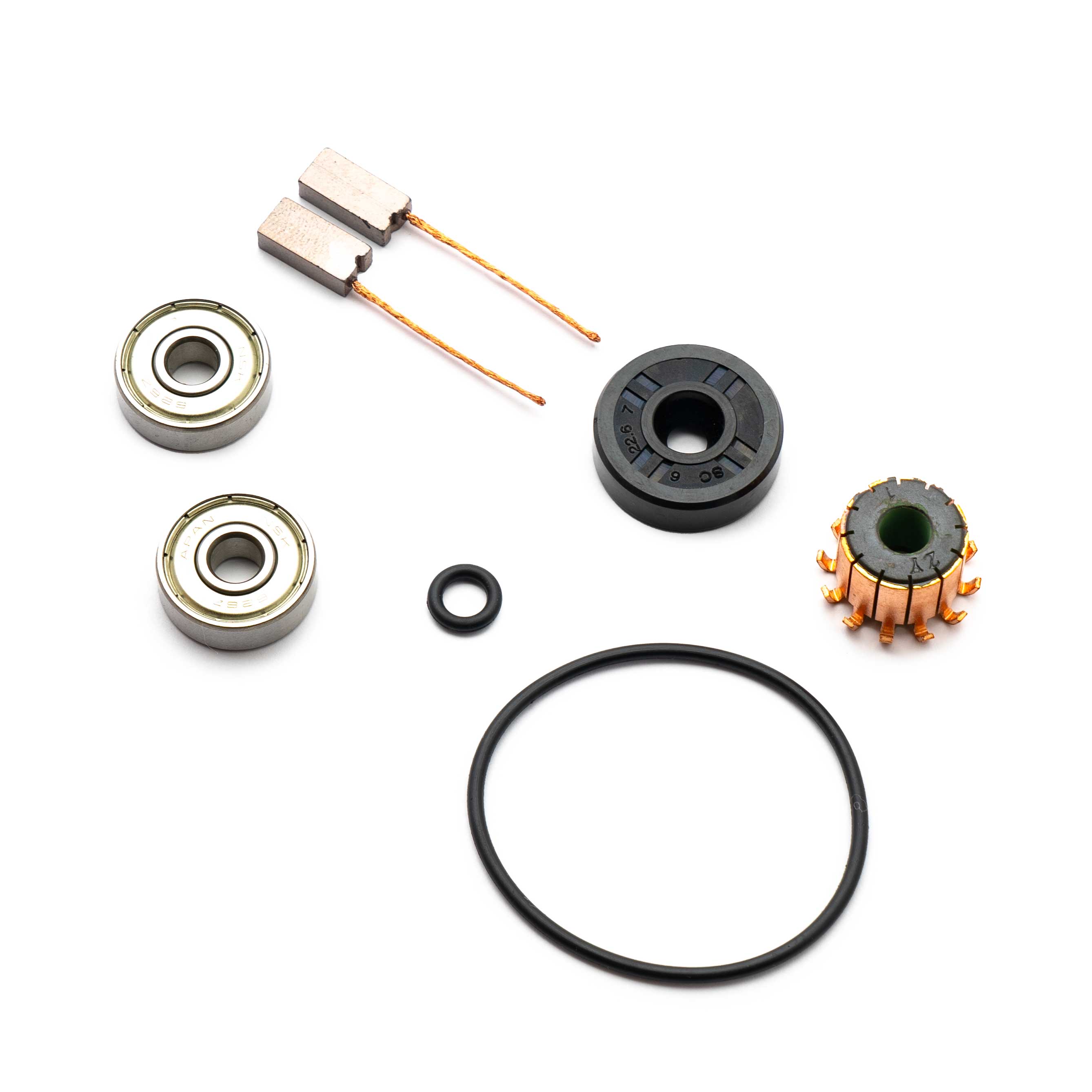

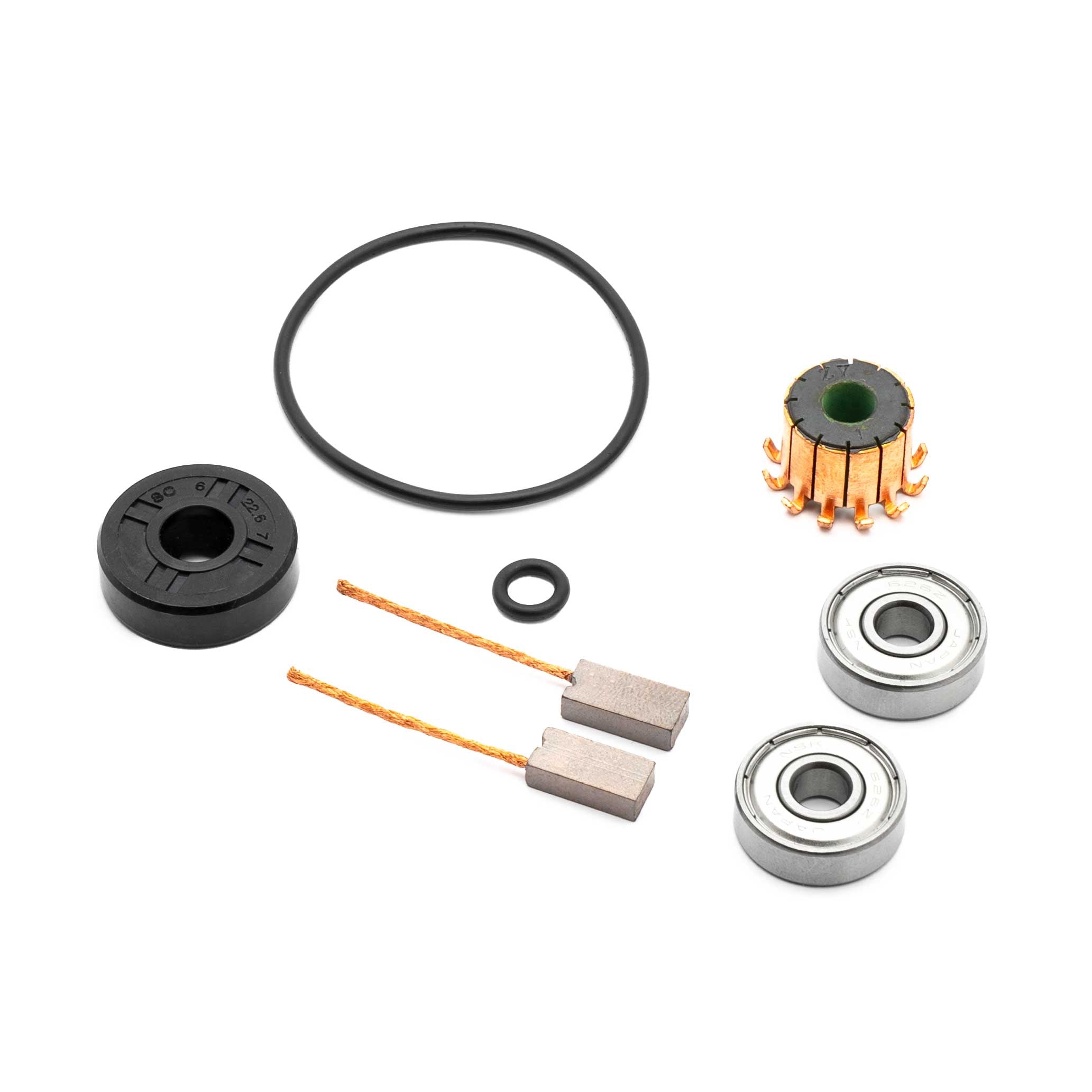

Kit Contents
- 1 commutator / current collector.
- 2 bearings.
- 2 copper-graphite brushes.
- 1 reinforced oil seal.
Diagnostic Codes
- P1820 - pump overcurrent for the 4WD motor.
- P1821 - short to battery in the 4WD motor pump wiring.
- P1822 - open load in the 4WD motor pump wiring.
- P1823 - short to ground in the 4WD motor pump wiring.
- P1824 - low overload indication at the 4WD pump terminals.
Diagnose the pump, wiring and affected motor components; a code alone does not prove that a repair kit will resolve the cause.
Inspection Before Repair
Inspect wear, damage, deformation, play, leaks and incorrect seating. Check oil condition, filter, pump and strainer. With heavy contamination, clean seating areas and check pump operation.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
How many bearings are included?
Two.
What brushes are specified?
Two copper-graphite brushes.
Does a diagnostic code identify the failed kit component?
No. Diagnose the pump, wiring and motor components before repair.
Part Number / PN
478103B500,478103B520
SKU: KL478103B520.
