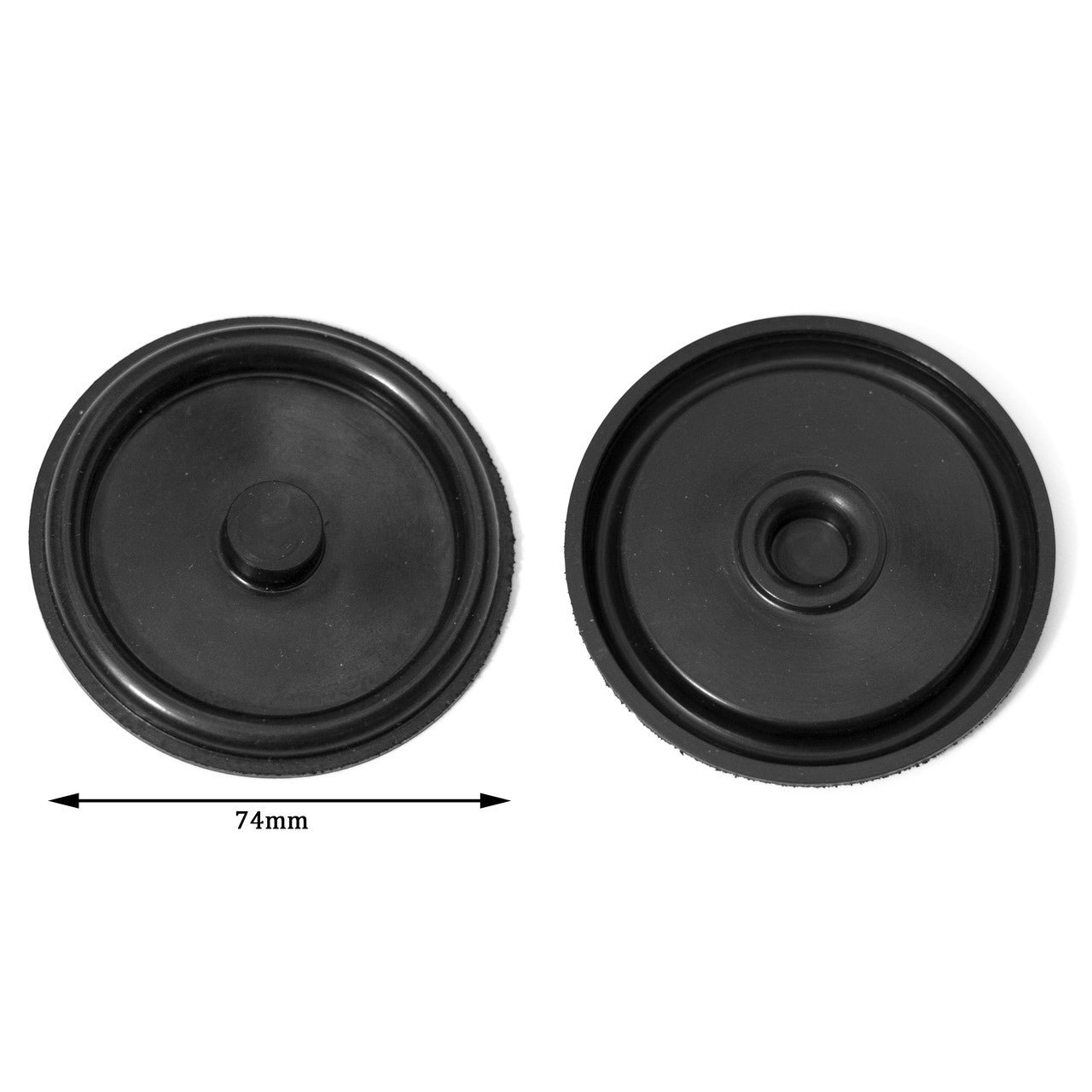

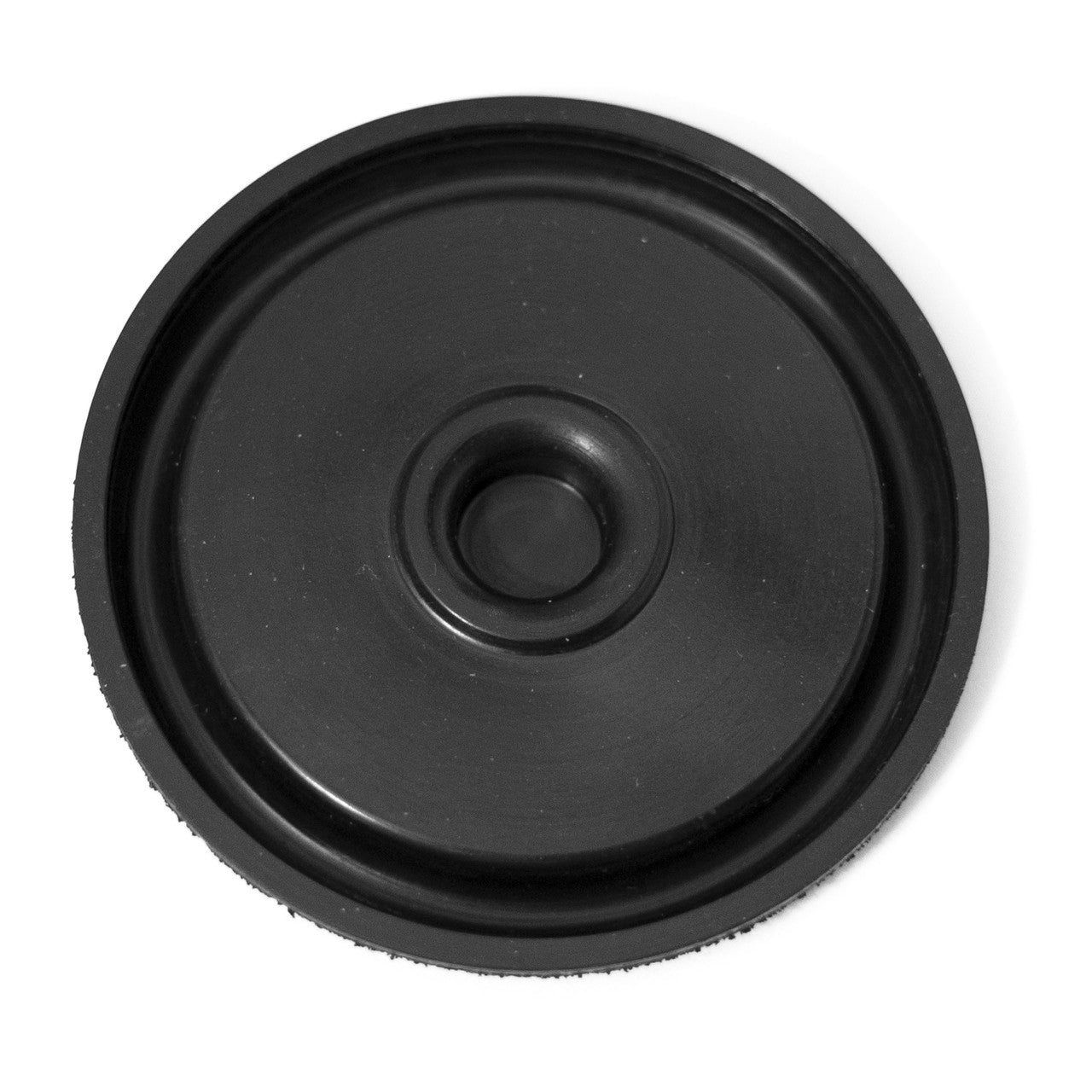

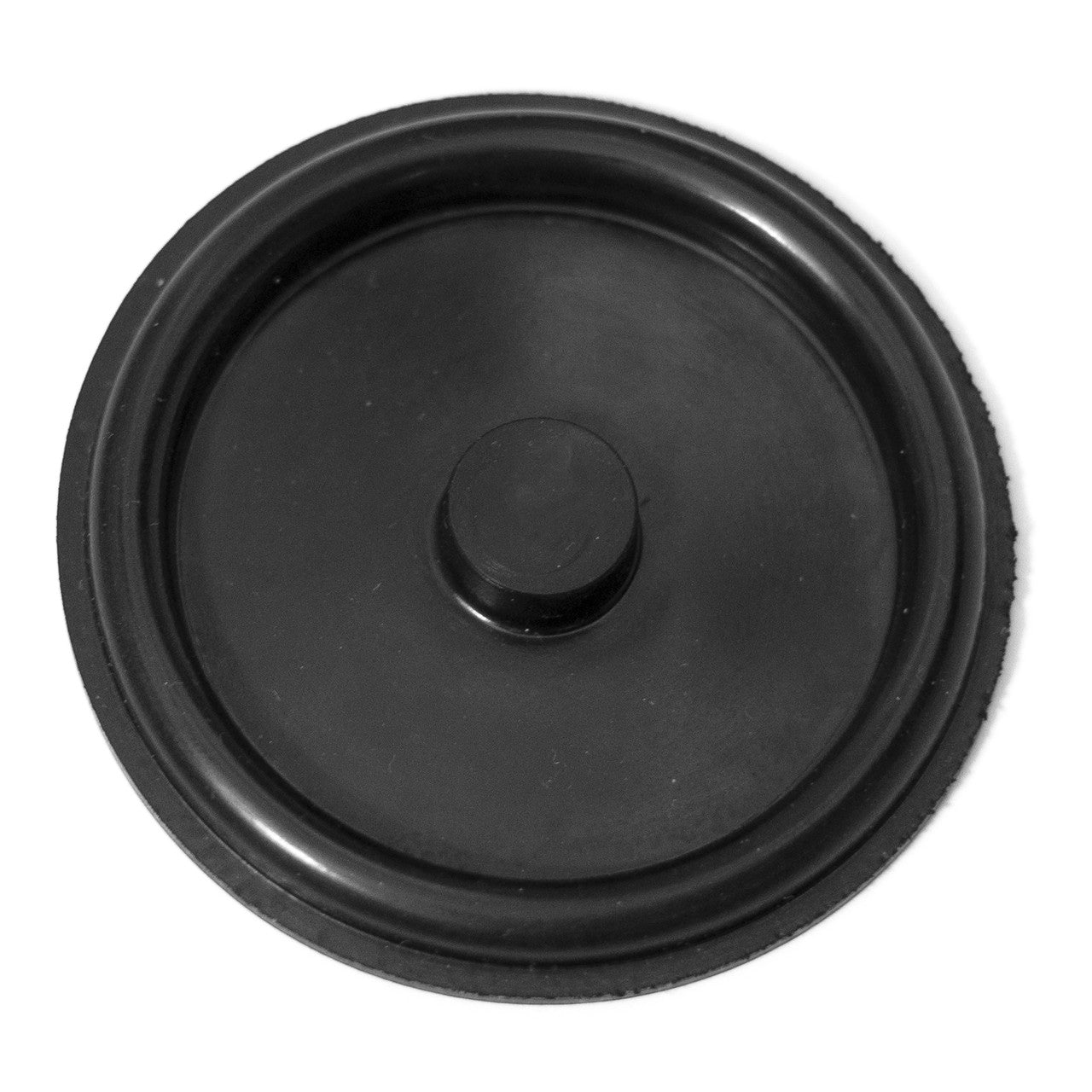

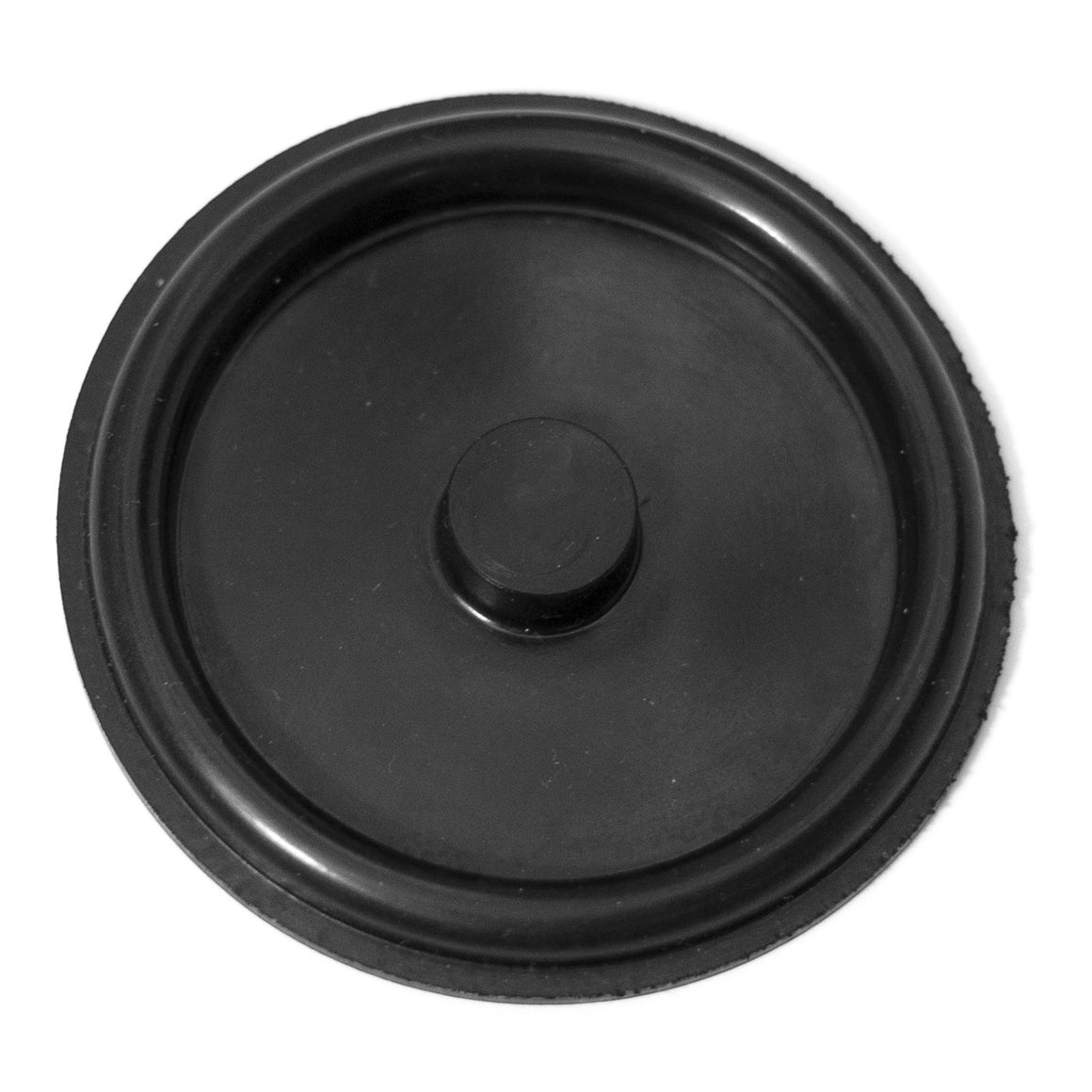

VW Touareg / Phaeton 3.2L PCV Diaphragm, 74 mm - 022103245B

This separate 74 mm diaphragm is for the crankcase ventilation valve in the specified VW Touareg and Phaeton 3.2L V6 applications. Heat and material ageing can cause the membrane to dry out, crack and tear.

Vehicle Applications

• VW Touareg 3.2L V6 - 2003-2007.
• VW Phaeton 3.2L V6 - 2002-2009.

When to Inspect the Ventilation Valve

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults associated with unmetered air.

Confirm the fault by inspecting the membrane, ventilation housing and hoses before selecting a repair.

Other Signs to Investigate

Difficult starting, reduced response at low engine speeds and smoke can also accompany a ventilation fault. A damaged membrane can admit unmetered air and dust, contributing to engine wear. Inspect the system to establish the cause.

PCV Valve References

022103765A, 022103245B, 022103245b.

Repair Scope

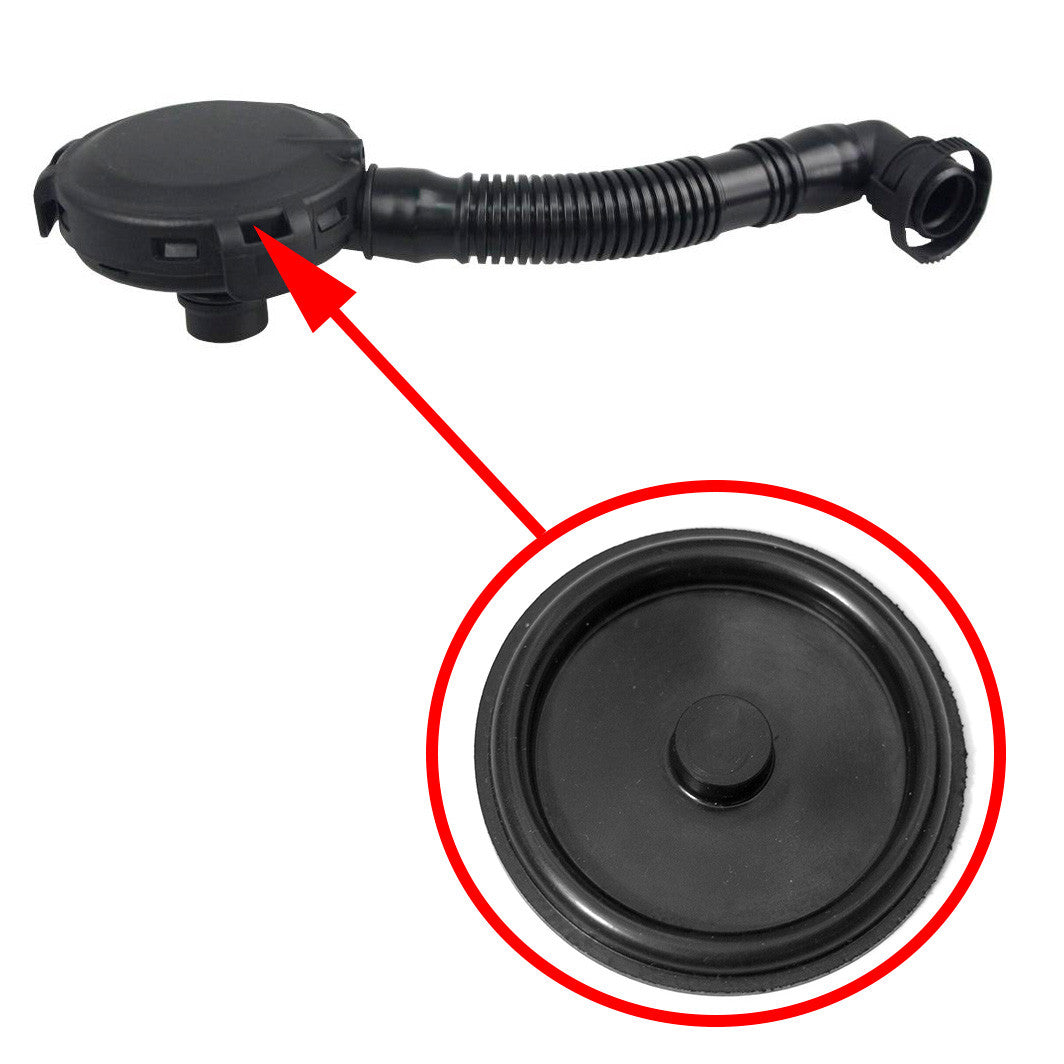

The diaphragm can be serviced separately when the surrounding cover and housing are sound. Inspect the other sealing components before choosing the repair; replacing a membrane does not correct damage elsewhere in the assembly.

Important Before Ordering

Compare the installed assembly reference, membrane design and dimensions before ordering. Check the housing and ventilation hoses for damage; a membrane alone may not resolve a cracked housing.

FAQ

Which PCV membrane diameter is specified?

The specified diameter is 74 mm.

What VW Touareg period is listed?

VW Touareg 2003-2007 is listed with 3.2L V6.

What VW Phaeton period is listed?

VW Phaeton 2002-2009 is listed with 3.2L V6.

Should I select the membrane by the valve number?

Yes. Compare the installed PCV valve with 022103765A and 022103245B and check the diaphragm design.

Part Number / PN

022103765A, 022103245B, 022103245b

SKU: KL022103245B.
