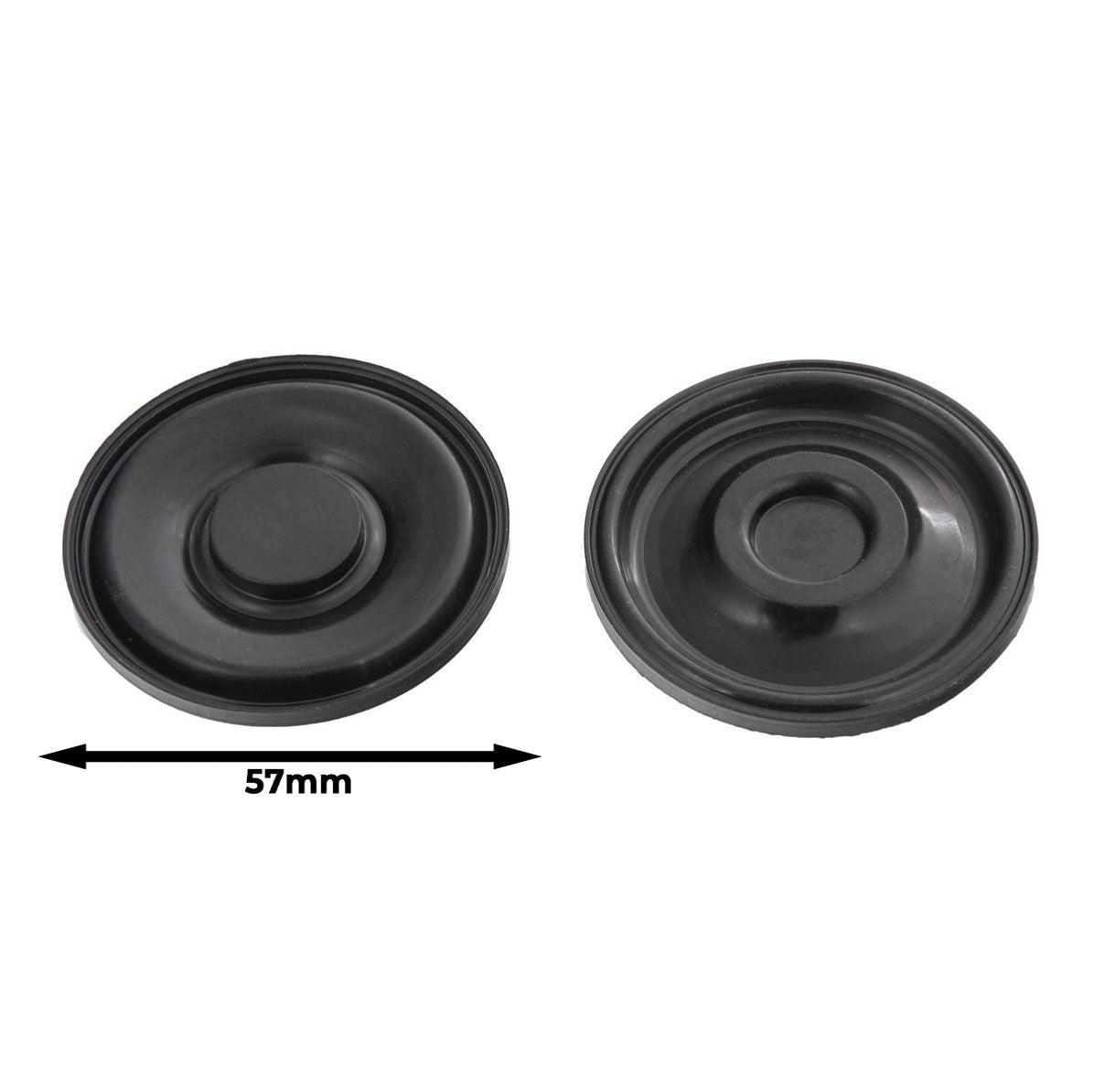

Renault / Peugeot Oil Separator PCV Diaphragm - 8200291355

This membrane belongs to the crankcase ventilation and oil separation system in the listed Renault and Peugeot applications. Select it by the relevant assembly reference group rather than treating all listed numbers as an unrestricted interchange.

Vehicle Applications

• Renault Scenic, Megane, Duster - 2.0L and 1.9 DCI DTI application groups below.
• Peugeot Partner 2.0HDI - 9643816680, 3911171934.

Application Reference Groups

• Renault 2.0L: 8200291355, 8200184165, 8200602648.
• Renault 1.9 DCI DTI: 8200045745, 3911171919, 8201005089, 8200063371, 8200136128, 8200576778, 8200466560, 8200602648, 1182600Q0E.
• Peugeot Partner 2.0HDI: 9643816680, 3911171934.

When to Inspect Crankcase Ventilation

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults related to unmetered air.

Inspect the ventilation valve and housing to identify the cause before replacing the diaphragm.

Assembly and Related References

8200291355, 8200184165, 3911171919, 8201005089, 8200063371, 8200136128, 8200576778, 8200466560, 8200602648, 3911171934, 1182600Q0E, 8200045745, 9643816680, 10290000101, 8200186227, 8200274410, 8200469325, 18118-67JA0, 3911171900, 7700875302, 7700102001, 7700875729.

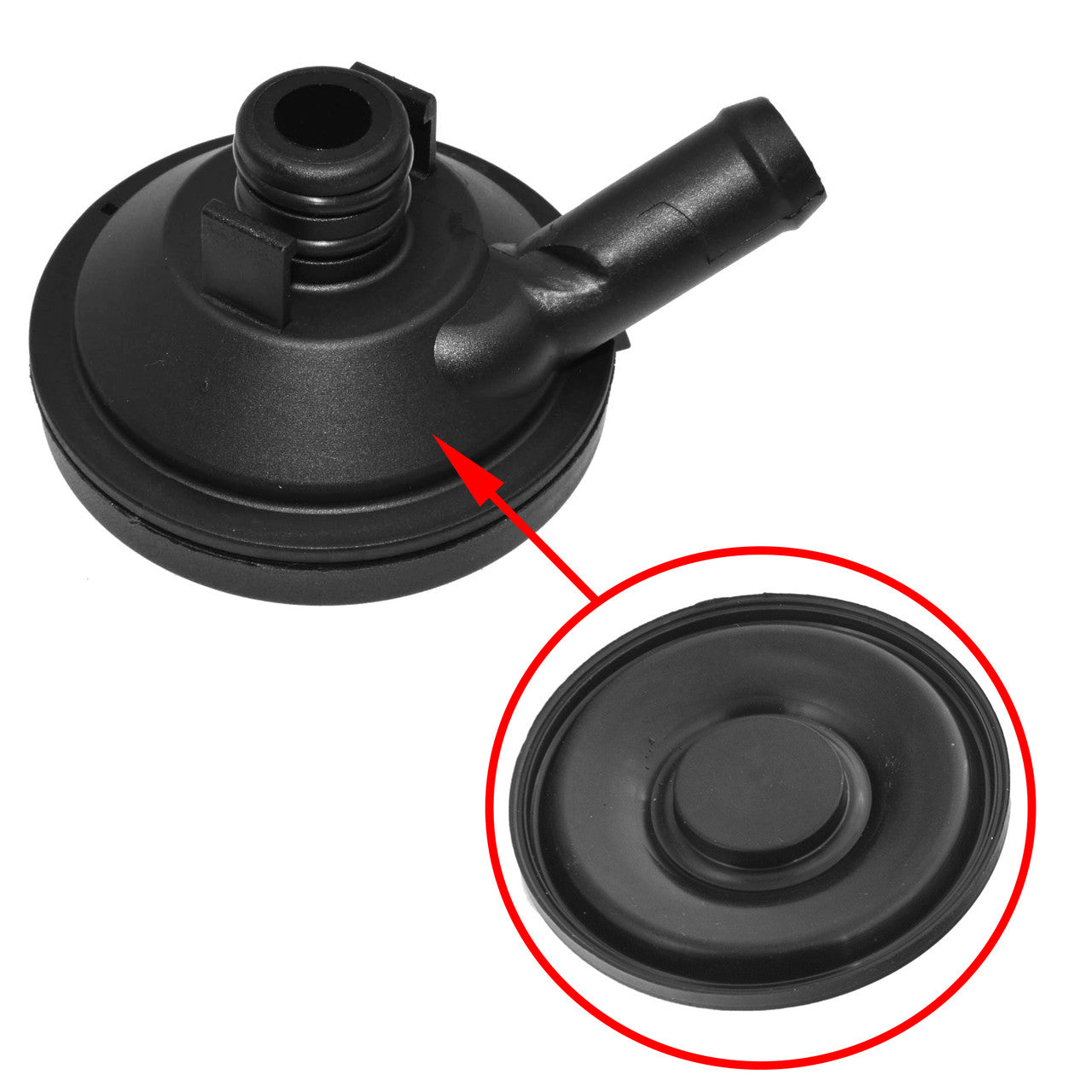

Separate Membrane Service

The failed membrane can be serviced without replacing a sound oil separator housing. Inspect the housing and ventilation hoses first. Any improvement in oil consumption depends on the ventilation fault being the actual cause.

Important Before Ordering

Compare the installed assembly reference, membrane design and dimensions before ordering. Check the housing and ventilation hoses for damage; a membrane alone may not resolve a cracked housing.

FAQ

Which references belong to the Renault 2.0L group?

8200291355, 8200184165 and 8200602648 are listed for the 2.0L group.

Which Peugeot Partner application is specified?

Peugeot Partner 2.0HDI is specified with references 9643816680 and 3911171934.

Is 1182600Q0E listed with the Renault 1.9 group?

Yes. It is included in the 1.9 DCI DTI reference group.

Should all reference numbers be treated as the same application?

Use the relevant engine/application reference group and match the installed housing and membrane design before ordering.

Part Number / PN

8200291355, 8200184165, 3911171919, 8201005089, 8200063371, 8200136128, 8200576778, 8200466560, 8200602648, 3911171934, 1182600Q0E, 8200045745, 9643816680, 10290000101, 8200186227, 8200274410, 8200469325, 18118-67JA0, 3911171900, 7700875302, 7700102001, 7700875729
