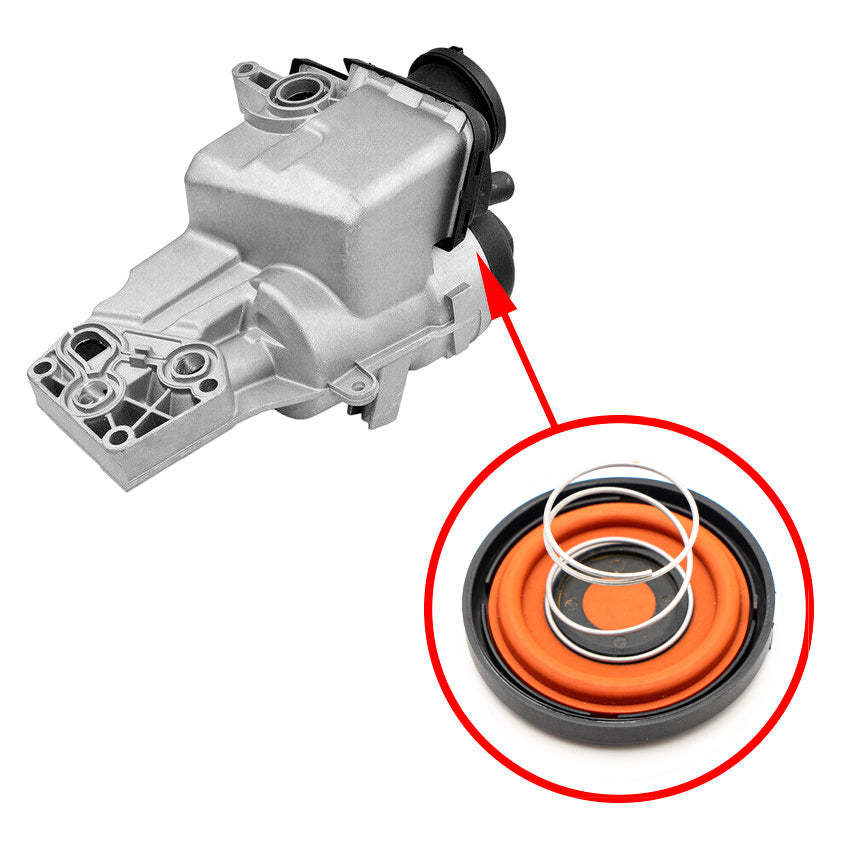

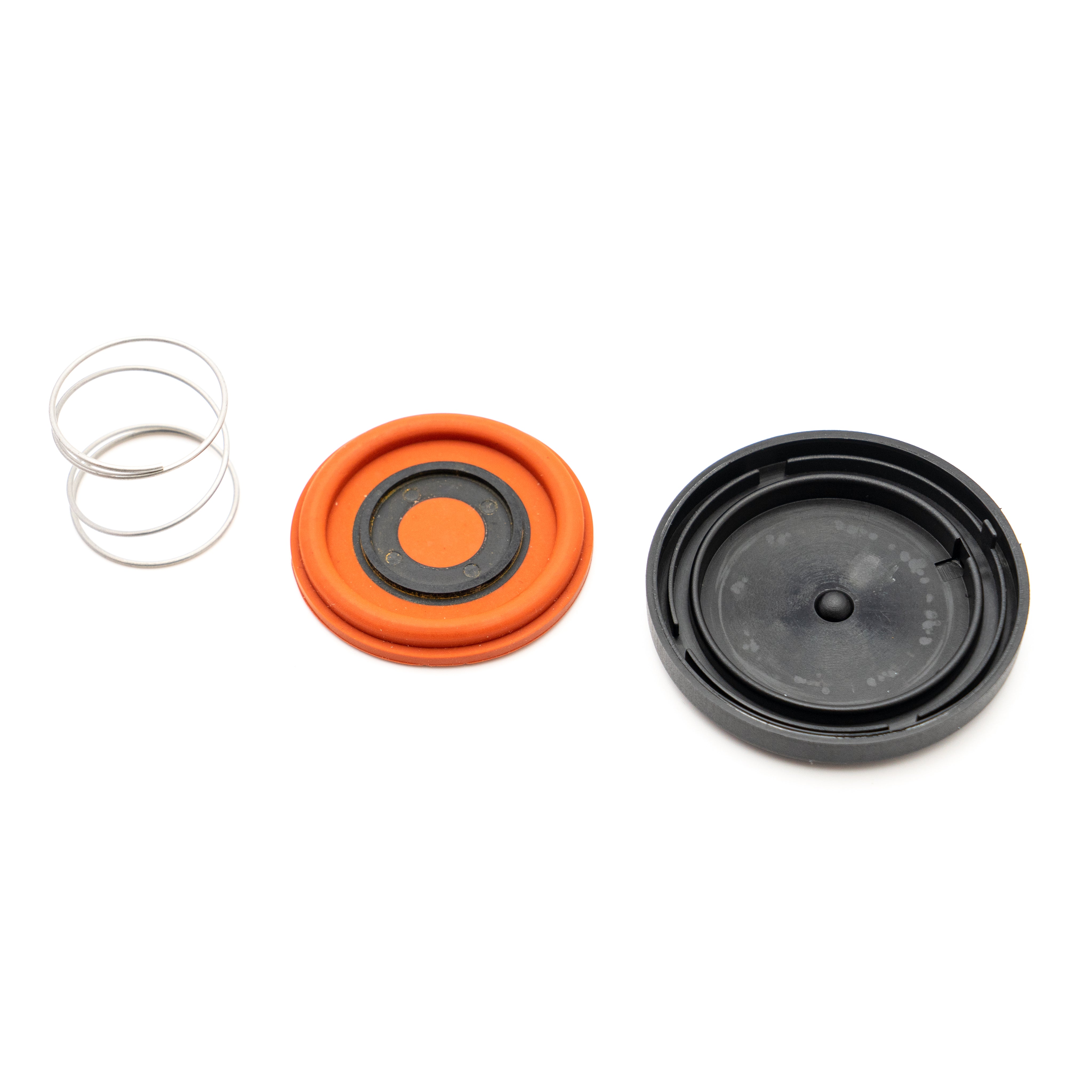

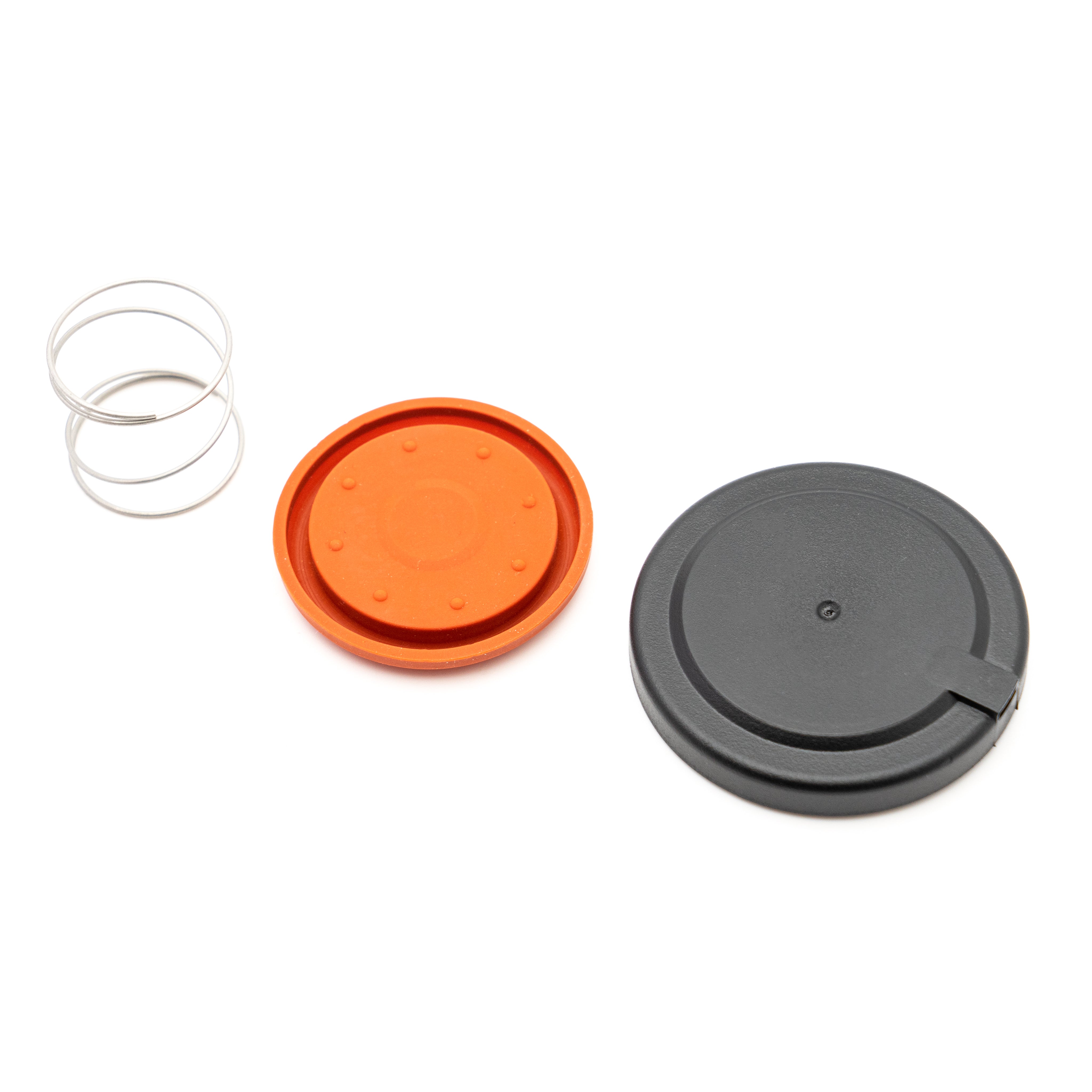

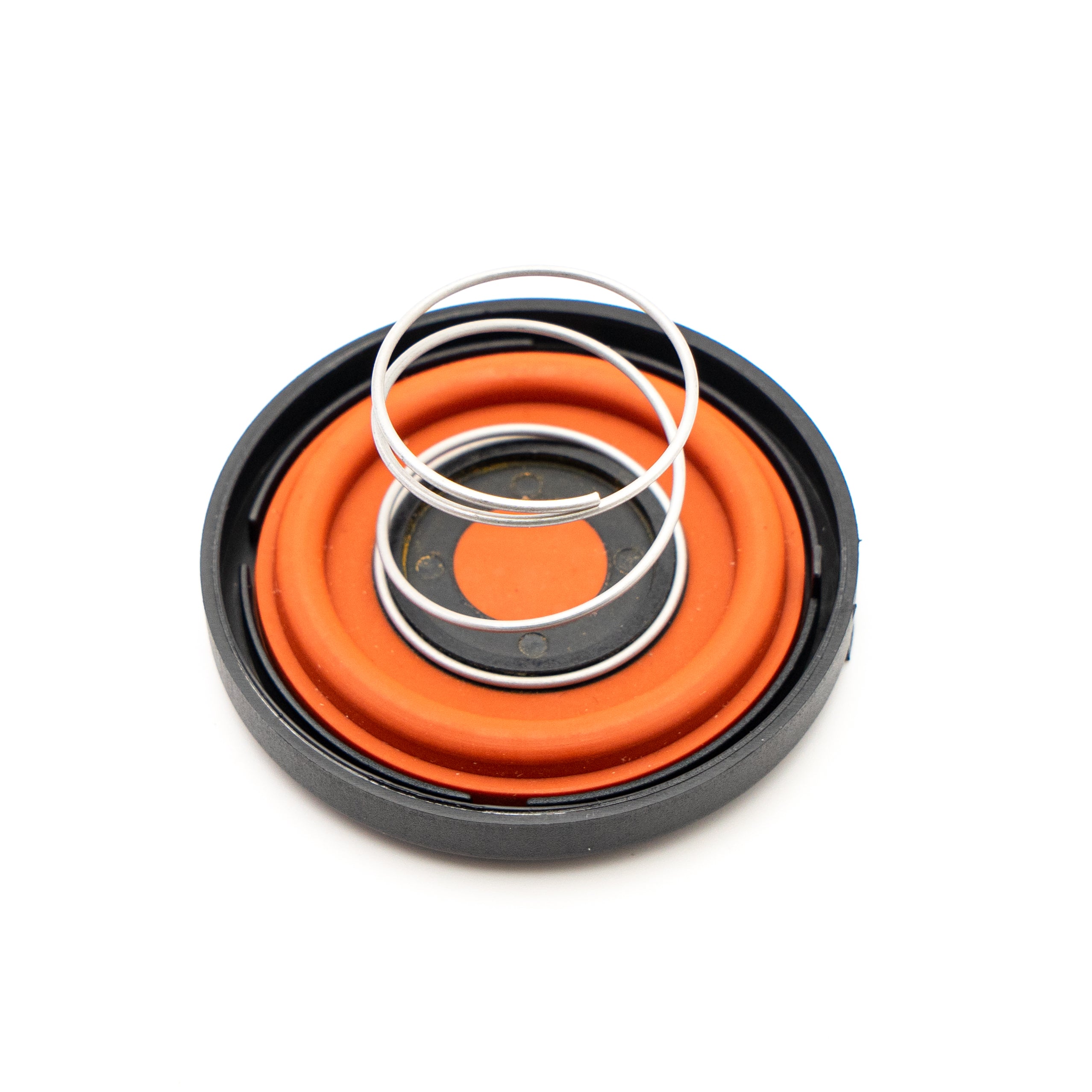

This 52mm diaphragm repair kit is for the oil separator / oil filter housing on the listed Volvo and Ford applications. Match the installed housing reference and diaphragm design before ordering.
Applications
- Volvo C30 - 2006-2013.
- Volvo C70 - 2006-2013.
- Volvo S40 - 2004-2012.
- Volvo S80 - 2006-2016.
- Volvo V50 - 2004-2012.
- Volvo V70 - 2007-2013.
- Ford Focus II - 2005-2008.
- Ford Focus II - 2008-2011.
- Ford Kuga - 2008-2012.
- Ford Mondeo IV - 2007-2015.
- Ford S-MAX - 2006-2015.
Separator Selection

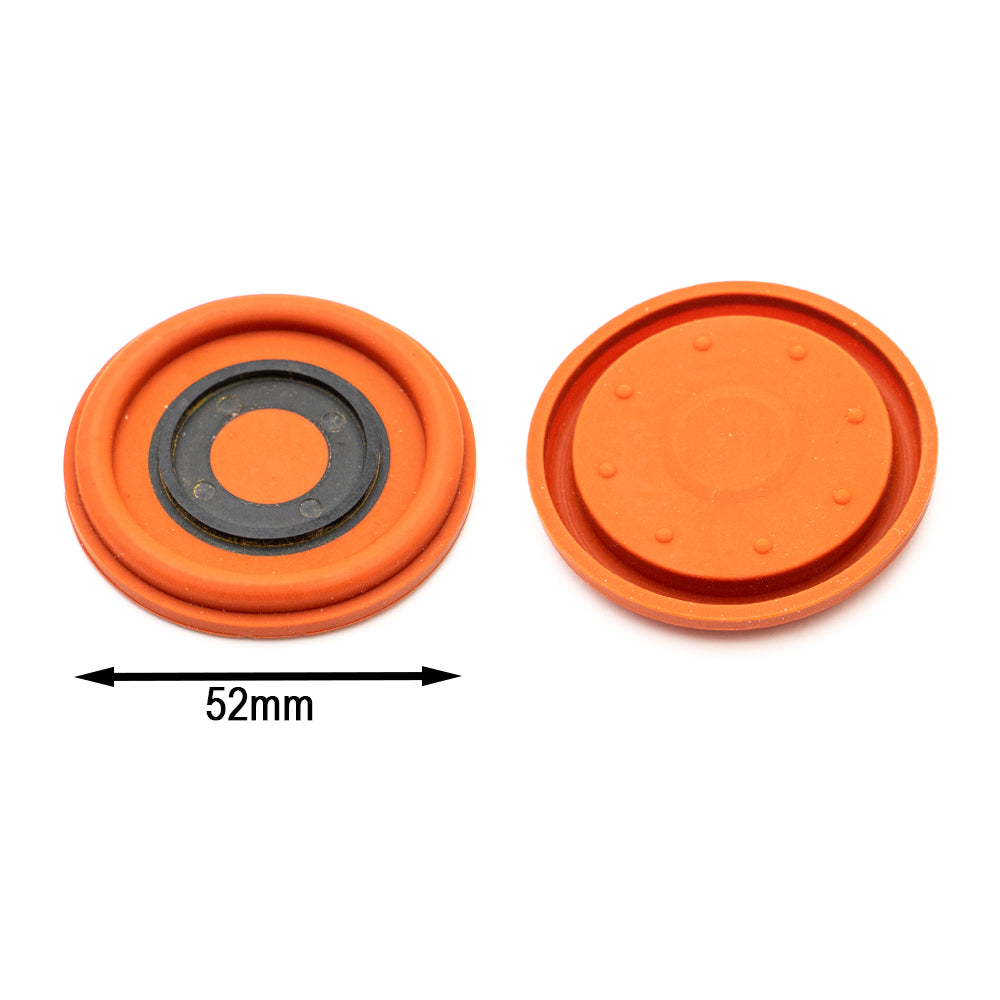

Diameter: 52mm. Volvo housing references: 31338685, 30788494, 31338684 and 30677920. Volvo engine context: 2.0, 2.4, 2.5 V5; B5254T and B5244S. Ford separator reference: 1781598; Ford engine context: 2.0L, 2.4L, 2.5L V5 and 2.5L Duratec-ST. Additional reference forms: 3911117978 and 39 111 17 978. During installation, additionally securing the cover with sealant or adhesive is recommended.
When to Inspect Crankcase Ventilation
- Whistling or excessive crankcase vacuum.
- Unstable idle.
- Increased oil consumption.
- Oil deposits in the intake.
- Exhaust smoke after warm-up.
- Mixture faults associated with air leaks.
These symptoms call for inspection of the crankcase ventilation system; confirm the cause before replacing the diaphragm.
Repair Scope
The diaphragm is a repair component for the oil separator. Inspect the separator or valve cover housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable when the housing is intact; housing damage may require a different repair.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
What diameter is specified?
52mm.
What additional cover fastening is recommended?
Sealant or adhesive during installation.
Can a diaphragm repair a cracked housing?
Inspect the housing and ventilation hoses first; housing damage may require another repair.
Part Number / PN
30788494,31338684,31338685,1781598,30677920,3911117978
SKU: KL31338685.
