Oil Separator Diaphragm Repair Kit 58.3mm - Volvo Ford - 30684381

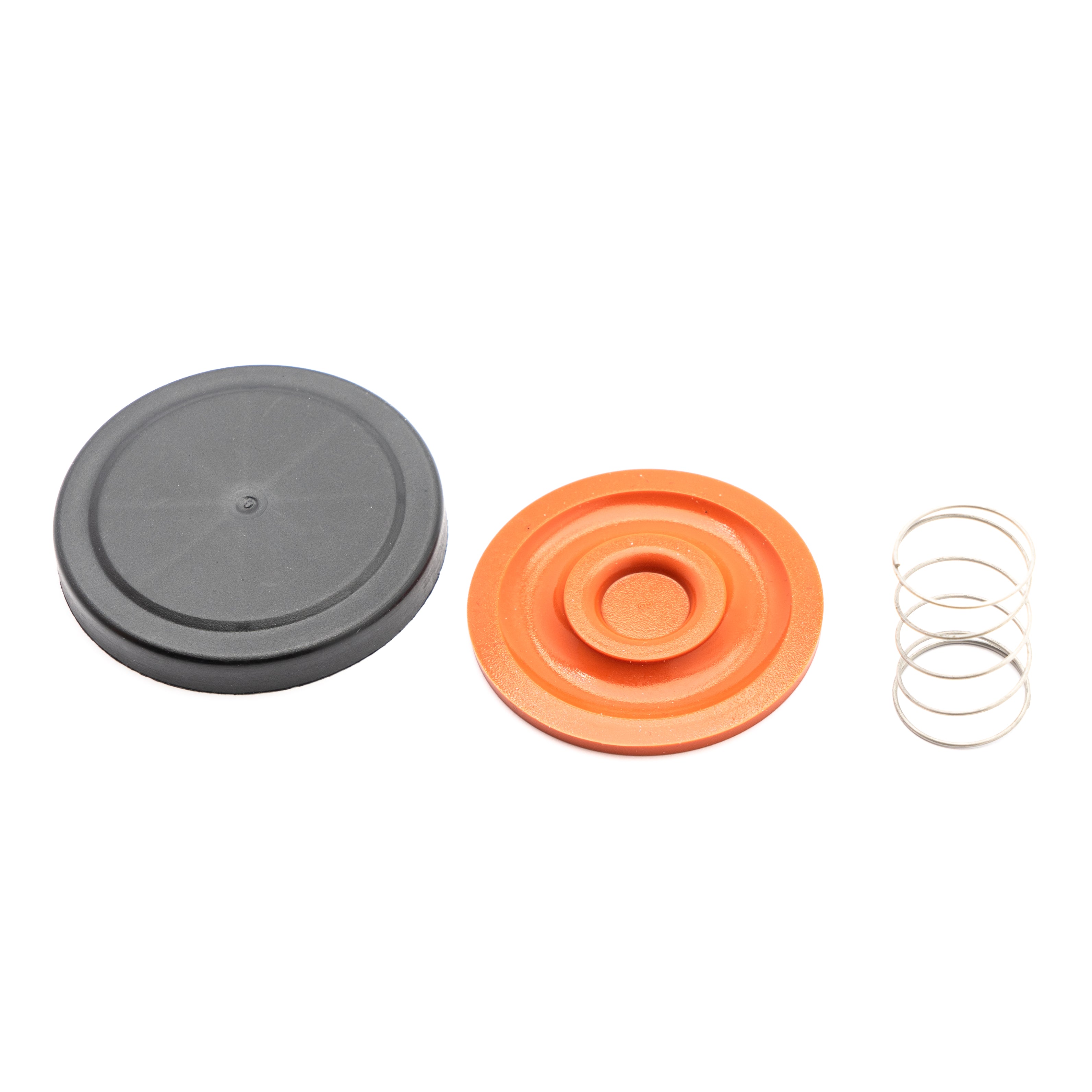

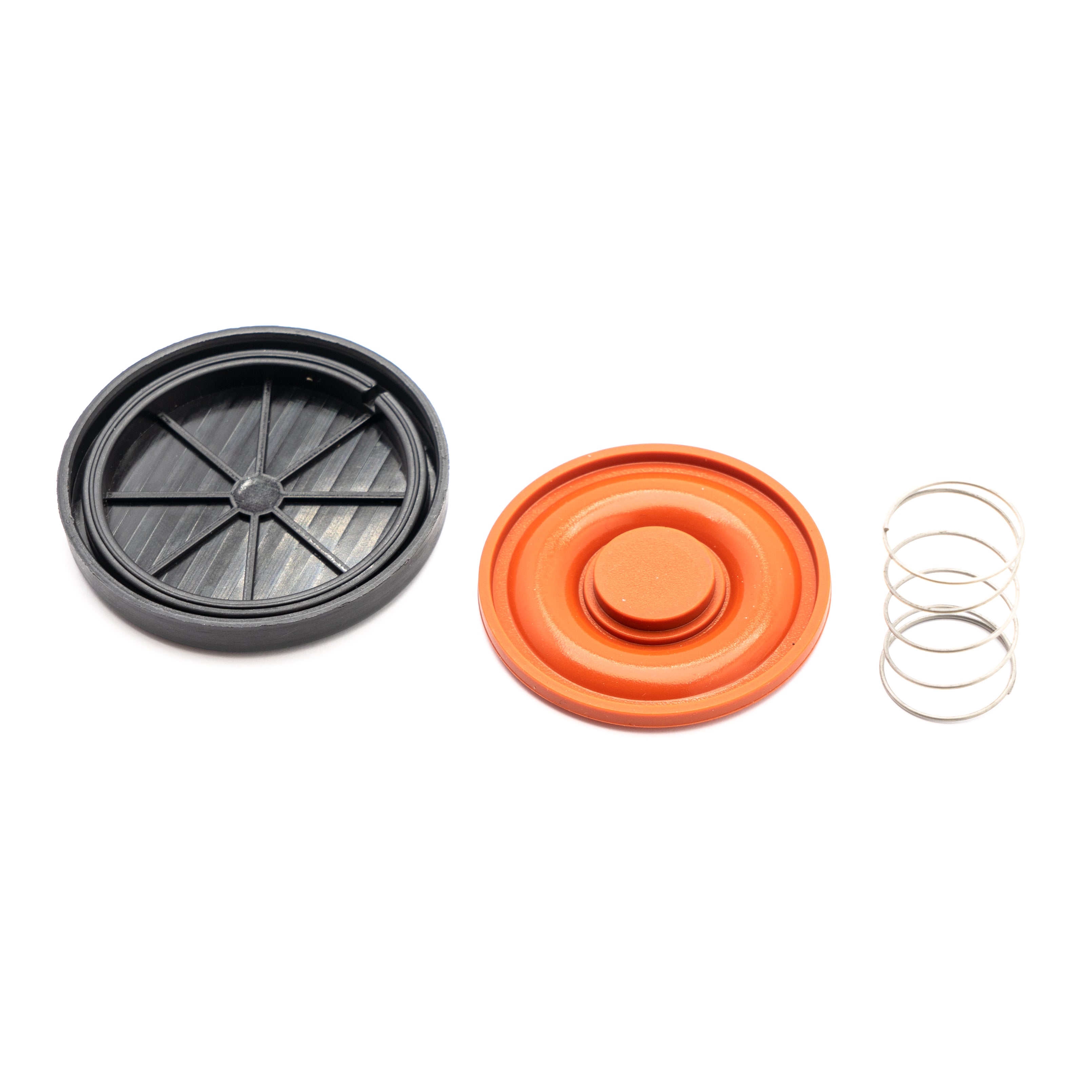

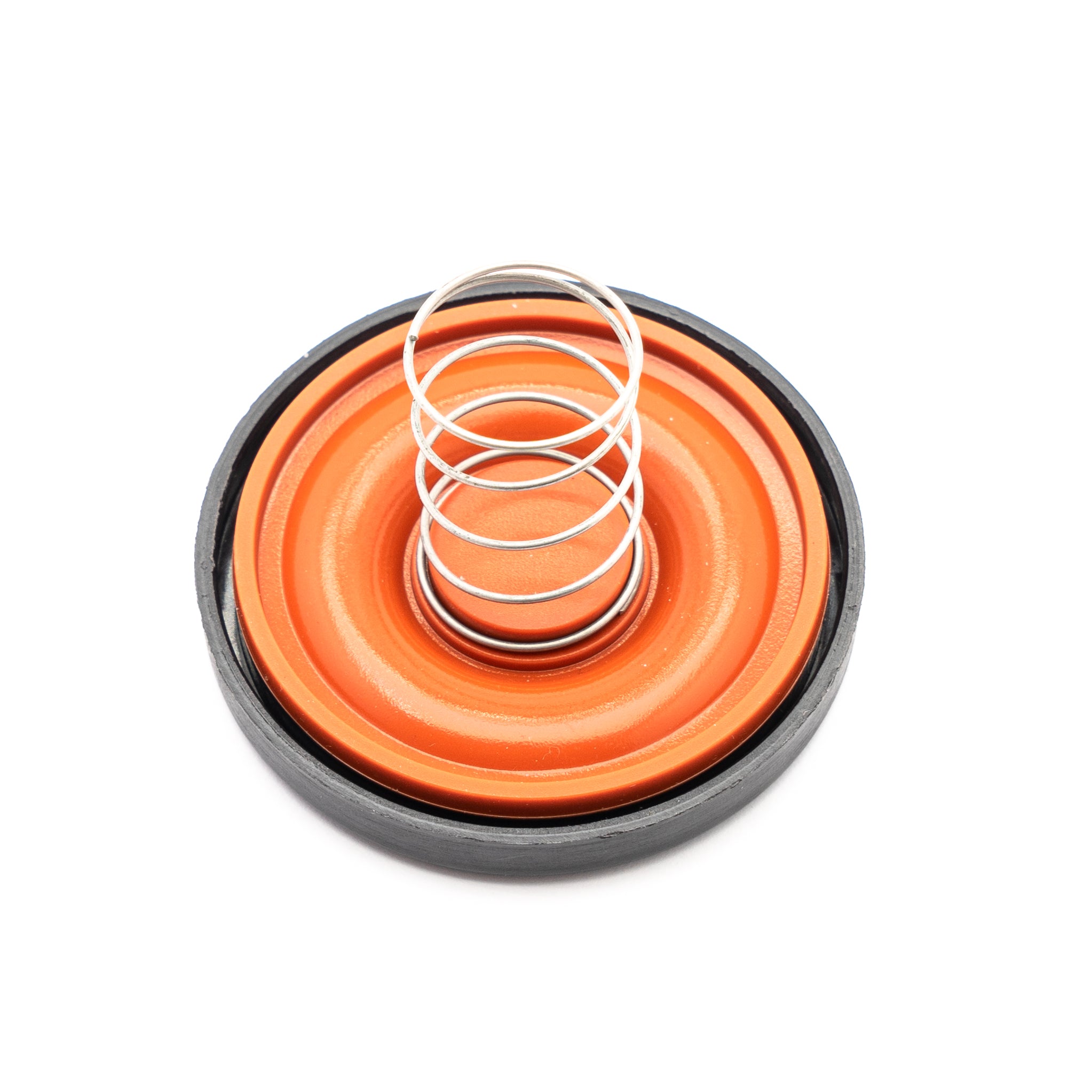

This 58.3mm diaphragm repair kit is for the oil separator / oil filter housing on the listed Volvo and Ford applications. Match the original housing and engine/reference group before ordering.

Applications

• Volvo C30, C70, S40, S60, V50, V60, V70, XC60, XC70, XC90 - match the installed housing and engine/reference group.
• Ford Kuga, Mondeo, S-Max, FOCUS II ST - 2.5 / 2.5T.

Separator Selection

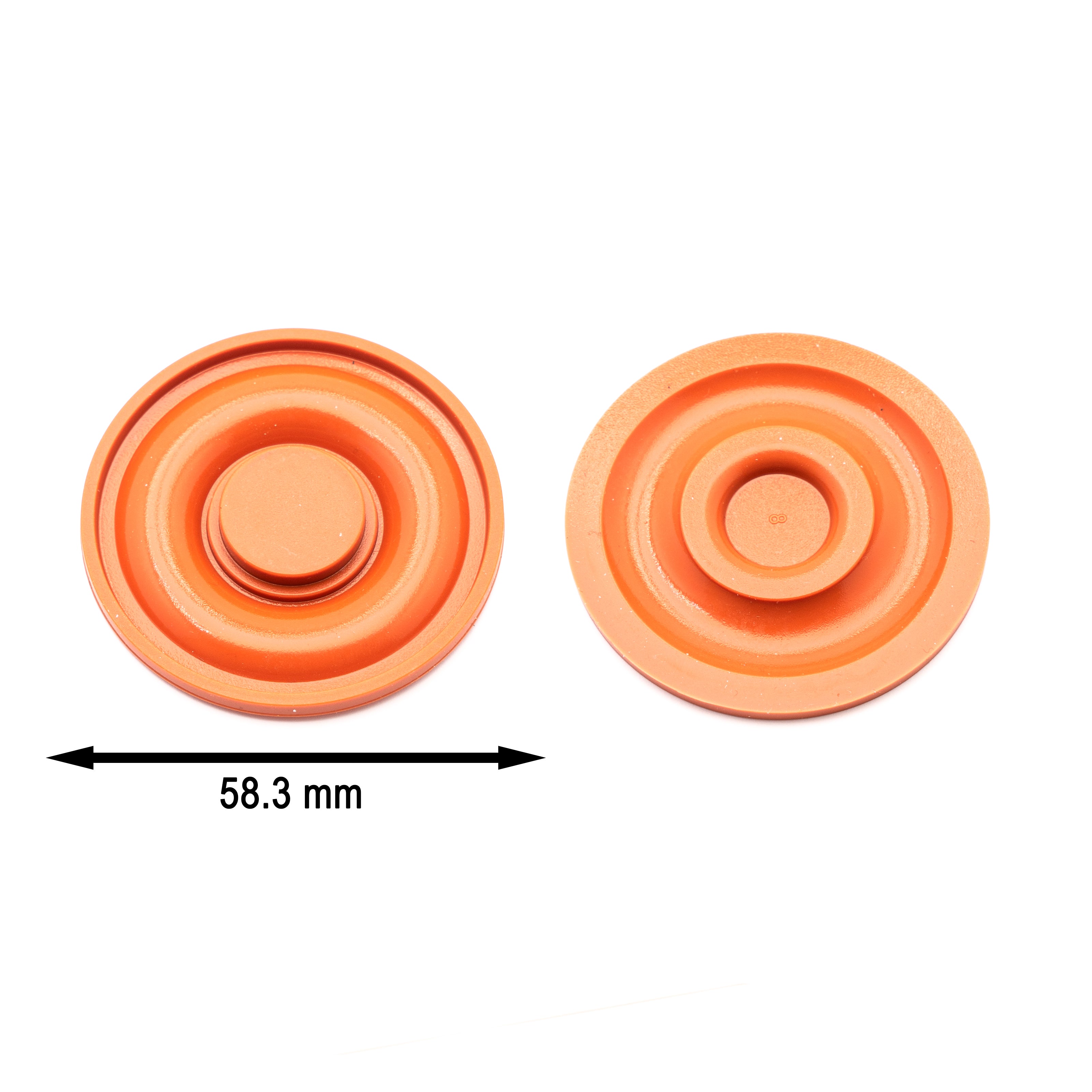

Diameter: 58.3mm. Volvo housing references: 30684381, 31338698 and 8642424. Volvo diesel engines: D5244T / D5244Tx (2.4 D / 2.4 D5). Volvo petrol engines: B5244S / B5254T (2.4 / 2.5T / T5). Ford oil separator reference: 1511222; Ford application context: 2.5 / 2.5T. Match the actual installed housing, rather than assigning every engine to every listed model.

When to Inspect Crankcase Ventilation

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults associated with air leaks.

These symptoms call for inspection of the crankcase ventilation system; confirm the cause before replacing the diaphragm.

Repair Scope

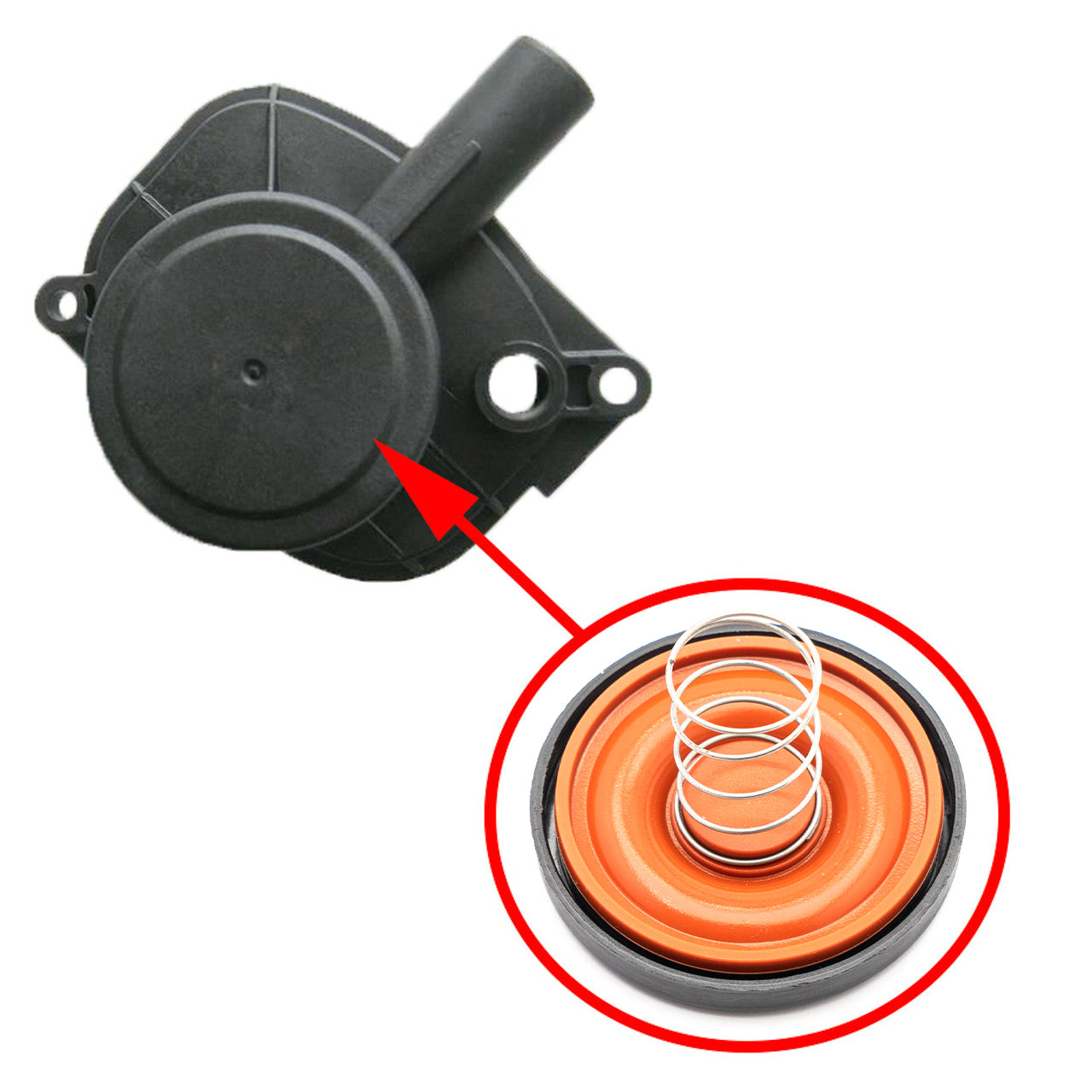

The diaphragm is a repair component for the oil separator. Inspect the separator or valve cover housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable when the housing is intact; housing damage may require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What diameter is specified?

58.3mm.

Which Ford engine context is listed?

2.5 / 2.5T for the listed Kuga, Mondeo, S-Max and FOCUS II ST.

Do diesel and petrol Volvo applications use the same engine code?

No. The listed diesel and petrol engine groups are separate; match the actual housing and engine.

Part Number / PN

1511222,30684381,31338698,8642424

SKU: KL30684381.

• Ford
• Volvo
