Oil Separator PCV Diaphragm 57.5mm - Renault Nissan Opel - 8200673395

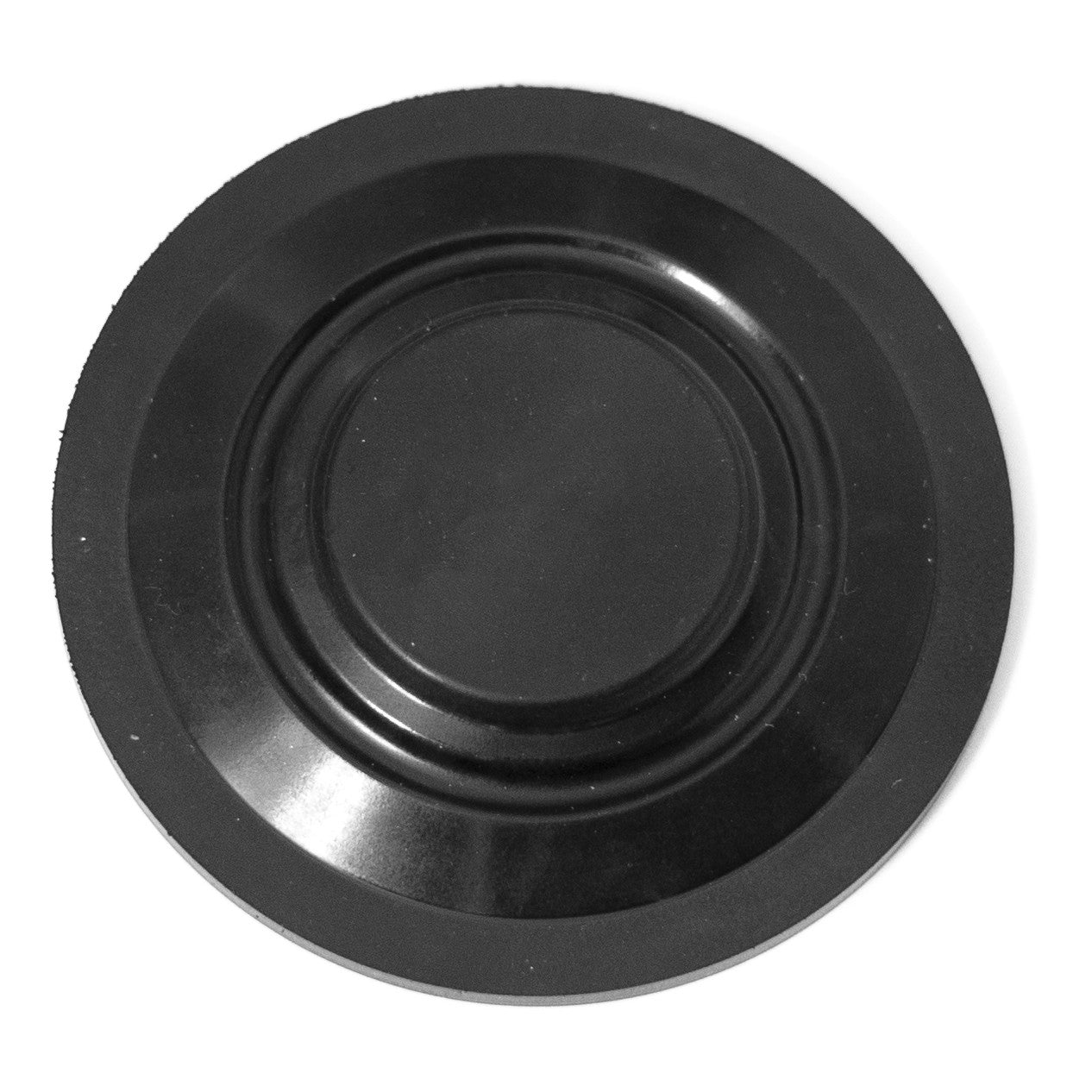

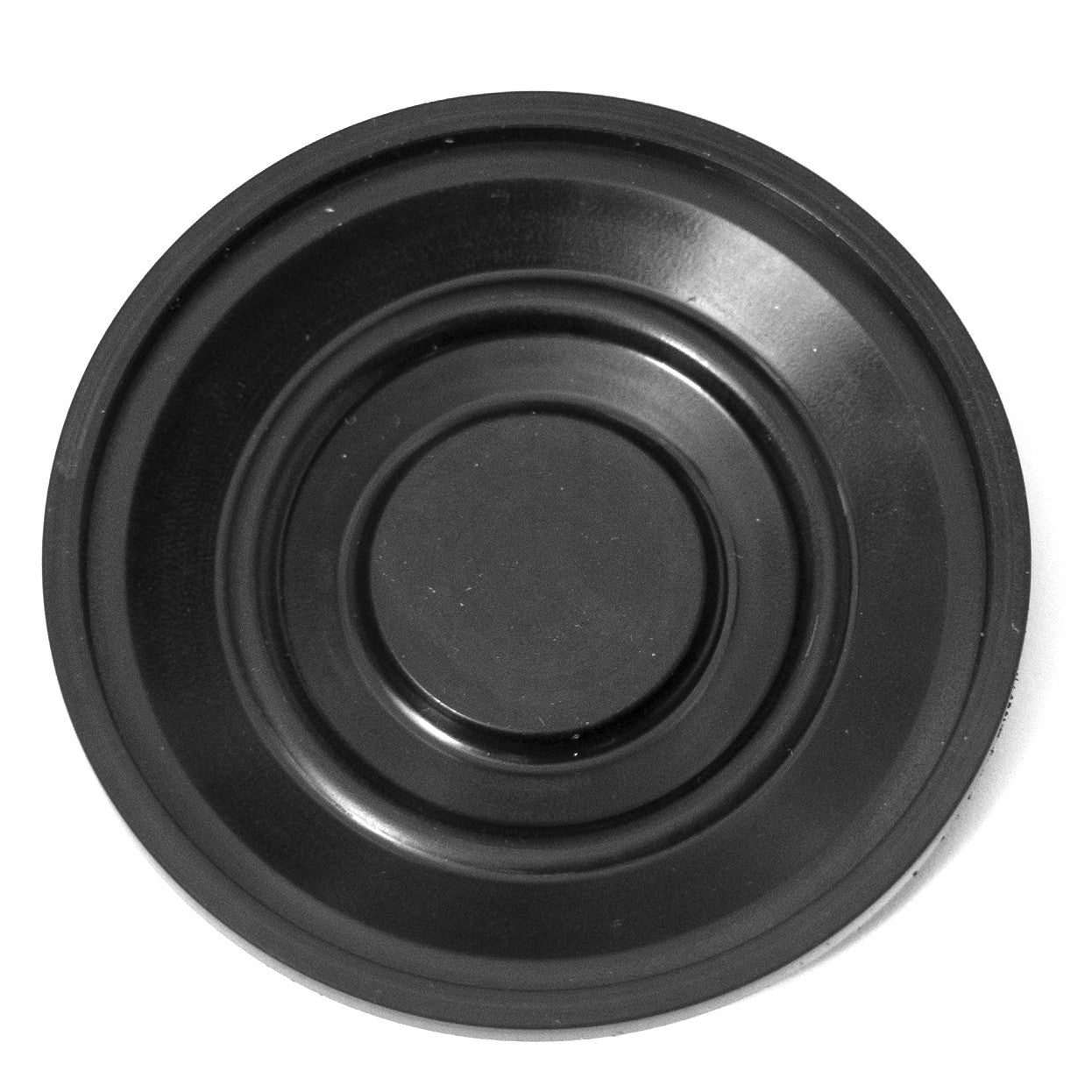

This 57.5mm diaphragm services the crankcase ventilation/oil separator section in the listed housing applications. Worn or damaged diaphragms can disturb crankcase pressure; select the part by the original oil separator or valve cover reference and diaphragm design.

Applications

• Renault, Nissan and Opel - K9K application context; select by oil separator or valve cover reference.
• Additional brand designation: Peugeot - select by the installed housing reference.

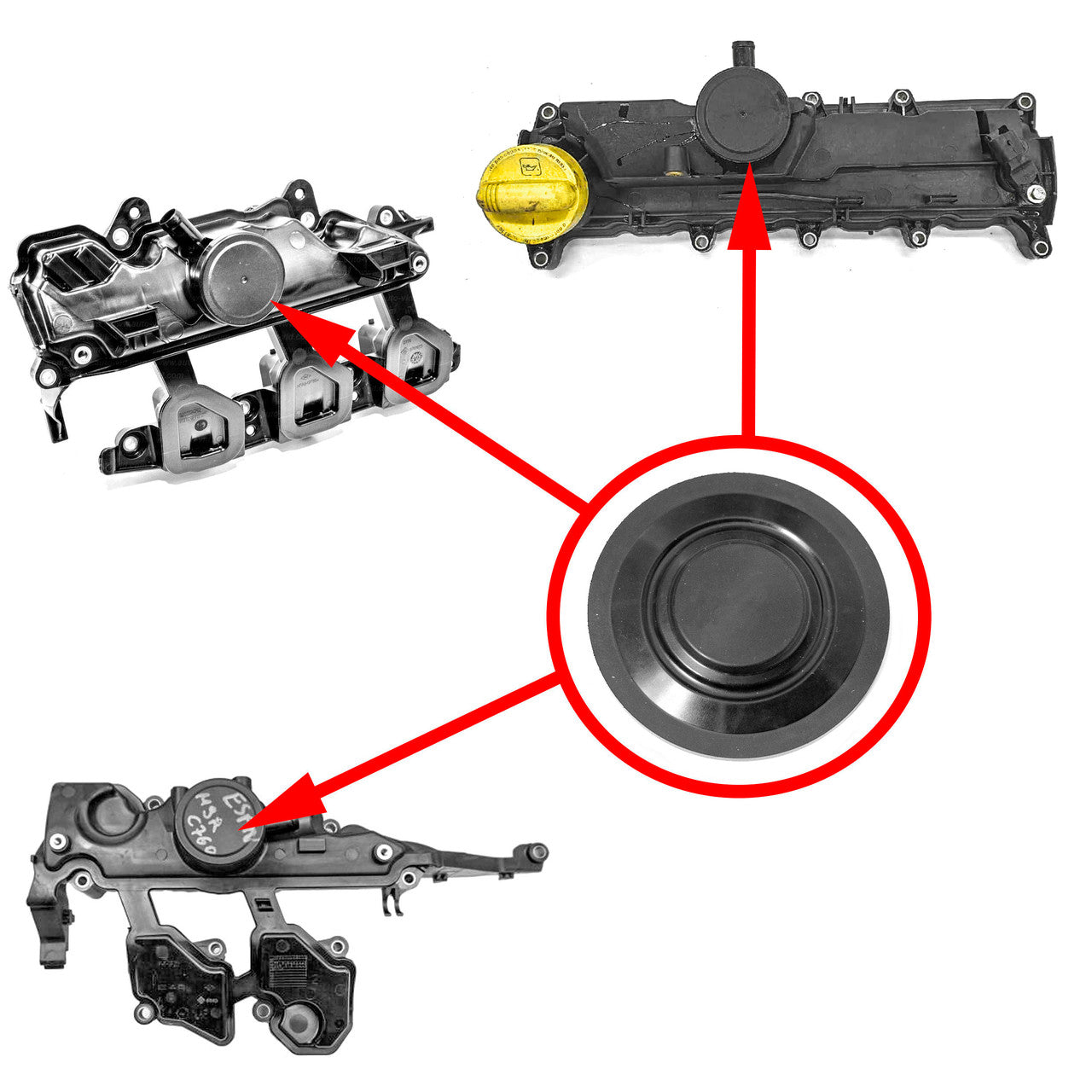

Housing and Application Selection

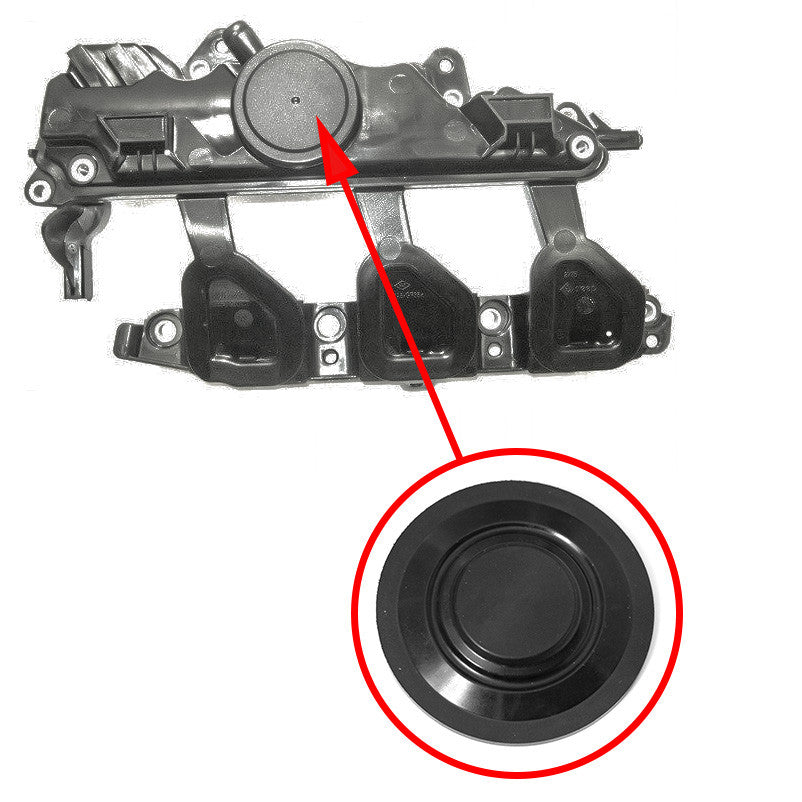

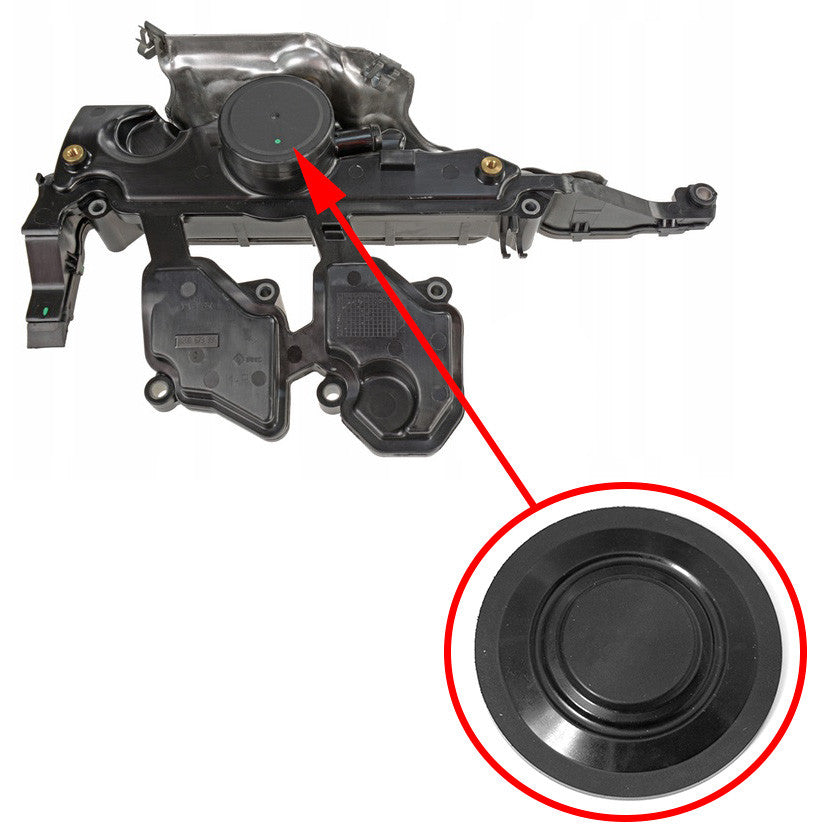

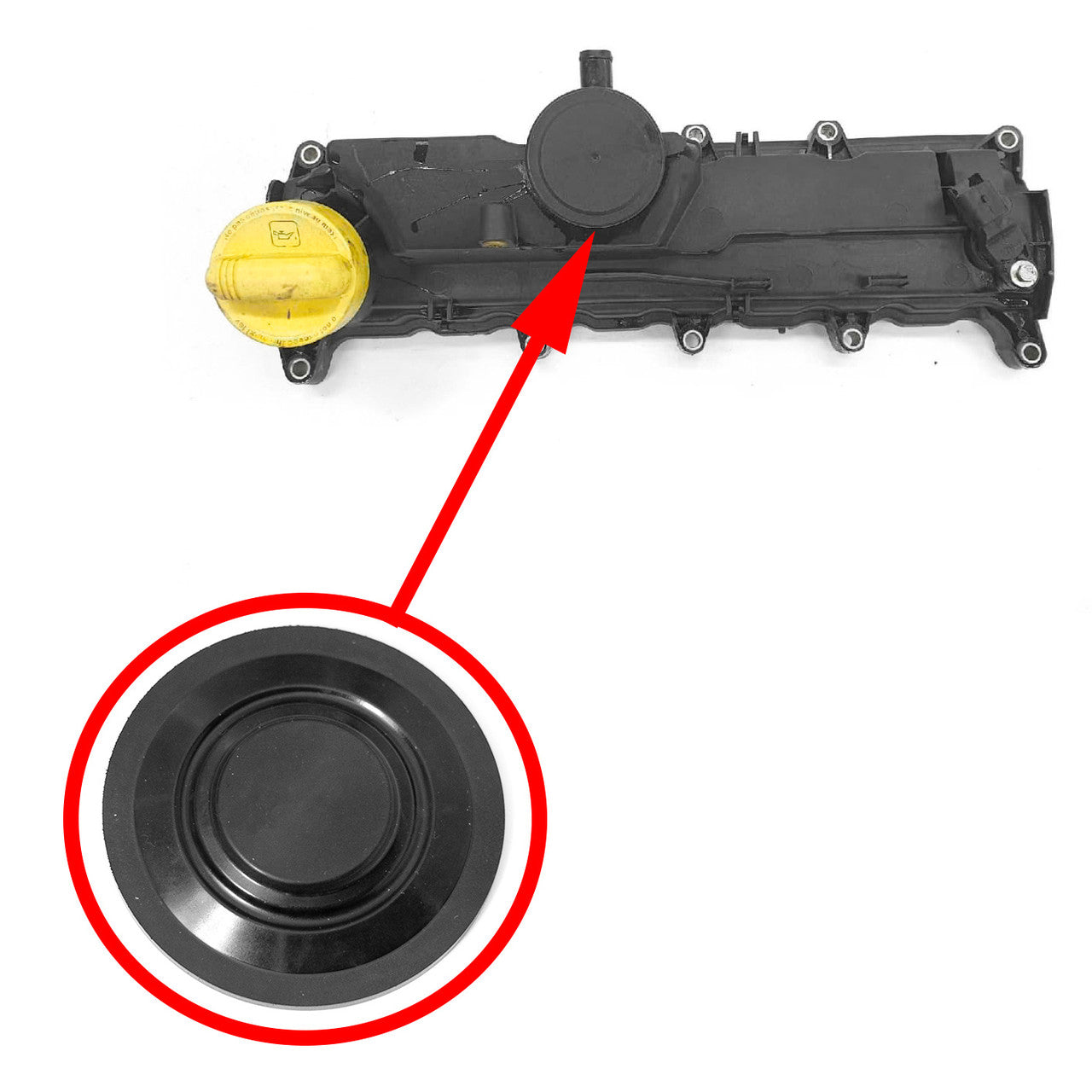

• 8200728629 - Nissan valve cover, t31r m9r.
• 8200673395 - Renault (RVI) oil separator.
• 8200464373, 8200756123, 8200433603 - Renault (RVI) valve cover, t31r m9r.
• 8200924262, 118305765R - oil separator, 2.3 CDTI M9T.
• 13264-00Q0H, 13264-00Q0D - valve cover, 1.5 DCI.
• 4431136, 4433498, 4420544, 4449951, 93198681, 1104600Q1L - oil separator, 2.0D M9R-780.

When to Inspect the Diaphragm

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults associated with air leaks.

Inspect the ventilation system and engine to establish the cause; these symptoms do not prove that the diaphragm alone is faulty.

Dimension and Related References

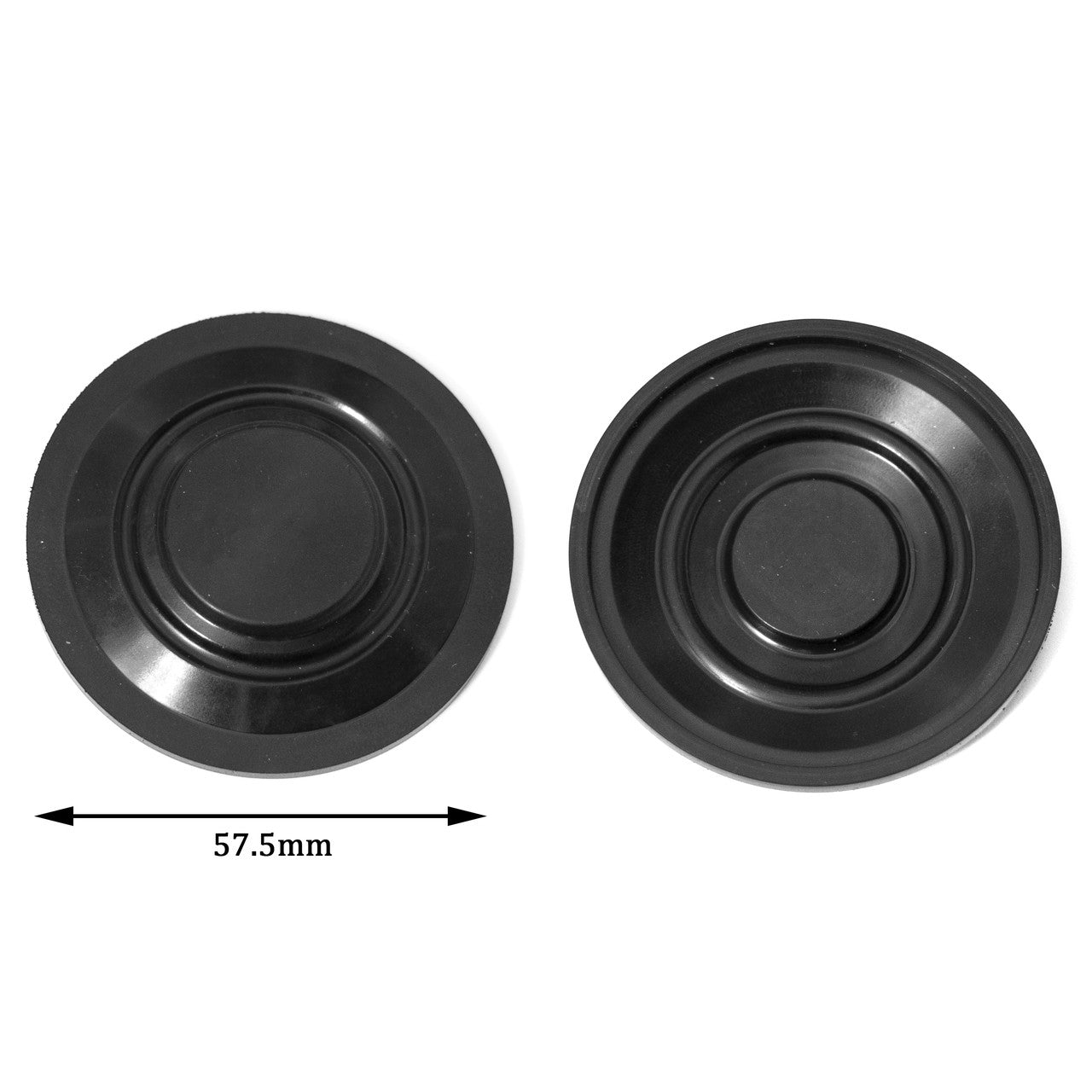

Diaphragm diameter: 57.5mm. Additional reference formats include 1326400Q0H, 1326400Q0D, 8200836881 and 8200608360. Additional designation: M9R786. Match the original housing reference before selecting the diaphragm.

Repair Scope

Inspect the valve cover or oil separator housing and ventilation pipes for cracks and damage. A diaphragm replacement may be sufficient when the housing is sound; damaged surrounding parts require separate attention.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What is the diaphragm diameter?

57.5mm.

Can it be selected by engine family alone?

No. Compare the installed oil separator or valve cover reference and diaphragm design.

Which references are associated with the 2.3 CDTI M9T separator?

8200924262 and 118305765R.

Will a new diaphragm repair a cracked housing?

No. Inspect the cover/separator housing and ventilation pipes before repair.

Part Number / PN

8200924262,1326400Q0H,8200673395,8200836881,8200756123,4433498,4420544,4449951,93198681,1326400Q0D,8200464373,118305765R,1104600Q1L,8200728629,8200433603,4431136,8200608360

SKU: KL8200673395.
