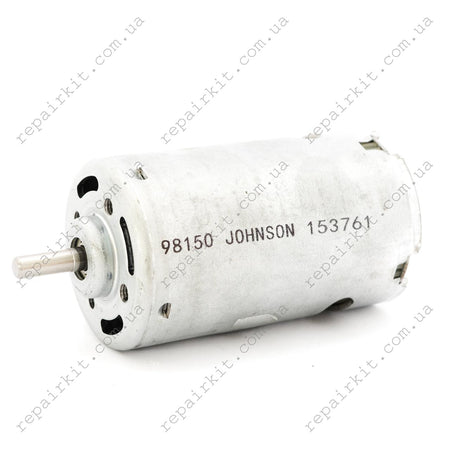

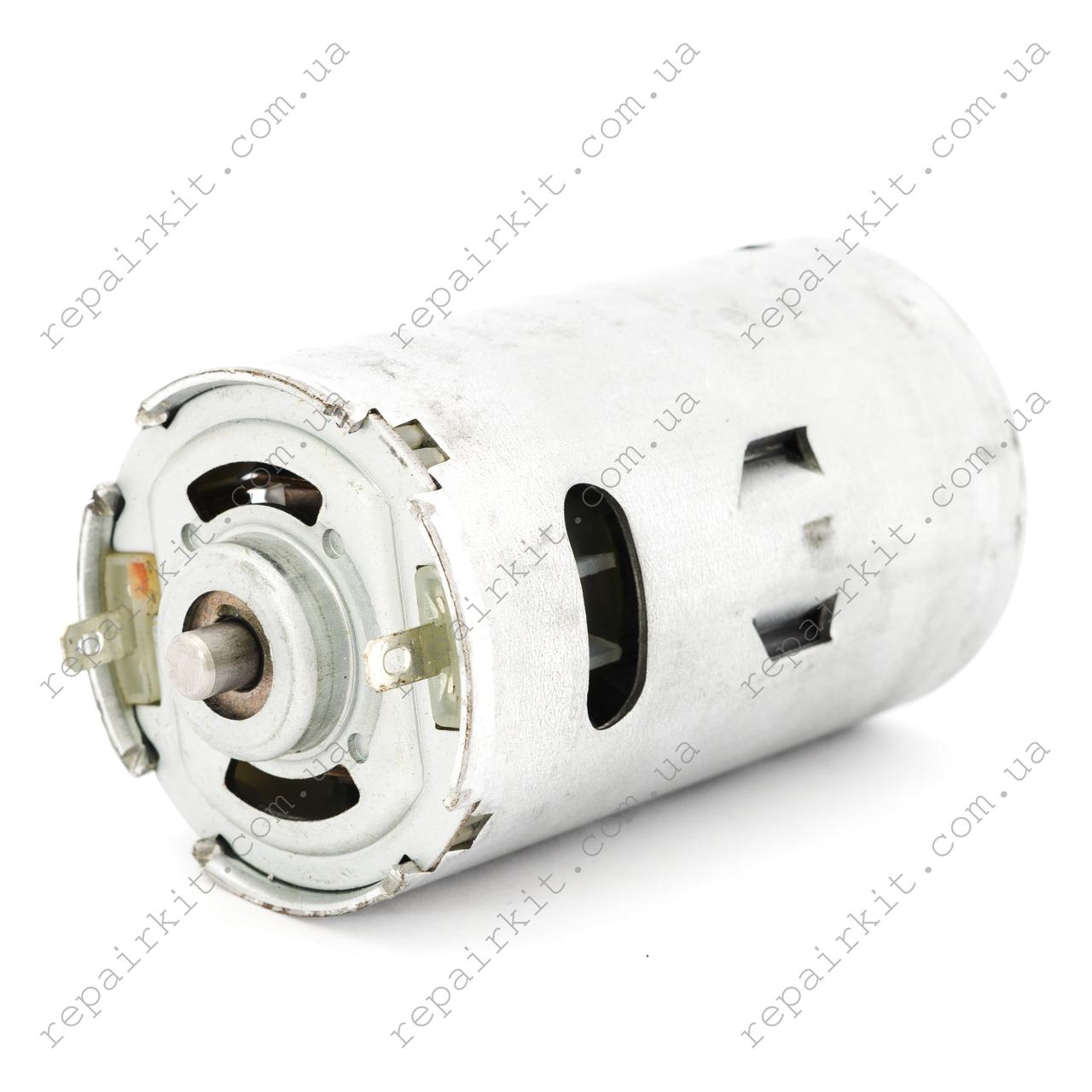

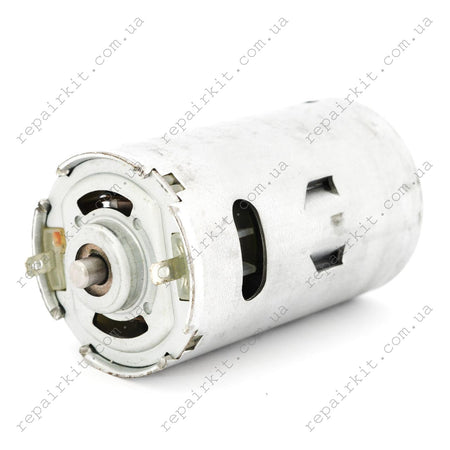

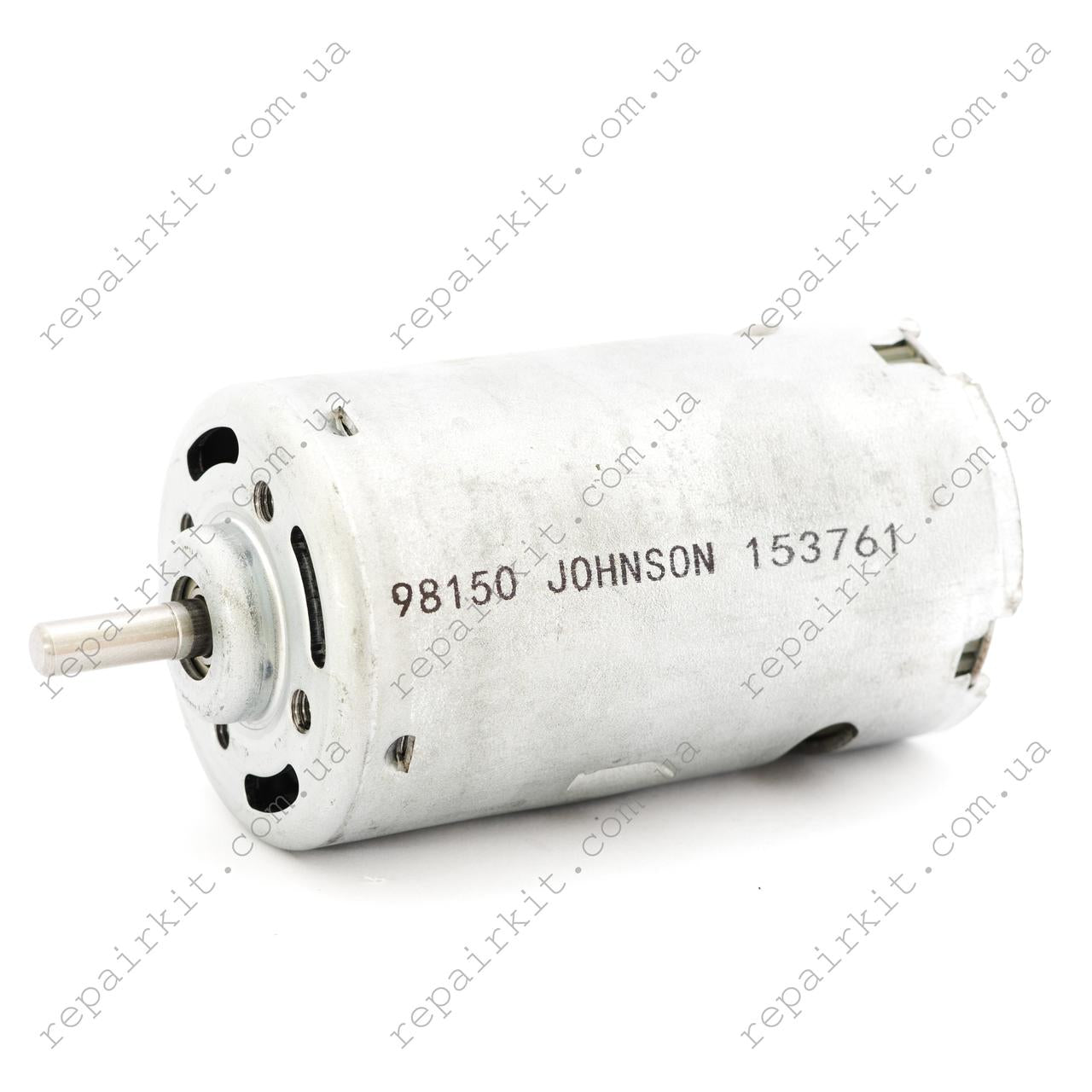

Motor for the central locking vacuum pump Mercedes-Benz W220

When a Mercedes-Benz (W220) car owner notices that the central lock has stopped responding to any signals, the first thing he should do is check the condition of the electric motor. Most likely it is this part that has failed and needs to be replaced. The presented central locking vacuum pump motor will help you quickly and efficiently solve the problem. This spare part is no different from the factory, so after repair your PSE vacuum pump will serve for a long time. Plus, the motor is additionally equipped with a cooler for cooling the collector and brushes.

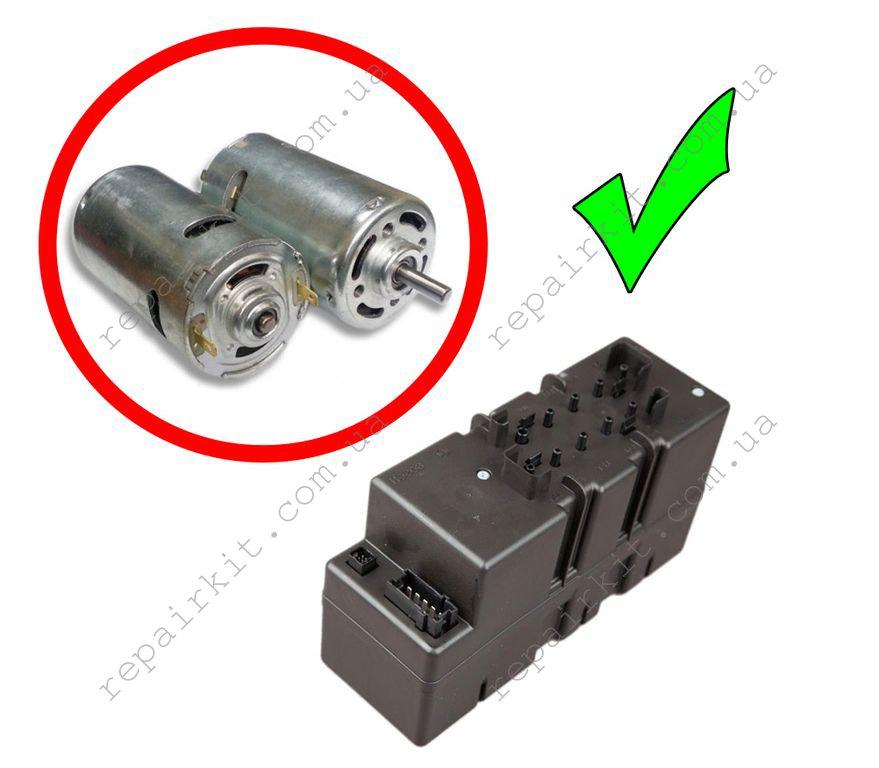

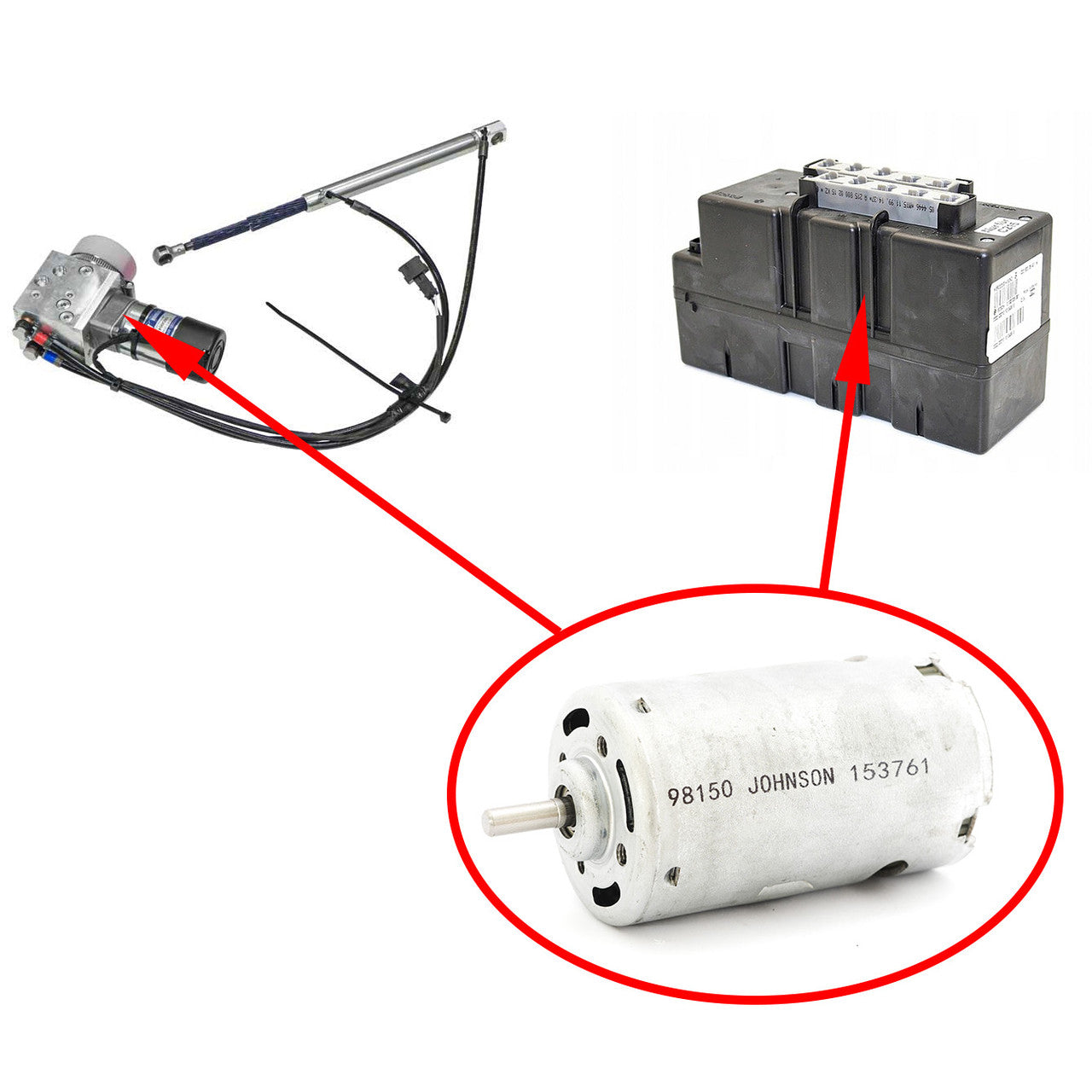

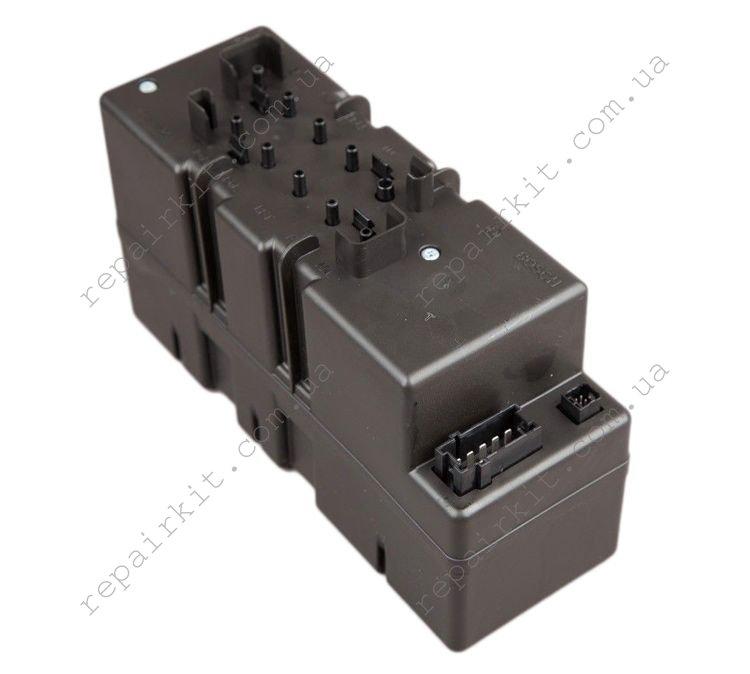

Applies to the following PSE compressors:

Restoration of the central locking vacuum pump in the Mercedes W220

The key ring must be removed from the motor shaft when preheated to 70-80°C. To do this, the easiest way is to use a building hair dryer. Then, using two slotted screwdrivers, disconnect the graphite housing from the base of the electric motor, at the same time removing the key ring from the shaft.

Important! Before pressing the rings onto the shaft, it is necessary to fix the metal adapter bar on the motor and the lower part of the graphite housing, as in the photo.

To press the key ring onto the shaft, it is best to use a large vice and 6mm hex sockets. We rest the motor shaft in a vise on one side, clamp the hexagonal head into the lip of the vise on the other and begin to slowly press the ring, while heating it with a building hair dryer.

This vacuum pump motor is a reliable element, thanks to which the central locking vacuum pump will work clearly and without interruption for a long period of time. The part is made according to all standards and with the preservation of factory parameters.

For all questions, please contact the sales department. The consultants of our online store will provide you with detailed answers, help you choose spare parts and give additional recommendations. You can place an order here on the website or by phone with a representative of the store.
