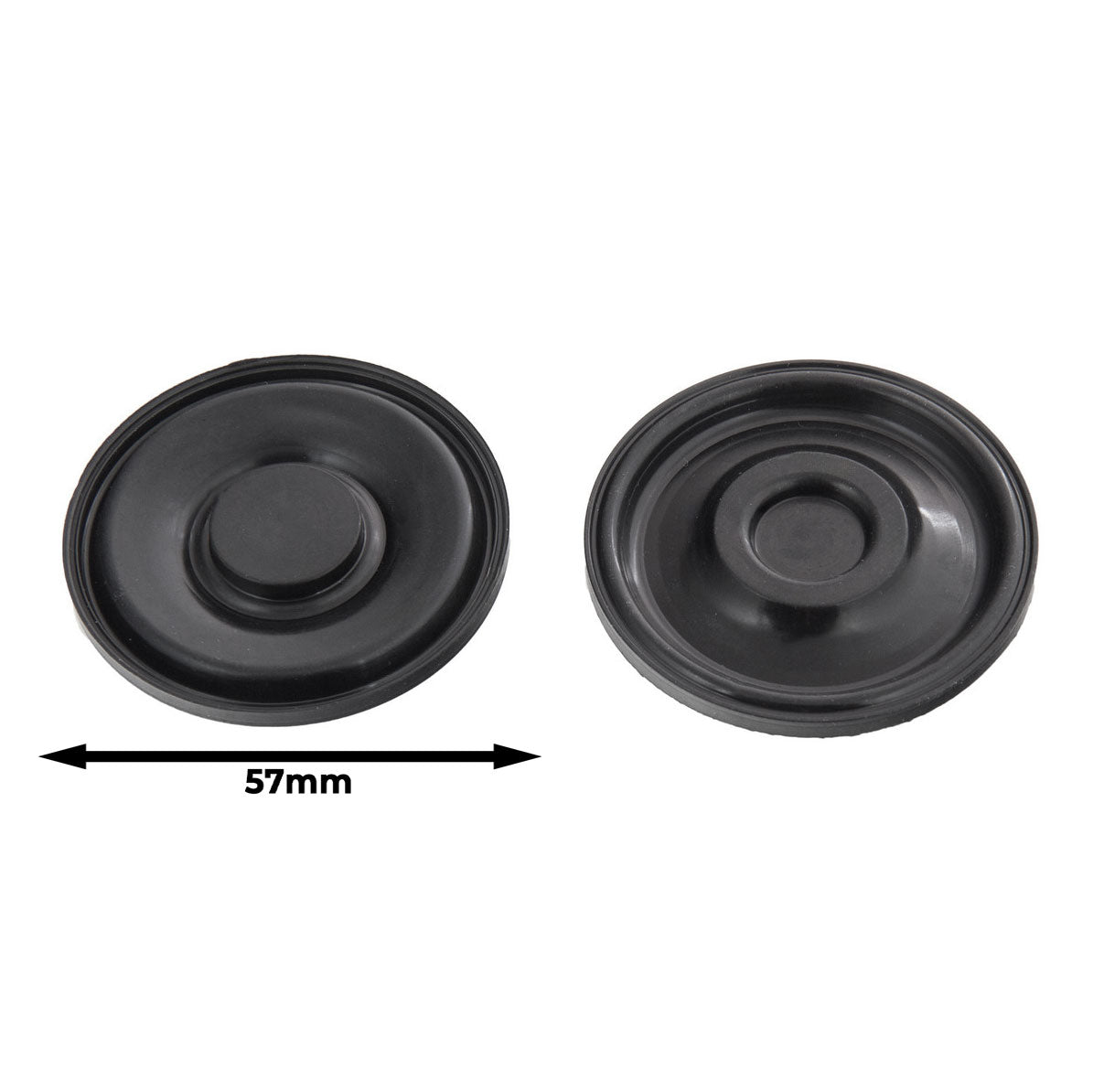

Renault / Opel PCV Oil Separator Diaphragm - 8200403043

This diaphragm is the crankcase ventilation component in the specified Renault and Opel oil separators for the listed 2.2 and 2.5 DCI DTI CDTI applications. Match the installed oil separator reference before selecting the membrane.

Vehicle Applications

• OPEL MOVANO 2.2 DTi 2.5 CDTi 2.5 DTi (2001-2010)
• OPEL VIVARO 2.5 DCI (2001-2014)
• RENAULT MASTER II 2.2 DCI 2.5 DCI (2001-2010)
• RENAULT Espace III Avantime
• RENAULT Laguna
• RENAULT Laguna Estate
• RENAULT Safrane
• RENAULT Laguna II
• RENAULT Vel Satis
• RENAULT Trafic II
• RENAULT Espace IV

When to Inspect Crankcase Ventilation

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults associated with unmetered air.

These symptoms call for inspection of the ventilation valve and housing; they do not establish the cause on their own.

Oil Separator Reference Groups

• Renault: 8200403043, 8200480934.
• Opel: 4417365, 93190347.
• Additional references: 14712, 35059, ft61872.

Repair Scope

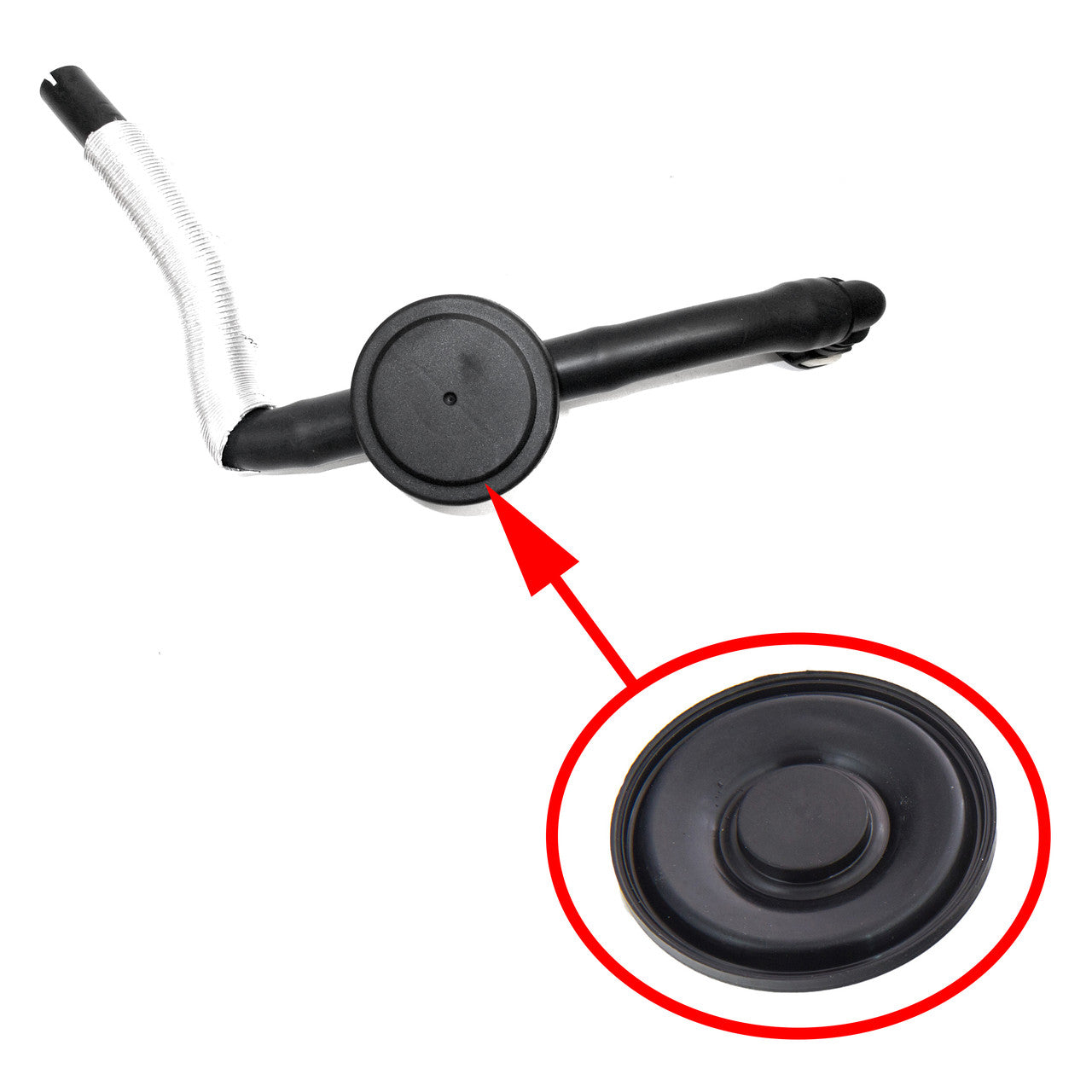

The diaphragm can be serviced separately when the surrounding cover and housing are sound. Inspect the other sealing components before choosing the repair; replacing a membrane does not correct damage elsewhere in the assembly.

Important Before Ordering

Compare the installed assembly reference, membrane design and dimensions before ordering. Check the housing and ventilation hoses for damage; a membrane alone may not resolve a cracked housing.

FAQ

Which Opel Movano application is listed?

OPEL MOVANO 2.2 DTi, 2.5 CDTi and 2.5 DTi, 2001-2010, is listed.

Which Opel Vivaro application is listed?

OPEL VIVARO 2.5 DCI, 2001-2014, is listed.

Which Renault Master application is listed?

RENAULT MASTER II 2.2 DCI and 2.5 DCI, 2001-2010, is listed.

Which Opel references should I compare?

The Opel reference group is 4417365 and 93190347.

Part Number / PN

8200480934, 4417365, 8200403043, 93190347, 14712, 35059, ft61872

SKU: KL8200403043.

• OPEL
• RENAULT
