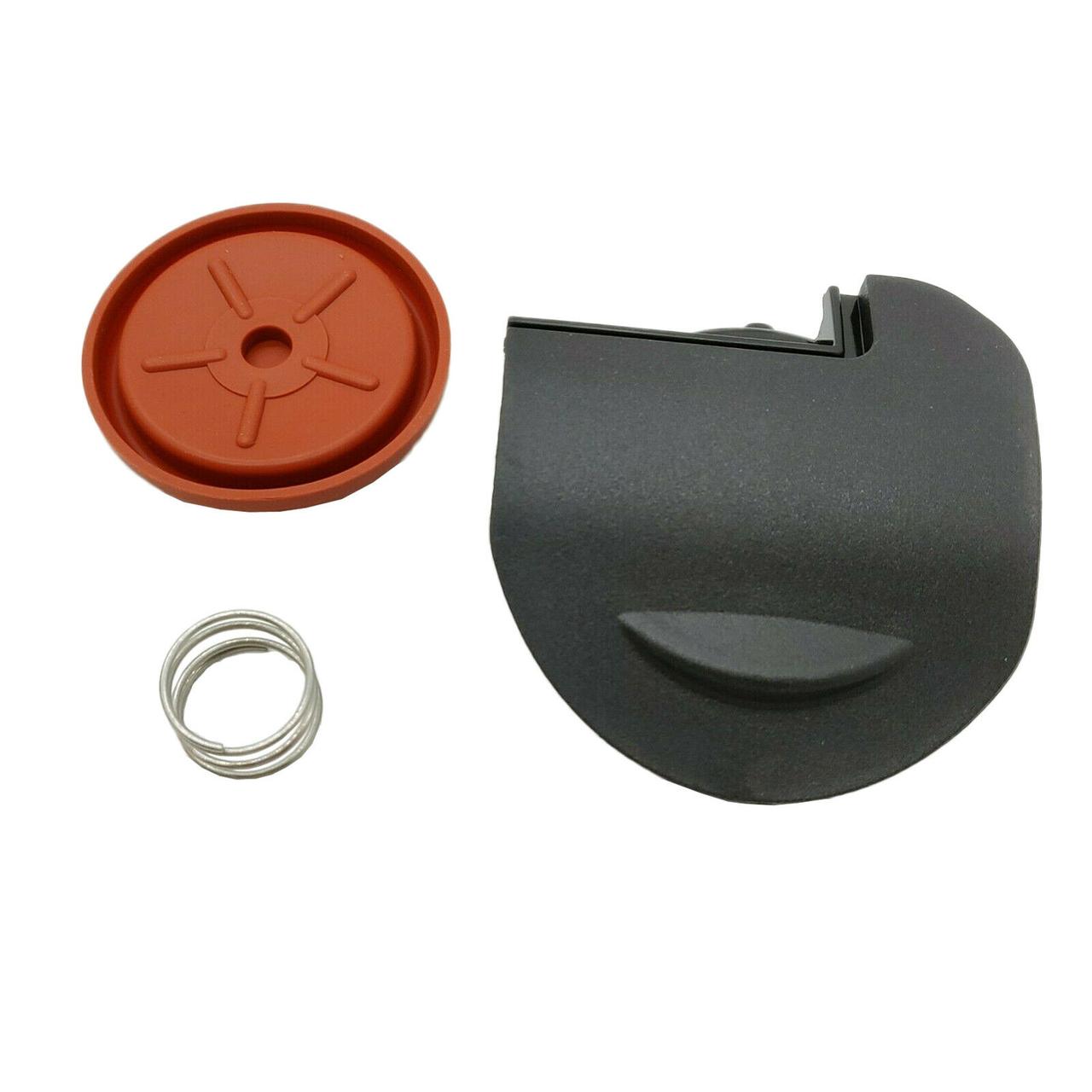

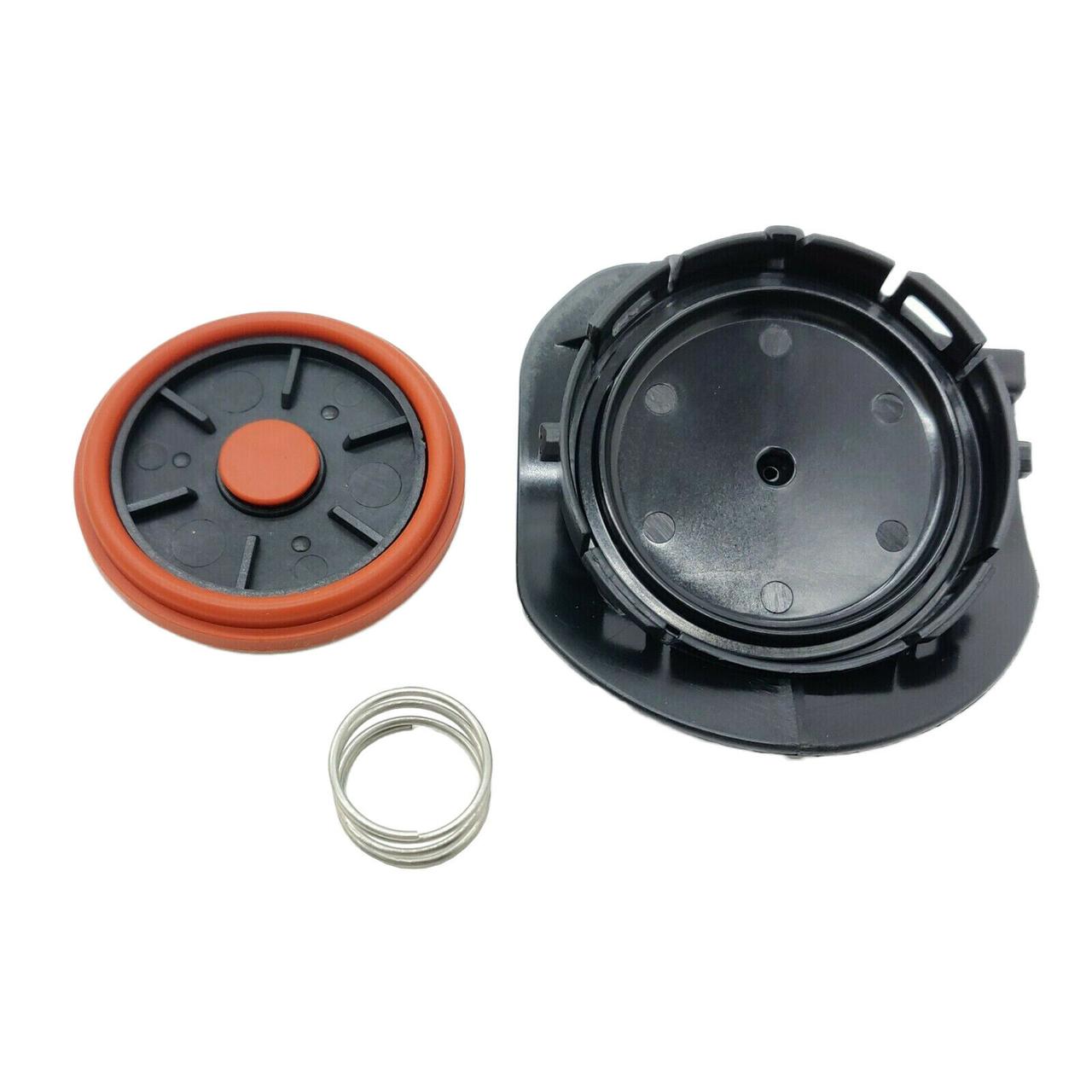

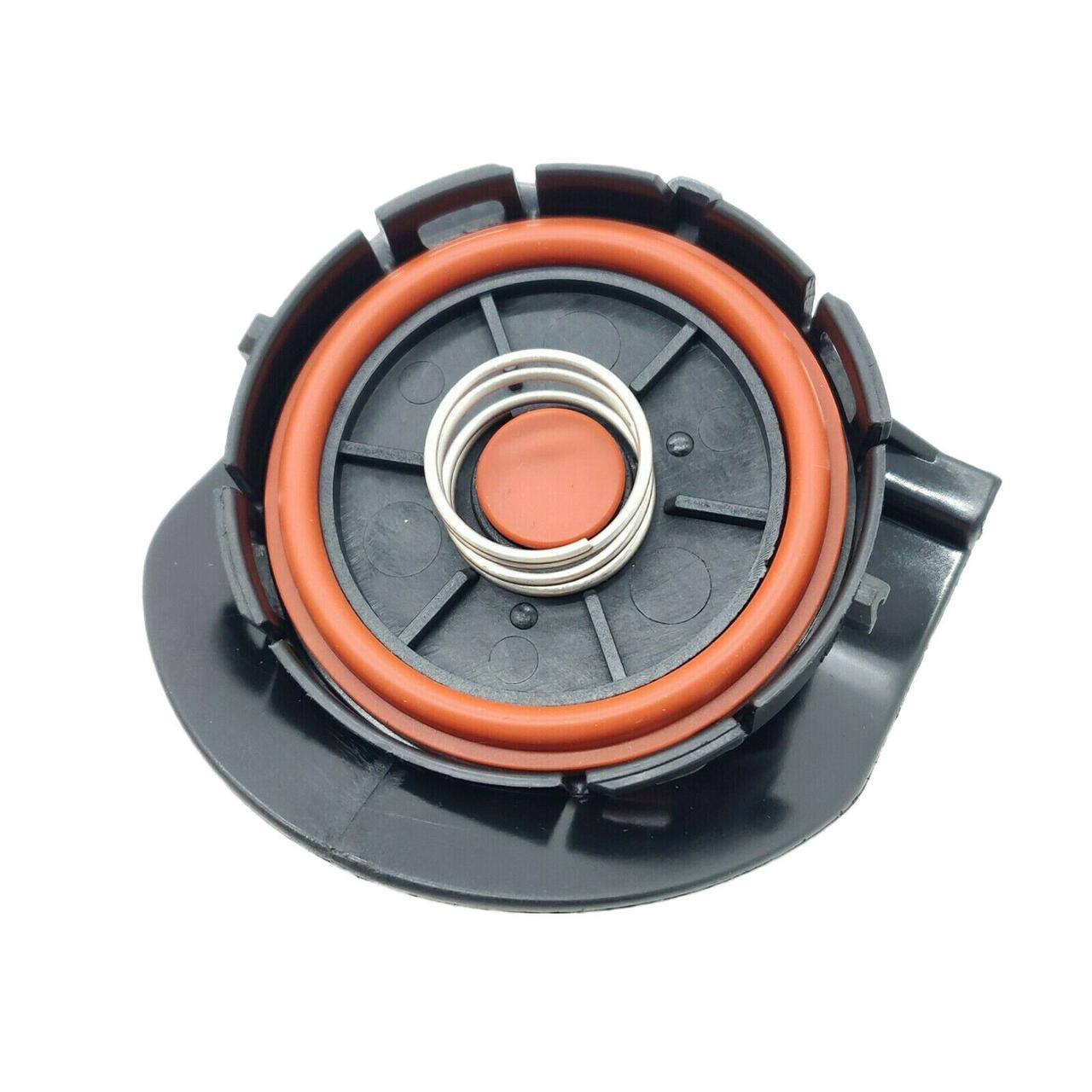

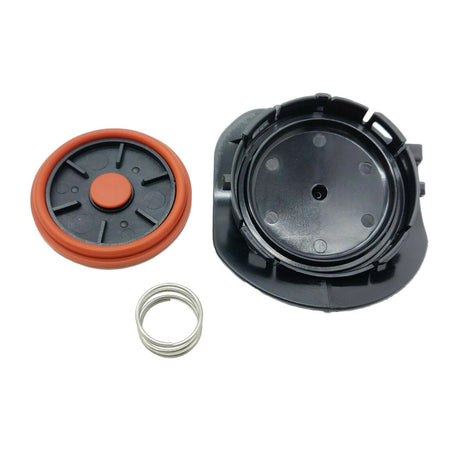

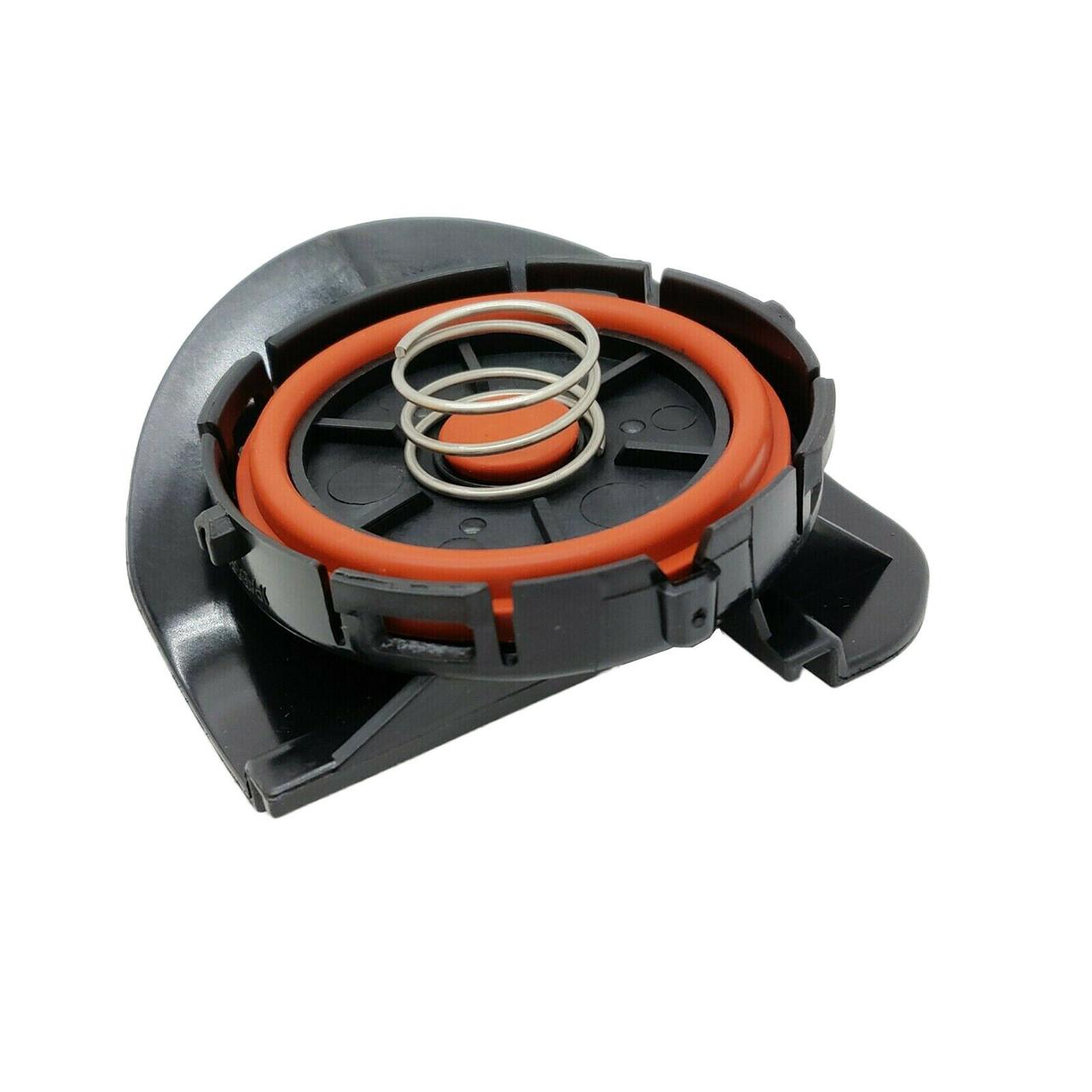

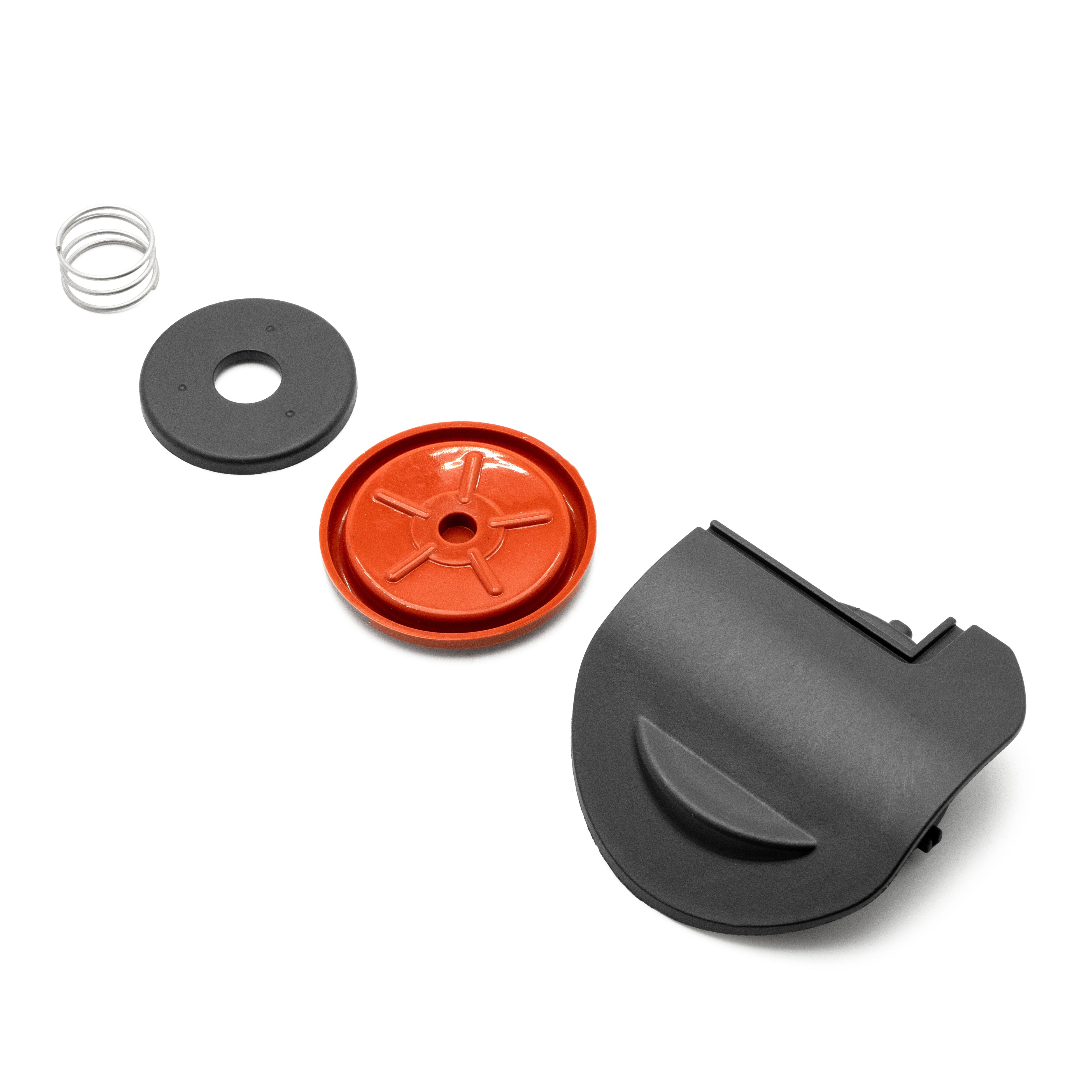

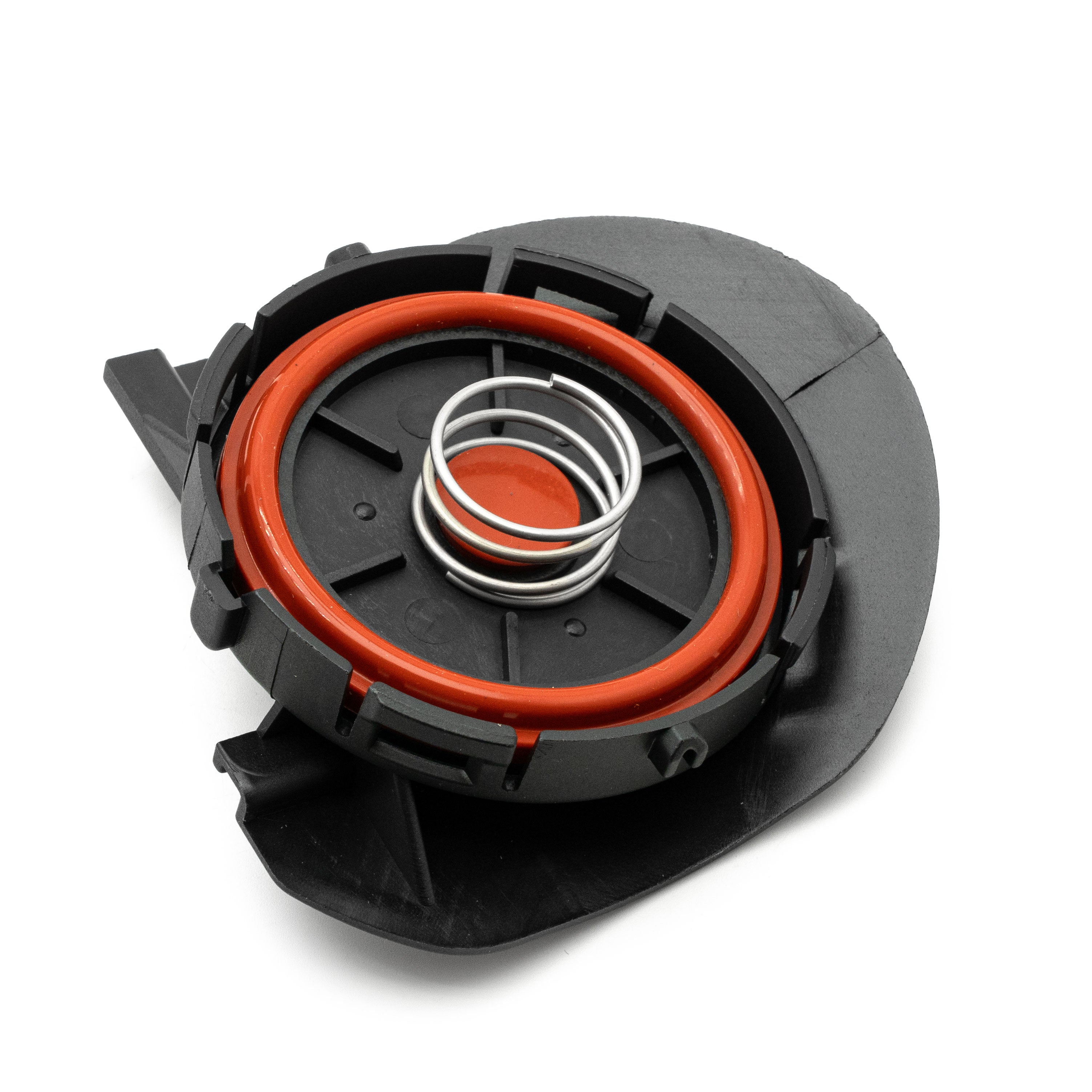

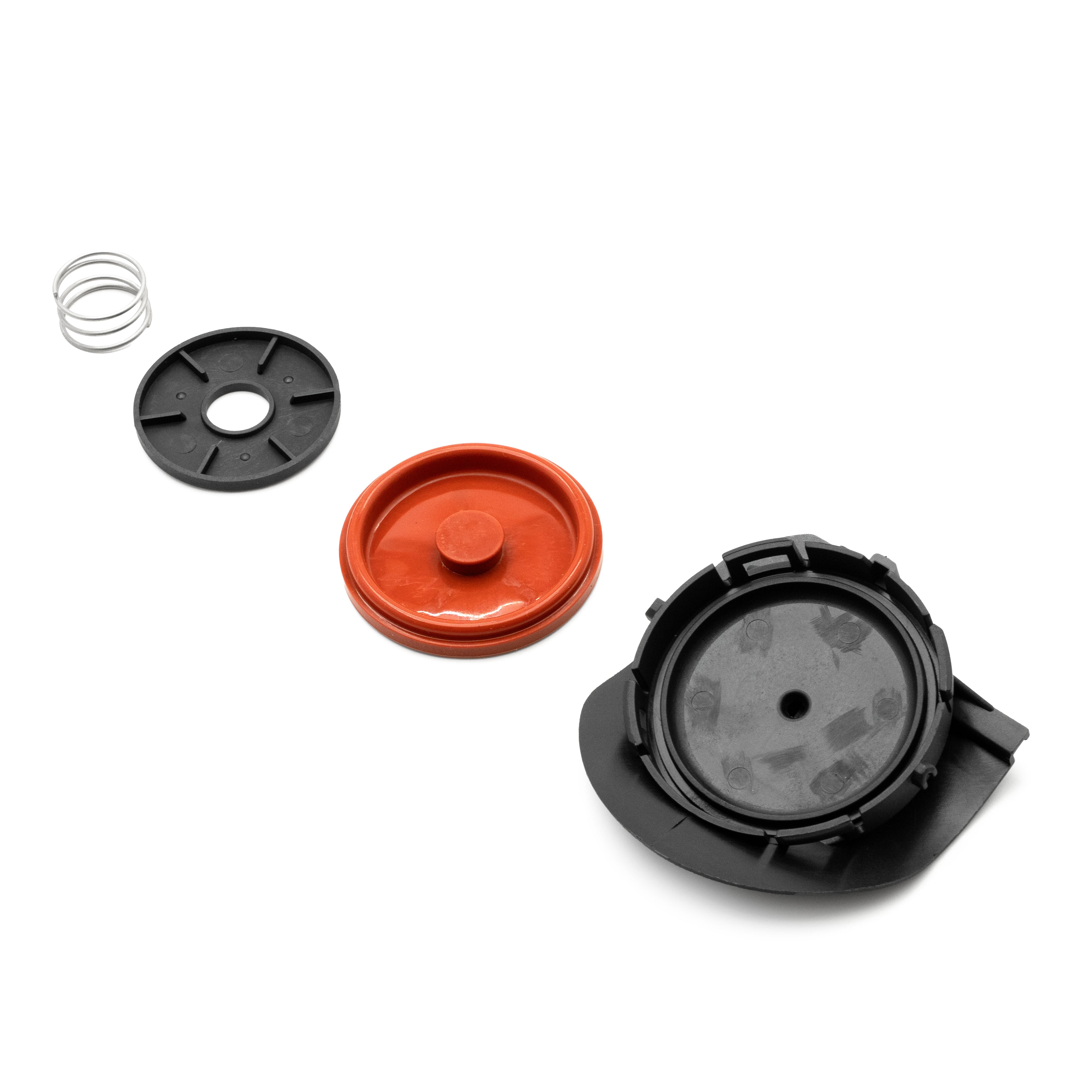

MINI / Peugeot Valve Cover PCV Diaphragm - 11127646554

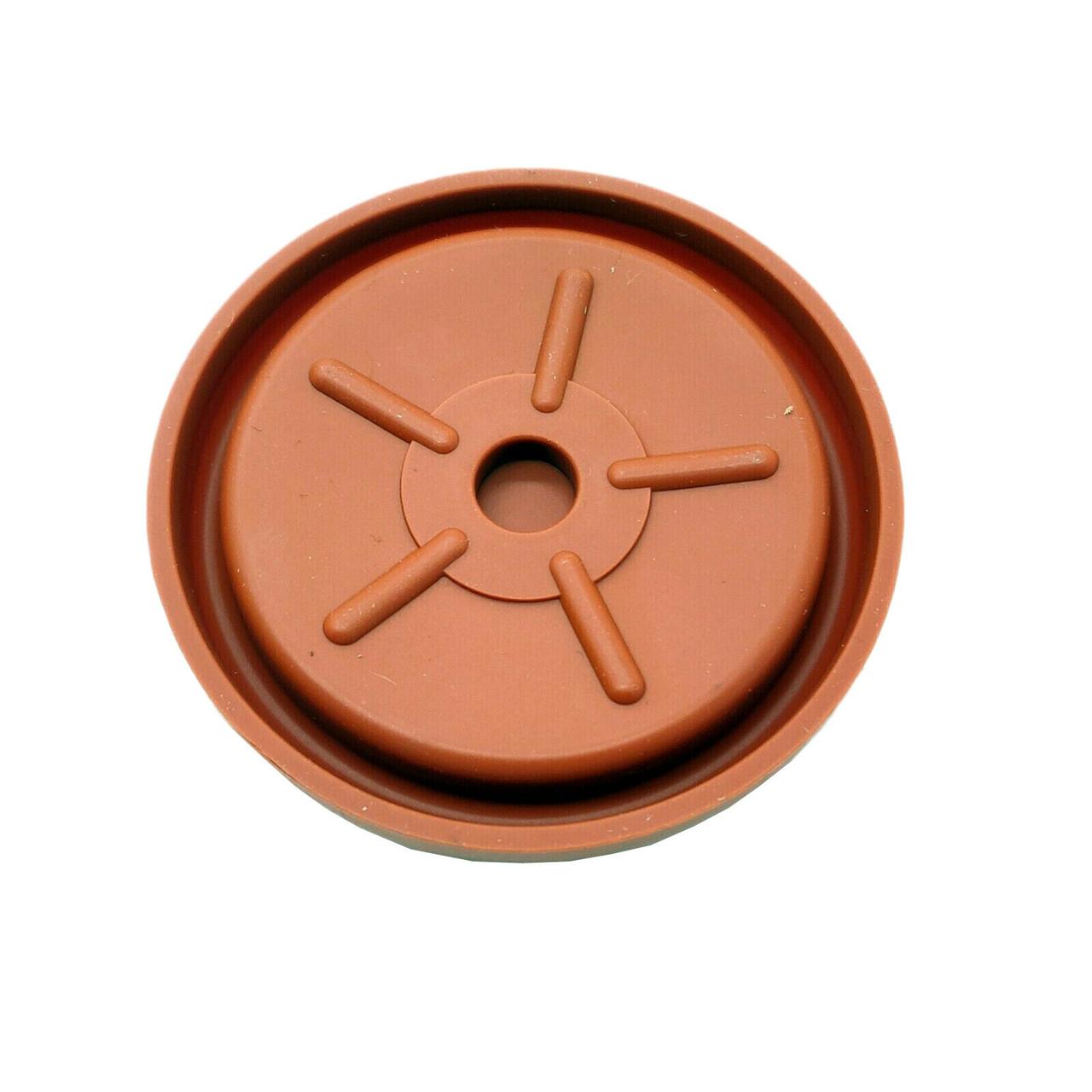

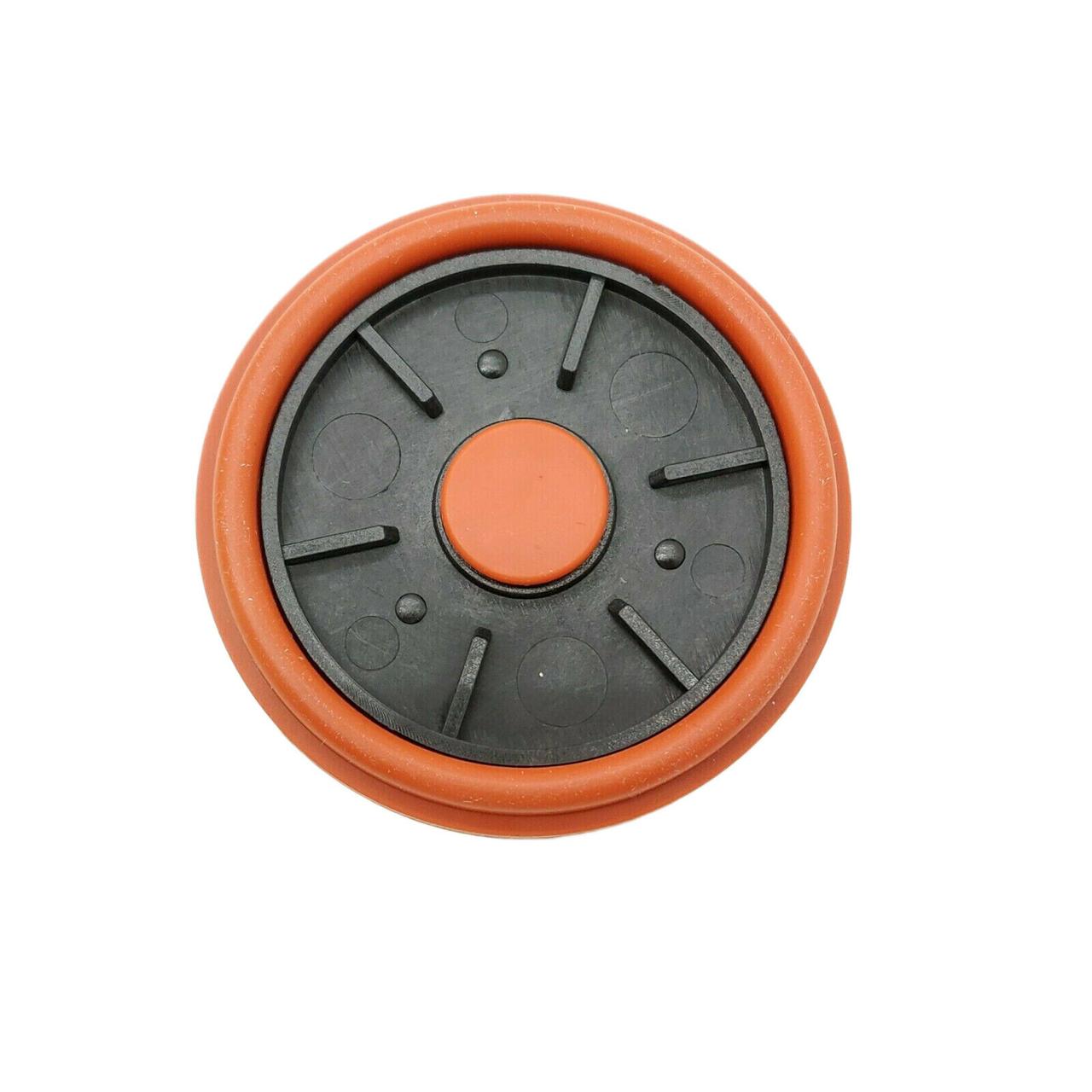

The membrane is the crankcase ventilation component in the specified MINI and Peugeot valve covers. A worn diaphragm can disturb crankcase pressure and allow unmetered air; compare the cover reference to select the correct application.

Vehicle Applications

• MINI R56 (10/2005 - 08/2010)
• MINI R56 LCI (03/2009 - 11/2013)
• MINI Clubman R55 (10/2006 - 07/2010)
• MINI Clubman R55 LCI (03/2009 - 06/2014)
• MINI Cabrio R57 (10/2007 - 07/2010)
• MINI Cabrio R57 LCI (09/2009 - 06/2015)
• MINI Coupé R58 (12/2010 - 04/2015)
• MINI Roadster R59 (01/2011 - 04/2015)
• MINI Countryman R60 (01/2010 - 10/2016)
• MINI Paceman R61 (04/2012 - 09/2016)
• Peugeot 308, 207 (A7)

When to Inspect Crankcase Ventilation

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults related to unmetered air.

Inspect the ventilation valve and housing to identify the cause before replacing the diaphragm.

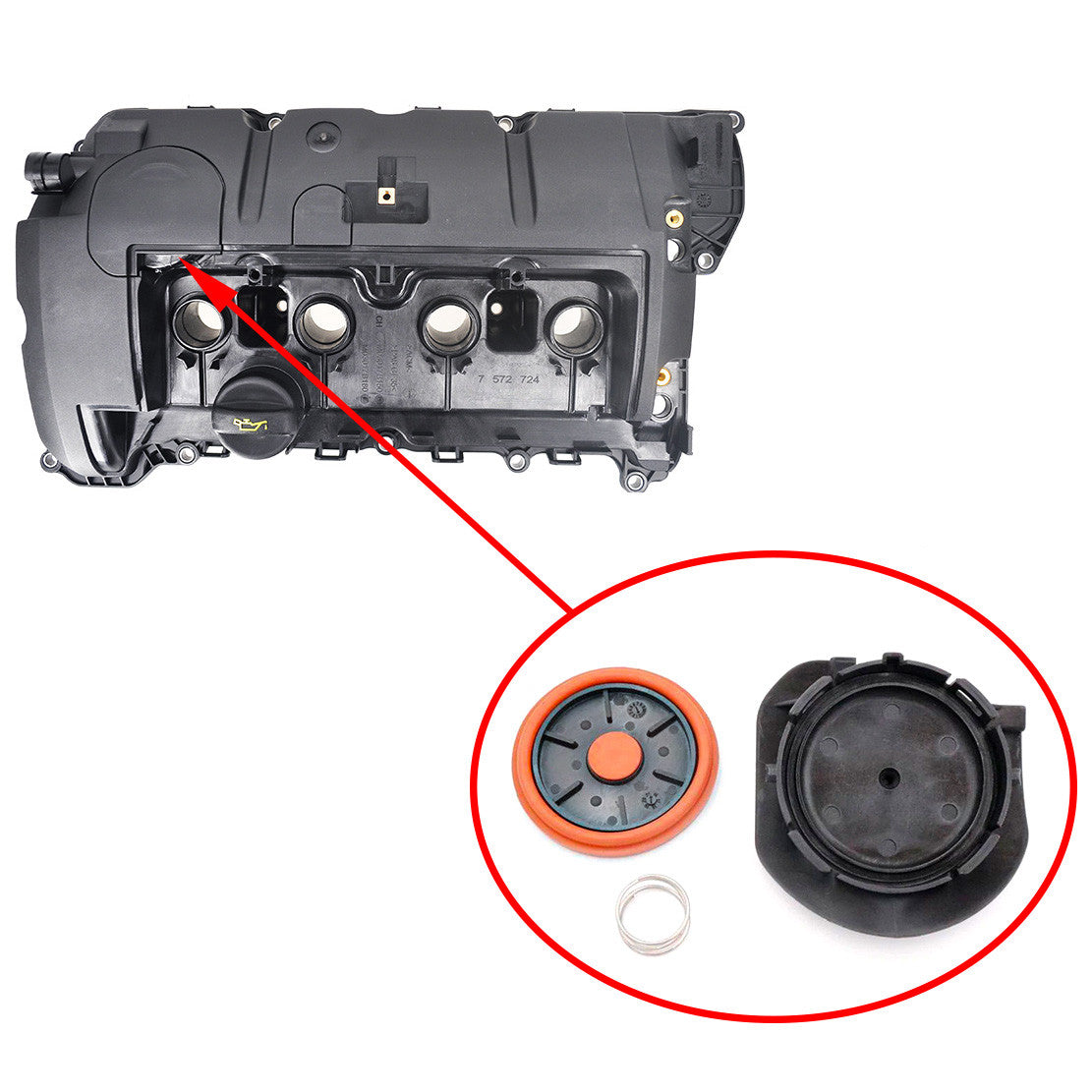

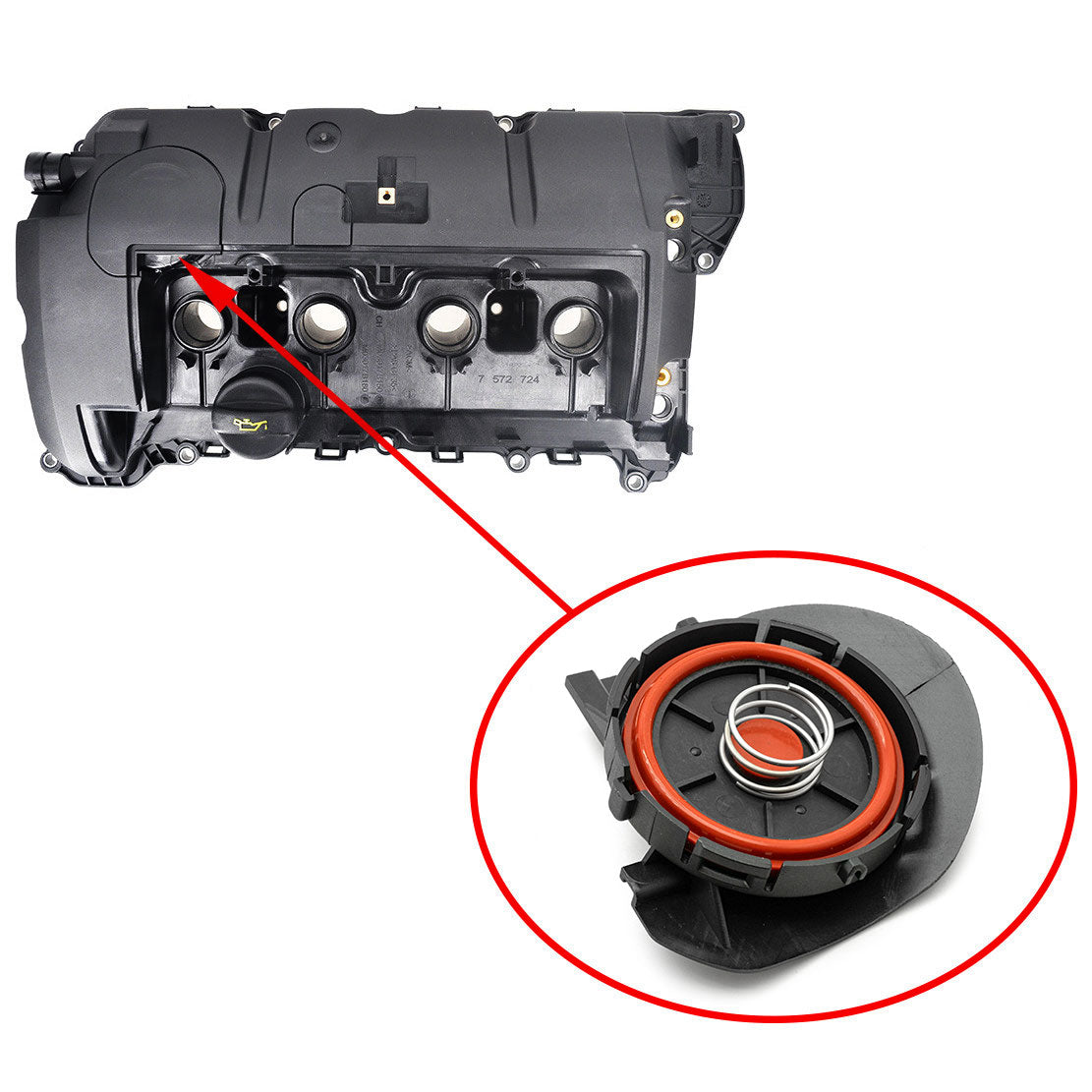

Valve Cover References

0248Q5, 11127646554, 11127572724, 11127567791, 11127567162, 11127533799.

Repair Scope

A failed diaphragm can be replaced separately when the cover housing is sound. Check the cover and ventilation hoses first. Reduced oil consumption depends on the ventilation fault being the cause and the engine being otherwise sound.

Important Before Ordering

Compare the installed assembly reference, membrane design and dimensions before ordering. Check the housing and ventilation hoses for damage; a membrane alone may not resolve a cracked housing.

FAQ

Is MINI Countryman R60 listed?

MINI Countryman R60 is listed for 01/2010 - 10/2016. Match the installed cover reference.

Which Peugeot applications are listed?

Peugeot 308 and 207 (A7) are listed.

Are LCI versions included in the MINI application list?

The list includes R56 LCI, Clubman R55 LCI and Cabrio R57 LCI with their separate month/year ranges.

Are the reference numbers for the diaphragm or cover?

The listed references identify the valve covers associated with this PCV membrane.

Part Number / PN

0248Q5, 11127646554, 11127572724, 11127567791, 11127567162, 11127533799

SKU: KL0248Q5.
