Oil Separator Diaphragm 85mm - Mercedes M117 - 6030180033

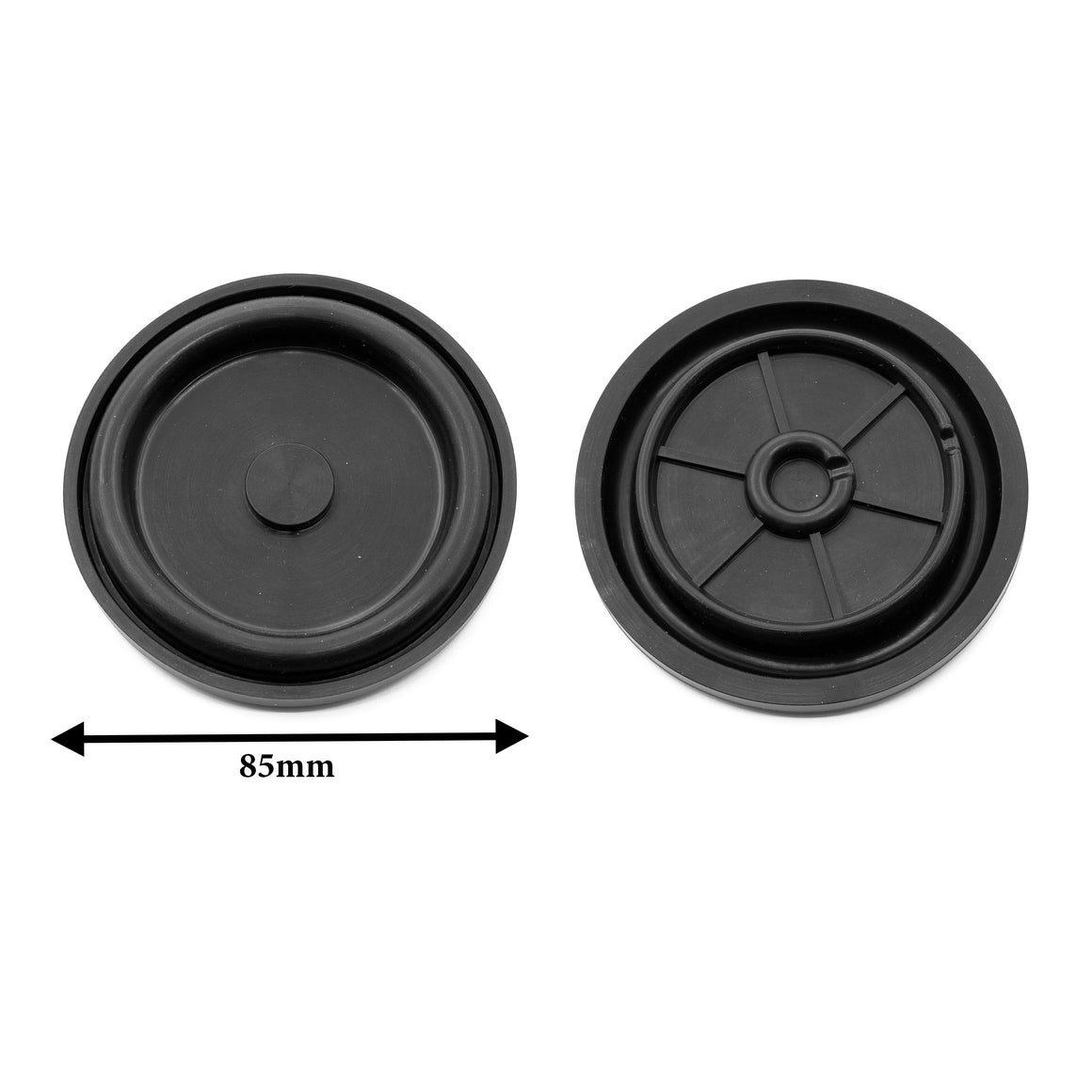

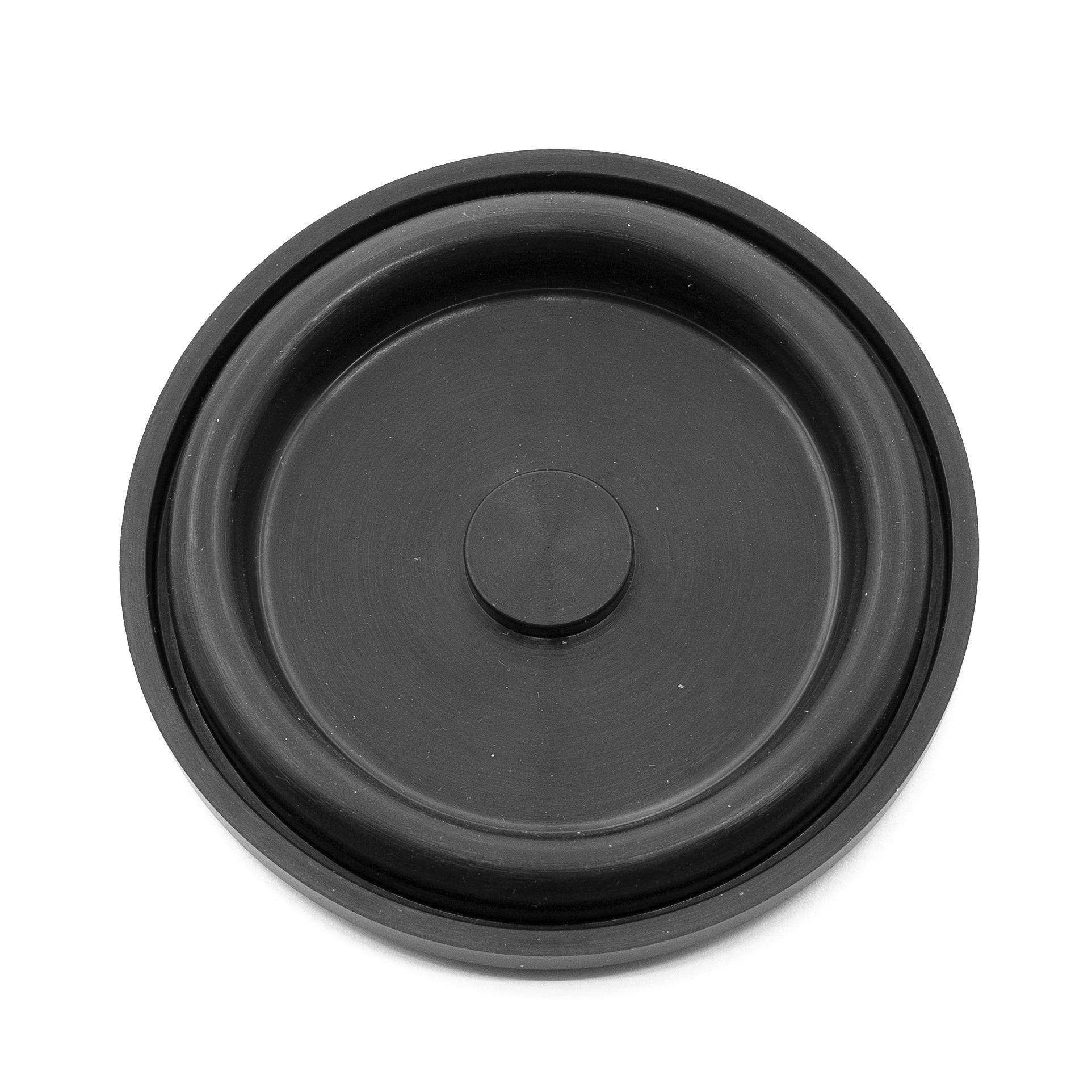

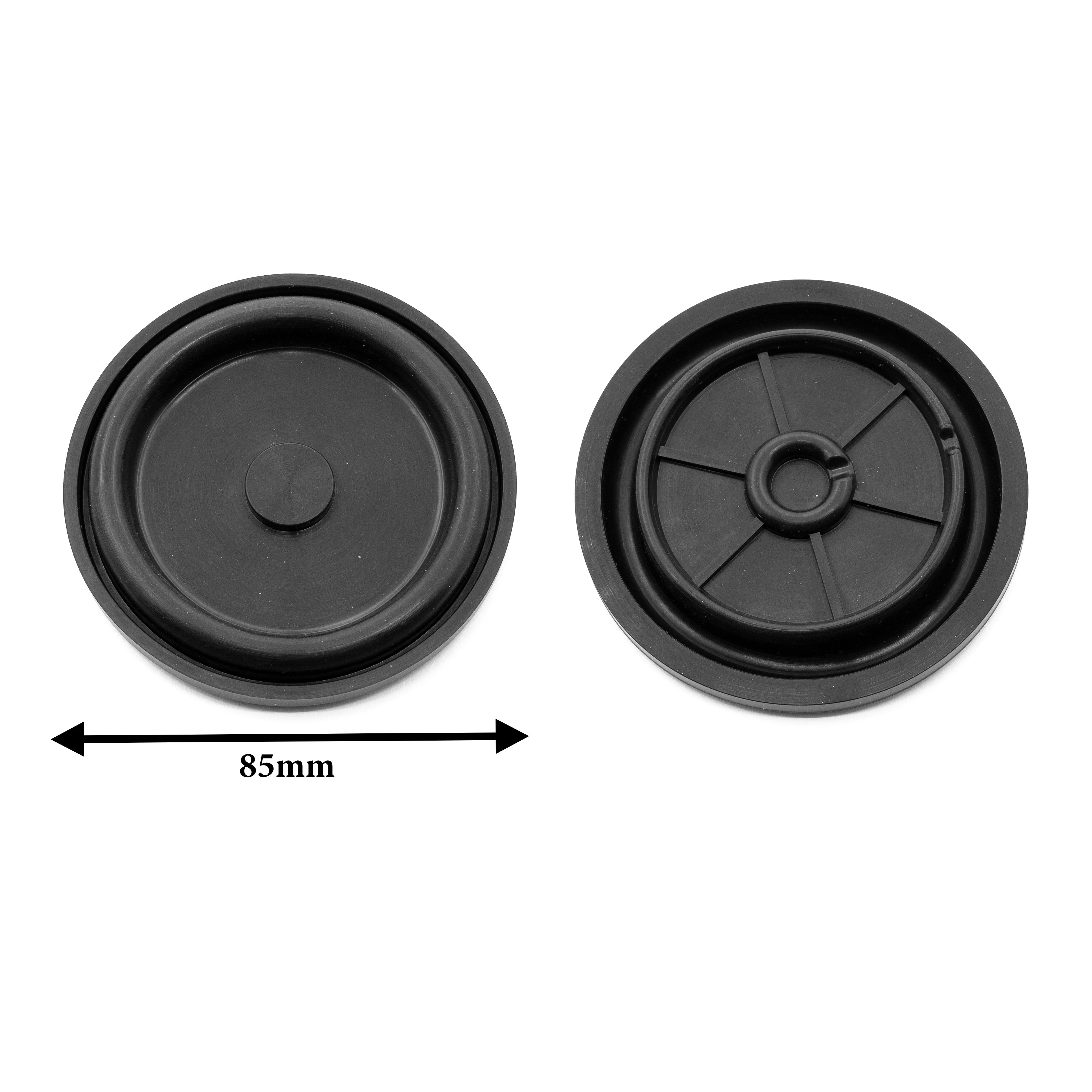

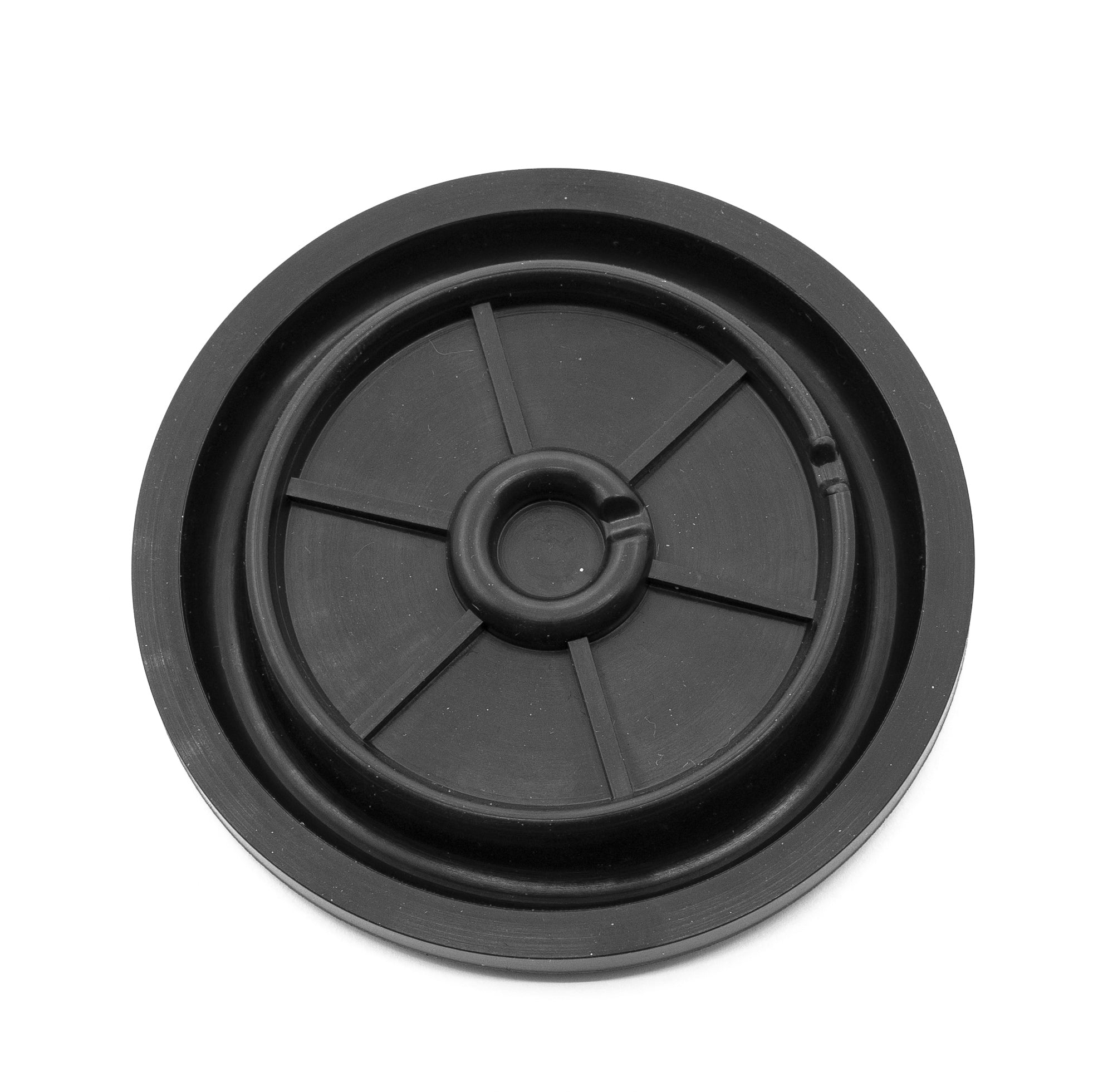

This 85mm diaphragm is a repair component for the Mercedes M117 oil separator. Match the original separator reference and diaphragm design before ordering.

Applications

• Mercedes-Benz - M117 engine; match the oil separator reference.

Separator Selection

Diaphragm reference: 6030180033. Diameter: 85mm. Separator references: 1170100930, 1170100530 and 1170100130. Additional exact reference forms: a 117 010 05 30, a 117 010 01 30 and a 117 010 09 30.

When to Inspect Crankcase Ventilation

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults associated with air leaks.

These symptoms call for inspection of the crankcase ventilation system; confirm the cause before replacing the diaphragm.

Repair Scope

The diaphragm is a repair component for the oil separator. Inspect the separator or valve cover housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable when the housing is intact; housing damage may require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What diameter is specified?

85mm.

What is the diaphragm reference?

6030180033.

Can it replace a damaged separator housing?

Inspect the housing first; a diaphragm alone may be insufficient if the housing is damaged.

Part Number / PN

6030180033,1170100930,1170100530,1170100130,a 117 010 05 30,a 117 010 01 30,a 117 010 09 30

SKU: KL1170100930.
