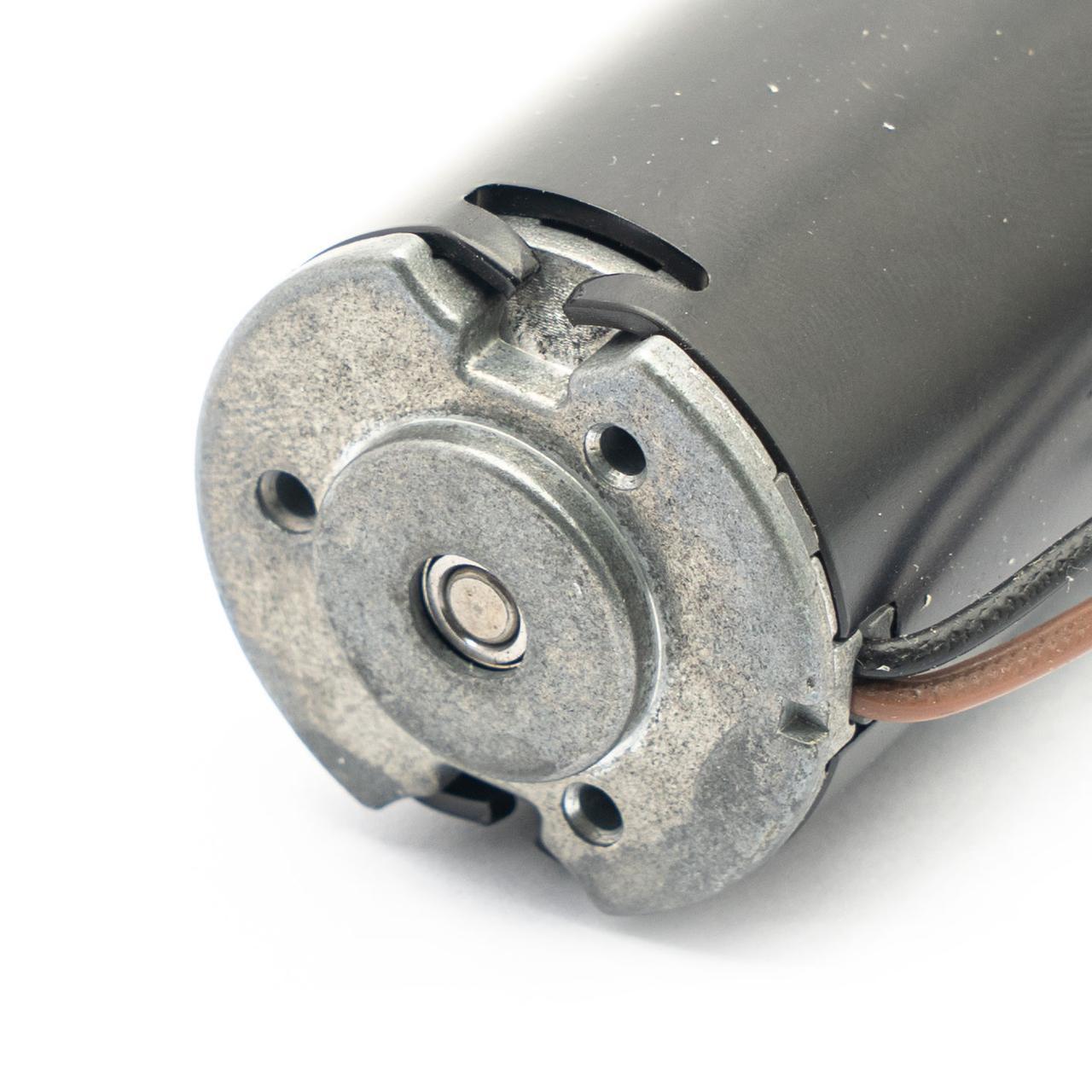

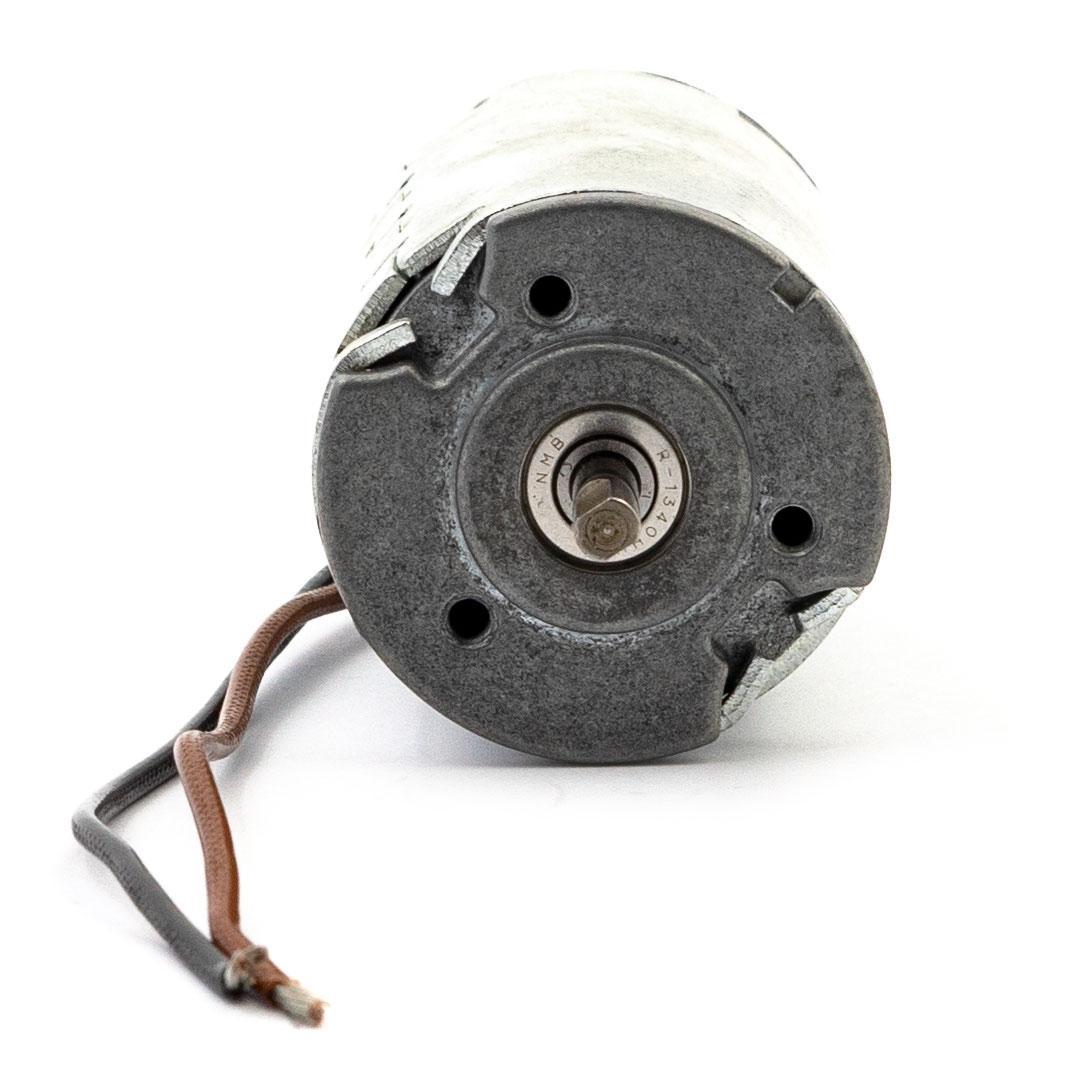

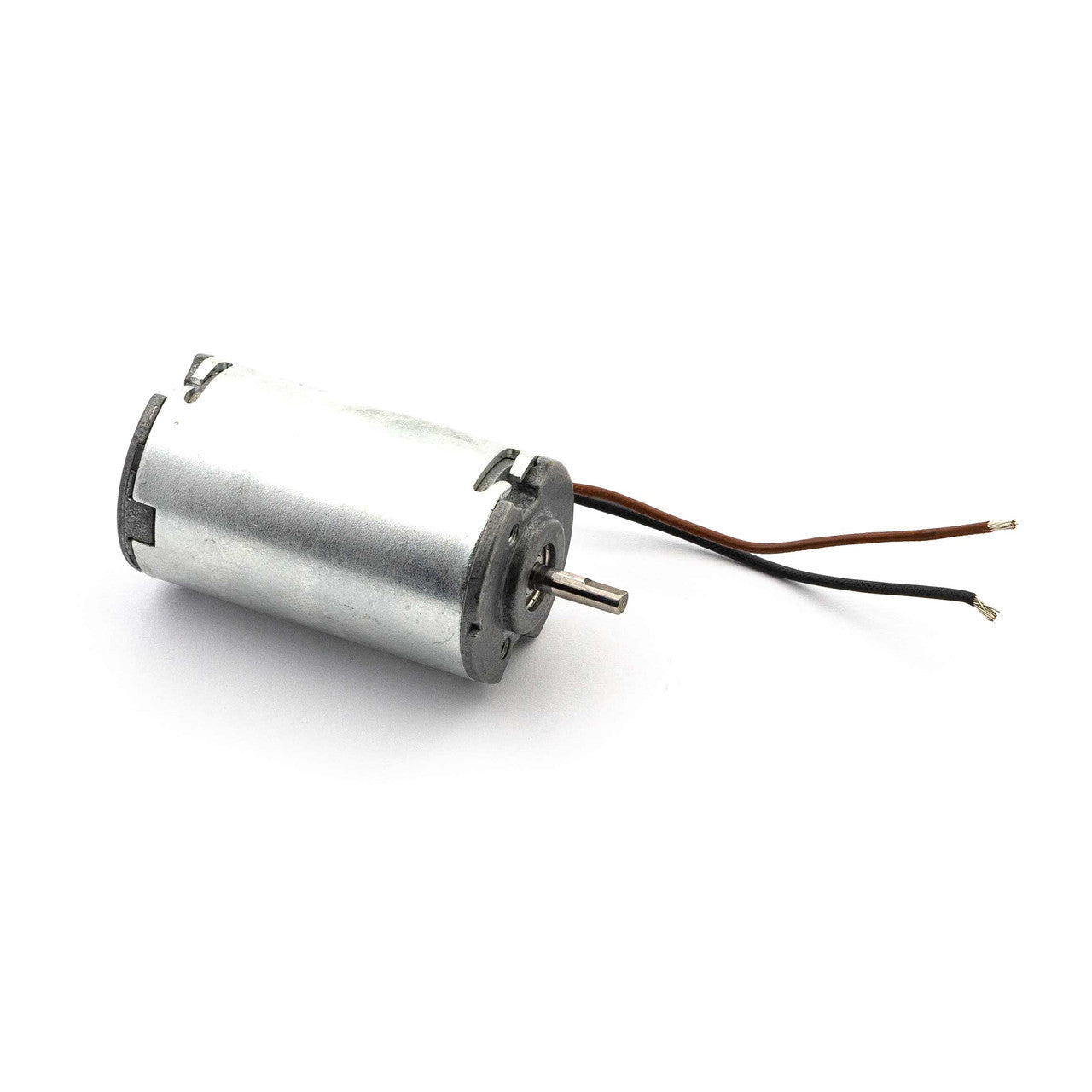

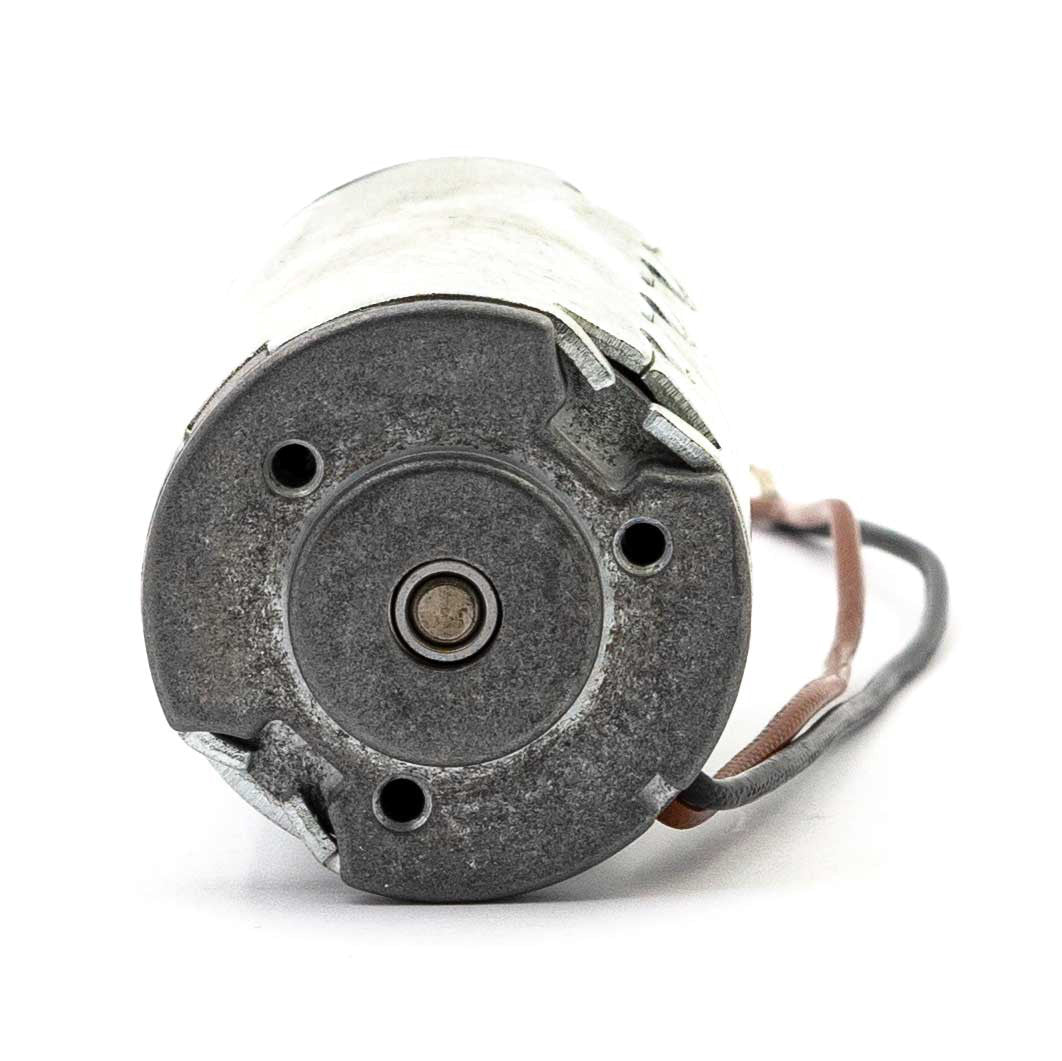

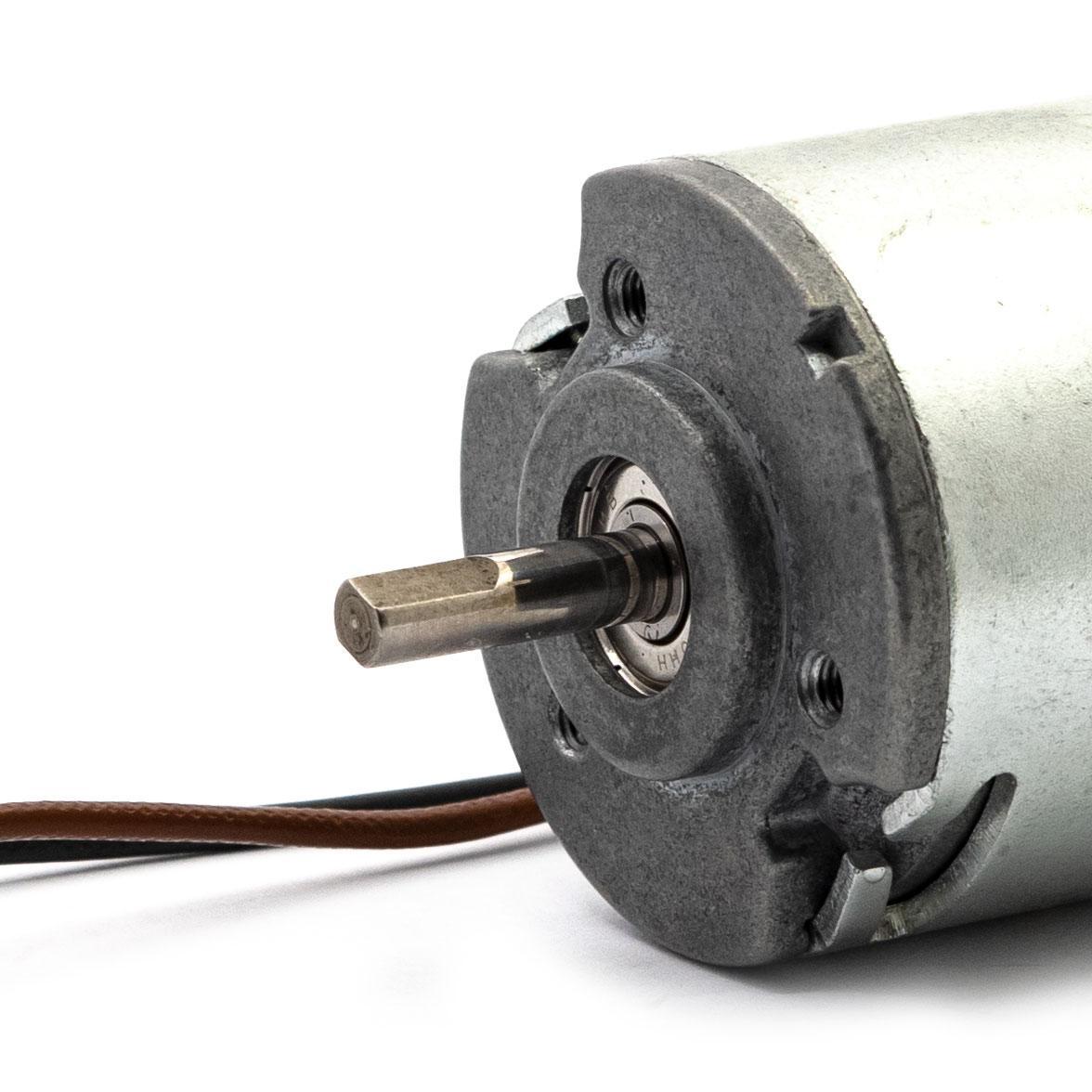

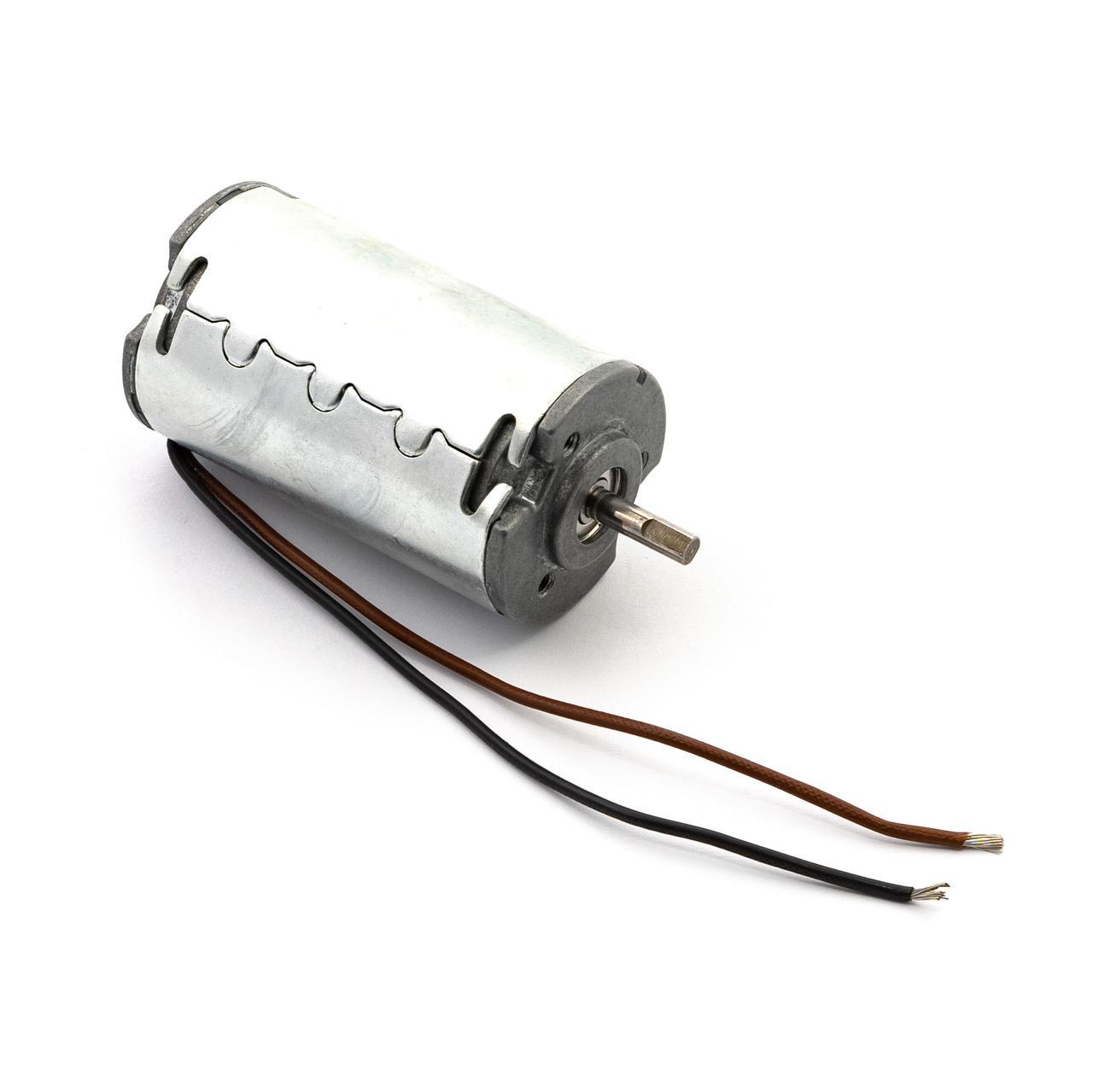

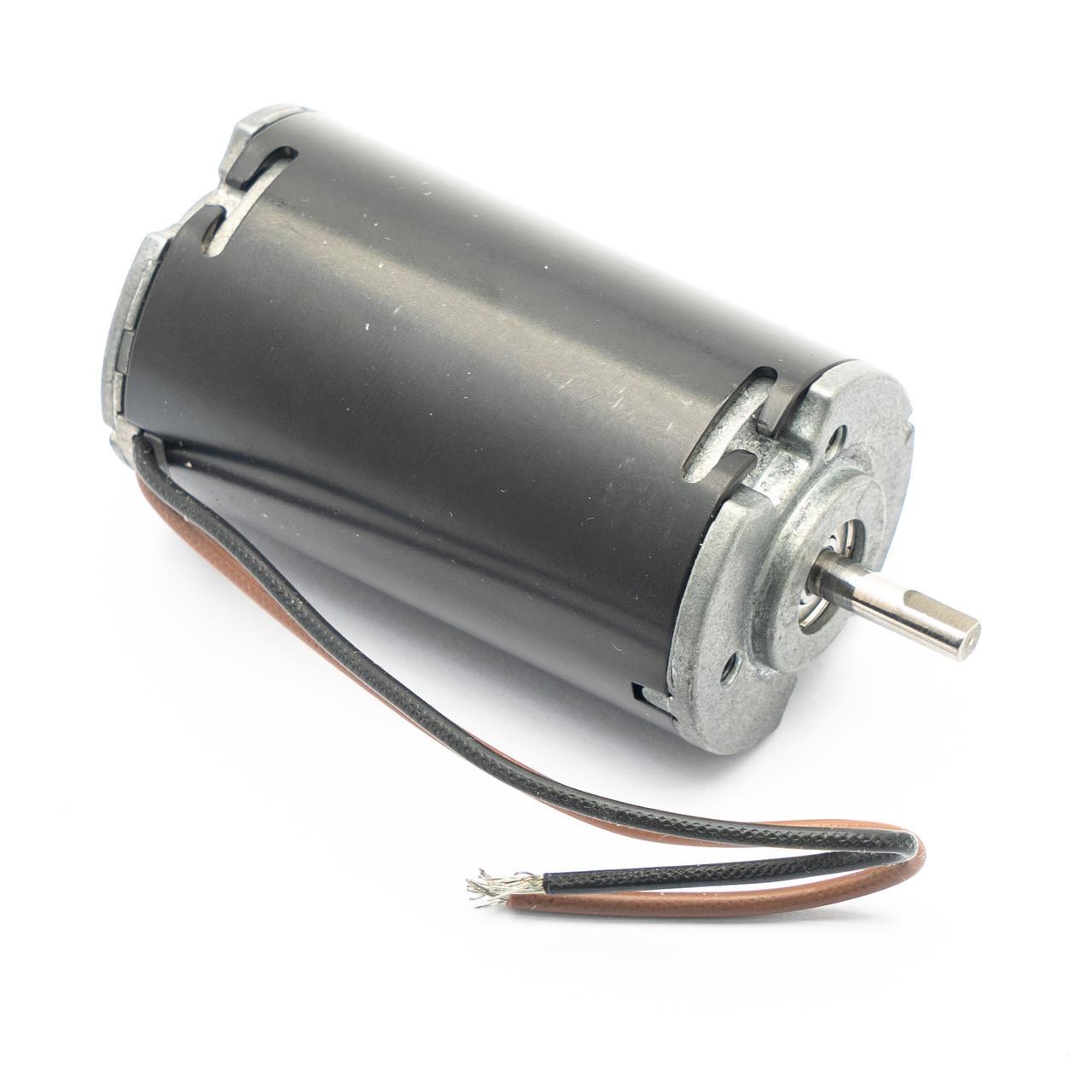

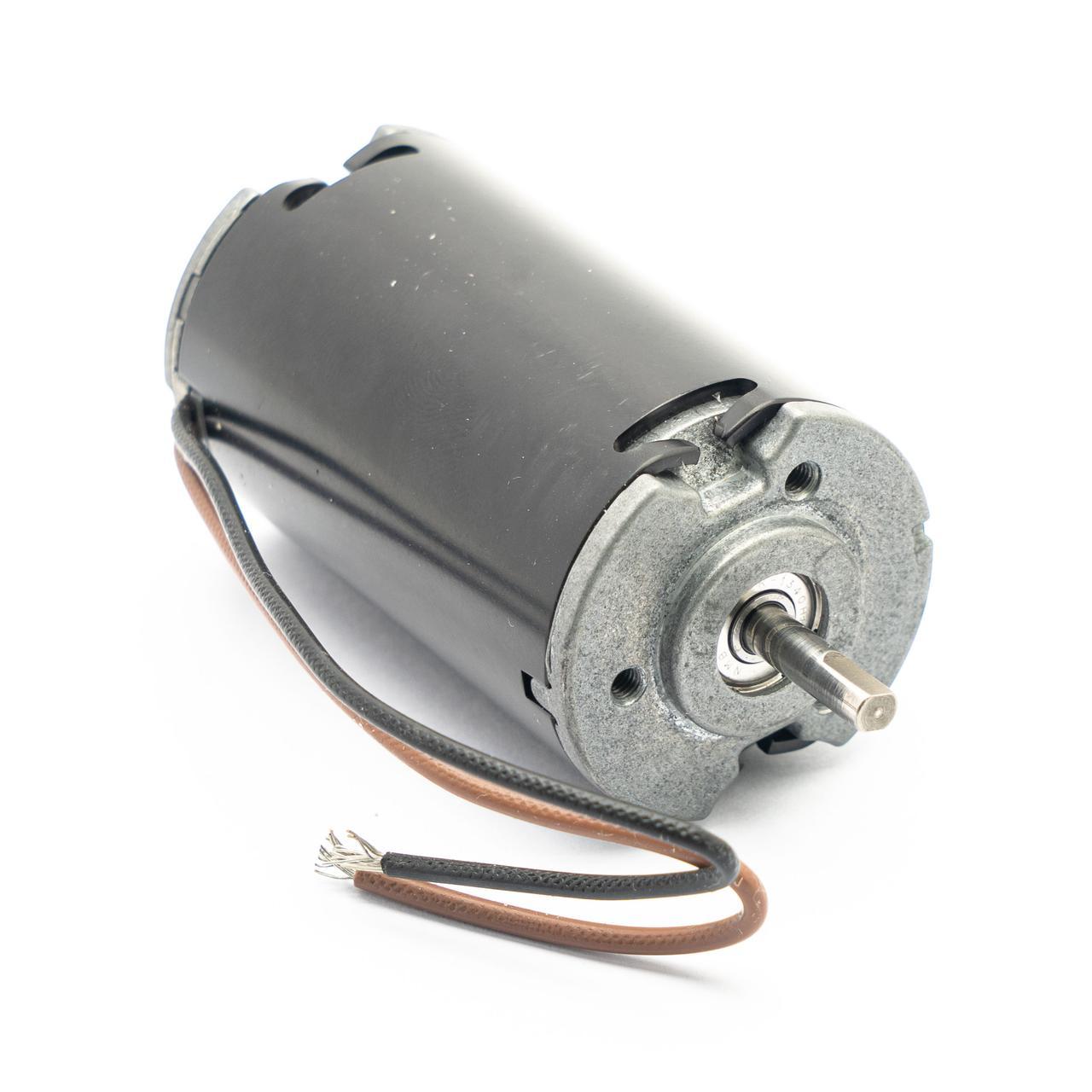

This 12V DC motor is a repair component for the Haldex all-wheel-drive coupling pump in generations 1, 2 and 3. Match the pump reference and original motor design before ordering.
Applications
- Audi A3 / S3 8L Quattro through 2003, 02D 525 557, 02D525557
- Audi TT 8N Quattro through 2006, 02D 525 557, 02D525557
- Ford Kuga I AWD through 2008, 8V41 4C019 AA, 8V414C019AA
- Land Rover Freelander 2 AWD through 2008, LR 003147, LR003147
- Seat Alhambra 4x4 AWD through 2008, 02D 525 557, 02D525557
- Seat Leon 4x4 AWD through 2005, 02D 525 557, 02D525557
- Skoda Octavia 4x4 AWD through 2008, 02D 525 557, 02D525557
- Volkswagen Beetle 4Motion through 2003, 02D 525 557, 02D525557
- Volkswagen Bora 4Motion through 2004, 02D 525 557, 02D525557
- Volkswagen Golf 4Motion through 2004, 02D 525 557, 02D525557
- Volkswagen Passat B6 4Motion through 2009, 02D 525 557, 02D525557
- Volkswagen Sharan 4Motion through 2008, 02D 525 557, 02D525557
- Volkswagen T5 Multivan 4Motion through 2009, 02D 525 557, 02D525557
- Volvo S60 4x4 AWD through 2009 30783079, 8689664
- Volvo S80 4x4 AWD through 2008 30783079, 8689664
- Volvo XC70 4x4 AWD through 2007 30783079, 8689664
- Volvo XC90 4x4 AWD through 2009 30783079, 8689664
- Volvo V50 4x4 AWD through 2009 30783079, 8689664
- Volvo V70 4x4 AWD до 2008г
- Volkswagen New Beetle - match the original pump reference.
Motor Specifications and Pump Selection
Motor supply: 12V DC. Dimensions: 35mm x 60mm. Listed pump references: 30783079, 02D525557, 8V414C019AA, LR003147 and 8689664. Additional reference form: 003147. Compare original motor dimensions, marking and mounting.
When to Inspect the Pump Motor
Inspect failure to activate, intermittent operation, control faults and evidence of overheating or contact wear. Diagnose the failed component before replacement. Check coupling oil, filter, pump and strainer; heavy contamination calls for cleaning the seating areas and checking pump operation.
Repair Scope
This is the pump electric motor, rather than a complete Haldex pump or coupling. Compare the original unit before choosing a motor replacement.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
What voltage is specified?
12V DC.
What dimensions are listed?
35mm x 60mm.
Which Haldex generations are listed?
1, 2 and 3.
Is 30783079 the motor SKU?
No. It is a listed pump reference. This motor SKU is motor12v123.
Part Number / PN
30783079,02D525557,8V414C019AA,003147,LR003147,8689664
SKU: motor12v123.
