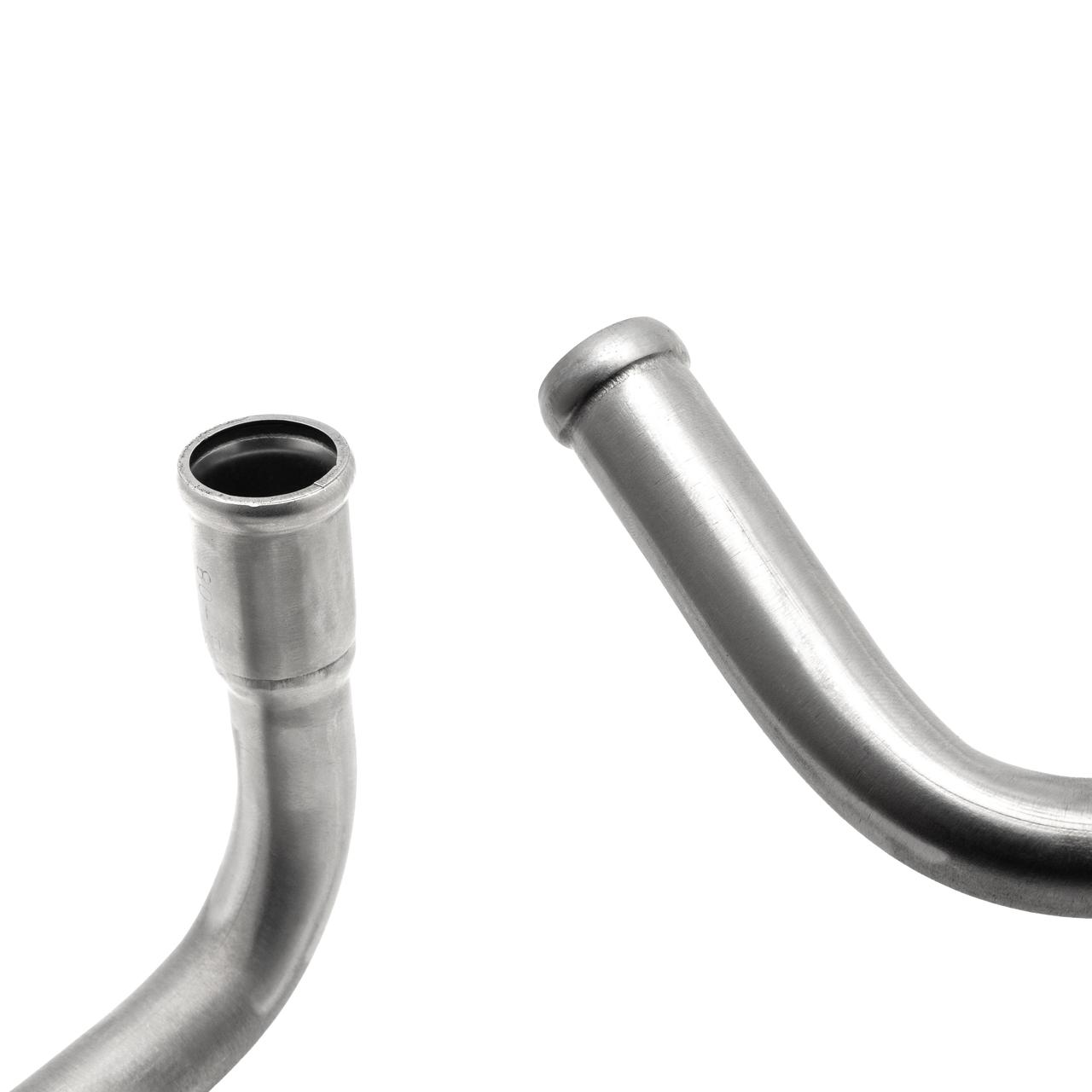

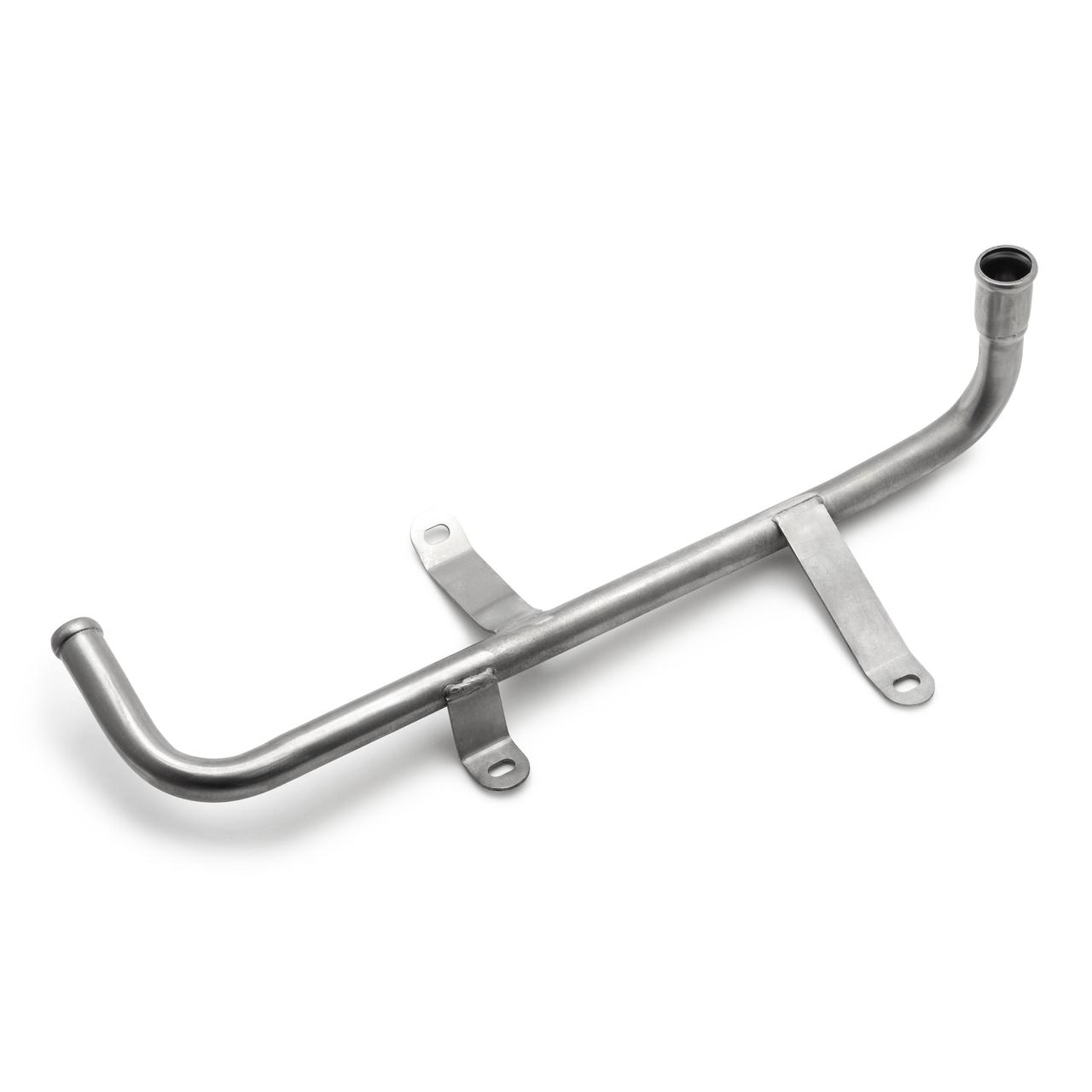

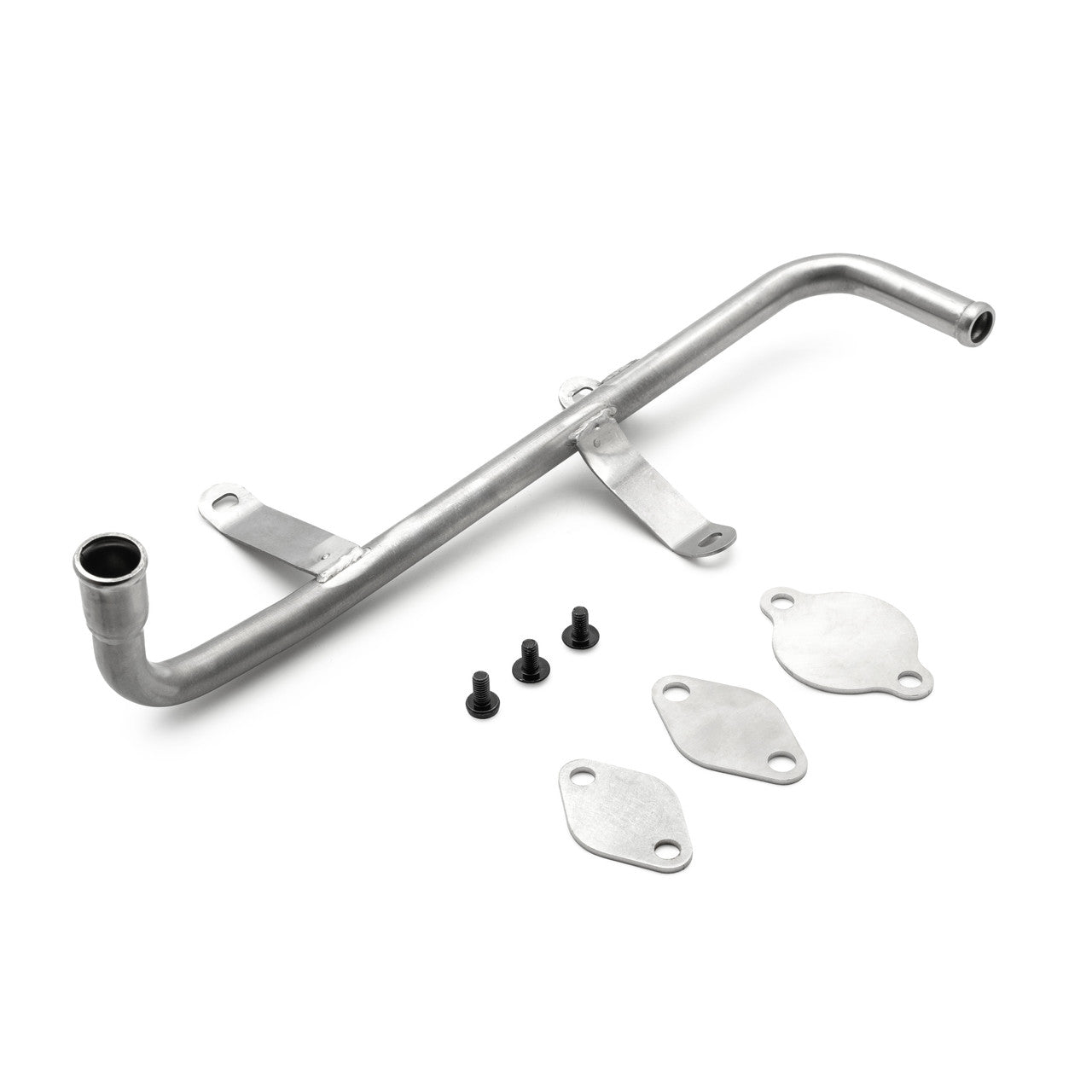

Stainless EGR Delete Pipe - Audi / VW / Skoda / Seat 1.4 / 1.6 / 2.0 TDI - 03L131512AP

This stainless steel pipe replaces the EGR valve on the listed Audi, VW, Skoda and Seat 1.4, 1.6 and 2.0 TDI Common Rail applications from 2009-2015. It mounts on the original fixings with the original hoses. Installation requires an ECU remap and additional blanking plates.

Applications

• Audi A3, TT, Q3.
• Skoda Octavia, Superb, Yeti.
• VW Caddy 3, Caddy 4, Golf 6, Golf Plus, Jetta, Passat B6, Passat B7, Passat CC, Touran, Tiguan, Sharan 2, Polo 1.4 TDI, Beetle, Scirocco.
• Seat Altea, Alhambra, Ibiza 1.4 TDI, Leon.

Version Restriction

Not suitable for EGR reference 03L131512DK. Match the complete original EGR number and the listed 2009-2015 Common Rail application before ordering.

Intake System Inspection

Reduced engine pull, EGR/intake faults, black exhaust smoke, unstable idle, intake leaks or carbon deposits and sticking flaps require diagnosis. Confirm the affected component and planned repair before installation.

EGR Reference Selection

Listed EGR references: 03L131512AP, 03L131512AT, 03L131512AX, 03L131512BB, 03L131512BJ, 03L131512BL, 03L131512CF, 03L131512CH, 03L131512DQ, 03L131512N, 03L131527AX. Excluded reference: 03L131512DK.

Installation Requirements

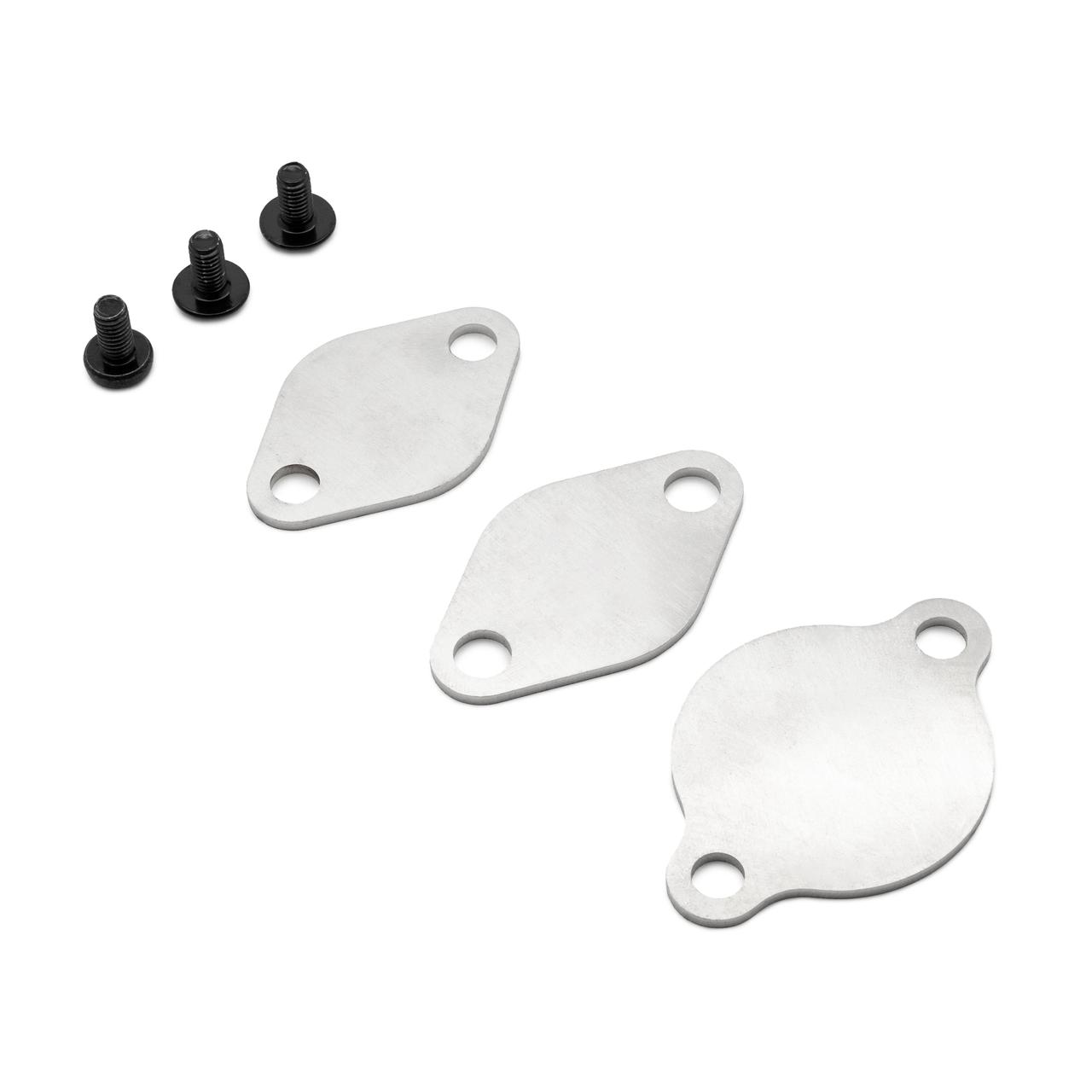

Material: stainless steel. Use the original mounting points and hoses. ECU remapping is required. Complete installation also requires 2 blanking plates, or 3 if needed: exhaust manifold, intake manifold and optionally the cylinder-head passage. These blanking plates are additional to the pipe.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Does it fit 03L131512DK?

No. That reference is excluded.

Is an ECU remap required?

Yes.

Are extra blanking plates required?

Yes. Two, or three if the optional cylinder-head passage is also blanked.

Part Number / PN

03L131512AT,03L131512AX,03L131512BB,03L131512BJ,03L131512BL,03L131512CF,03L131512CH,03L131512DQ,03L131512AP,03L131512N,03L131512DK,03L131527AX

SKU: KL03L131512AP.

• Audi
• Volkswagen
• SKODA
