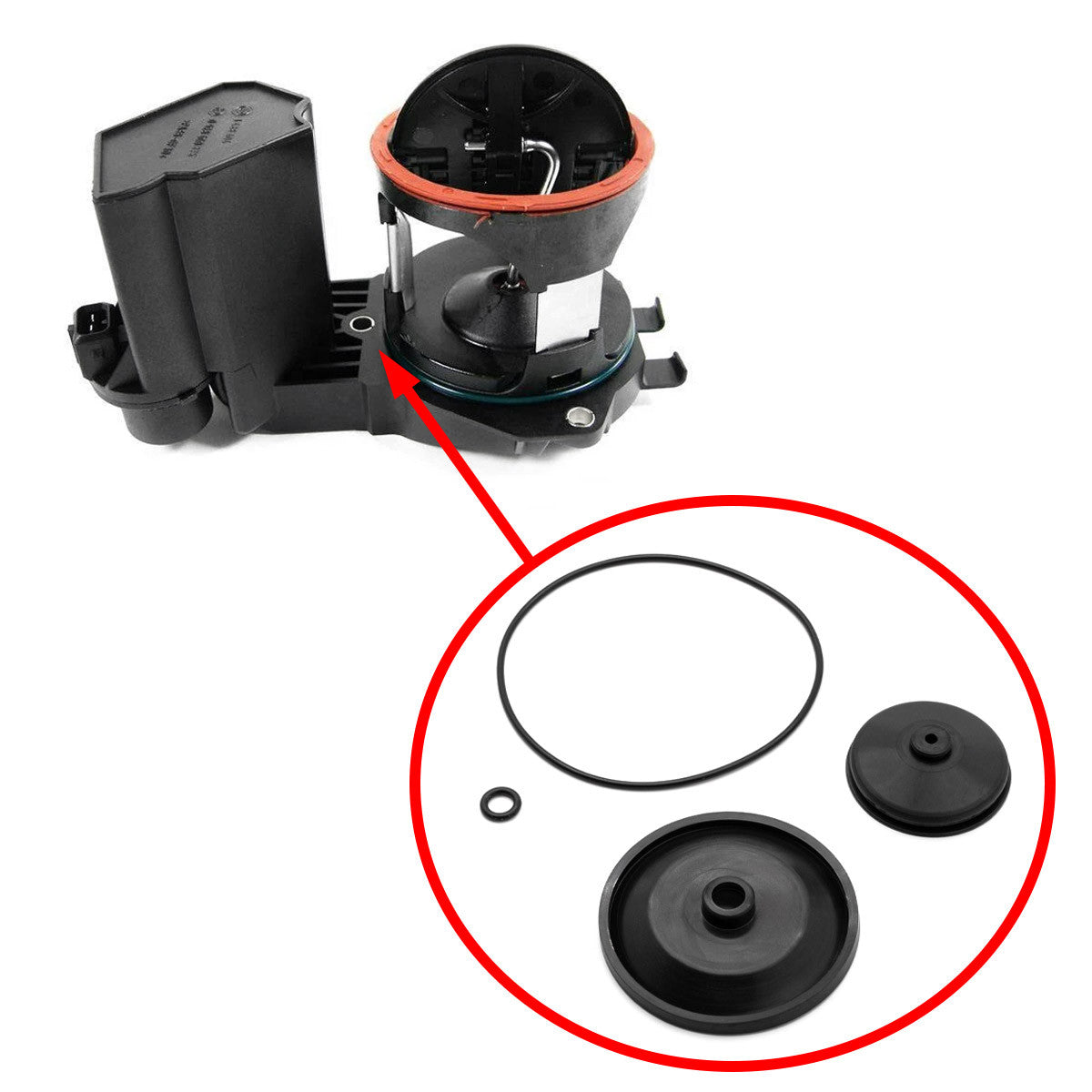

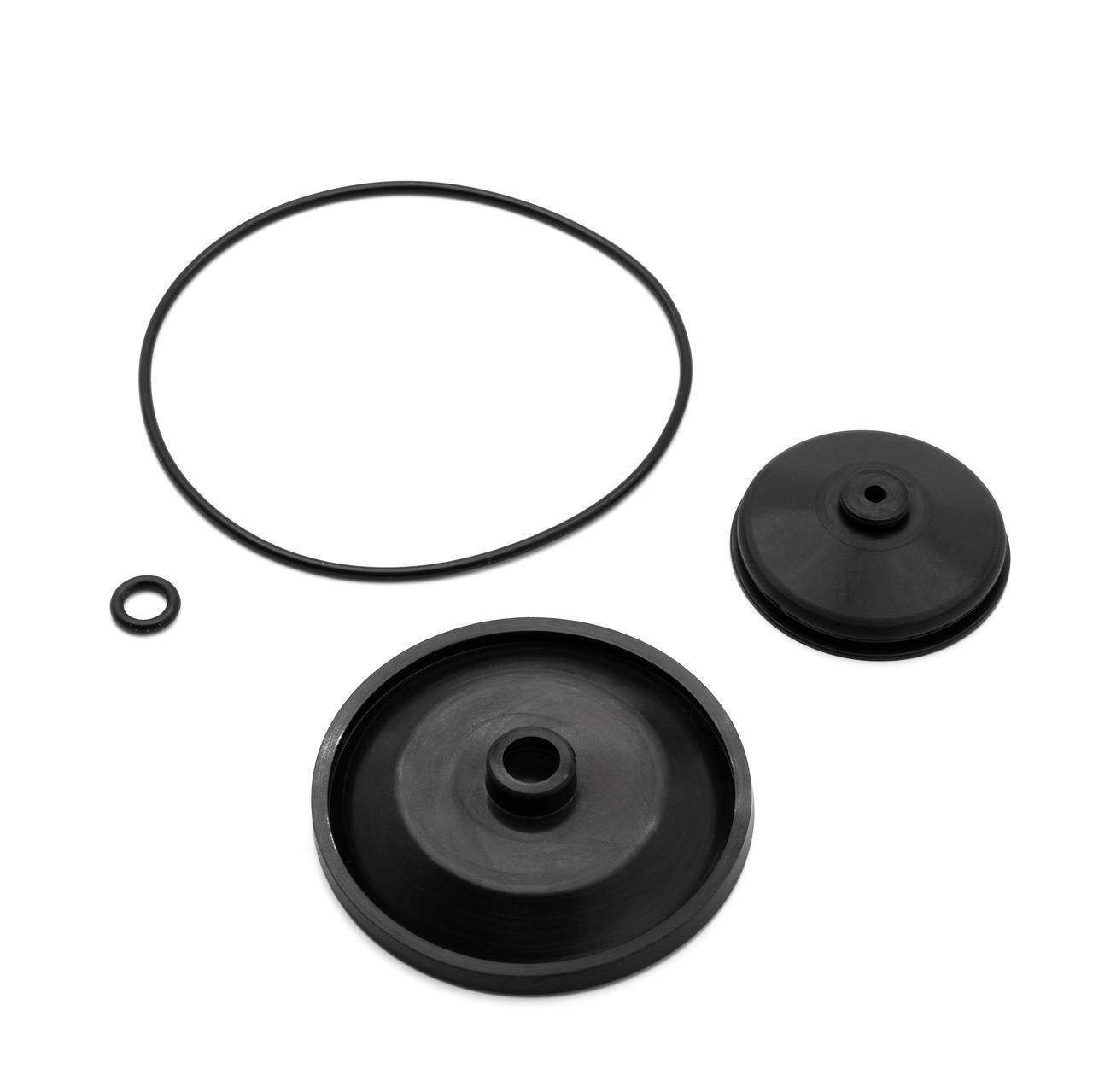

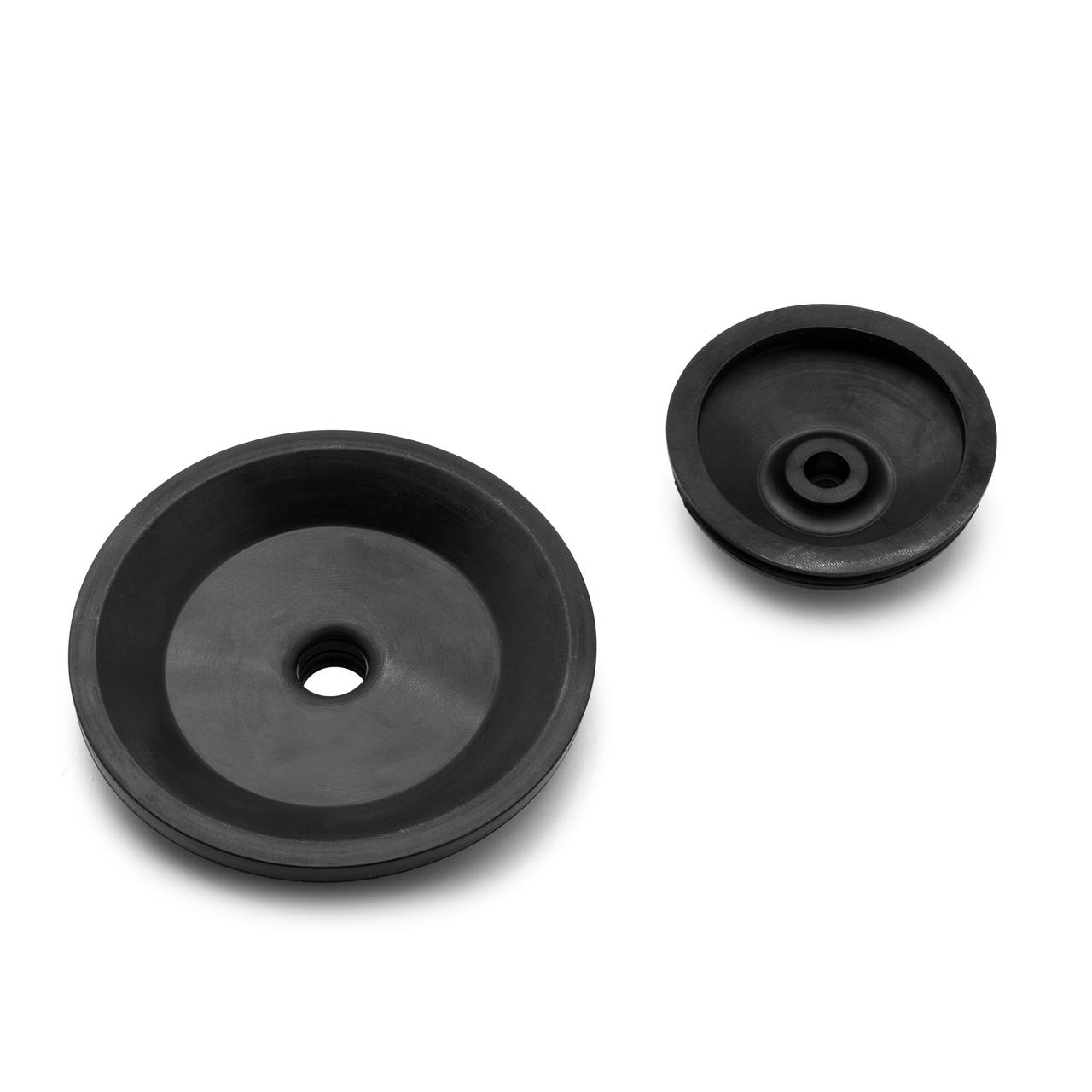

A hardened or torn diaphragm can stop the DISA mechanism from changing intake manifold geometry on the listed BMW M43TU and M44 applications. This product targets the diaphragm fault in an otherwise serviceable actuator.
Vehicle Applications
- BMW 3 Series E36 (02/1993-08/2000)
- BMW 3 Series E46 saloon, Combi, Ci (04/1997-02/2002)
- BMW 5 Series E34 (05/1995-06/1996)
- BMW Z3 E36 (12/1994-06/2002)
When to Inspect the Diaphragm
- Increased fuel consumption.
- Poor acceleration at low engine speeds.
- Noise from the intake manifold.
- Lean-mixture faults associated with unmetered air.
- Uneven idle caused by unmetered air.
- Rattling or knocking from the DISA flap.
- Hesitation during acceleration.
- Uneven idle.
- Mixture or intake-related faults.
- Unmetered air in the intake manifold.
- A damaged DISA shaft or diaphragm.
Inspect the diaphragm and the rest of the mechanism to identify the cause.
Actuator References
11611438404, 11611435715, 11611247202.
Function and Repair Limits
DISA switches between long and short intake paths to influence mixture formation and torque delivery at different engine speeds. Replacing a failed diaphragm services that component without replacing an otherwise serviceable unit. Inspect a loose flap or damaged shaft separately.
Important Before Ordering
Compare the installed DISA reference and physical design with the product before ordering. Do not select a version by vehicle model alone.
FAQ
Which DISA actuator references are listed?
The references are 11611438404, 11611435715 and 11611247202.
Why does the membrane need inspection?
With age the diaphragm can harden and tear, preventing the DISA mechanism from operating correctly.
Does replacing this diaphragm also repair a broken shaft?
The diaphragm intervention concerns a failed membrane. A damaged shaft or loose flap requires separate assessment.
Part Number / PN
11611438404, 11611438404 11611435715 11611247202, 11611435715, 11611247202
SKU: KL11611435715.
