BMW DISA Large Diaphragm M43TU / M44 - 11611438404

The 60.5 mm membrane is the larger of the two diaphragms in the specified BMW DISA actuator. It is used with M43TU and M44 engines, and late versions of M42, to service the diaphragm in the variable intake manifold geometry mechanism.

Vehicle Applications

• BMW 3 Series E36 (02/1993-08/2000)
• BMW 3 Series E46 saloon, Combi, Ci (04/1997-02/2002)
• BMW 5 Series E34 (05/1995-06/1996)
• BMW Z3 E36 (12/1994-06/2002)

Select the Larger Diaphragm

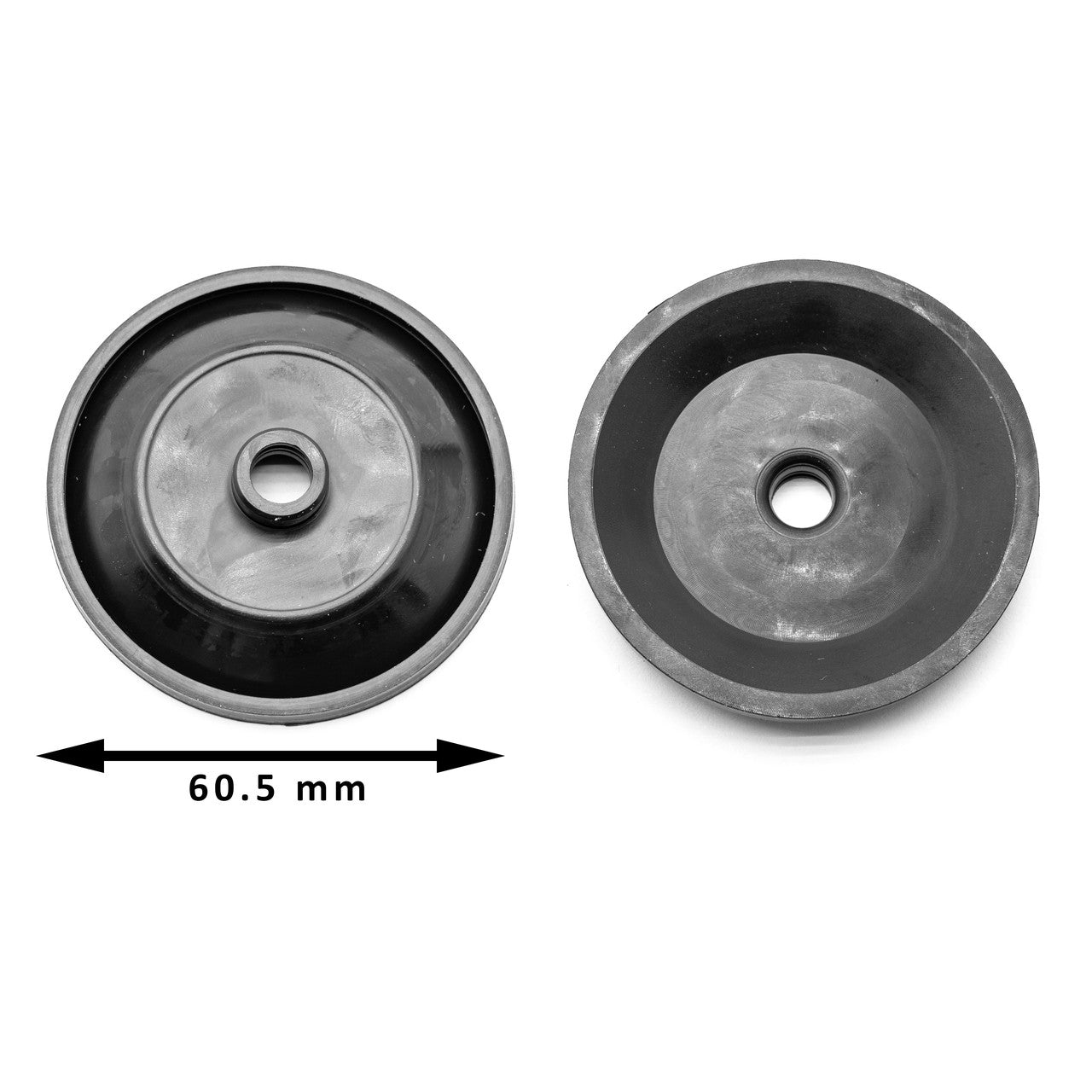

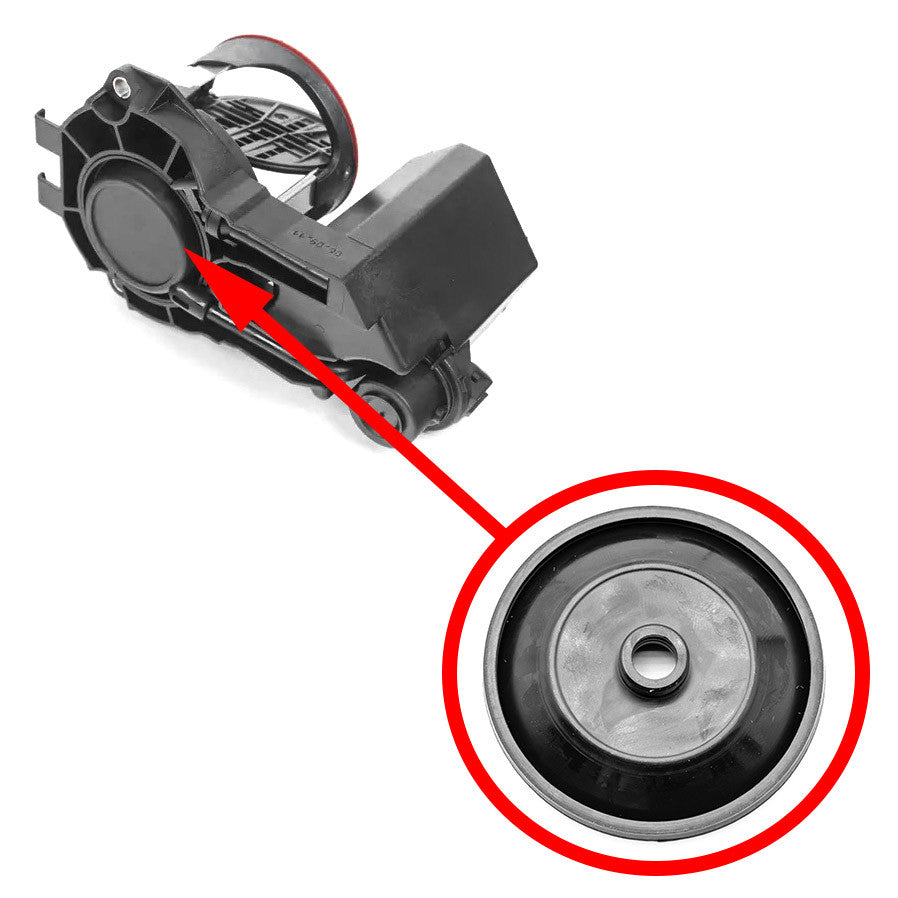

This DISA actuator contains two diaphragms. The product is the larger diaphragm, diameter 60.5 mm. Match the actuator references 11611438404, 11611435715 or 11611247202.

When to Inspect the DISA Mechanism

• Increased fuel consumption.
• Poor acceleration at low engine speeds.
• Noise from the intake manifold.
• Lean mixture faults associated with unmetered air.
• Uneven idle associated with unmetered air.
• Rattling or knocking from the DISA flap.
• Hesitation or loss of response during acceleration.
• Uneven idle.
• Mixture or intake-related faults.
• Unmetered air entering the intake manifold.
• A damaged DISA shaft or diaphragm.

Inspect the mechanism to confirm which component has failed; a diaphragm does not replace a damaged shaft or flap.

What Is Supplied

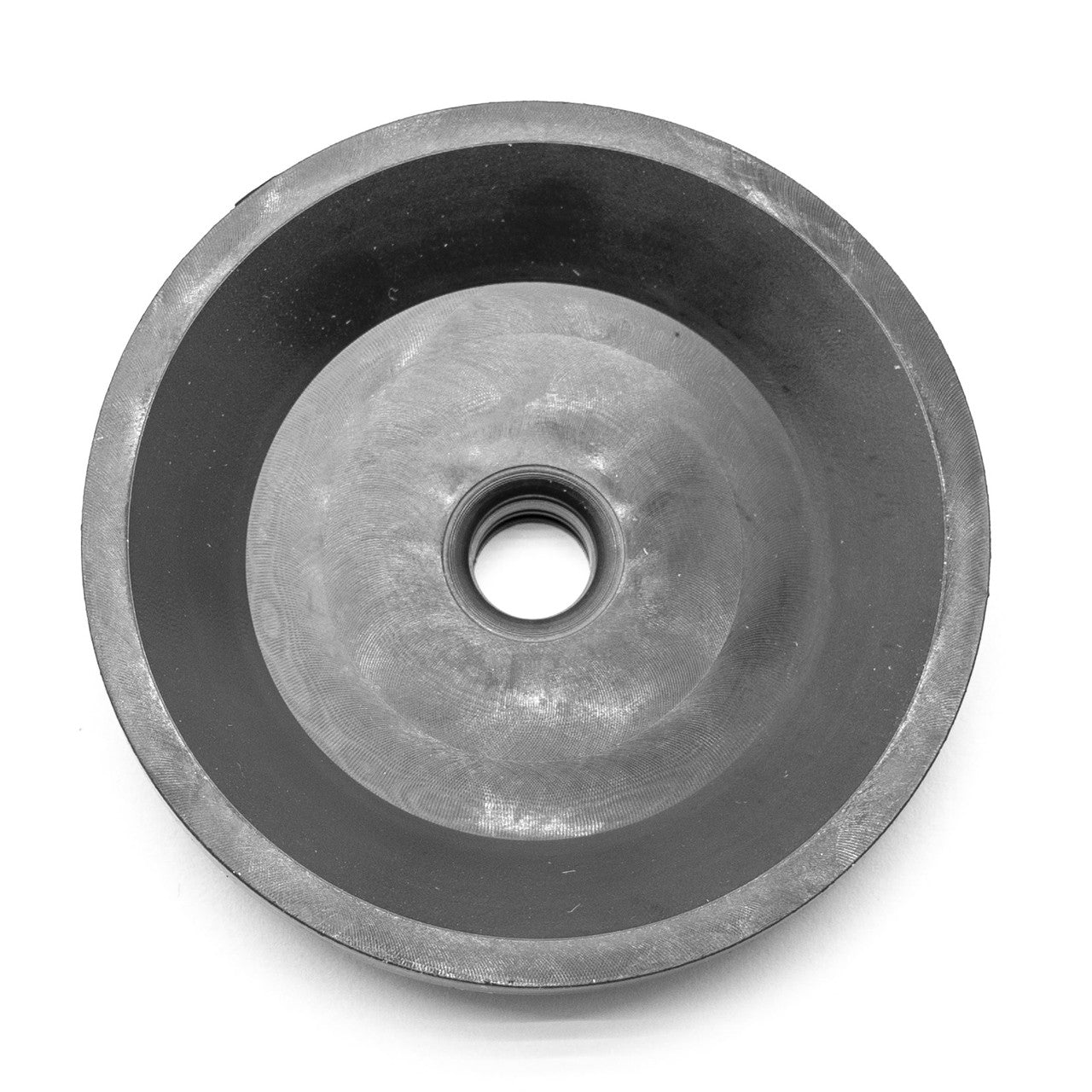

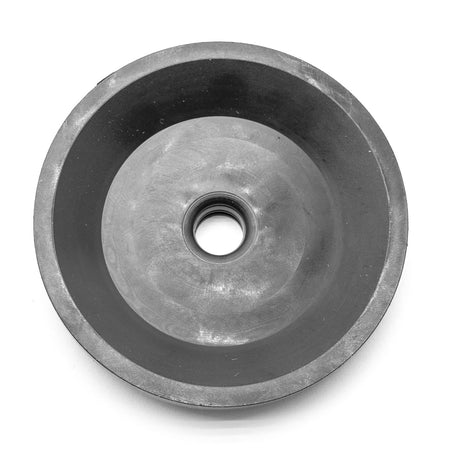

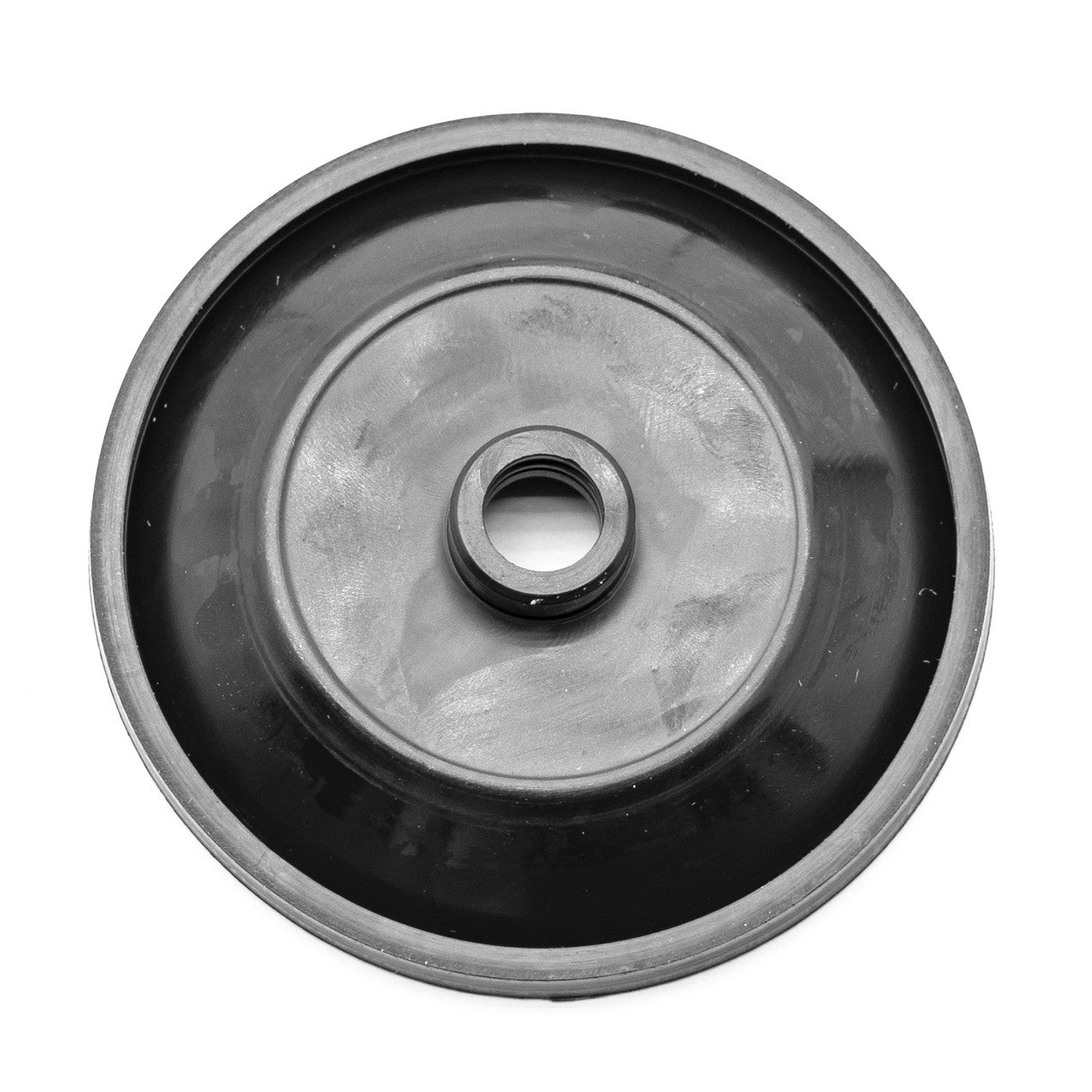

The larger DISA diaphragm, 60.5 mm.

Actuator References

11611438404, 11611435715, 11611247202.

Function and Repair Scope

DISA changes the intake manifold between long and short intake paths, influencing mixture formation and torque delivery across engine speeds. The diaphragm can harden and tear with age, leaving the actuator unable to operate correctly. Replacing this diaphragm services that failed component without replacing an otherwise serviceable DISA assembly.

Important Before Ordering

Compare the installed part number and physical design before ordering. The listed vehicle model alone does not identify the required DISA version.

FAQ

Does this product include both DISA diaphragms?

The actuator has two diaphragms; this product is specifically the larger 60.5 mm diaphragm.

Which actuator references should I compare?

Compare 11611438404, 11611435715 and 11611247202 with the installed DISA actuator.

Are late M42 applications mentioned?

Yes. M43TU, M44 and late versions of M42 are listed. Confirm the actuator number and larger diaphragm design.

Will a new diaphragm repair a broken DISA shaft?

The product is the diaphragm. A damaged shaft or flap needs separate assessment; do not treat every DISA fault as a diaphragm failure.

Part Number / PN

11611438404, 11611438404 11611435715 11611247202, 11611435715, 11611247202

SKU: KL11611438404.
