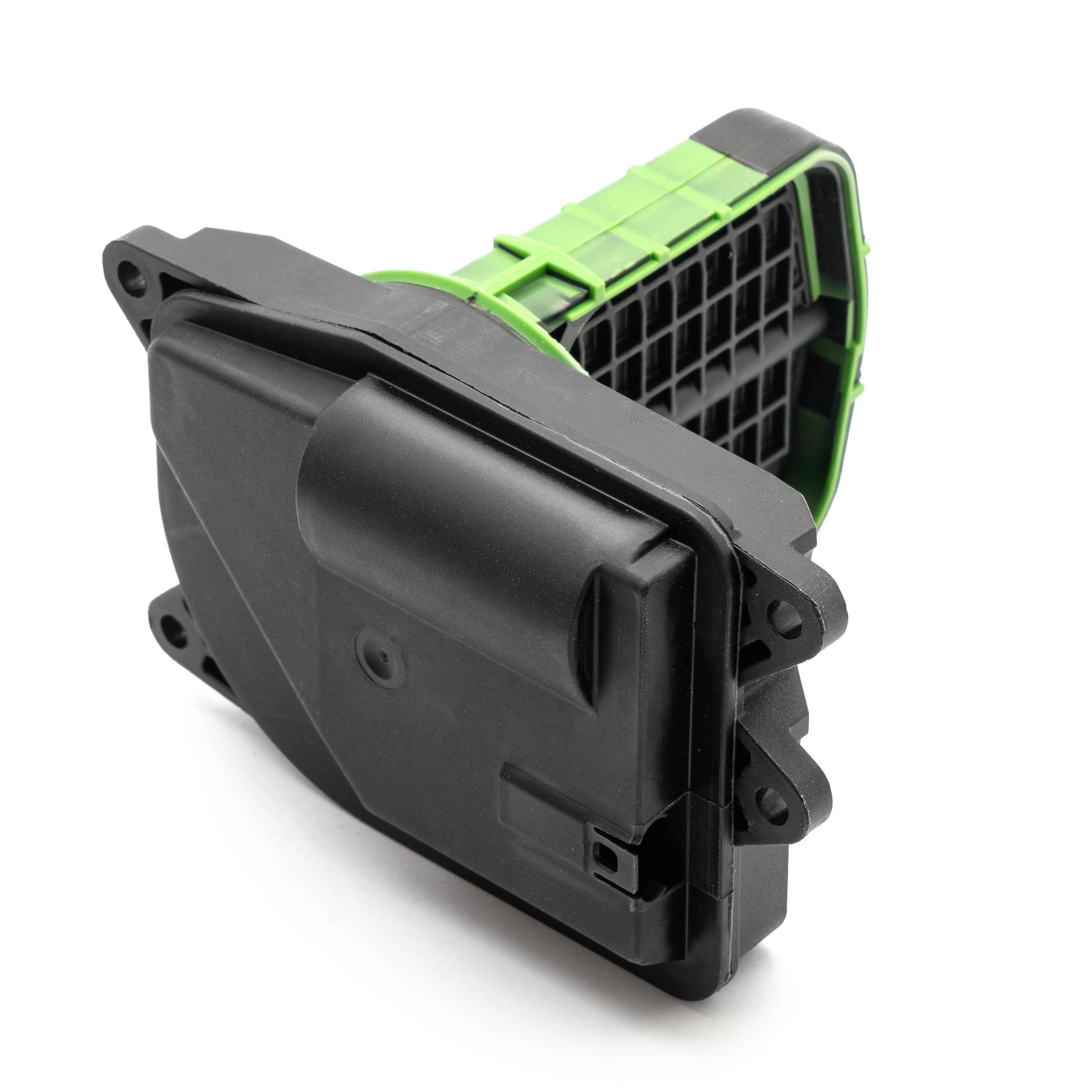

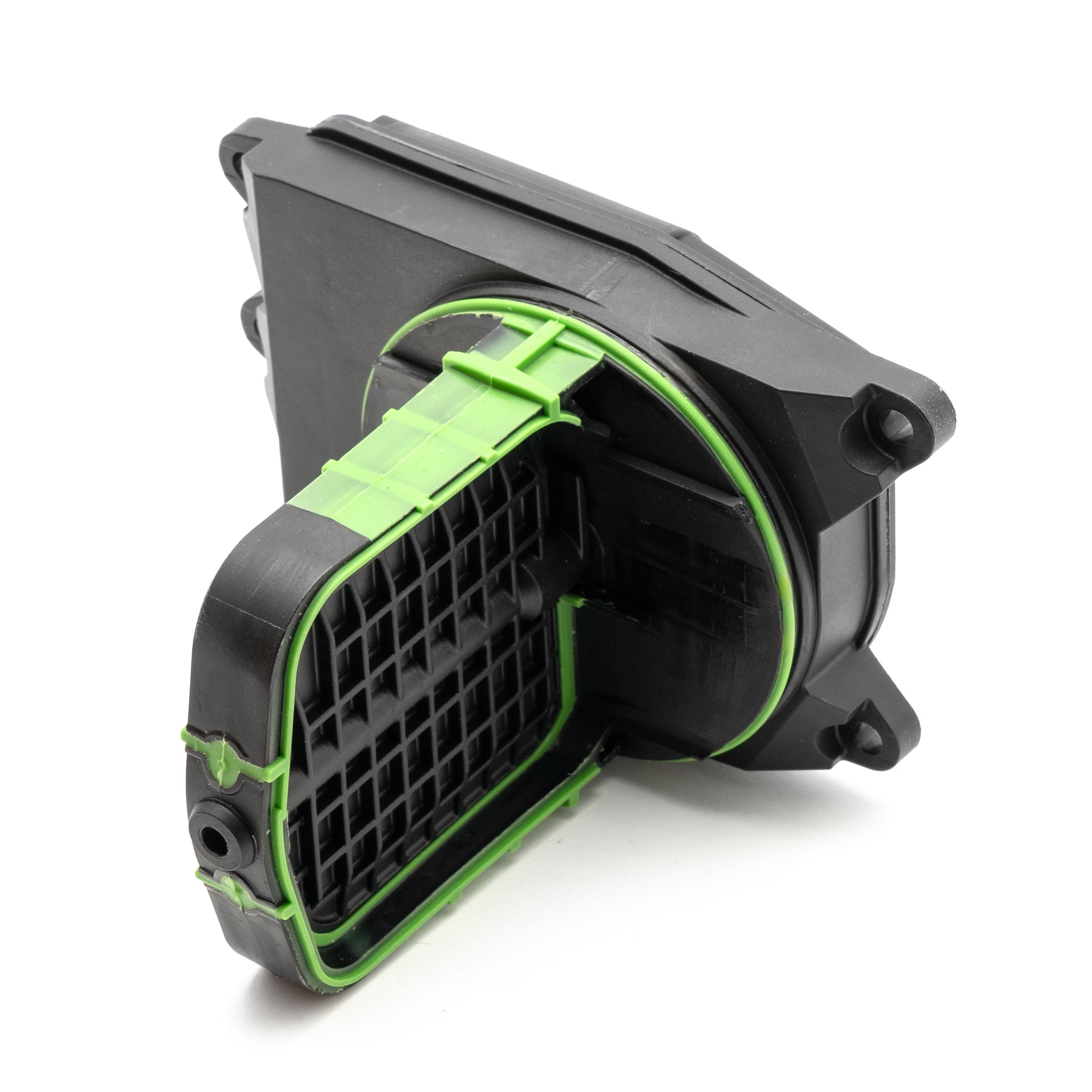

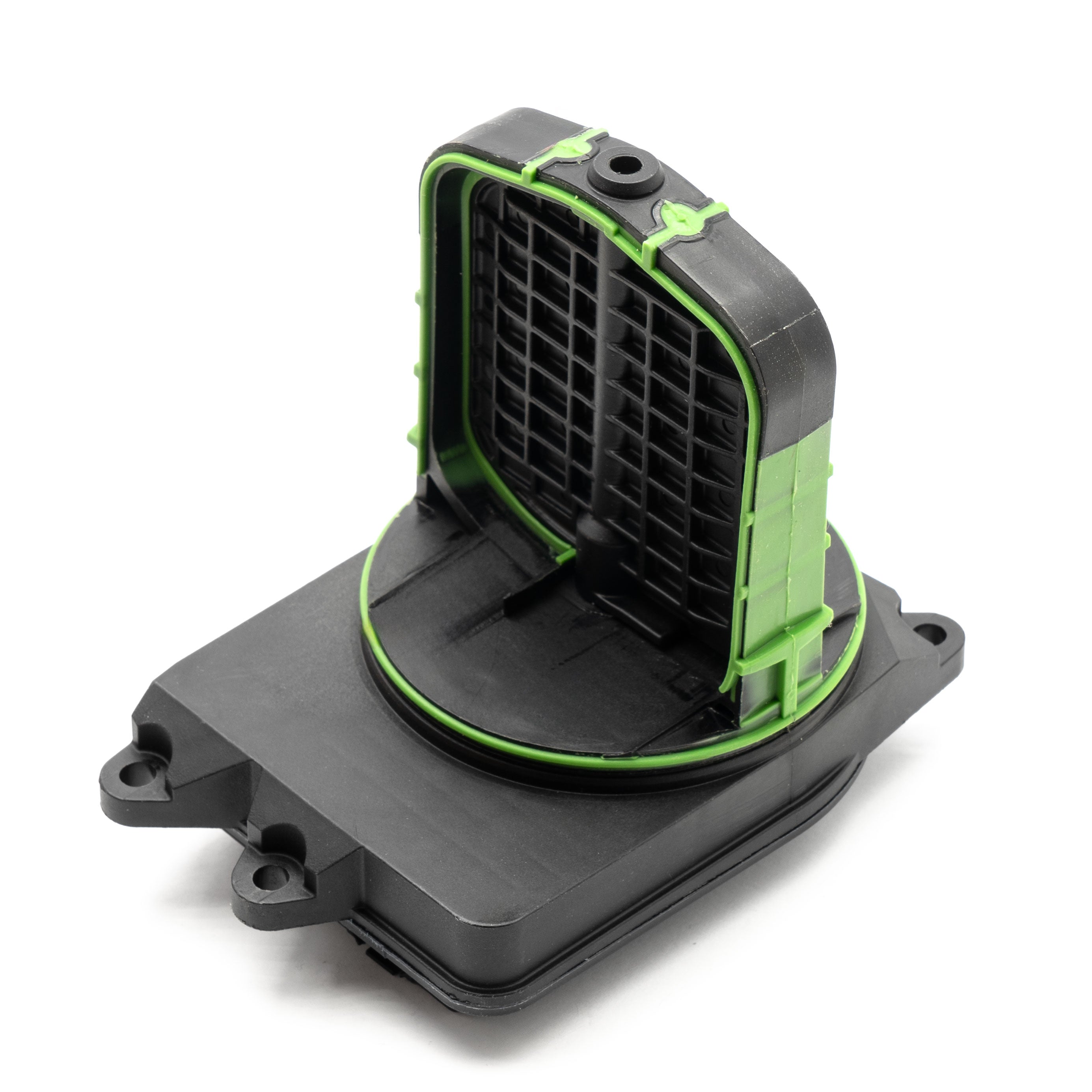

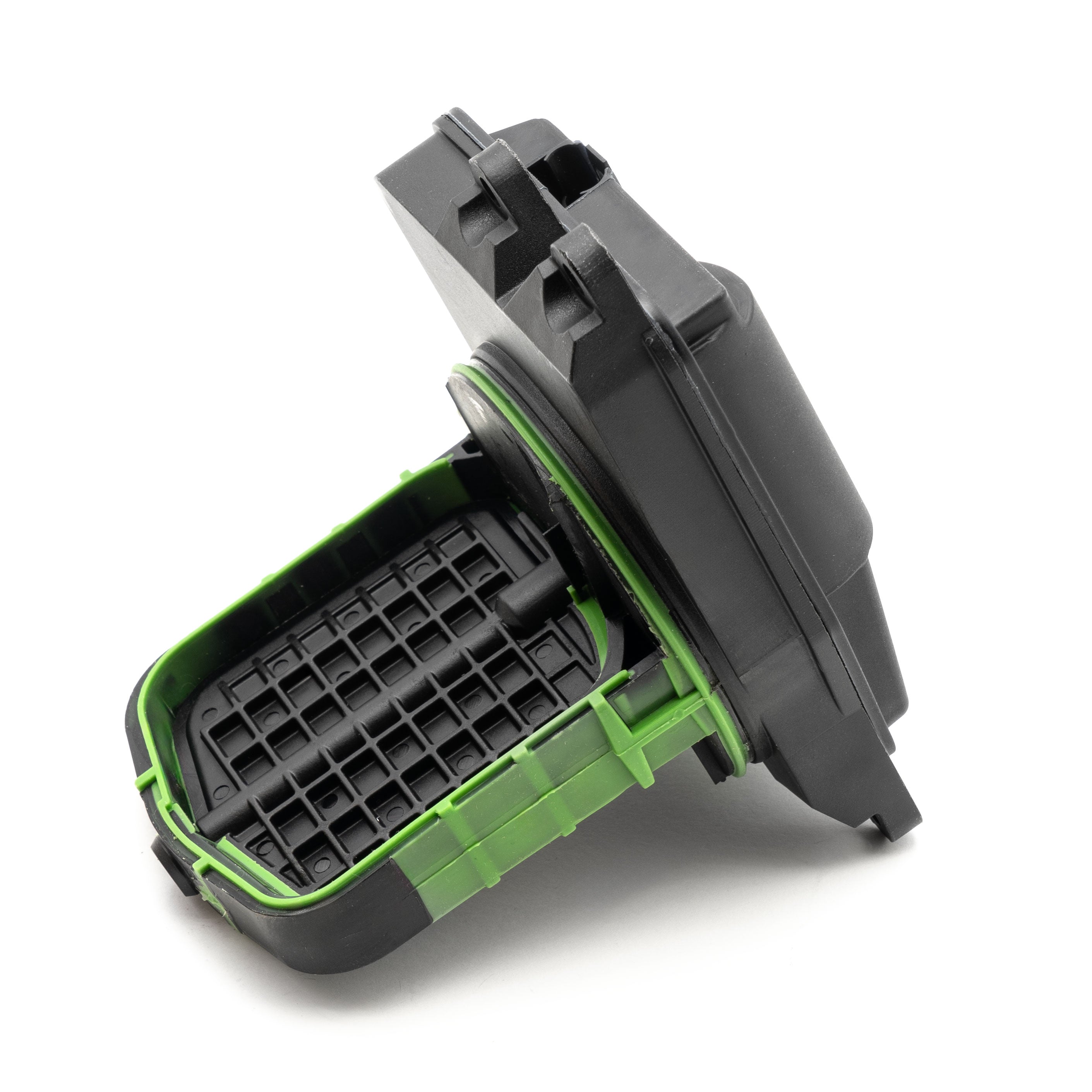

BMW DISA Actuator, Large Flap, N51 / N52 / N53 - 11617560537

This is the large-flap DISA actuator for the listed BMW N51, N52, N52N, N52K and N53 applications. The DISA mechanism changes intake manifold length; the engine families N51, N52 and N53 use two actuator versions with different flap sizes.

Vehicle Applications

• BMW 1 Series E81 (02/2006 - 12/2011)
• BMW 1 Series E87 (03/2005 - 02/2007)
• BMW 1 Series E87 LCI (01/2006 - 06/2011)
• BMW 1 Series E88 (05/2007 - 10/2013)
• BMW 1 Series E82 (02/2007 - 09/2013)
• BMW 3 Series E90 (02/2004 - 09/2008)
• BMW 3 Series E90 LCI (07/2007 - 12/2011)
• BMW 3 Series E91 (03/2004 - 08/2008)
• BMW 3 Series E91 LCI (03/2008 - 05/2012)
• BMW 3 Series E92 (05/2005 - 02/2010)
• BMW 3 Series E92 LCI (09/2009 - 06/2013)
• BMW 3 Series E93 (09/2005 - 02/2010)
• BMW 3 Series E93 LCI (09/2009 - 10/2013)
• BMW 5 Series E60 (07/2004 - 02/2007)
• BMW 5 Series E60 LCI (11/2005 - 12/2009)
• BMW 5 Series E61 (07/2004 - 02/2007)
• BMW 5 Series E61 LCI (11/2005 - 05/2010)
• BMW 5 Series F10 (01/2009 - 06/2013)
• BMW 5 Series F11 (02/2009 - 06/2013)
• BMW 6 Series E63 (02/2004 - 07/2007)
• BMW 6 Series E63 LCI (04/2006 - 07/2010)
• BMW 6 Series E64 (03/2004 - 07/2007)
• BMW 6 Series E64 LCI (04/2006 - 07/2010)
• BMW 7 Series E65 (06/2004 - 07/2008)
• BMW 7 Series E66 (07/2004 - 07/2008)
• BMW 7 Series F01 (06/2008 - 06/2012)
• BMW 7 Series F01 LCI (07/2011 - 05/2015)
• BMW 7 Series F02 (09/2007 - 06/2012)
• BMW 7 Series F02 LCI (06/2011 - 05/2015)
• BMW X1 E84 (09/2008 - 08/2011)
• BMW X3 E83 LCI (02/2006 - 08/2010)
• BMW X3 F25 (07/2009 - 03/2012)
• BMW X5 E70 (02/2006 - 03/2010)
• BMW Z4 E85 (10/2004 - 08/2008)
• BMW Z4 E86 (10/2005 - 08/2008)
• BMW Z4 E89 (01/2008 - 08/2011)

Large-Flap Version

The actuator references 11617560537, 11617579114 and 11617522929 identify the large-flap version. Do not select it as the small-flap actuator simply because the engine family or vehicle model matches.

When to Inspect DISA

• Rattling or knocking from the DISA flap.
• Hesitation or loss of response during acceleration.
• Uneven idle.
• Mixture or intake-related faults.
• Unmetered air entering the intake manifold.
• A damaged DISA shaft or diaphragm.

Inspect the installed mechanism to identify the failed component. These symptoms are not a diagnosis of the actuator by themselves.

Actuator References

11617560537, 11617579114, 11617522929.

Selection for the Intake Manifold

Compare the large flap and the original actuator reference with the installed DISA assembly. The listed intake geometry function concerns the complete DISA mechanism; the two actuator sizes are distinct versions.

Important Before Ordering

Compare the installed part number and physical design before ordering. The listed vehicle model alone does not identify the required DISA version.

FAQ

Is this the small or large DISA actuator?

It is the large-flap version, identified by 11617560537, 11617579114 and 11617522929.

Why is the engine designation alone insufficient?

The N51, N52 and N53 families use two DISA actuators with different flap sizes. Match the actuator reference and large-flap design.

Is BMW X5 E70 listed?

BMW X5 E70 is listed for 02/2006 - 03/2010. Confirm the installed large-flap actuator number.

Are BMW F10 and F11 listed?

BMW 5 Series F10, 01/2009 - 06/2013, and F11, 02/2009 - 06/2013, are listed for the specified actuator references.

Part Number / PN

11617560537, 11617522929, 11617579114, 11617560537 11617579114 11617522929

SKU: KL11617560537.
