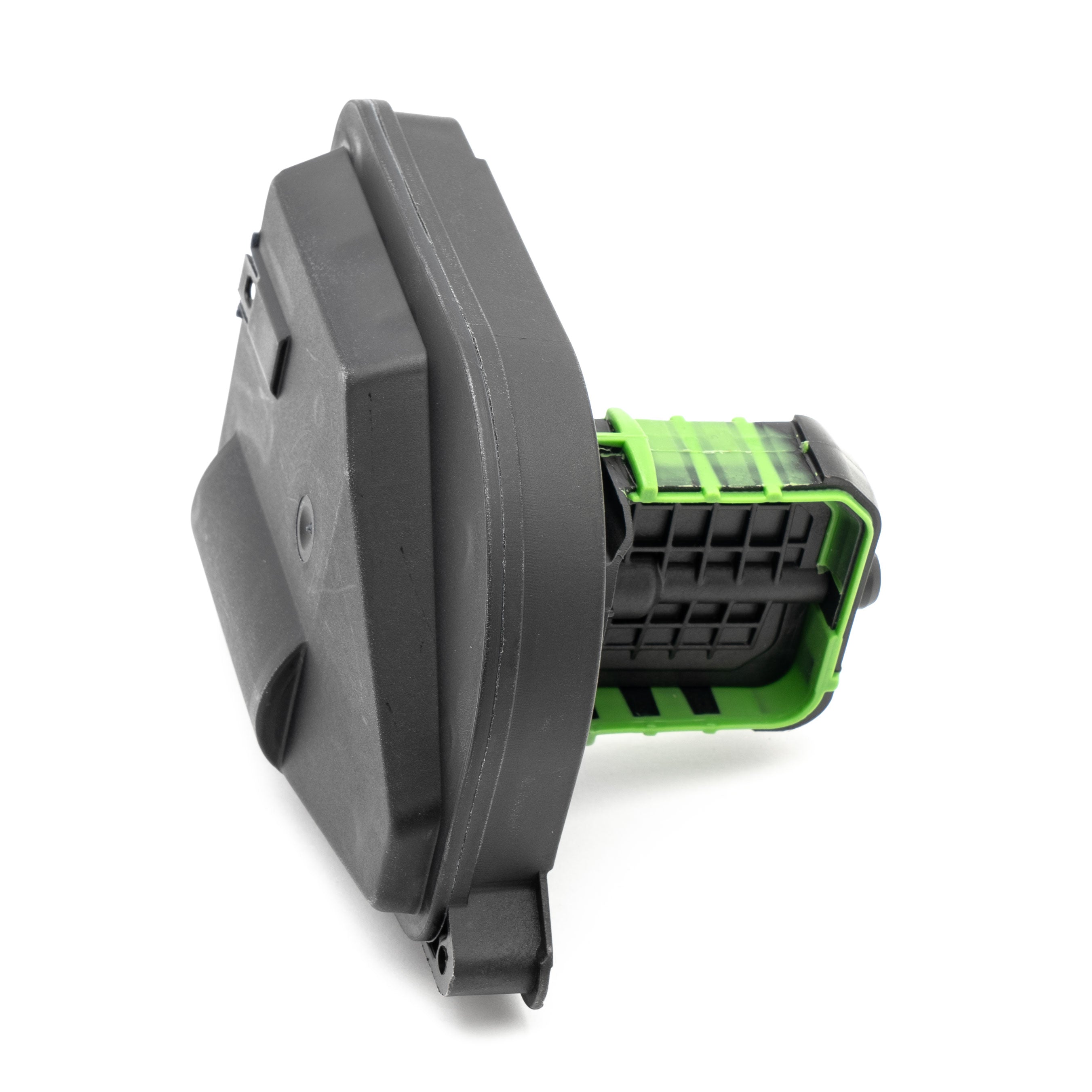

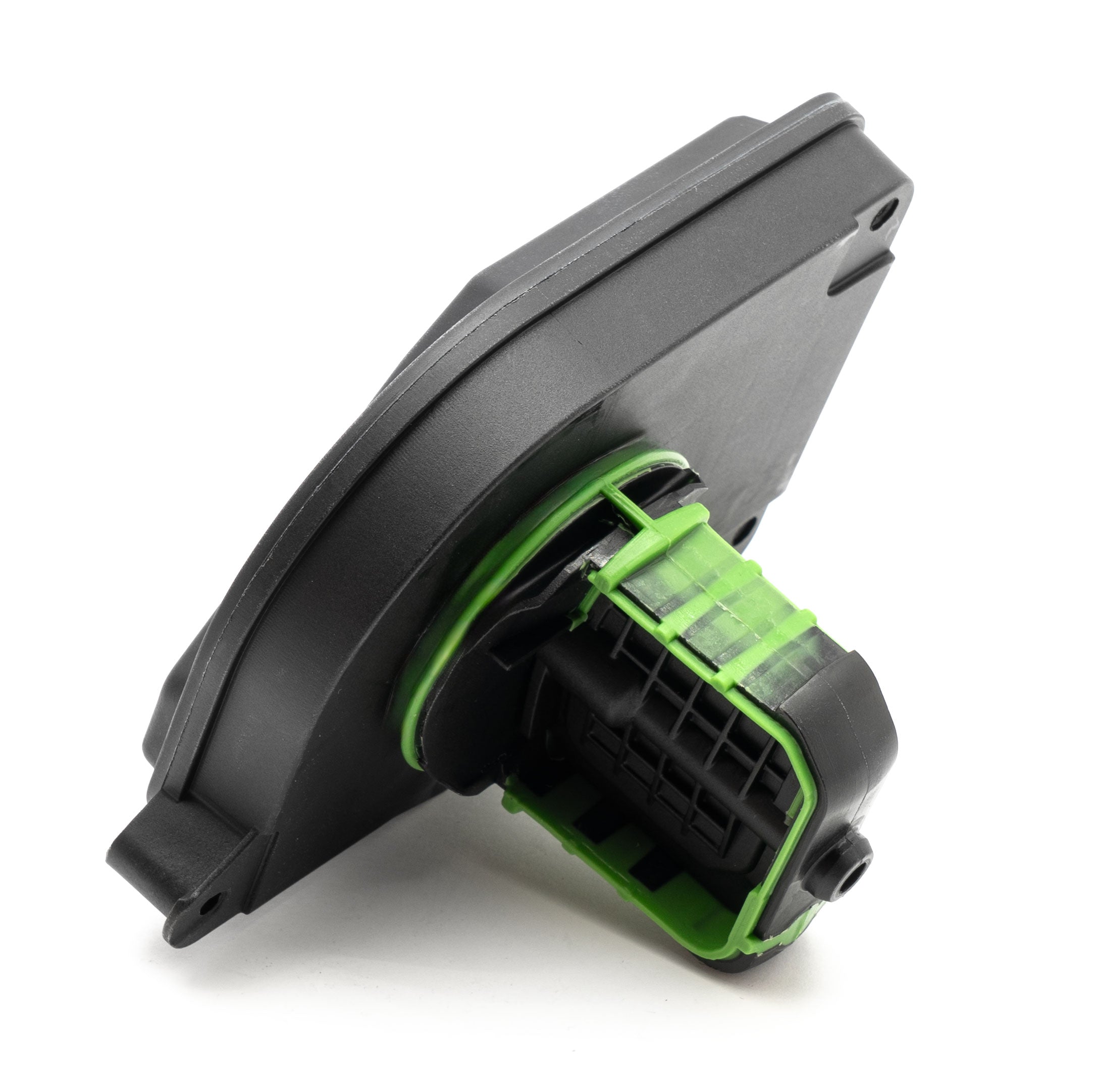

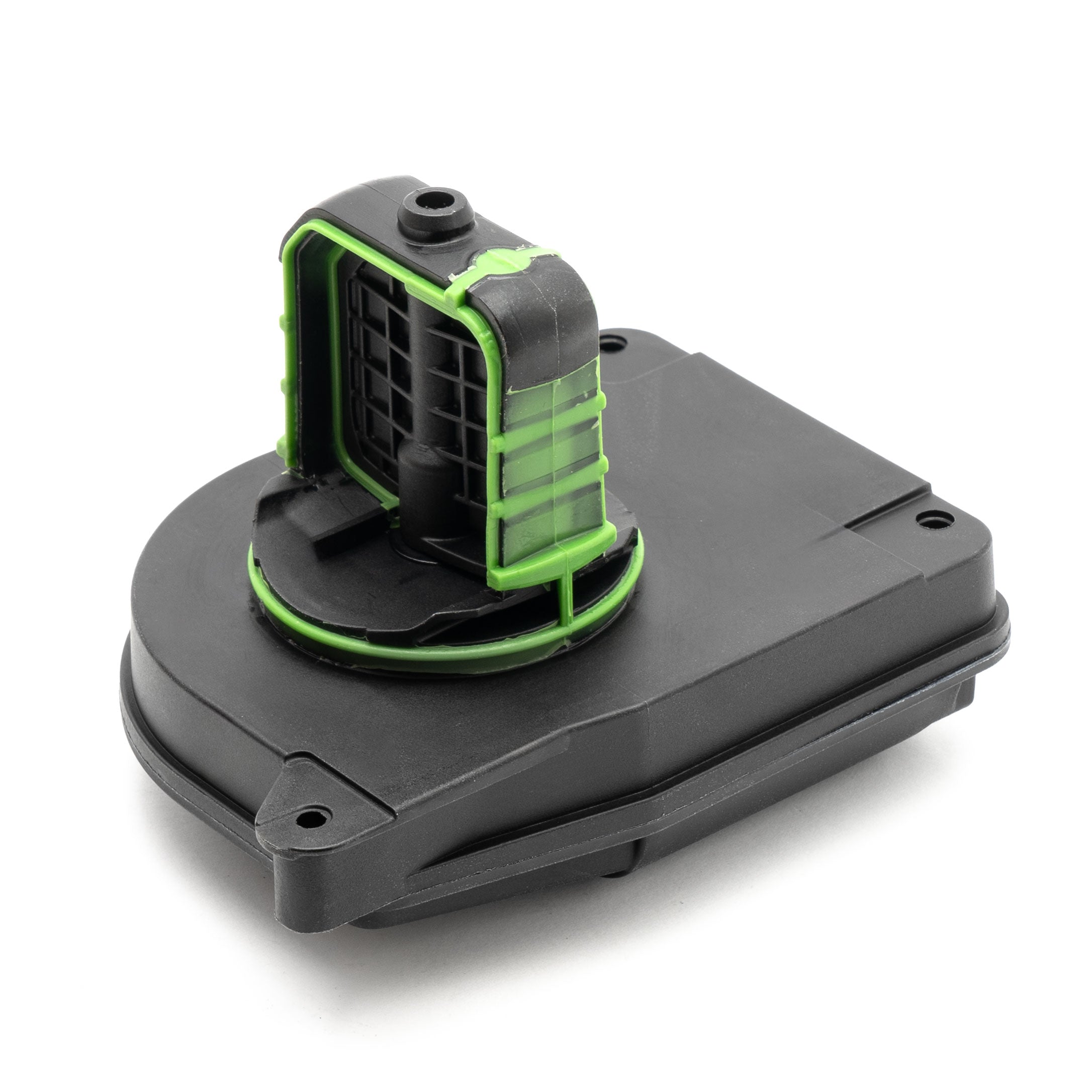

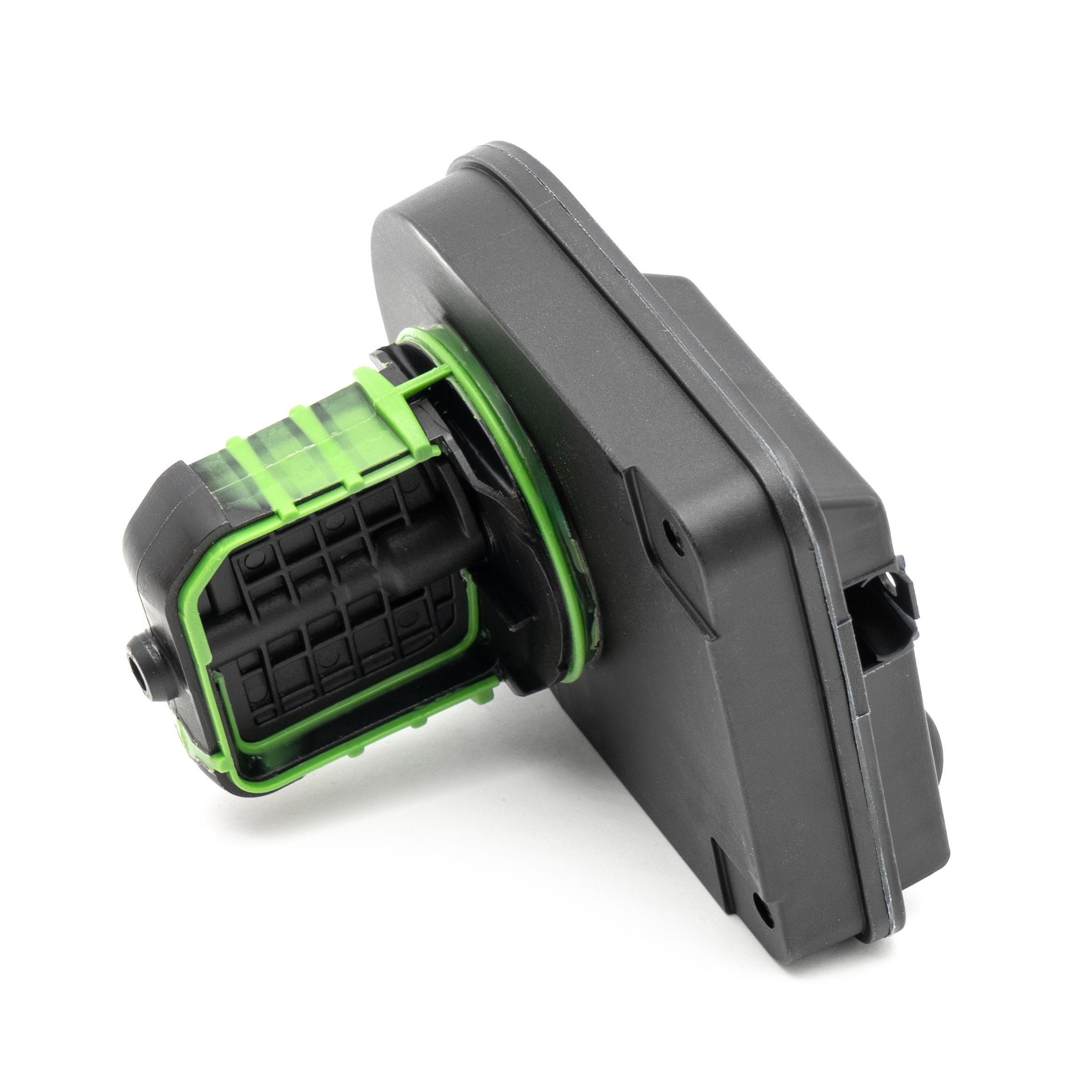

BMW DISA Actuator, Small Flap, N51 / N52 / N53 - 11617560538

This small-flap DISA actuator changes intake manifold length on the specified BMW N51, N52, N52N, N52K and N53 applications. The N51, N52 and N53 engine families use two DISA actuator versions with different flap sizes.

Vehicle Applications

• BMW 1 Series E81 (02/2006 - 12/2011)
• BMW 1 Series E87 (03/2005 - 02/2007)
• BMW 1 Series E87 LCI (01/2006 - 06/2011)
• BMW 1 Series E88 (05/2007 - 10/2013)
• BMW 1 Series E82 (02/2007 - 09/2013)
• BMW 3 Series E90 (02/2004 - 09/2008)
• BMW 3 Series E90 LCI (07/2007 - 12/2011)
• BMW 3 Series E91 (03/2004 - 08/2008)
• BMW 3 Series E91 LCI (03/2008 - 05/2012)
• BMW 3 Series E92 (05/2005 - 02/2010)
• BMW 3 Series E92 LCI (09/2009 - 06/2013)
• BMW 3 Series E93 (09/2005 - 02/2010)
• BMW 3 Series E93 LCI (09/2009 - 10/2013)
• BMW 5 Series E60 (07/2004 - 02/2007)
• BMW 5 Series E60 LCI (11/2005 - 12/2009)
• BMW 5 Series E61 (07/2004 - 02/2007)
• BMW 5 Series E61 LCI (11/2005 - 04/2010)
• BMW 5 Series F10 (01/2009 - 06/2013)
• BMW 5 Series F11 (02/2009 - 06/2013)
• BMW 6 Series E63 (02/2004 - 07/2007)
• BMW 6 Series E63 LCI (04/2006 - 07/2010)
• BMW 6 Series E64 (03/2004 - 07/2007)
• BMW 6 Series E64 LCI (04/2006 - 07/2010)
• BMW 7 Series E65 (06/2004 - 07/2008)
• BMW 7 Series E66 (07/2004 - 07/2008)
• BMW 7 Series F01 (06/2008 - 06/2012)
• BMW 7 Series F01 LCI (07/2011 - 05/2015)
• BMW 7 Series F02 (09/2007 - 06/2012)
• BMW 7 Series F02 LCI (06/2011 - 05/2015)
• BMW X1 E84 (09/2008 - 08/2011)
• BMW X3 E83 LCI (02/2006 - 08/2010)
• BMW X3 F25 (07/2009 - 03/2012)
• BMW X5 E70 (02/2006 - 03/2010)
• BMW Z4 E85 (10/2004 - 08/2008)
• BMW Z4 E86 (10/2005 - 08/2008)
• BMW Z4 E89 (01/2008 - 08/2011)

Choose the Small-Flap Version

The small-flap actuator is identified by references 11617522928 and 11617560538. Compare the installed actuator number and flap size; the large-flap version is a different unit.

When to Inspect DISA

• Rattling or knocking from the DISA flap.
• Hesitation during acceleration.
• Uneven idle.
• Mixture or intake-related faults.
• Unmetered air in the intake manifold.
• A damaged DISA shaft or diaphragm.

Check the complete mechanism to locate the fault before choosing a replacement actuator.

Actuator References

11617522928, 11617560538.

Important Before Ordering

Compare the installed DISA reference and physical design with the product before ordering. Do not select a version by vehicle model alone.

FAQ

Which flap size is this DISA actuator?

It is the small-flap actuator, references 11617522928 and 11617560538.

Is engine family N52 alone enough to choose it?

No. The listed engine families use small and large DISA actuator versions. Match the installed reference and flap size.

Is Z4 E89 listed?

BMW Z4 E89 is listed for 01/2008 - 08/2011. Confirm the installed small-flap actuator reference.

Part Number / PN

11617560538, 11617522928

SKU: KL11617522928.
