06B133619A Intake Manifold Flap Diaphragm 2306933111 for Audi VW 2.0

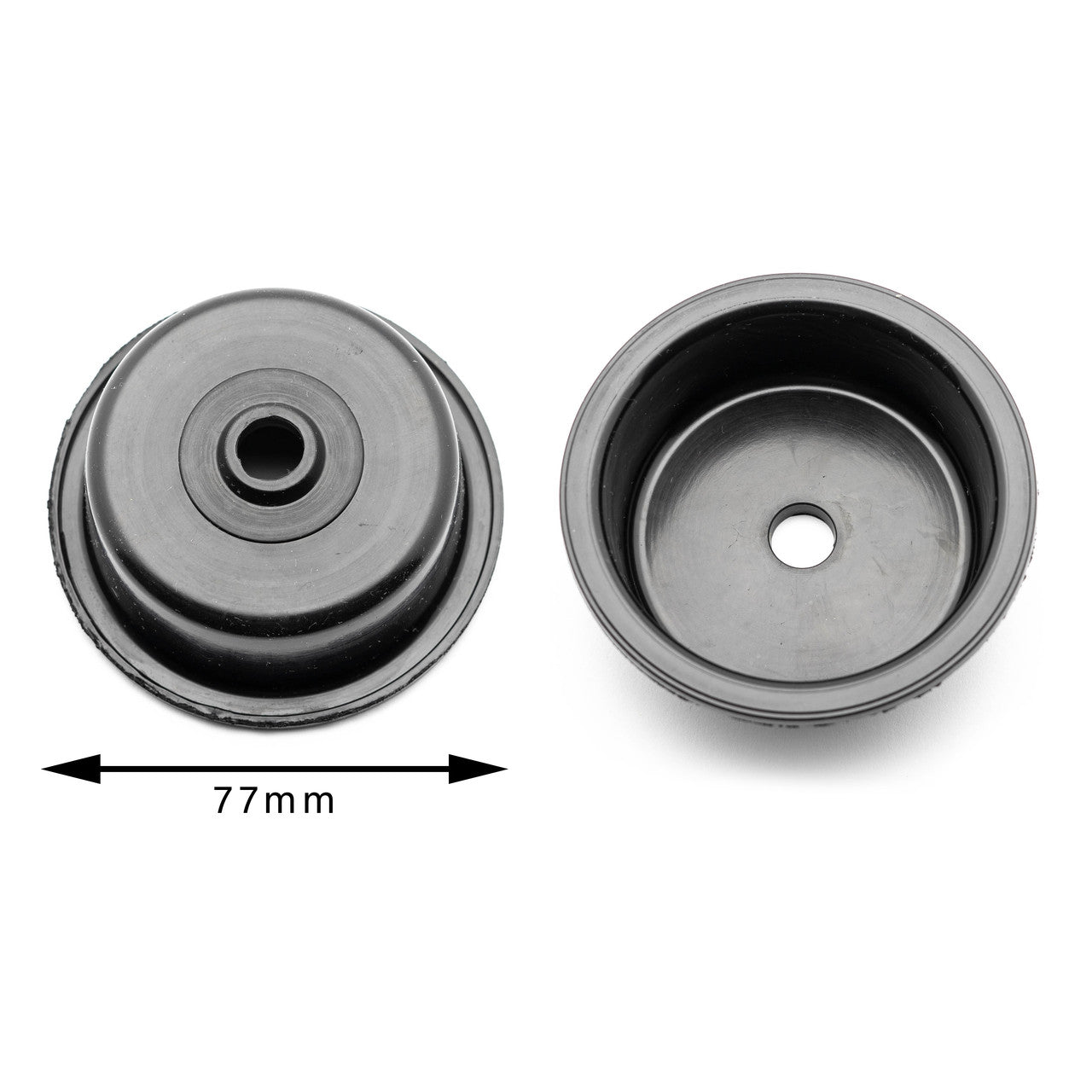

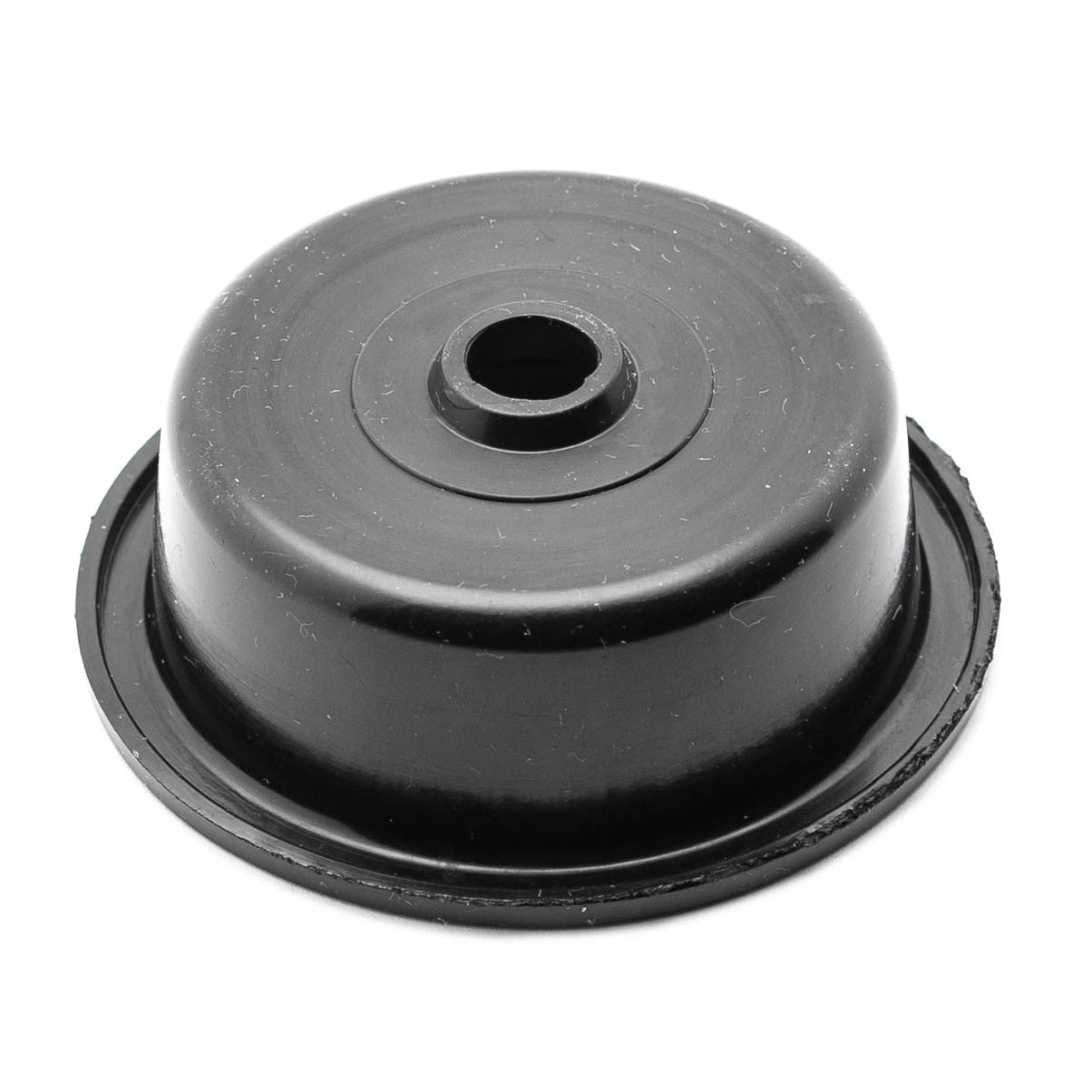

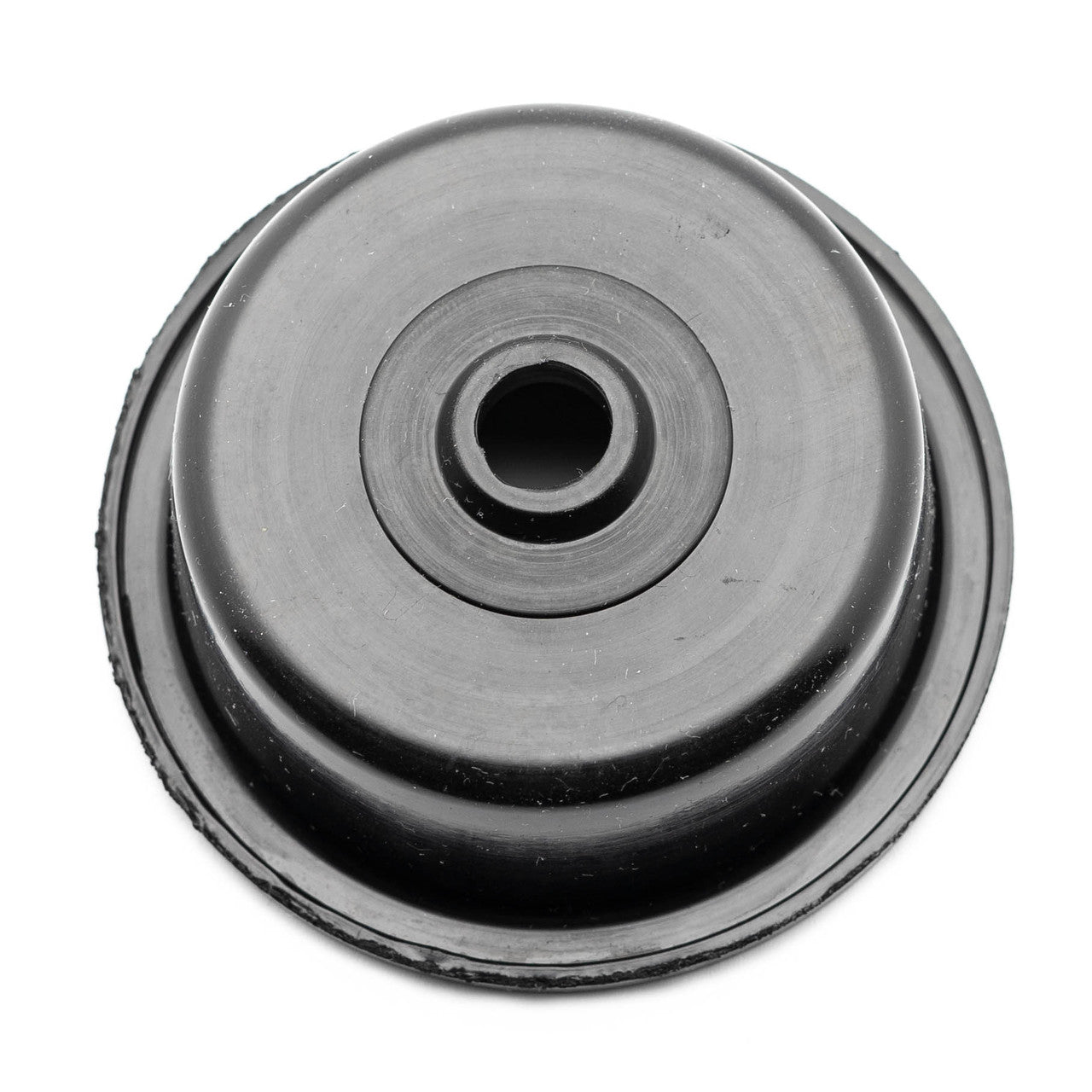

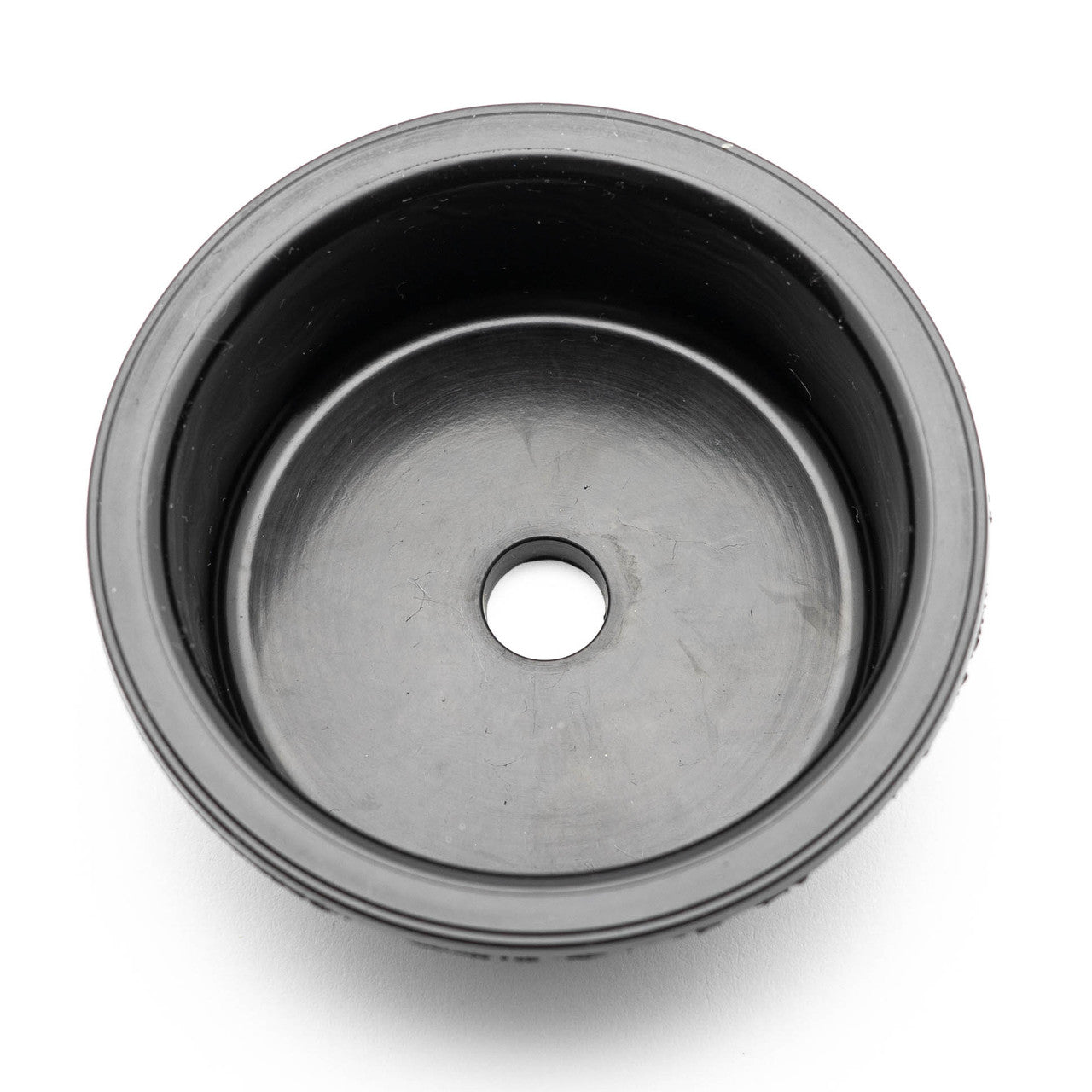

The 06B133619A intake manifold flap diaphragm 2306933111 is a replacement membrane for selected Audi and Volkswagen 2.0L applications. This 77 mm diaphragm is designed to repair the existing intake manifold flap actuator without replacing the complete intake manifold assembly.
This product is an intake manifold flap diaphragm only. It is not a PCV membrane, valve cover diaphragm or oil separator part.
OEM / Reference Numbers
Primary OEM: 06B133619A
Related / Reference Numbers:
- 2306933111
- 06B133619C
Part Type
- Intake manifold flap diaphragm
- Intake manifold actuator membrane
- Runner control actuator diaphragm
- Vacuum diaphragm
What This Part Does

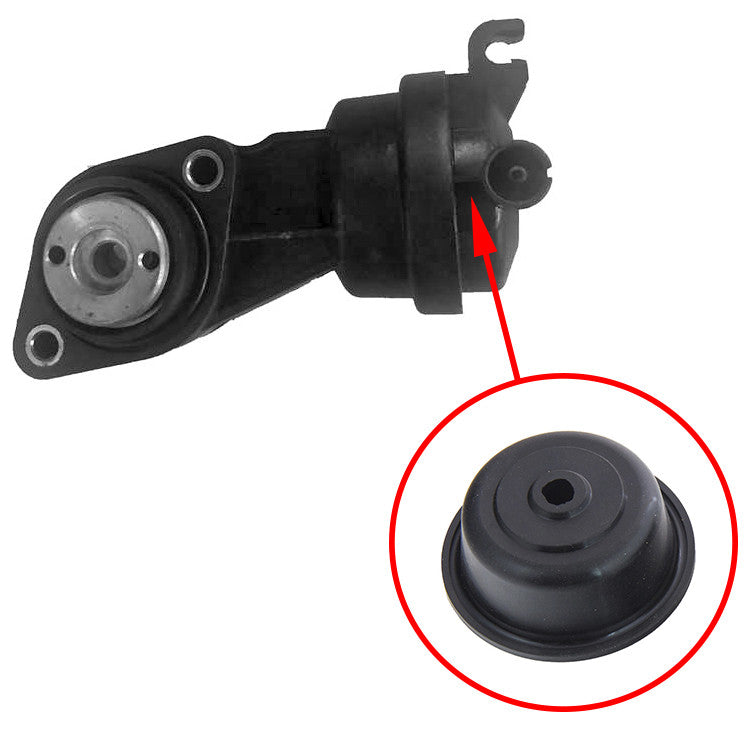

This diaphragm works inside the vacuum actuator that controls the intake manifold flap mechanism. When the diaphragm fails, the actuator may stop moving correctly, which can affect runner control and intake manifold operation.
Compatible Vehicles
This diaphragm is intended for selected Audi and Volkswagen 2.0L applications using the 06B133619A / 06B133619C intake manifold flap actuator design.
Please verify OEM number, engine code and actuator design before ordering.
Engine / Engine Family / Technical Detail
- Engine focus: Audi / Volkswagen 2.0L
- Engine codes: ALT, AZM, AXW, BLX, BLR, BLY, BVX, BVY, BVZ, BMB
- Diaphragm diameter: 77 mm
- Part format: intake manifold flap diaphragm only
Common Symptoms of Failure
- Intake manifold flap actuator not operating correctly
- Vacuum leak symptoms at the actuator
- Reduced intake runner control function
- Poor engine response
- Check engine light related to intake manifold control
Why Choose This Replacement
- Targets exact OEM intent for 06B133619A
- Supports repair of the existing intake manifold flap actuator
- Cost-effective alternative to replacing the complete intake manifold
- Designed for the correct 77 mm diaphragm repair type
Important Before Ordering
- Verify OEM 06B133619A against your original actuator
- Check related numbers 2306933111 and 06B133619C where applicable
- Confirm the 77 mm diaphragm size
- Make sure you need an intake manifold flap diaphragm, not a PCV or valve cover membrane
What does 06B133619A fit?
06B133619A is used for selected Audi and Volkswagen 2.0L intake manifold flap actuator applications with the matching diaphragm design.
Is 06B133619C the same type of part as 06B133619A?
06B133619C is a related reference for the same intake manifold flap actuator diaphragm application group.
What does this intake manifold flap diaphragm do?
It operates inside the vacuum actuator that controls the intake manifold flap or runner mechanism.
What symptoms can indicate diaphragm failure?
Symptoms can include incorrect intake flap actuator movement, vacuum leak behavior, poor engine response or intake manifold control faults.
Is this a PCV membrane or intake manifold flap diaphragm?
This product is an intake manifold flap diaphragm. It is not a PCV membrane, valve cover diaphragm or oil separator membrane.
How do I confirm compatibility before ordering?
Match OEM 06B133619A or 06B133619C with your original actuator and confirm the engine code, actuator design and 77 mm diaphragm size.
