Transfer Case Servo Gear Repair Kit - BMW xDrive - 27102413711

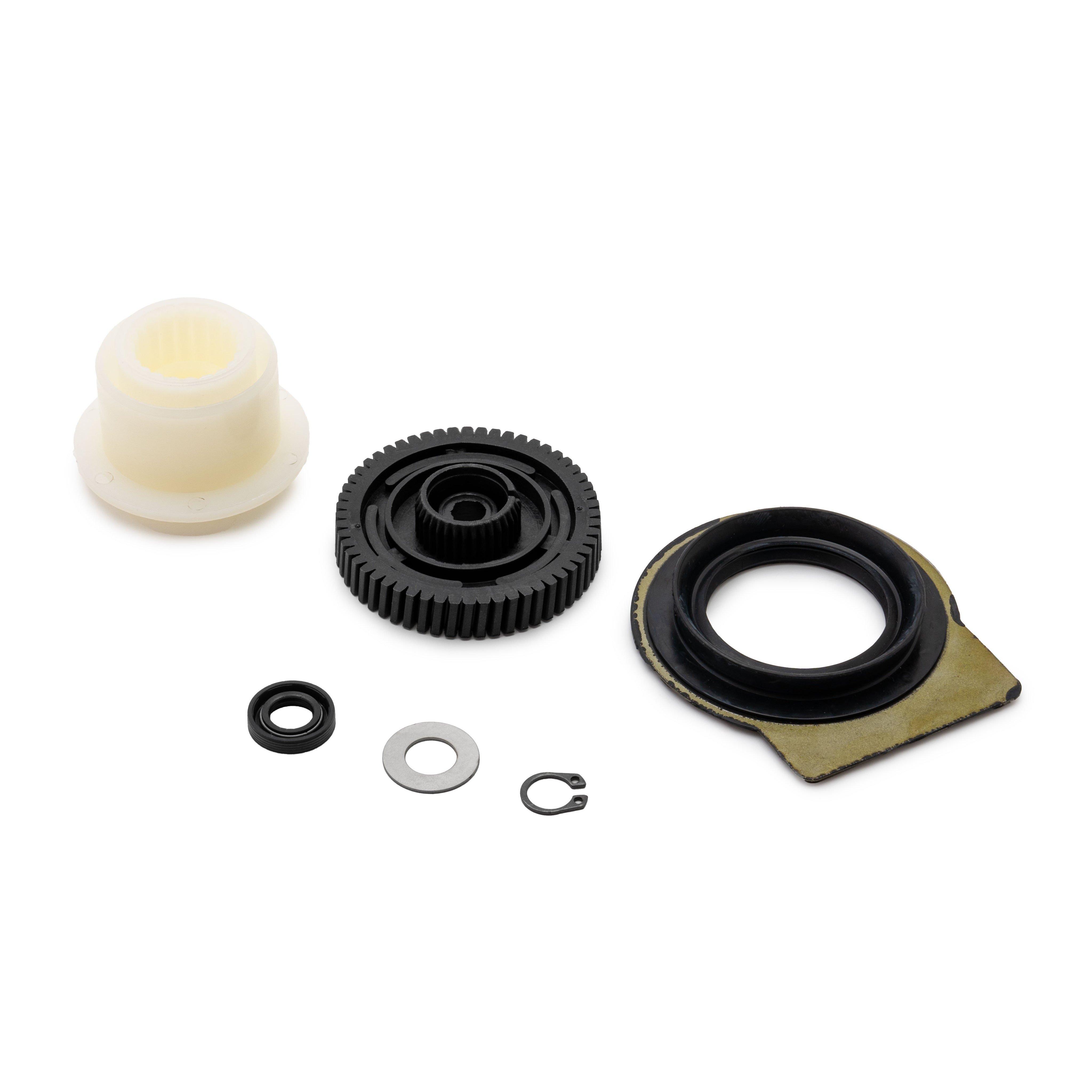

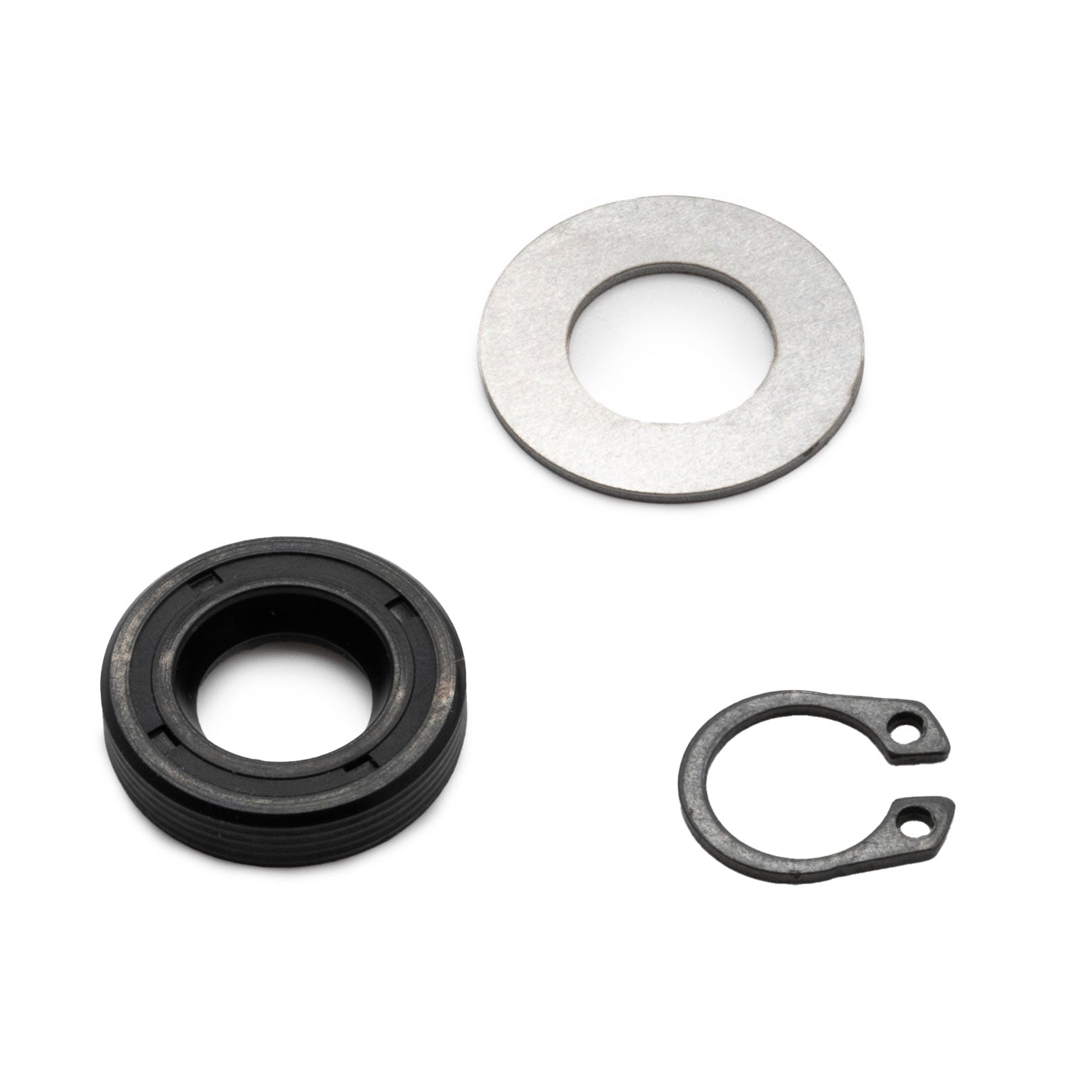

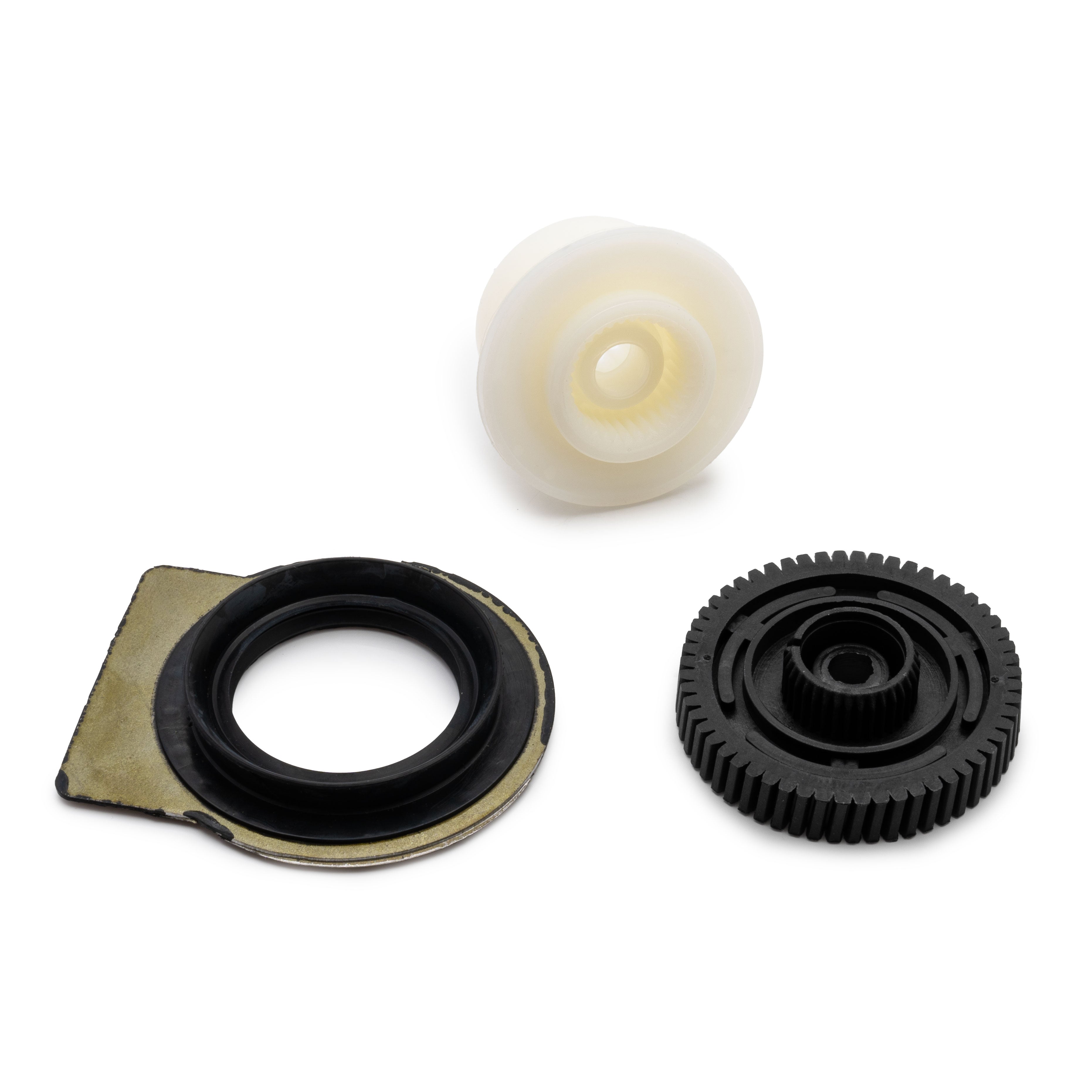

This kit repairs the gear mechanism in the transfer case servo for the listed applications. The gear transmits motor rotation to the transfer case control mechanism; worn or damaged teeth can interrupt that movement even when the electric motor still runs.

Applications

• BMW X3 E83 - 01/2003-07/2006.
• BMW X3 E83 LCI - 02/2006-08/2010.
• BMW X5 E53 - 08/1999-09/2006.
• BMW X5 E70 - 02/2006-06/2013.
• BMW X5 E70 LCI - 08/2009-06/2013.
• BMW X6 E71 - 01/2007-06/2014.
• BMW X6 E72 Hybrid - 10/2008-10/2011.
• Selected Land Rover, Mercedes-Benz and Bosch transfer case servos with matching references and gear design.

Servo and Gear Selection

BMW 27102413711 is the servo repair kit number. Match the installed servo number and original gear shape. Different transfer cases, years and equipment can use different servos; the vehicle model alone does not confirm the required kit.

When to Inspect the Transfer Case Servo

• 4x4 or all-wheel-drive faults.
• Unstable xDrive operation or limp mode.
• Cracking, clicking or slipping sounds at the transfer case servo.
• The servo motor runs but the mechanism does not move correctly.
• Visible wear or damage on the original plastic gear teeth.
• Diagnosis identifies a transfer case servo fault.

Repair Scope

A gear repair can avoid replacing the whole servo or transfer case if the electric motor, housing, electronics and remaining components are serviceable. Confirm that the fault is mechanical gear wear before selecting this repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What is BMW 27102413711?

The repair kit number for the transfer case servo mechanism.

Does a 4x4 fault always mean the gear has failed?

No. Diagnose the servo and inspect the original gear before replacement.

Can adaptation be required after repair?

Yes. Calibration or adaptation of the transfer case system may be required using diagnostic equipment.

Part Number / PN

27102413711, 27107566296, 27107541782, A1645400188, ITC1228991, 0130008508, 27107568267, 27107566296GR, 7-10-7-566-296GR, 2710 7528559-01, 093509010, 9 3509 010, 8472227771, 8473227771, 27102449709, 658515673129, 27 10 7 566 250, 27107528559, IGH500040, 1645400188, 7528559, 013000850

SKU: KL27102413711.

After Mechanical Repair

Calibration or adaptation of the repaired servo and transfer case system may be required with diagnostic equipment.
