Haldex Coupling Pump Complete Repair Kit – Generations 1 / 2 / 3

This is the complete rebuild kit for Haldex Gen 1, 2, and 3 AWD coupling pumps — includes all seals, O-rings, bearings, and internal wear components. For a thorough rebuild, use this kit rather than the seals-only version. VW Golf/Touareg/Tiguan 4Motion, Audi TT/A3/Q3 quattro, Volvo XC60/XC70/V70/S60 AWD, Land Rover Freelander 2 — and other Haldex Gen 1/2/3 AWD platforms

Fits OEM #8689664.

When to Inspect This Part

• all-wheel-drive warning or fault
• rear axle engagement is delayed or absent
• binding or vibration during low-speed turns
• pump or pressure-related Haldex fault

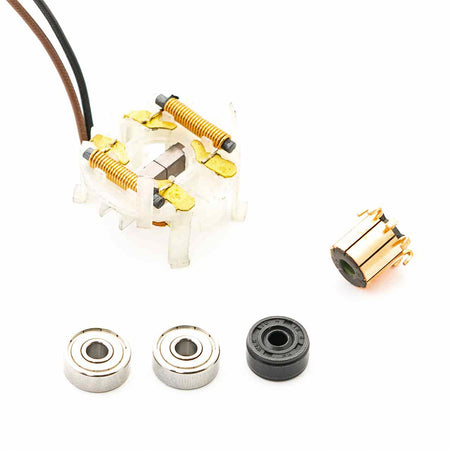

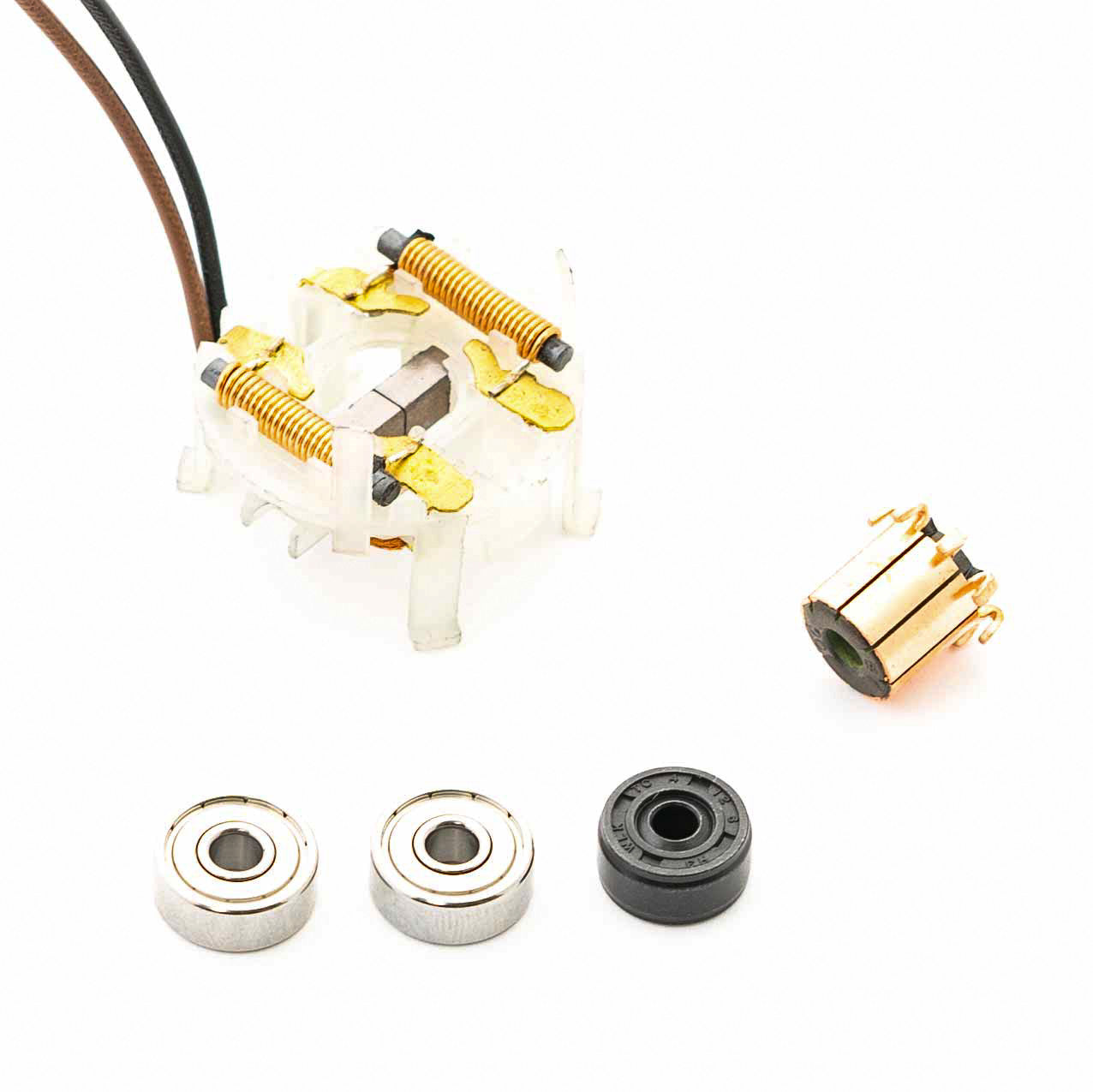

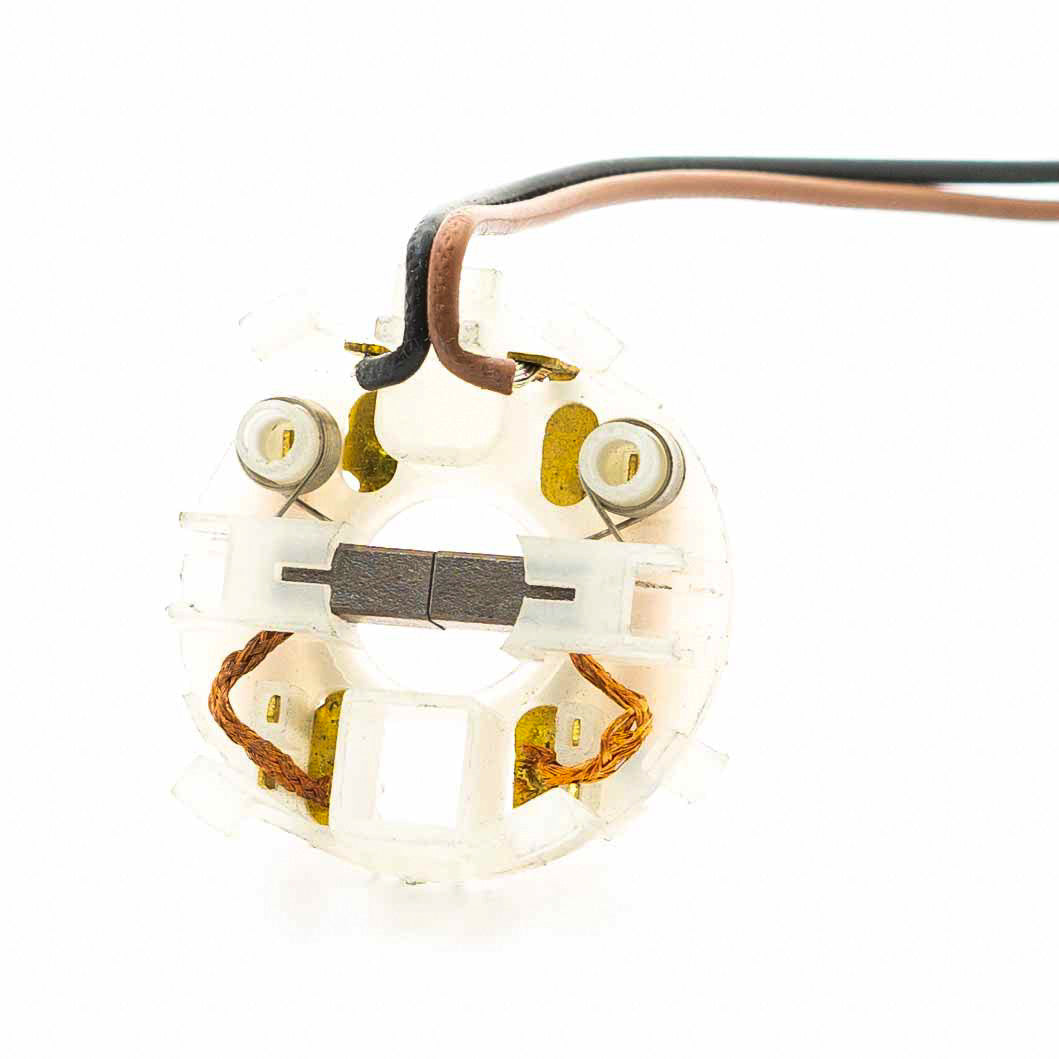

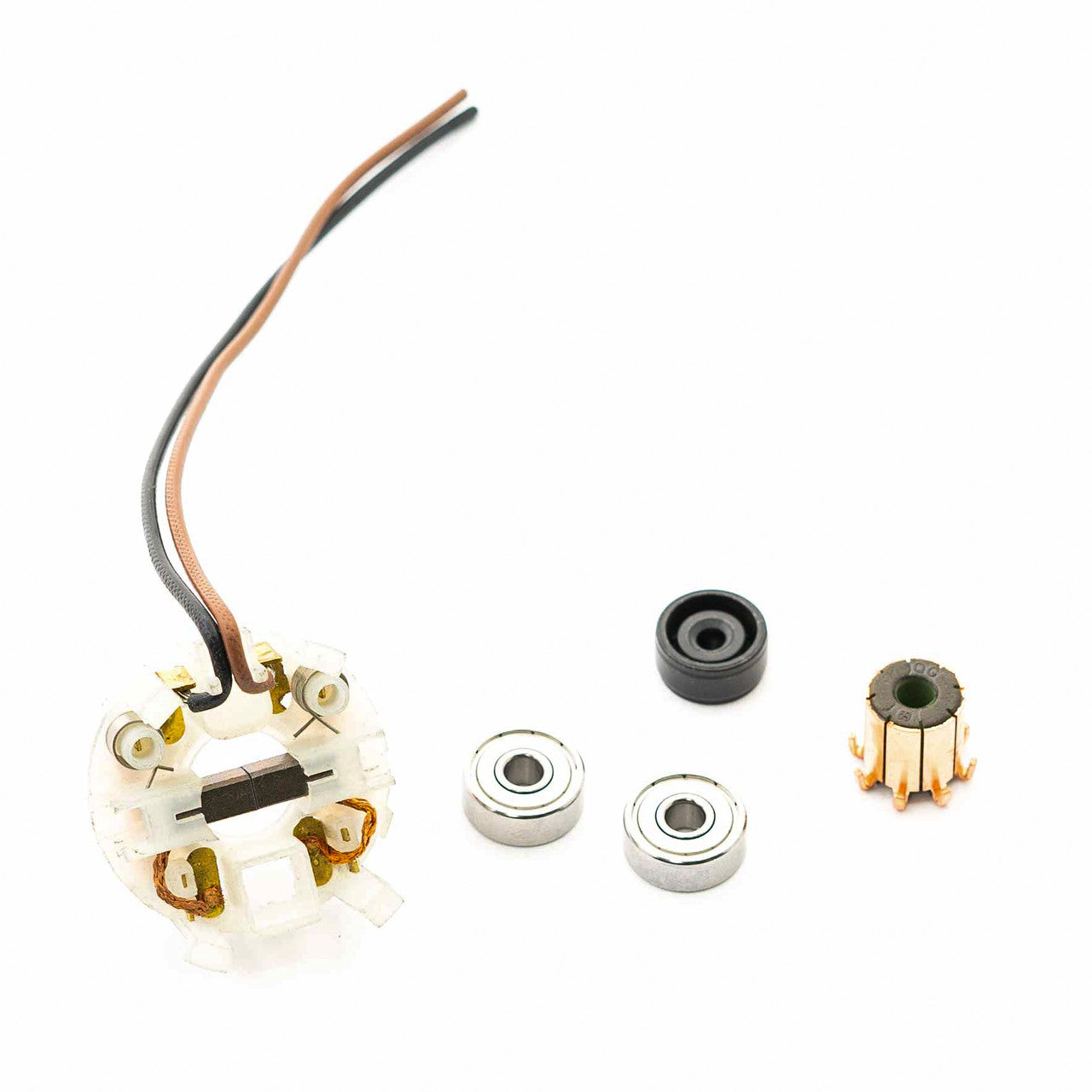

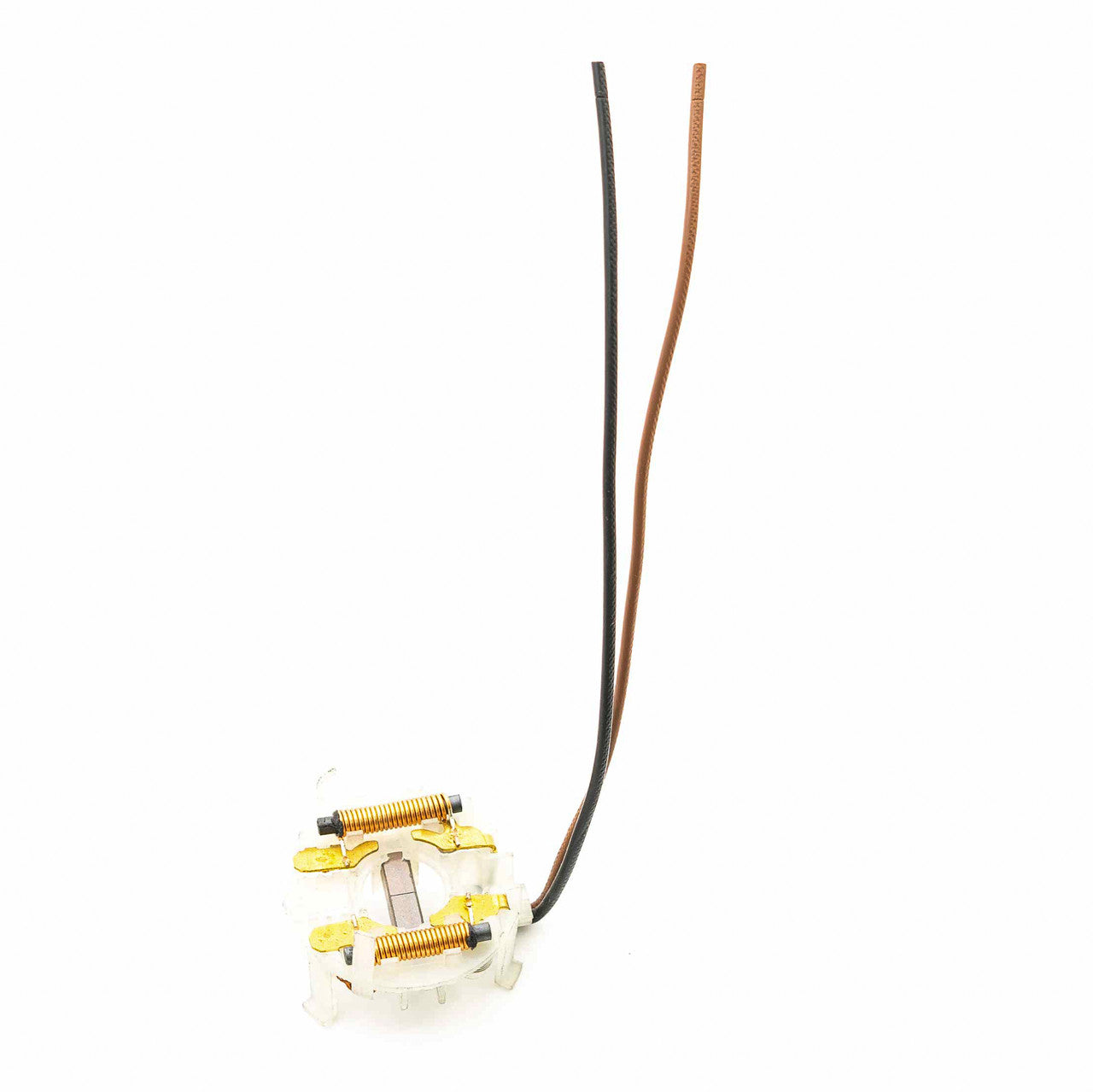

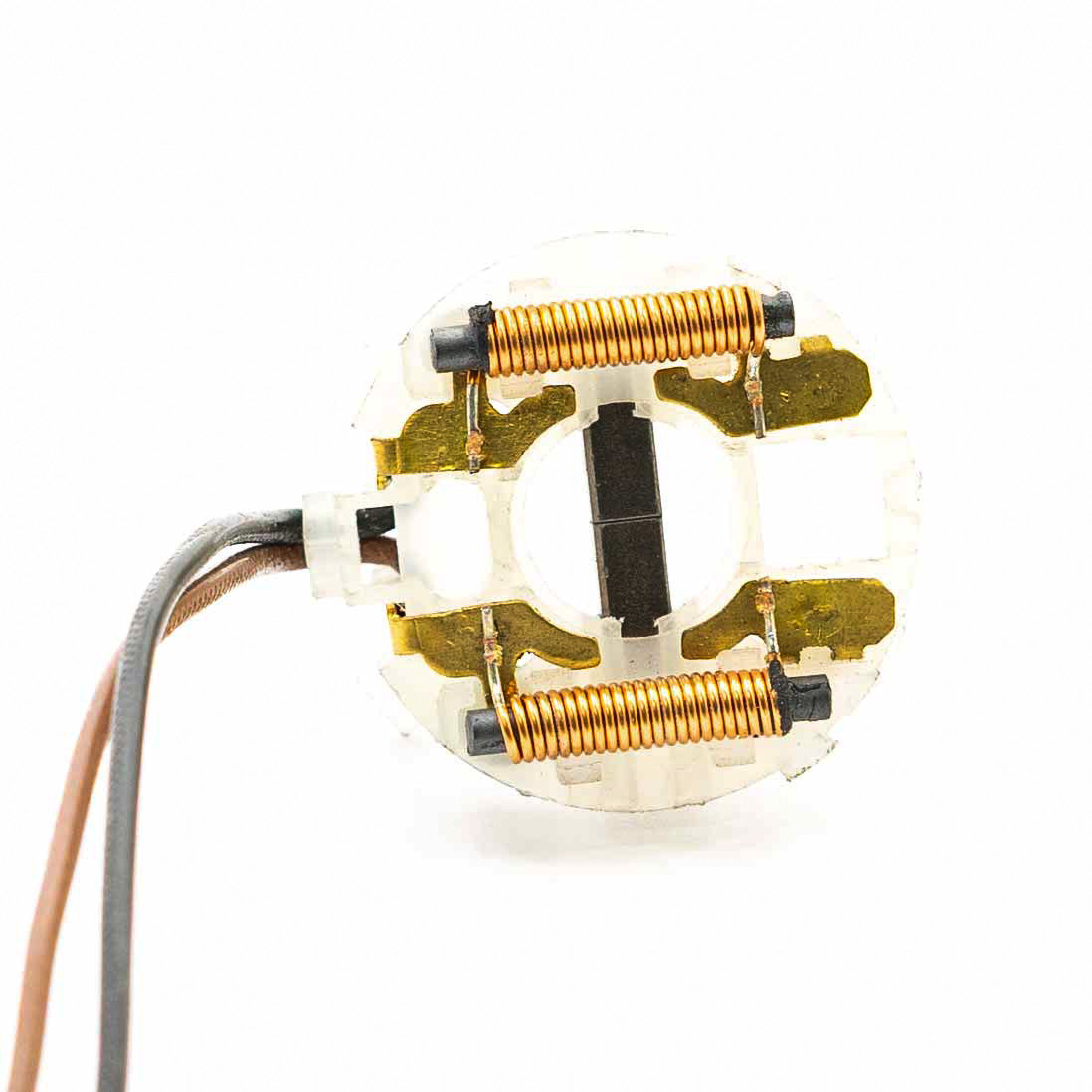

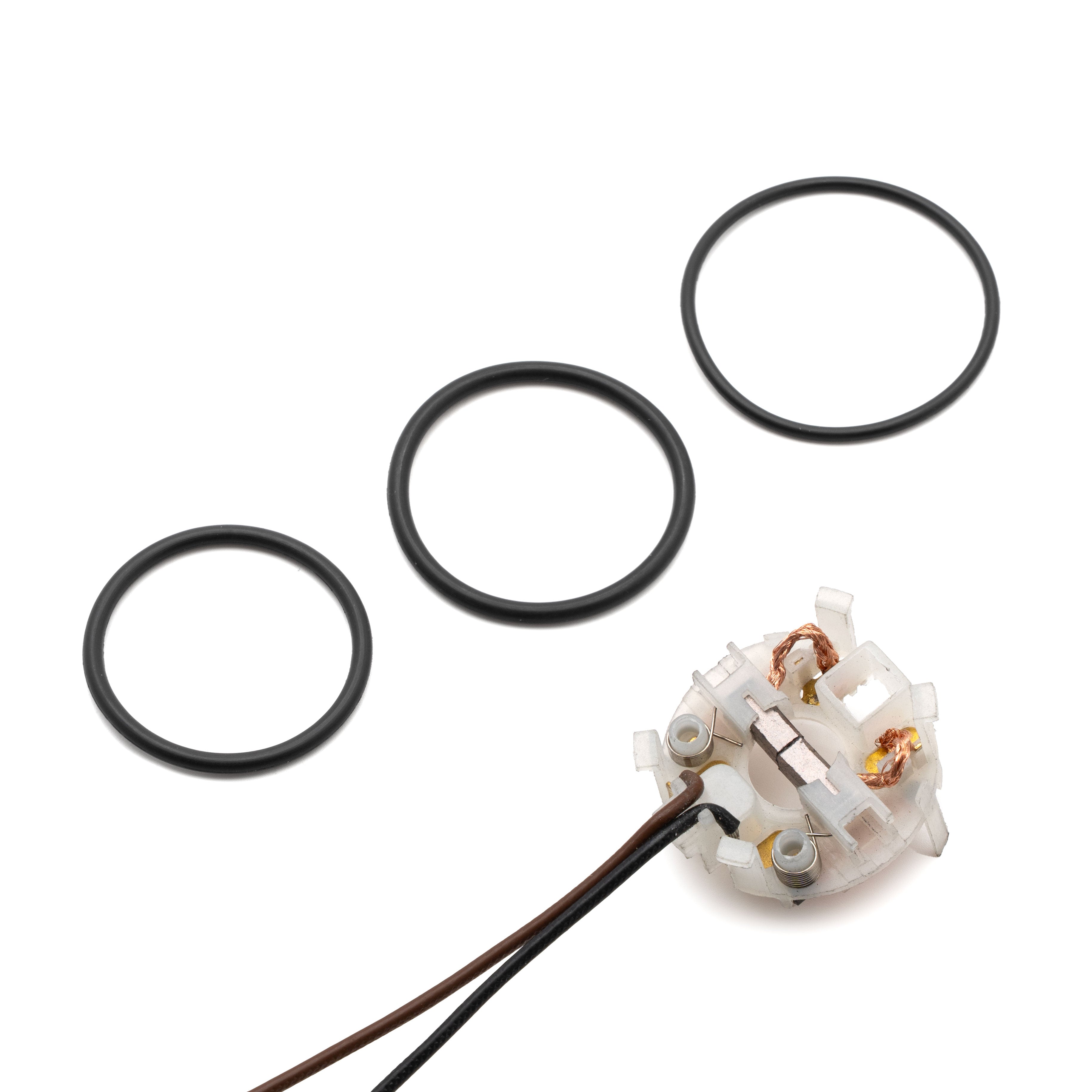

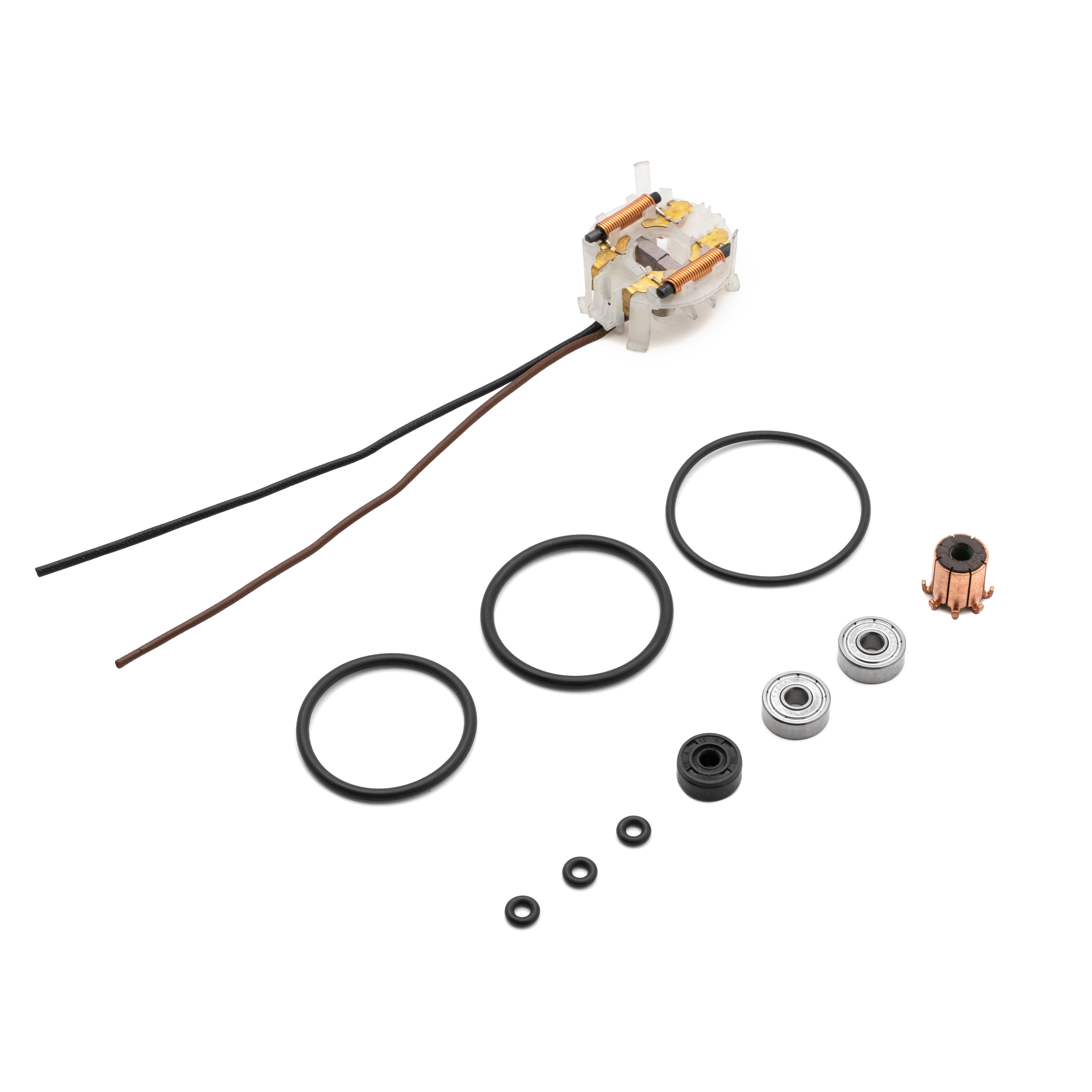

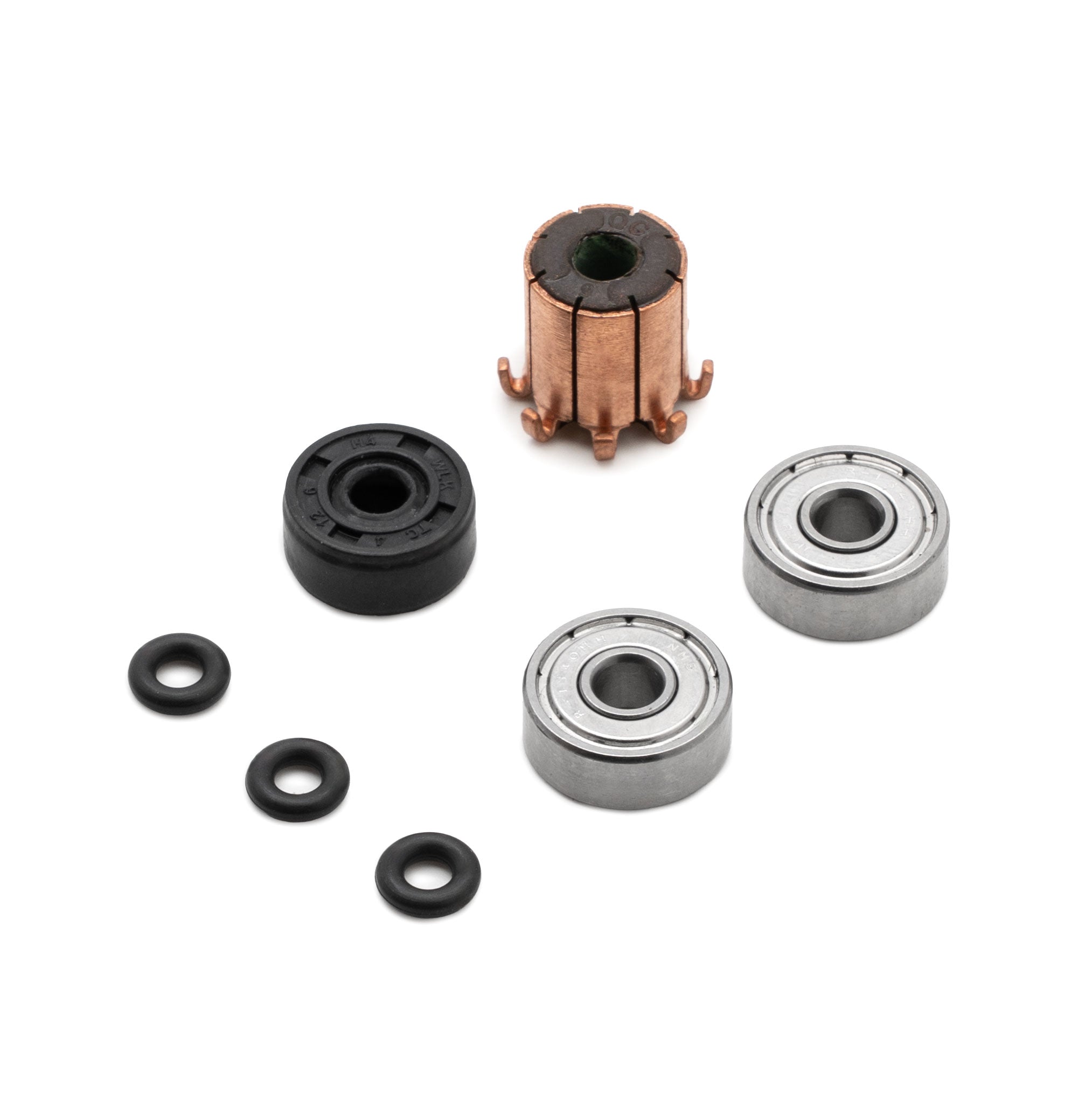

What's Included

• All pump seals and O-rings
• Bearings and internal wear components
• Complete rebuild for Gen 1, 2, and 3 pumps

Important Limitations

Inspect the pump housing, electrical motor, and coupling system before installation. Damage outside the service components is not corrected by the kit.

Part Number / PN

8689664, 30783079, 8V414C019AA, LR003147, 02D525557, 0AV598549A, 02W598549A

Important Fitment Check

Before ordering, compare the part design, dimensions, connectors, and every available OEM/P/N marking with the part installed on the vehicle. Matching OEM/P/N 8689664 is the primary fitment check.

FAQ

How do I confirm fitment for this Haldex Coupling Pump Complete Repair Kit?

Compare the exact OEM/P/N and physical design with the installed part. The primary reference is 8689664. Do not select the part by vehicle model alone.

What symptoms may indicate a problem with this Haldex Coupling Pump Complete Repair Kit?

Confirmed symptoms include all-wheel-drive warning or fault, rear axle engagement is delayed or absent, binding or vibration during low-speed turns, pump or pressure-related Haldex fault. Diagnose the original assembly before ordering so another fault is not mistaken for this part.

What is included with this Haldex Coupling Pump Complete Repair Kit?

The confirmed kit contents are: All pump seals and O-rings, Bearings and internal wear components, Complete rebuild for Gen 1, 2, and 3 pumps.

Does this listing include the complete surrounding assembly?

Inspect the pump housing, electrical motor, and coupling system before installation. Damage outside the service components is not corrected by the kit.

What should be checked before installation?

Check the OEM/P/N, dimensions, connectors, orientation, and condition of the mating components. Installation should follow the correct service procedure for the specific vehicle and assembly.
