Turbo Bypass Valve Diaphragm - TD04 Applications - K5T09671
Save 28%
In stock
Regular price
$29.00
Sale price
$29.00
Regular price
$40.00
Delivery within the USA
Ships from Miami, FL when the ordered quantity is available in our US warehouse.
USPS Ground Advantage / FedEx
US delivery: typically 2–5 business days after dispatch
Checking warehouse availability…
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns

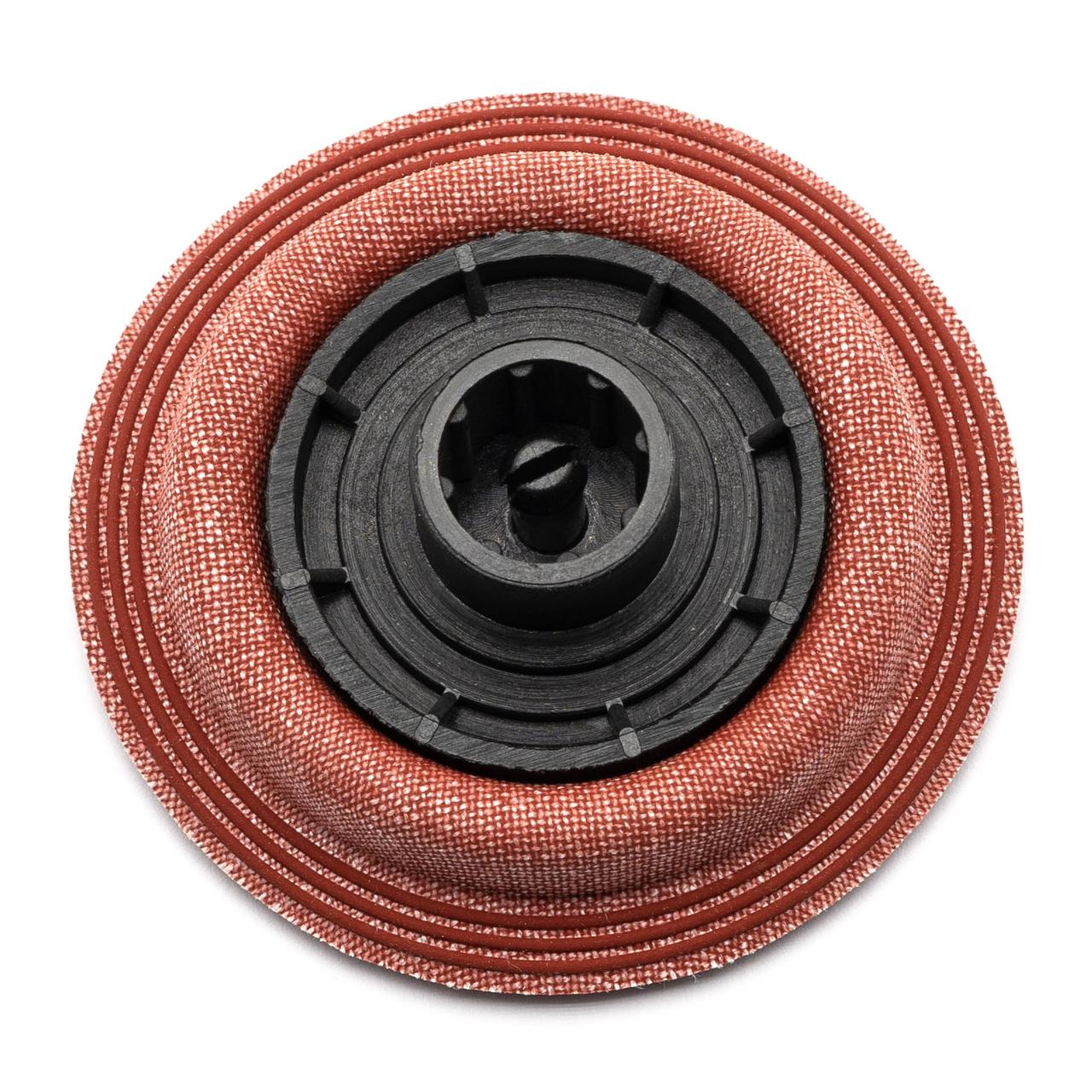

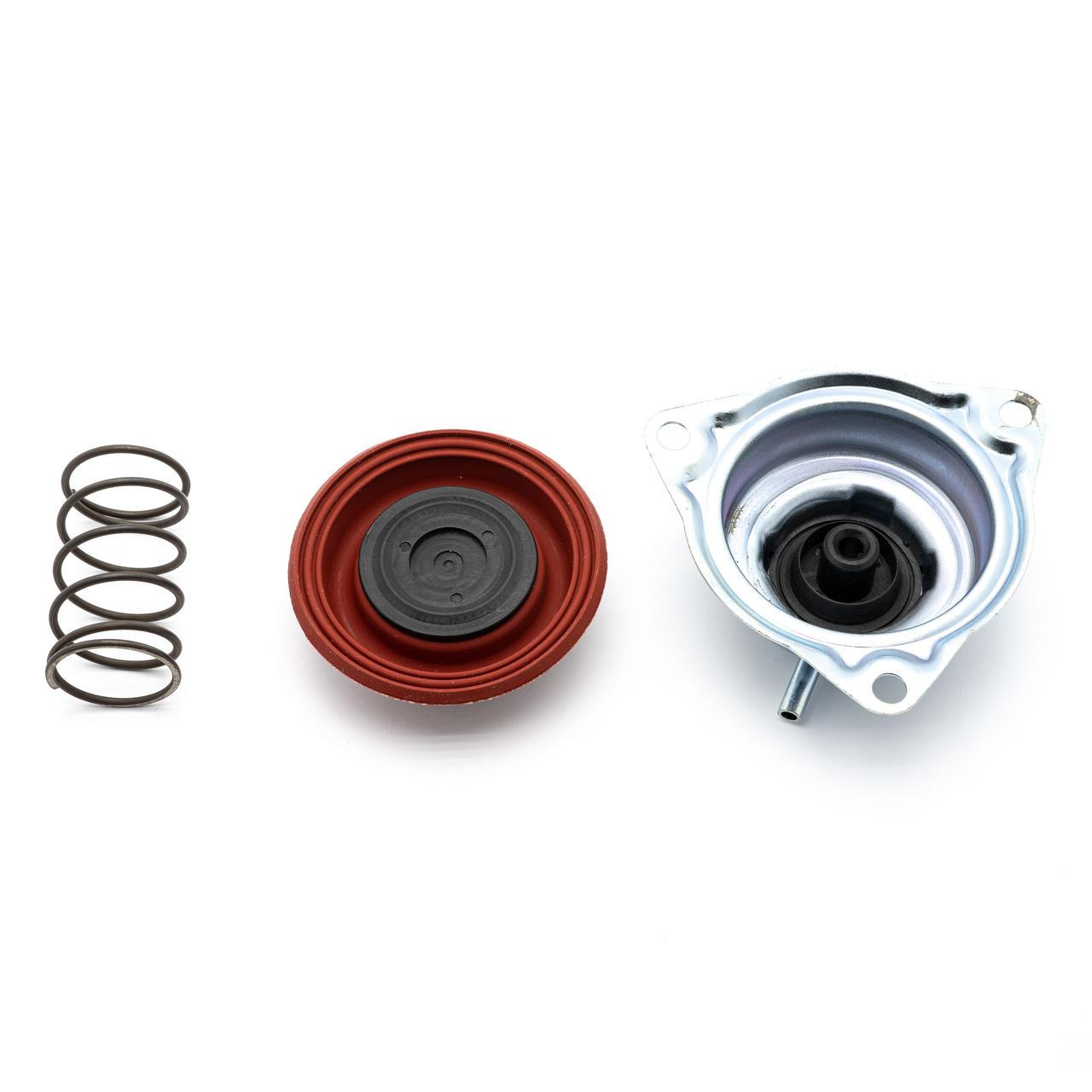

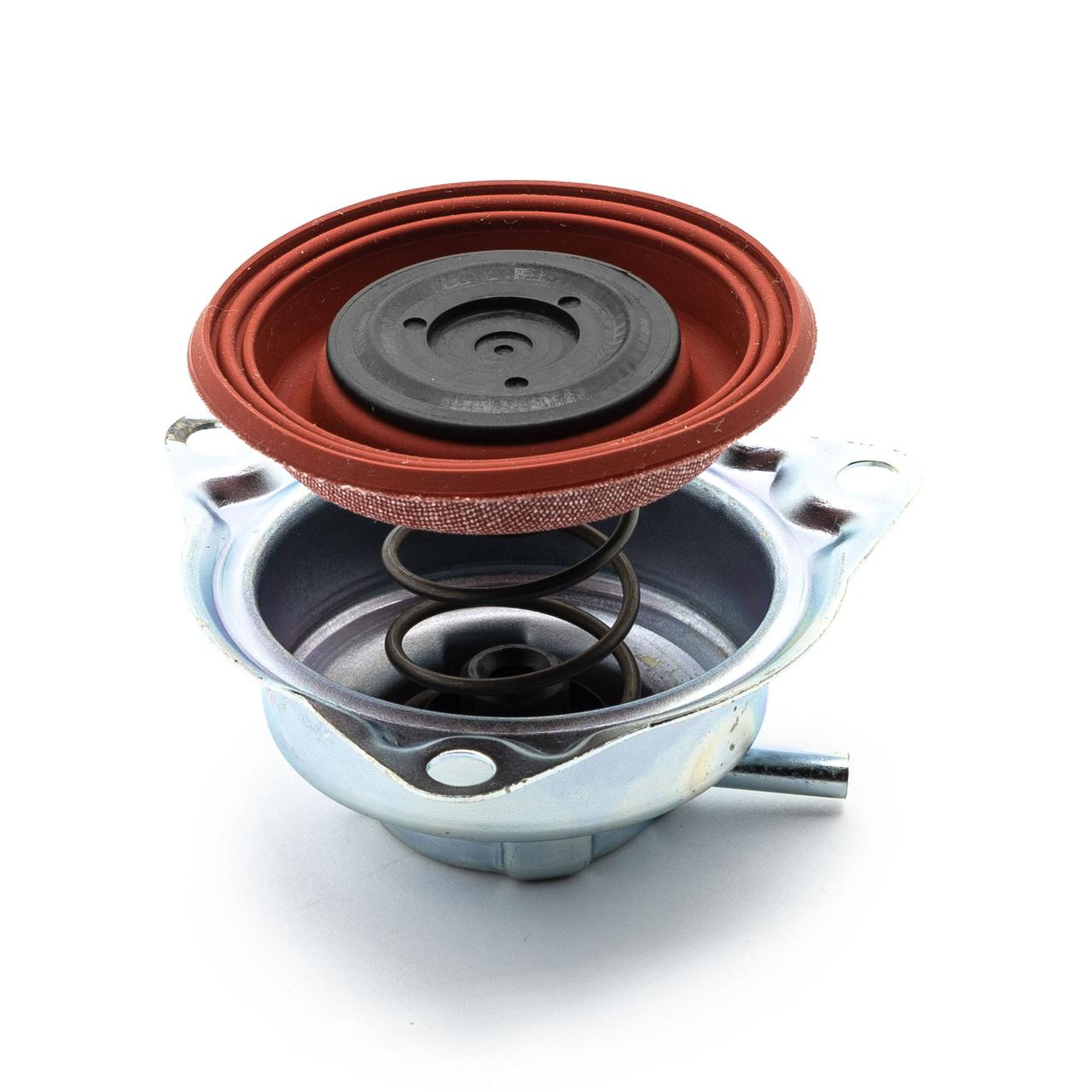

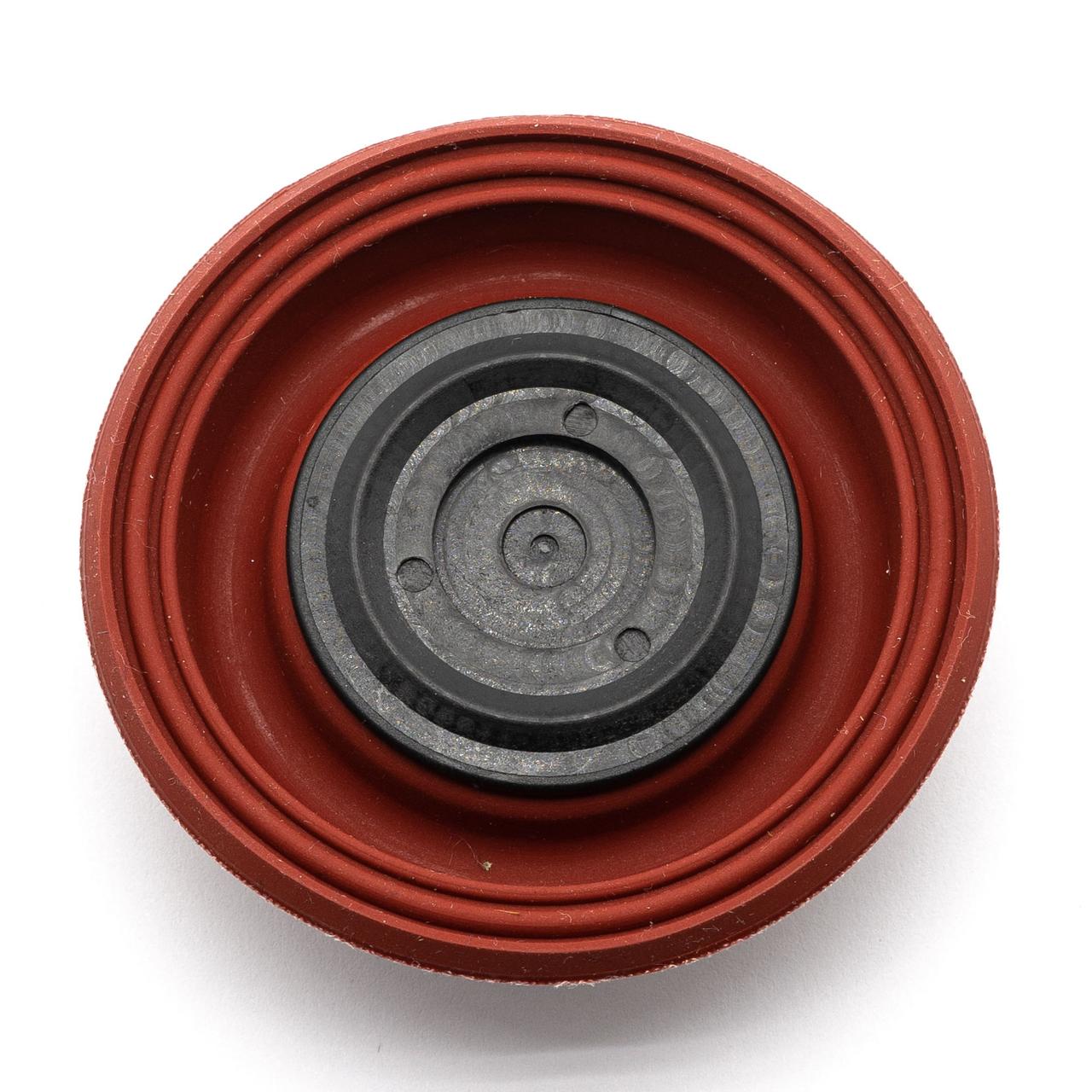

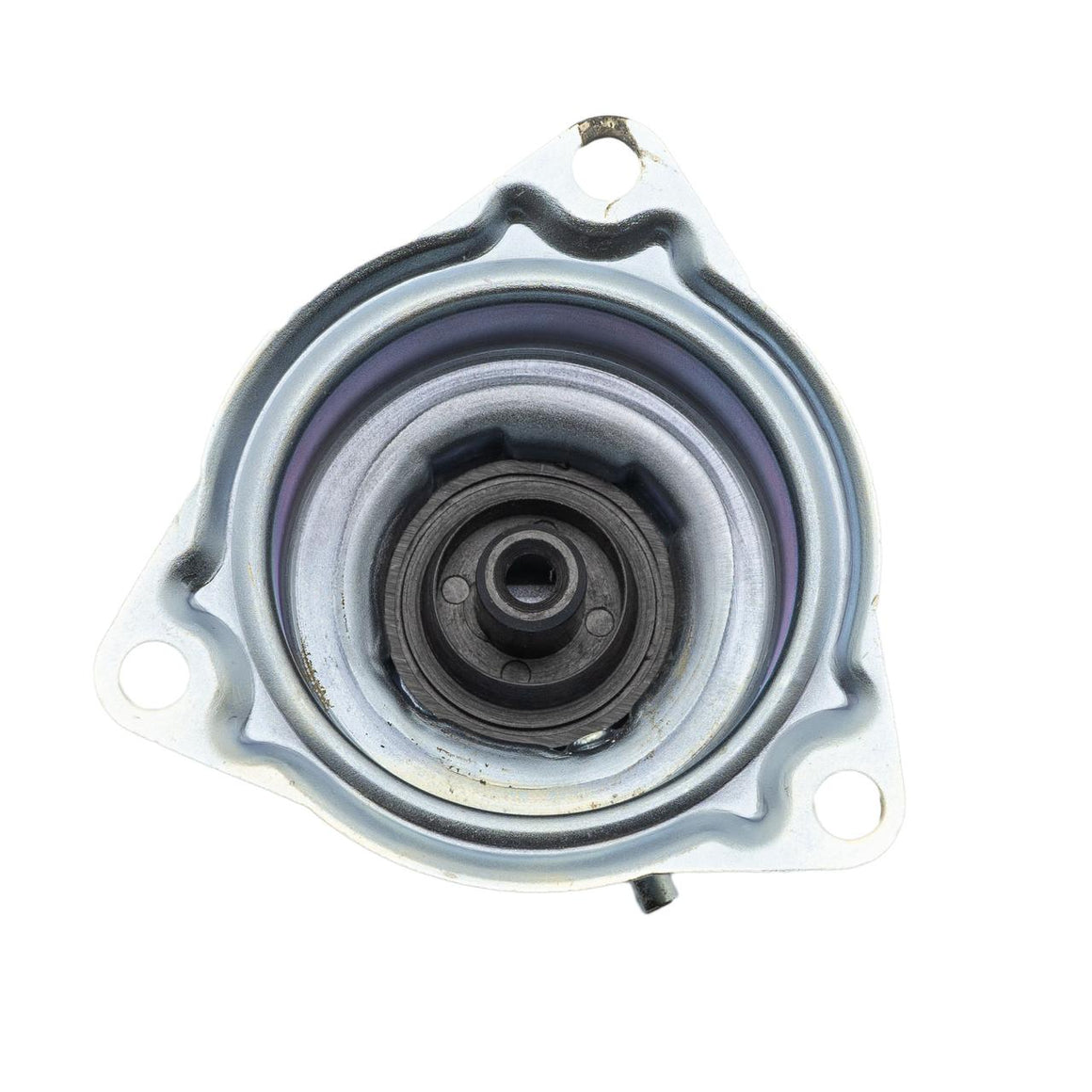

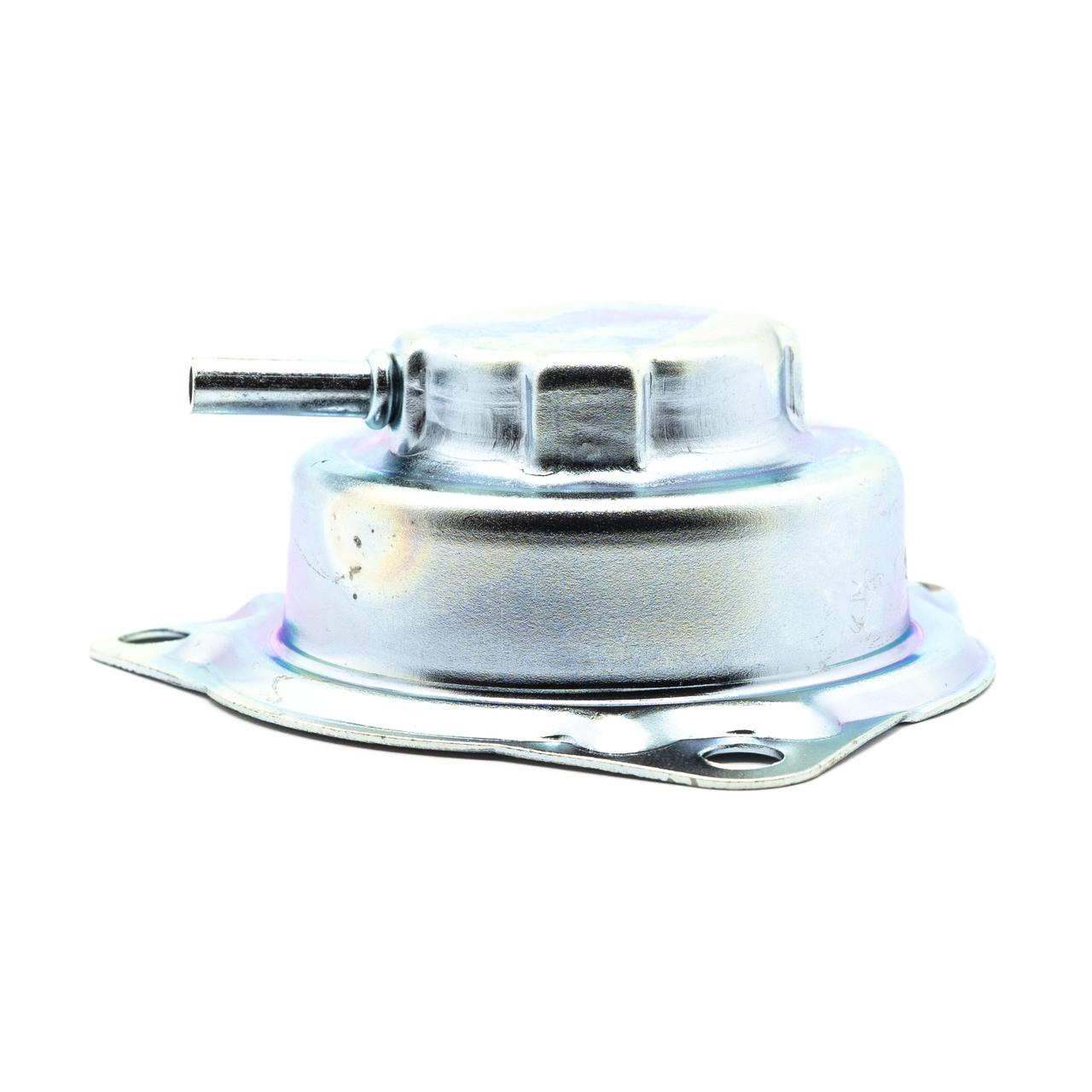

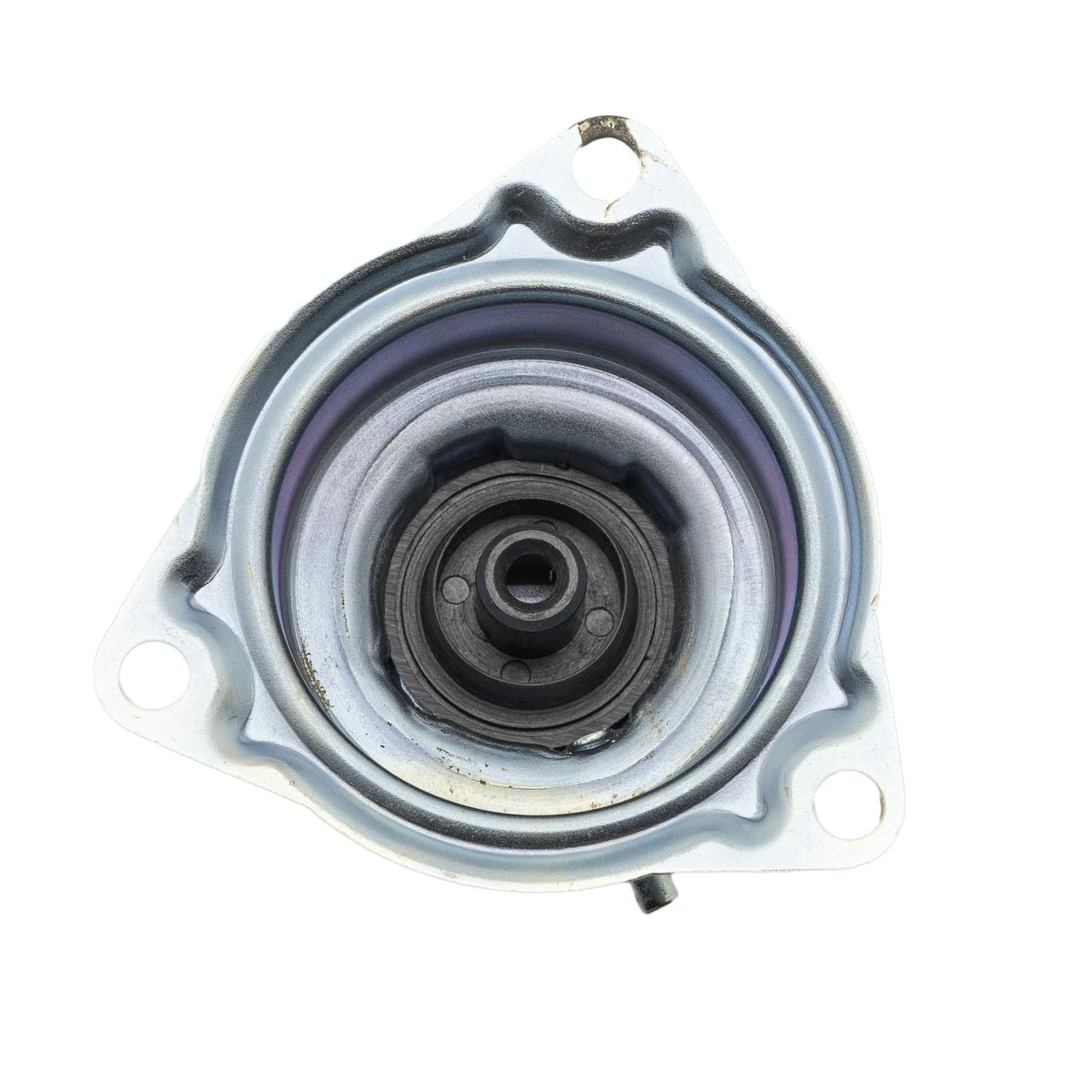

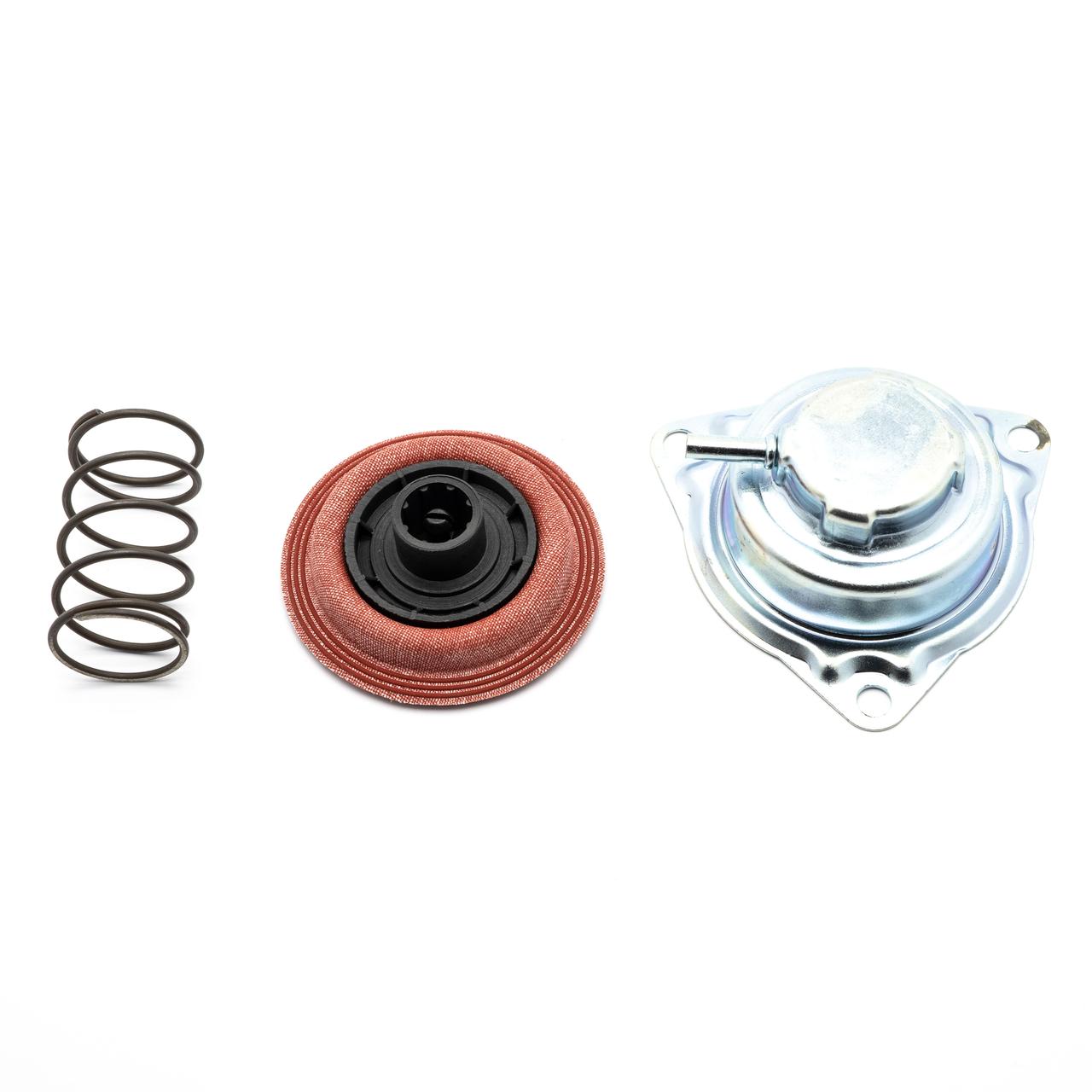

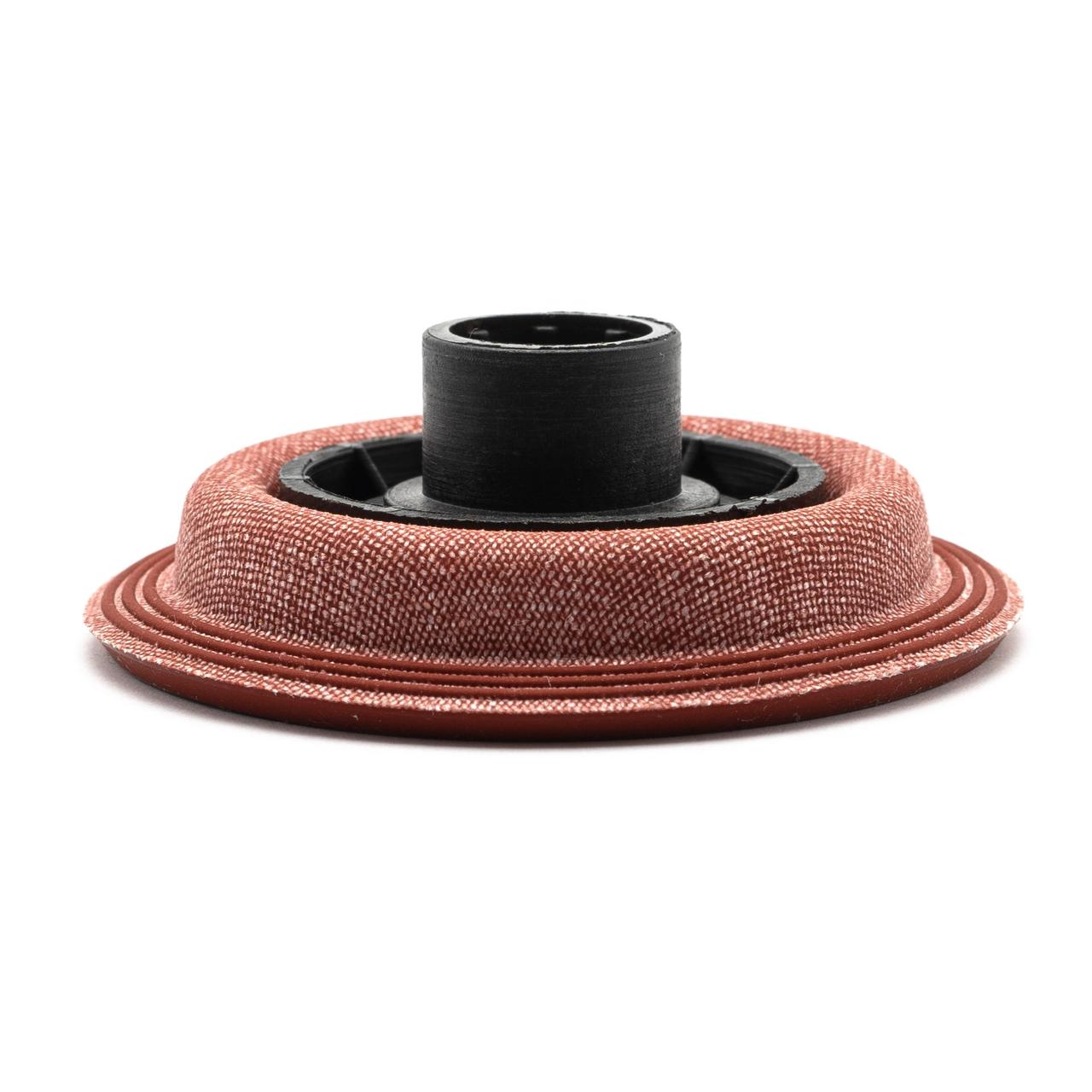

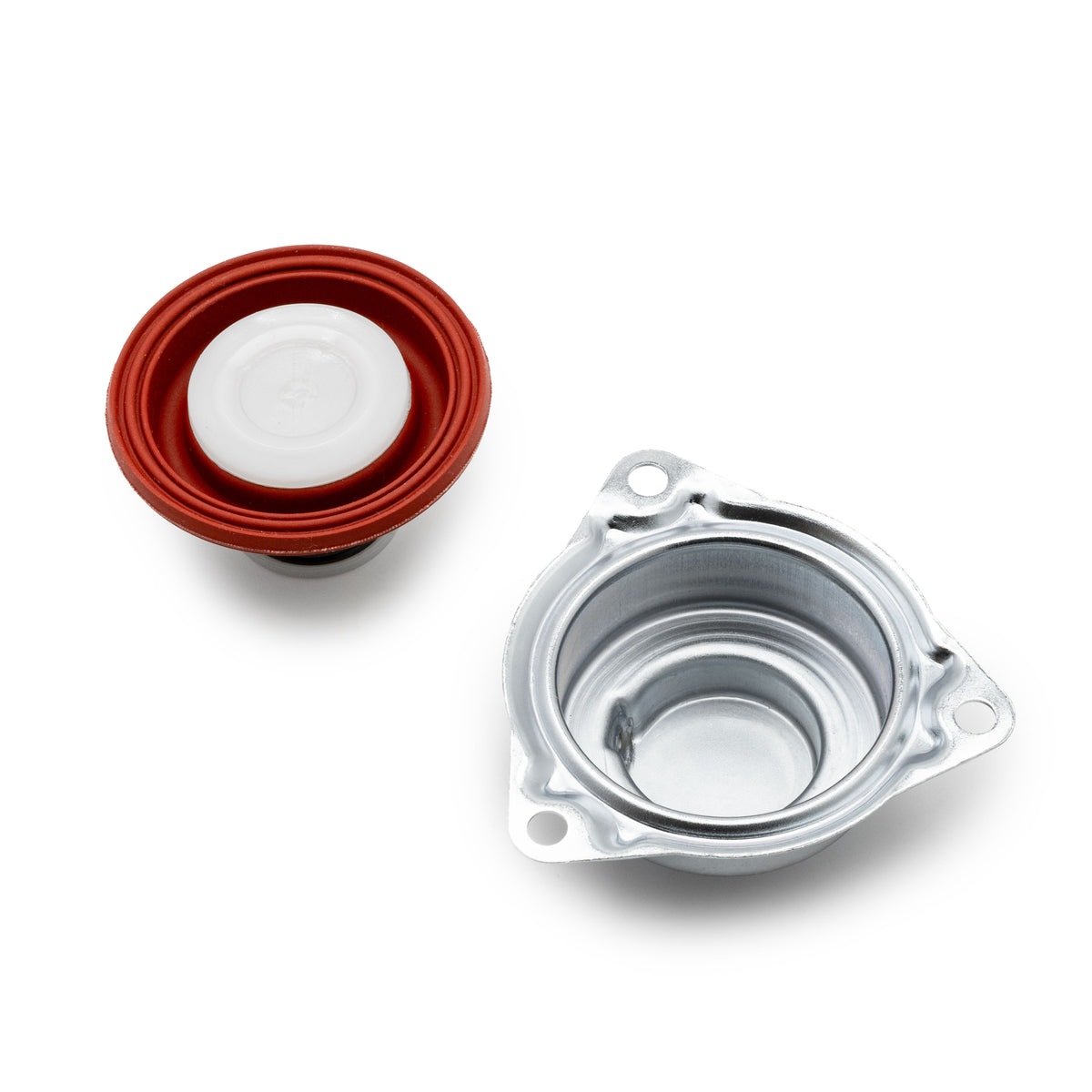

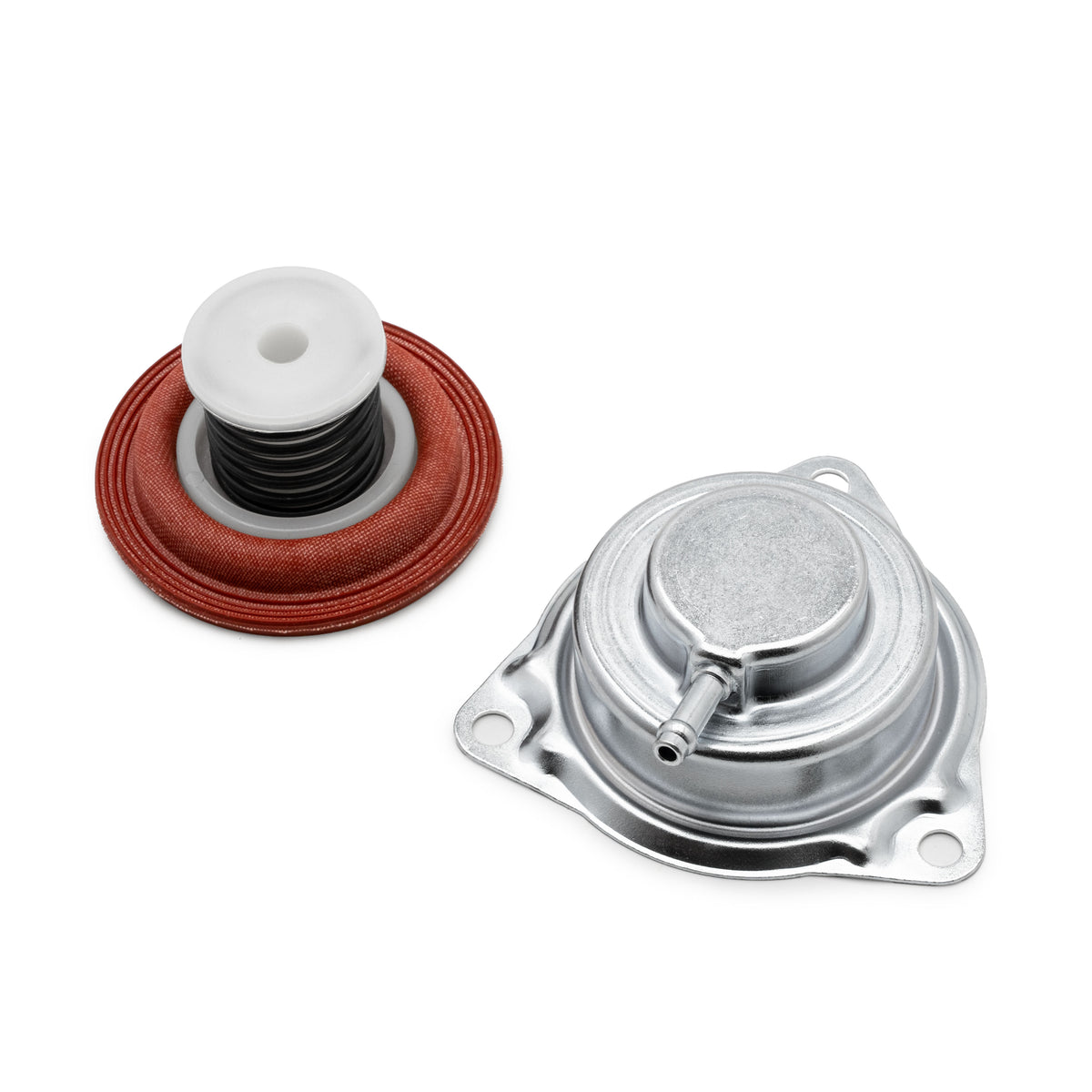

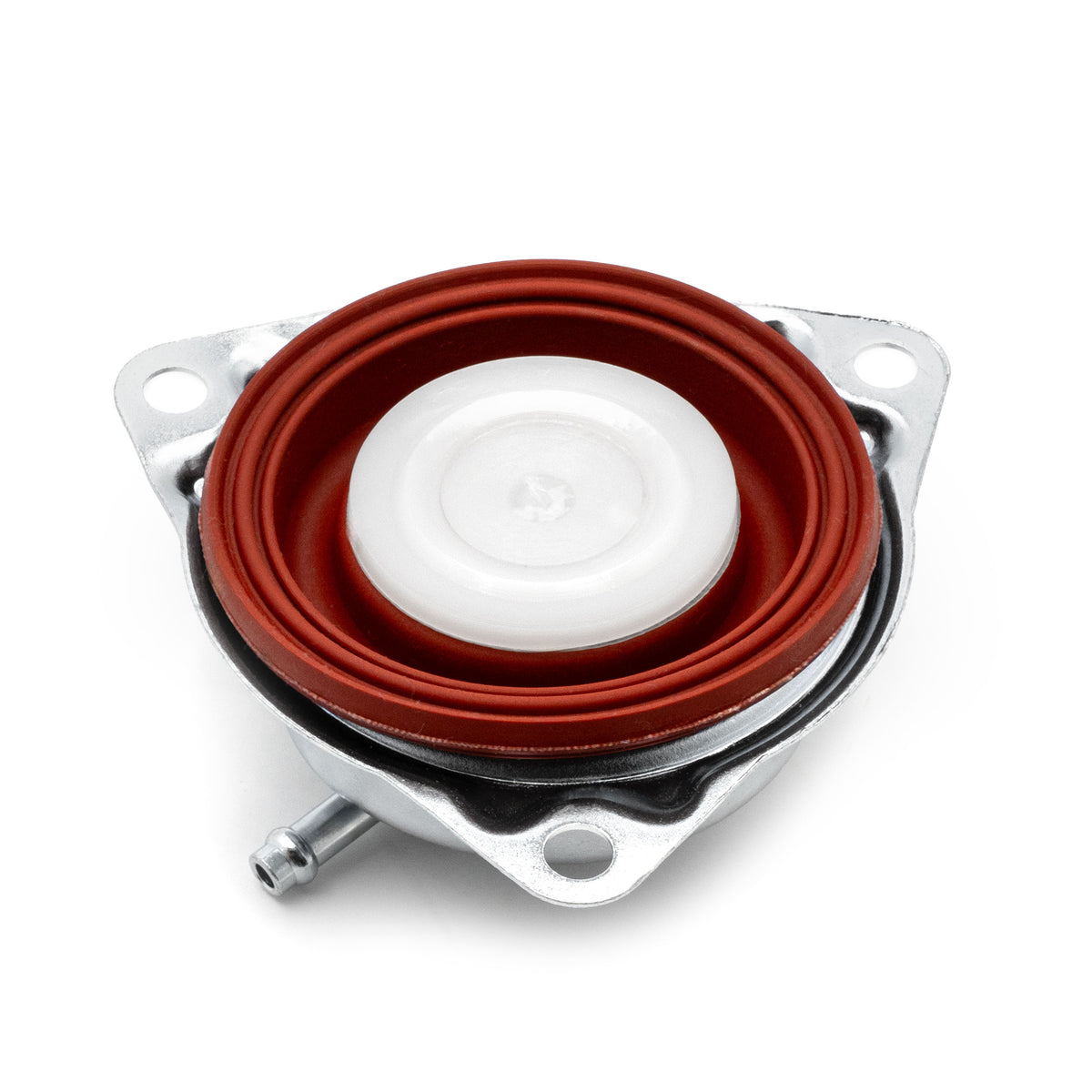

This replacement diaphragm is for the turbo bypass valve on the listed applications. Match the turbocharger reference, valve marking and diaphragm seat before ordering.
Applications
- Saab 9-3 Aero - TD04L Turbo.
- Volvo - TD04L, TD04H, TD04HL Turbo.
- Hyundai Genesis Coupe - TD04 turbo.
- Dodge SRT-4 - TD04LR / TD05HR Stage 3 Turbo.
- GM 2.8L - TD04HL Turbocharger.
Turbocharger Selection
Turbo references: 36002369, 30650634, 8603226, 49377-06213, 49377-06212, 49377-06210, 49377-06202 and 49377-06200. Diaphragm references: K5T09671, 424-10401-002. TD04L and TD04HL are turbocharger designations.
When to Inspect the Valve
Inspect the diaphragm for wear, damage, deformation, leakage or incorrect seating. Check the turbo or actuator marking, mechanism travel, linkage play and seat condition before selecting the repair.
Repair Scope

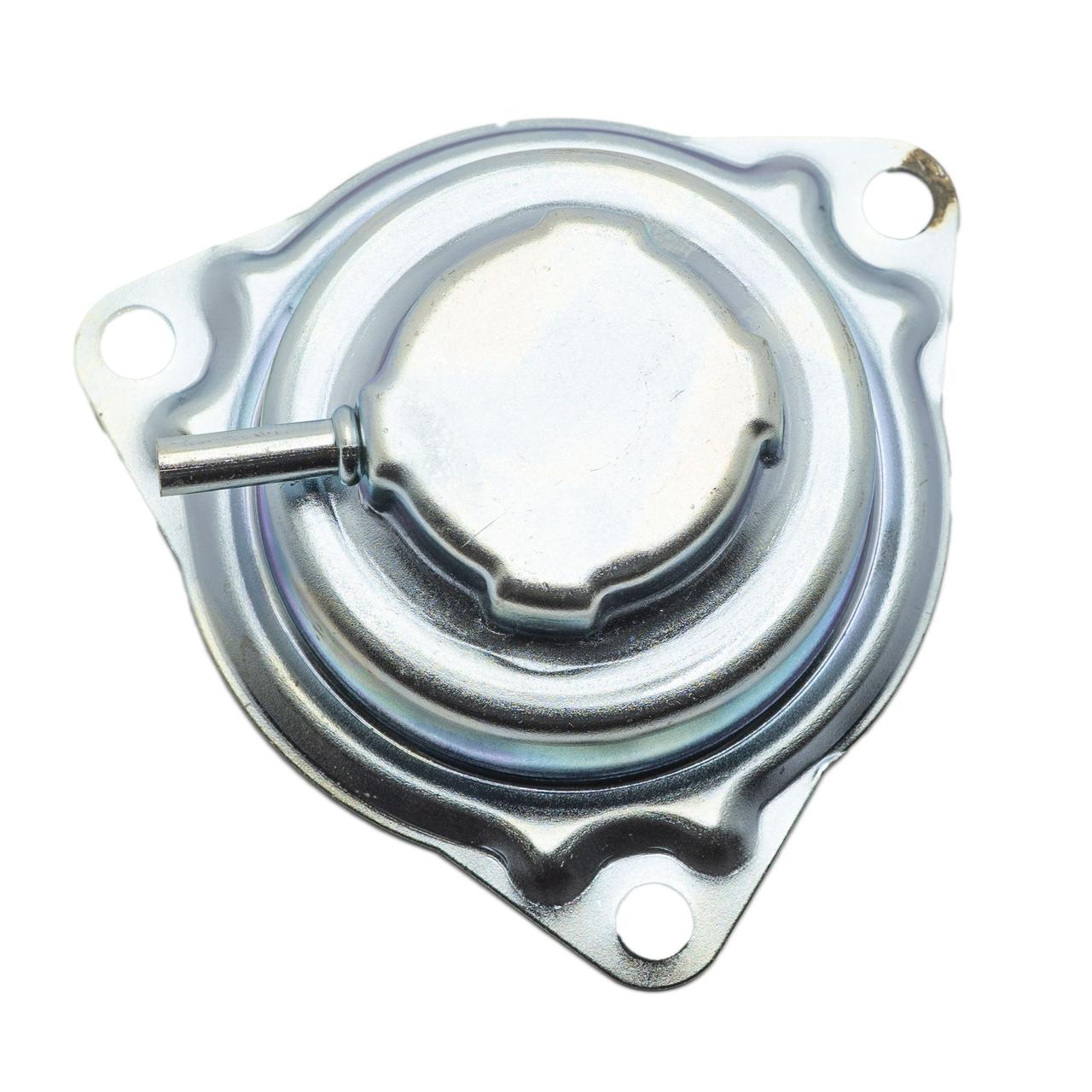

This is the separate bypass diaphragm, rather than a complete turbocharger. Match the original valve and diaphragm mounting shape.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
Which GM application is listed?
GM 2.8L with TD04HL turbocharger.
Is the complete turbo supplied?
No. The product is the bypass valve diaphragm.
Does TD04L identify a diaphragm OEM number?
TD04L is the turbocharger designation; match the turbo reference and original bypass valve.
Part Number / PN
30650634,8603226,36002369,K5T09671,424-10401-002
SKU: K5T09671.
