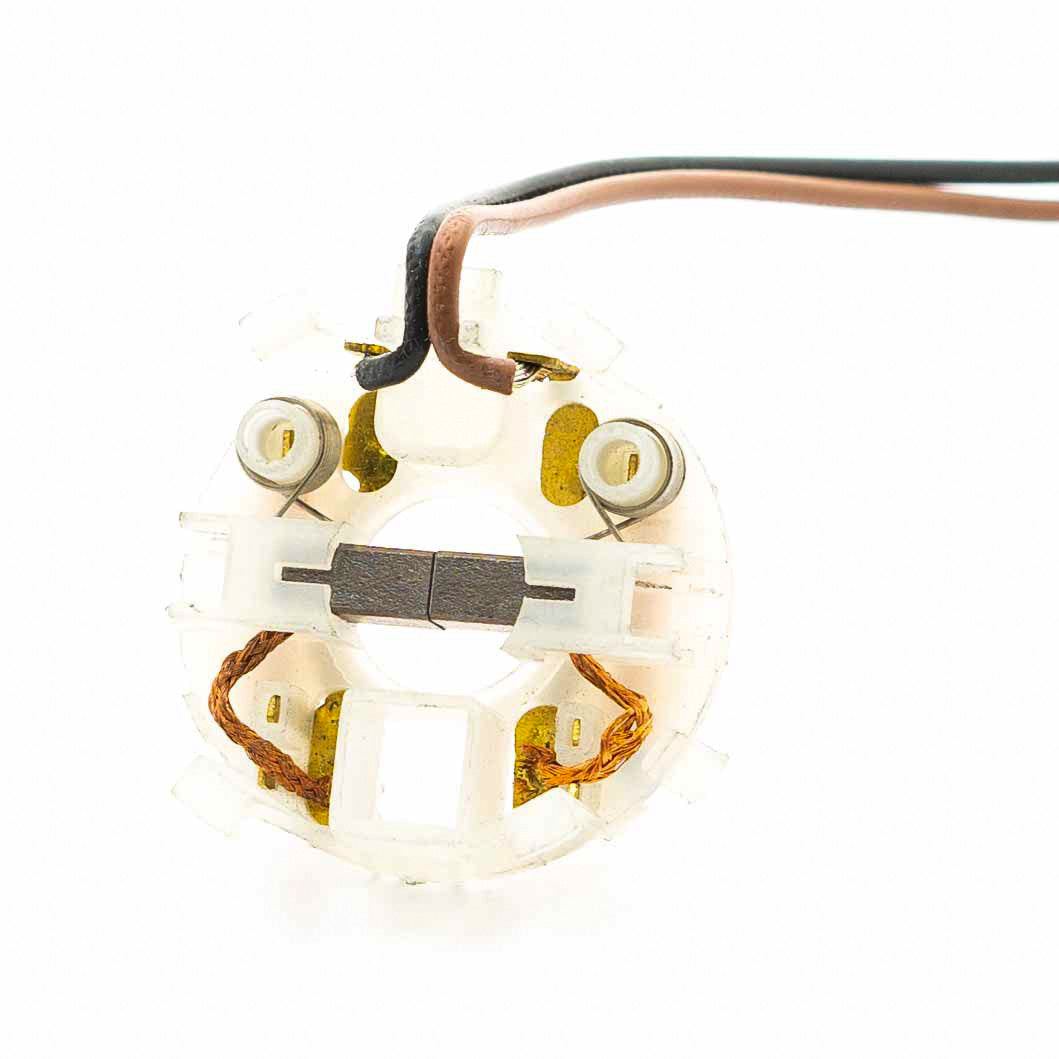

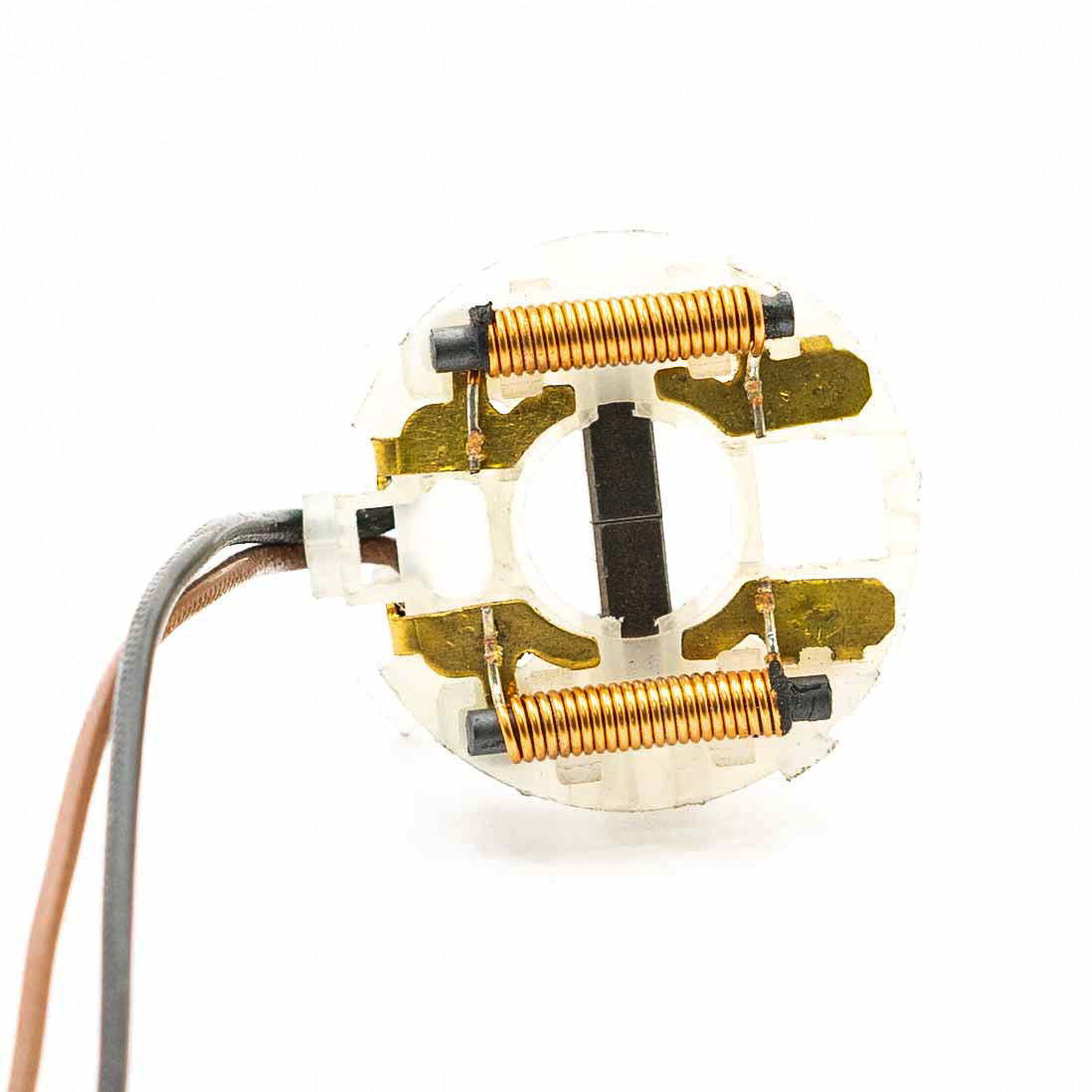

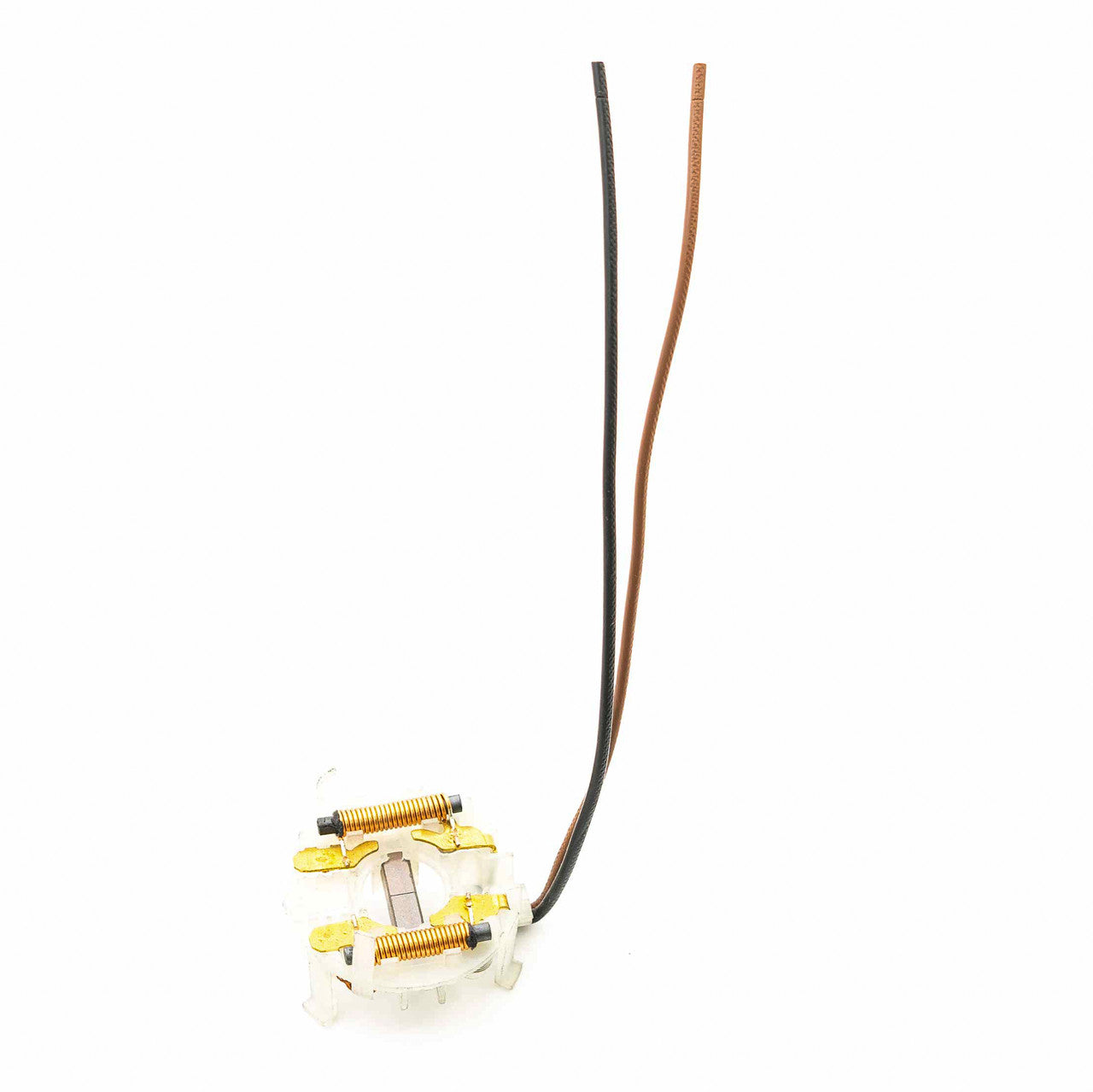

Brush assembly of the Haldex coupling pump (Haldex) 1, 2, 3 assembly

The brush assembly of the Haldex coupling pump (Haldex) 1, 2, 3 generations is responsible for the stable operation of the engine. The operation of the pump electric motor is deteriorating due to the erasure of the part. Especially often it breaks during extreme driving.

If the pump filter is new and the oil has just been changed, then most likely the pump does not work well due to a breakdown in the mechanisms. When disassembling the coupling, you should inspect the brush assembly - the shortcomings will be noticeable immediately:

• Irregular knot.
• There are traces of burning.
• The brushes are completely worn out.

It is possible to understand during movement that there is a mechanical breakdown if there is a delay or lack of transmission of torque along the axis.

Repair algorithm

1. Remove the clutch motor.
2. Open the pump.
3. Remove bearings.
4. Make a mark on the case on the side of the cables.
5. Pull the motor out of the housing.
6. Remove the brush assembly.
7. Replace part with others if needed.
8. Assemble the motor in reverse order.

Replacing the Haldex 1, 2, 3 clutch pump brush assembly is easier than repairing parts separately. Moreover, the kit is the same for three generations of the Haldex coupling.

For questions about the assortment of the Klifex store, you can always contact our consultants. They will help in solving a particular problem, will be able to pick up the part you are interested in, place an order.

The repair kit includes:

• Brush assembly (assembled)

Compatible with cars:

• Audi A3 / S3 8L Quattro until 2003.
• Audi TT 8N Quattro until 2006.
• Volvo S60 4x4 AWD until 2009.
• Volvo S80 4x4 AWD until 2008.
• Volvo XC70 4x4 AWD until 2007.
• Volvo XC90 4x4 AWD until 2009.
• Volvo V50 4x4 AWD until 2009.
• Volvo V70 4x4 AWD until 2008.
• Ford Kuga I AWD until 2008.
• Ford Maverick AWD until 2008.
• Land Rover Freelander 2 AWD until 2008.
• Skoda Octavia 4x4 AWD until 2008.
• Volkswagen Beetle 4Motion until 2003.
• Volkswagen Bora 4Motion until 2004.
• Volkswagen Golf 4Motion until 2004.
• Volkswagen Passat B6 4Motion until 2009.
• Volkswagen Sharan 4Motion until 2008.
•  Volkswagen T5 Multivan 4Motion until 2009.
• Seat Alhambra 4x4 AWD until 2008.
• Seat Leon 4x4 AWD until 2005.

Original numbers:

• 30783079
• 8689664
• 8V414C019AA
• LR003147
• 02D525557
• 0AV598549A
• 02W598549A
