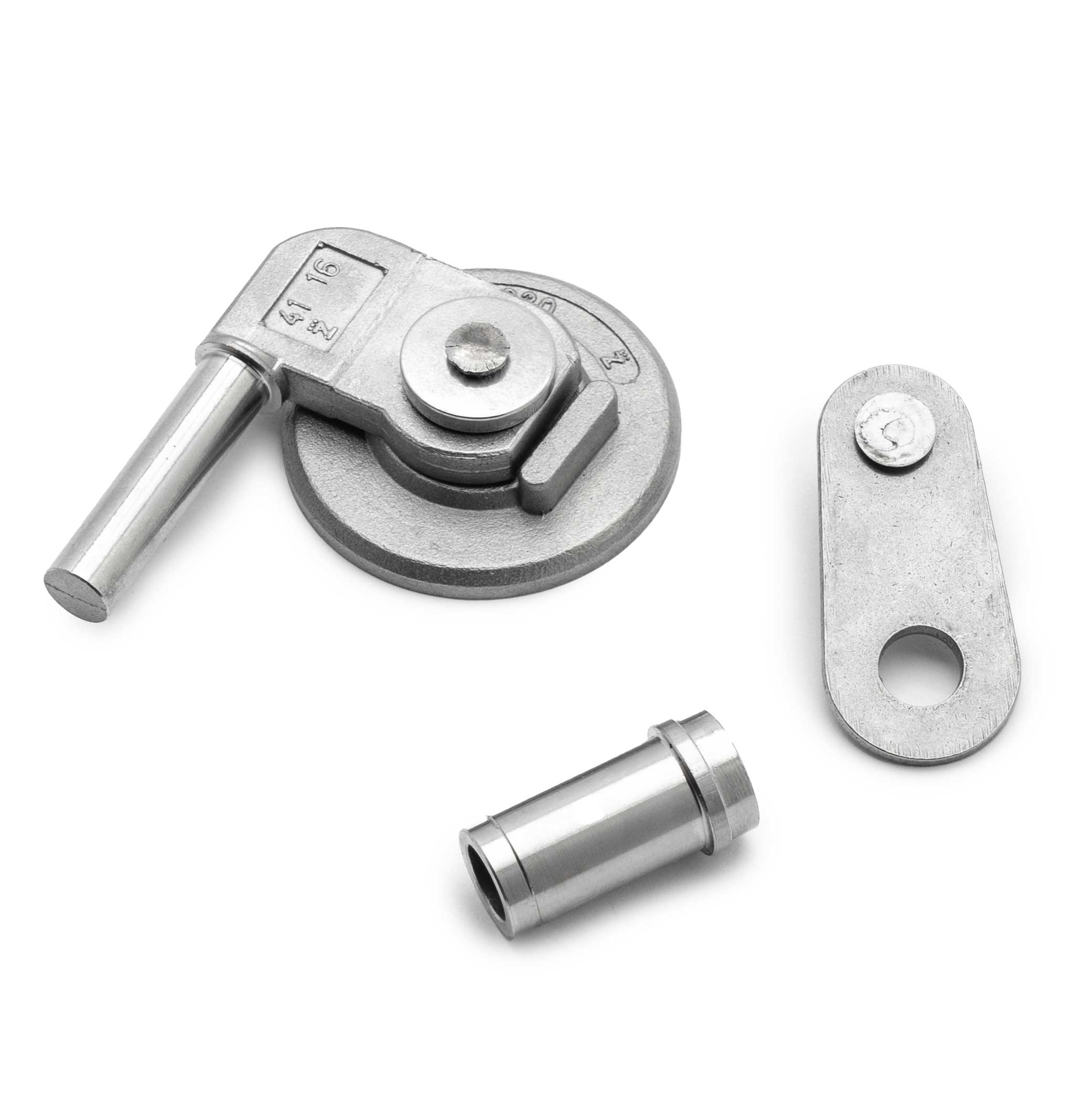

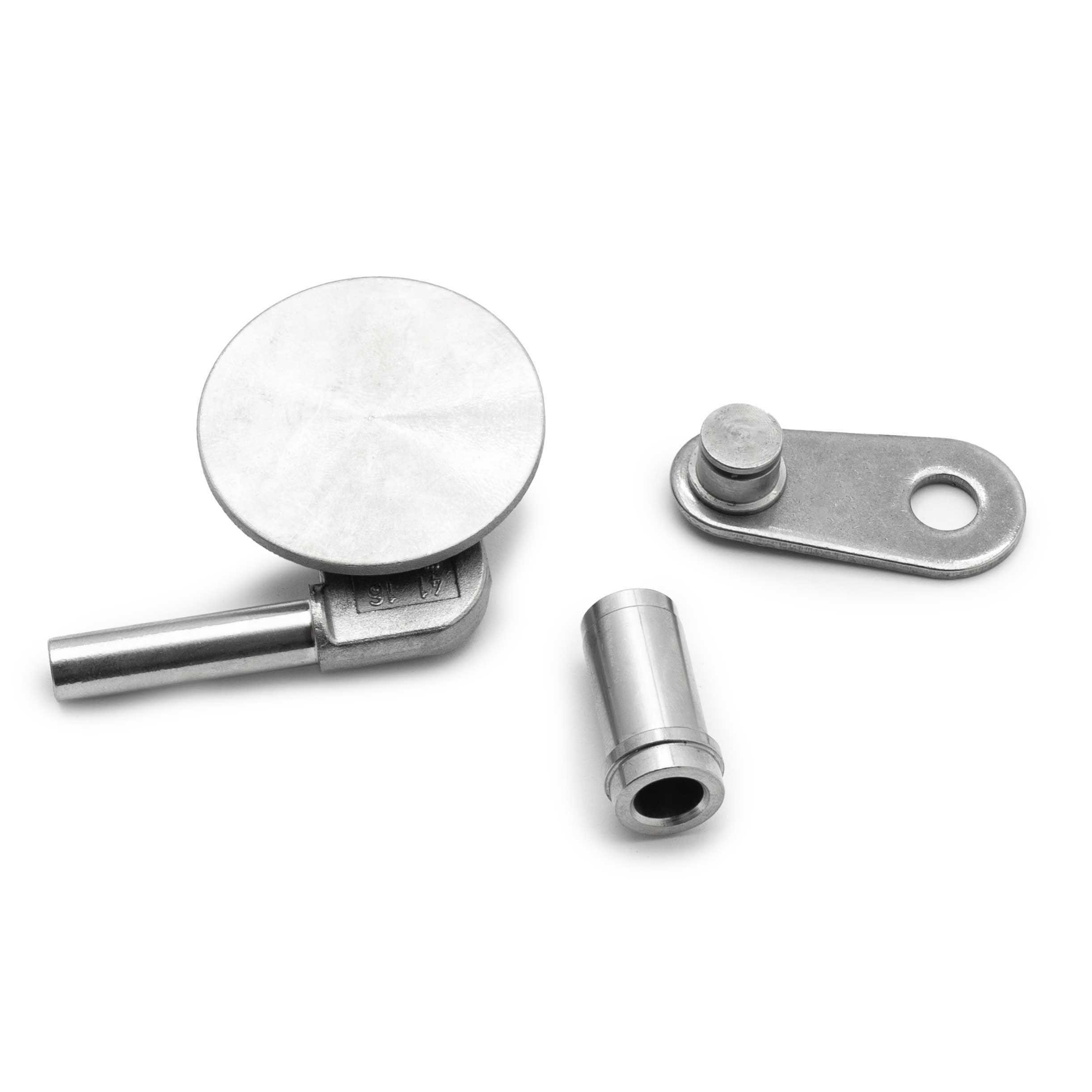

This type 1 repair kit is for the turbo wastegate mechanism on the listed BMW N55 applications. Match the original turbo reference and mechanism before choosing this repair.
Applications
- BMW N55 - 740i, 740iX, 640i, 535i and 535Li.
- Additional BMW model contexts: X5 and X6 - match the installed N55 turbo reference.
Turbocharger Selection
Listed turbocharger references: 11657583904, 11657636423, 11657636426 and 11657583909. Additional reference: 18539700001. Compare the full original reference and wastegate mechanism.
Inspection and Repair Scope
Inspect wear, damage, deformation, play, leakage, air leaks, incorrect seating or unstable operation. Diagnose the affected component before repair. This is the wastegate repair kit, rather than a complete turbocharger.
Installation Requirements
Installation requires turbocharger removal and argon-arc welding equipment. The old flap position must be marked and reproduced when installing the replacement.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
Which engine is listed?
BMW N55.
Is turbo removal required?
Yes. The described installation requires removing the turbocharger.
Is welding required?
Yes. Argon-arc welding is required to join the lever to the rod in the marked position.
Part Number / PN
11657636423,11657636426,11657583904,11657583909,18539700001,18539700000,18539700005,18539700004,18539880002,18539880003,7583909,4579845
SKU: KL18539700001.
Installation Procedure
- Remove the turbocharger assembly from the engine. Removal can be easier with the engine out, although removal without taking the engine out is possible with suitable skills. Check N55 turbocharger play and catalytic-converter condition.
- Unbolt the BMW N55 vacuum wastegate actuator.
- Mark the original flap position relative to the turbocharger, then remove the old flap with a grinder.
- Fit the replacement flap in the previously marked position. Use argon-arc welding equipment to weld the lever to the rod.
- Refit the vacuum actuator. Replace worn vacuum lines and clean or replace N55 solenoid pressure converters.
- Use new oil supply hoses, cooling system hoses, seals and gaskets during installation.
