Aluminium Seat Thigh Support Gear - BMW / Rolls Royce - 52107068045

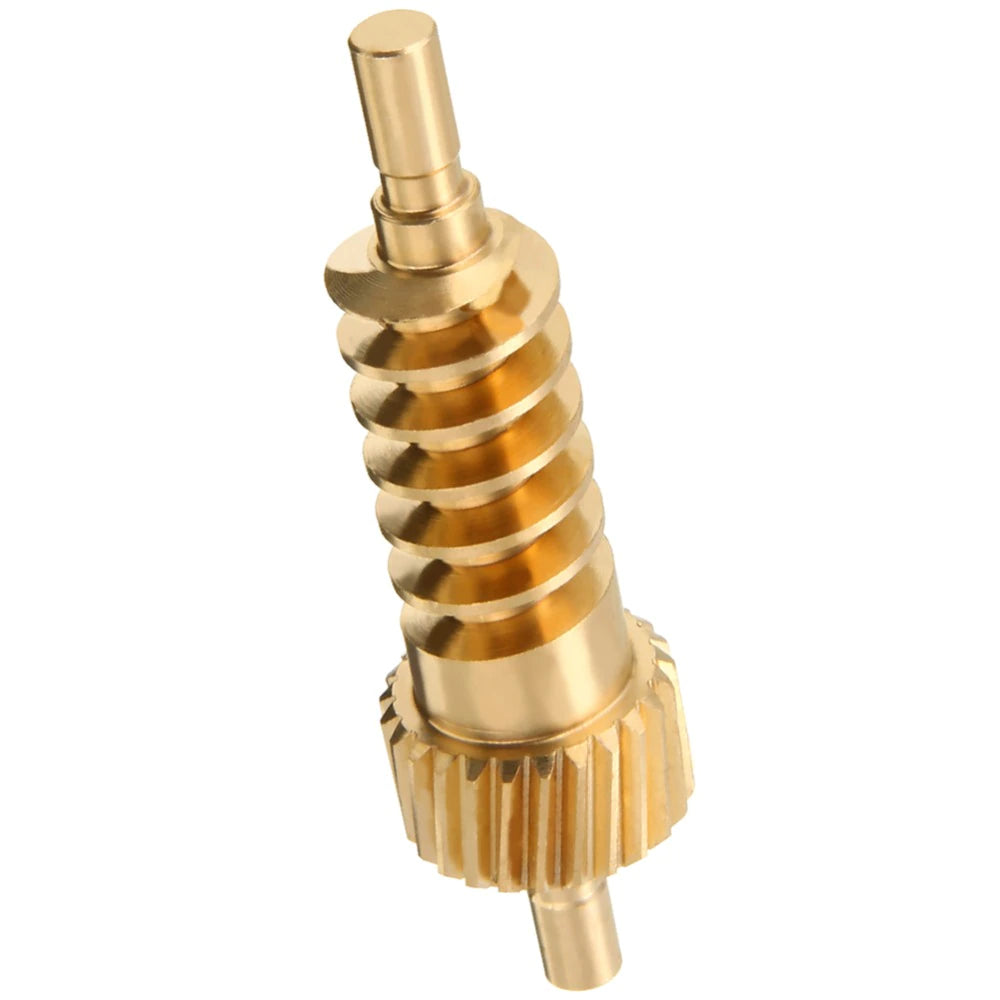

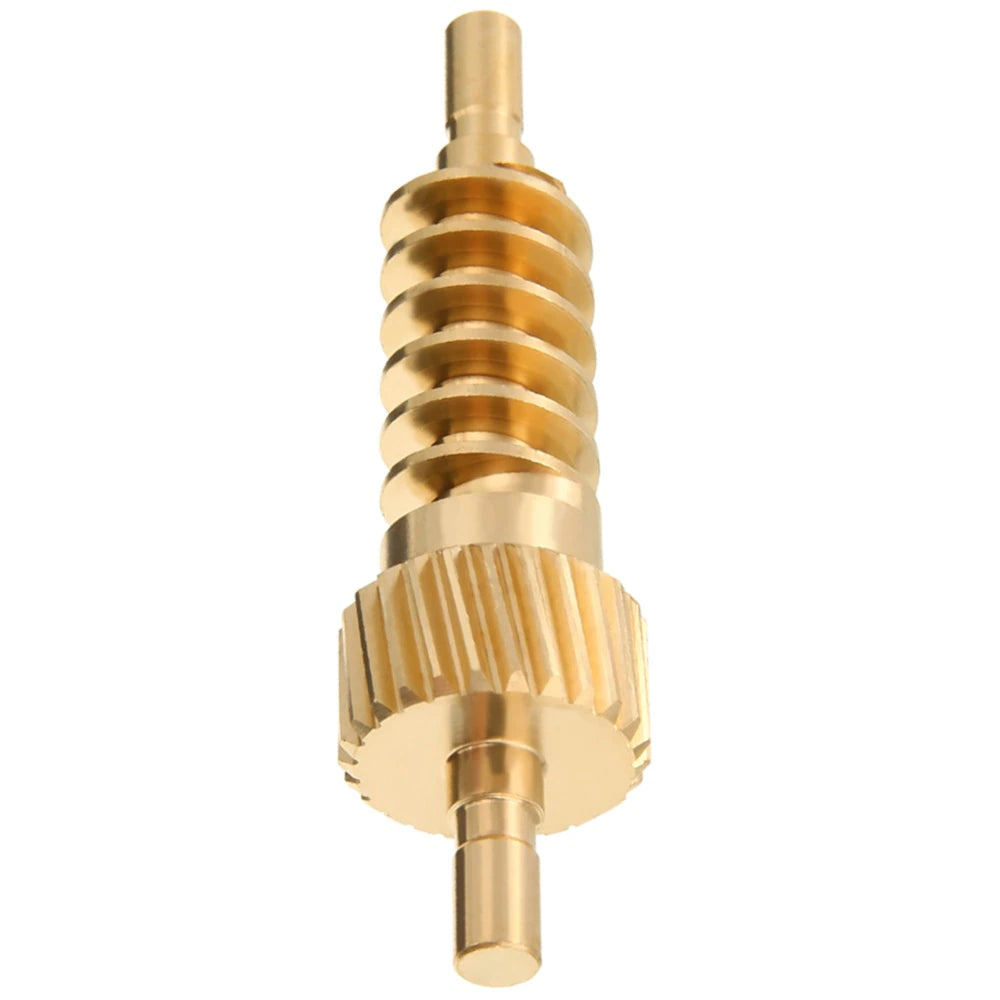

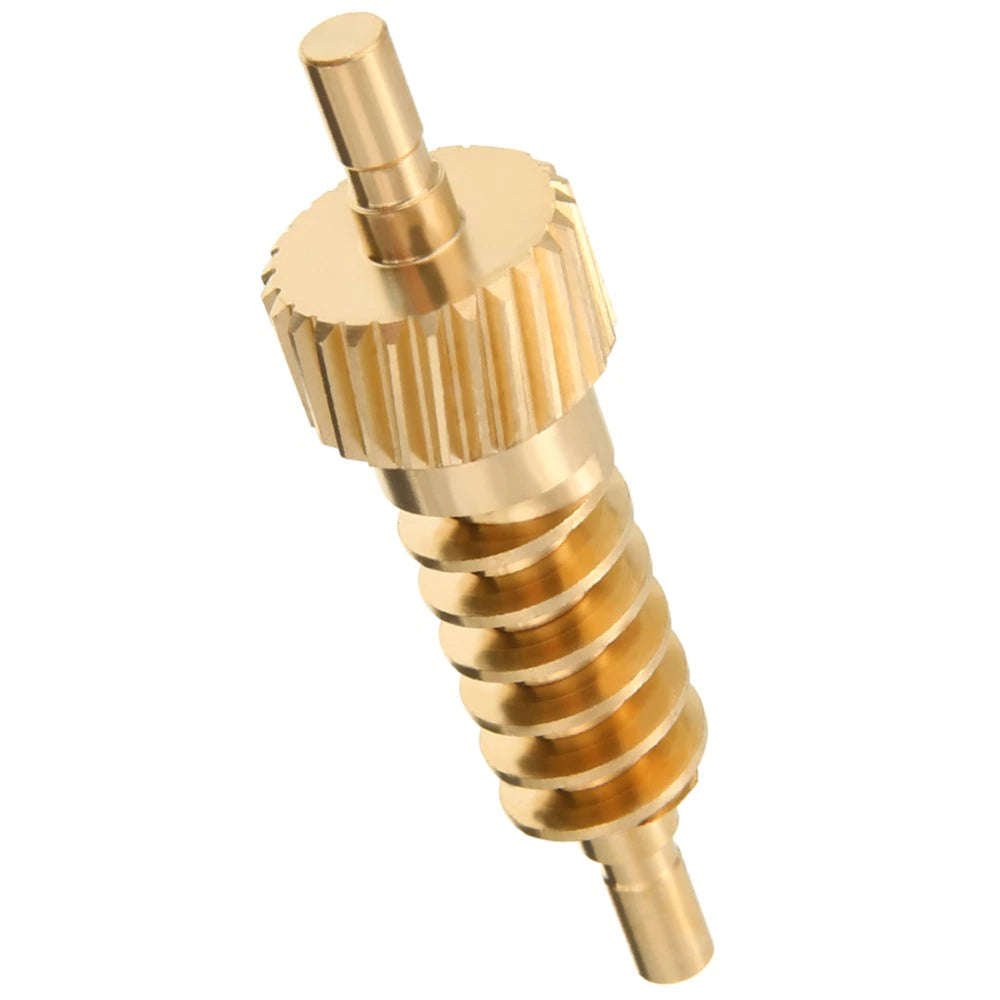

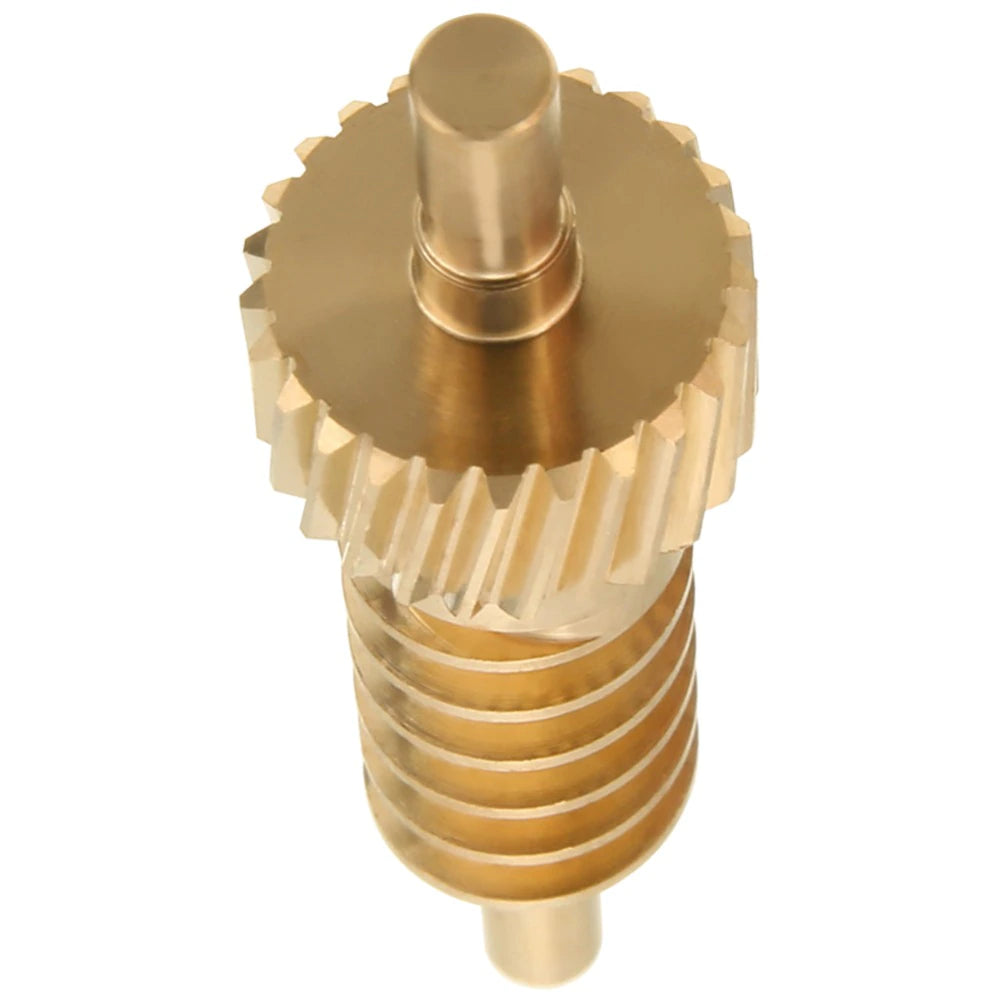

This aluminium gear replaces the worn plastic gear in the seat thigh-support servo mechanism on the BMW and Rolls Royce applications below. Gear wear can leave the support stationary or moving in jerks while the electric motor can still be heard. Inspect the drive before replacing the complete mechanism.

Vehicle Applications

• BMW 5 Series E60 (12/2001 - 12/2009)
• BMW 5 Series E60 LCI (10/2005 - 12/2009)
• BMW 5 Series E61 (10/2002 - 02/2007)
• BMW 5 Series E61 LCI (11/2005 - 05/2010)
• BMW 5 Series F07 GT (09/2008 - 06/2013)
• BMW 5 Series F10 (01/2009 - 03/2015)
• BMW 5 Series F11 (01/2009 - 06/2013)
• BMW 7 Series E65 (02/2000 - 07/2008)
• BMW 7 Series E66 (06/2000 - 07/2008)
• BMW 7 Series E67 (10/2002 - 06/2008)
• BMW 7 Series F01 (06/2007 - 06/2012)
• BMW 7 Series F02 (07/2007 - 06/2012)
• BMW 7 Series F03 (04/2008 - 05/2012)
• BMW 7 Series F04 Hyb (10/2008 - 06/2012)
• BMW X5 E70 (02/2006 - 06/2013)
• BMW X5 E70 LCI (04/2009 - 06/2013)
• BMW X6 E71 (01/2007 - 06/2014)
• BMW X6 E72 Hyb (10/2008 - 10/2011)
• Rolls Royce Phantom

Gear and Motor References

Compare the seat-support motor and mechanism references 52107068045, 52100309476 and 52107120189. The replacement gear is aluminium; the original gear described for this repair is plastic. Match its shape, dimensions and mounting with the installed component.

When to Inspect the Mechanism

• A prolonged buzzing sound after pressing the thigh-support adjustment button.
• The support does not move despite the motor sound.
• The support moves forward in jerks.
• A worn, damaged or deformed gear or play in the drive.

The repair replaces the gear while retaining the existing servo mechanism. BMW gear repair components should be selected by the original mechanism reference and physical design.

Replacement Procedure

1. Move the thigh support out manually. Remove the two mounting bolts with a Т-30 (T-30) bit.
2. Disconnect the seat-heating connector and remove the soft cover. Lift the clipped plastic plate upwards and forwards.
3. Remove the six bolts beneath the plate with a Т-25 (T-25) tool.
4. Release the plastic catches to gain access to the mechanism.

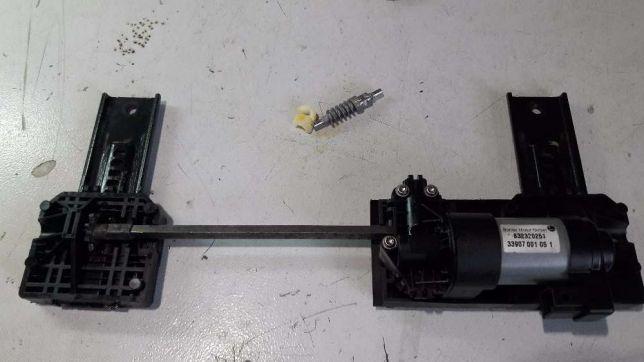

5. Remove the servo drive.

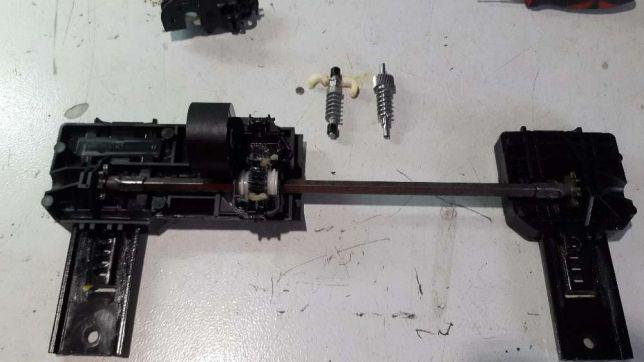

6. Open the gear mechanism, which sits perpendicular to the main axis and is secured with hex-head fasteners.

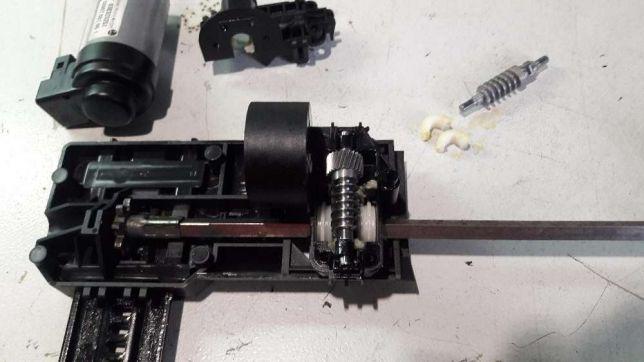

7. Remove the plastic servo gear and replace it with the aluminium gear.
8. Lubricate the moving parts and reassemble the mechanism in reverse order.

Before Ordering

Compare the original mechanism marking, gear shape, dimensions and mounting. A matching vehicle model alone does not identify the required gear.

FAQ

Is the replacement gear plastic or aluminium?

The replacement gear is aluminium; it replaces the plastic gear in the described servo mechanism.

What does Т-25 identify in the replacement procedure?

It identifies the tool used to remove the six bolts beneath the plastic plate.

Does this repair require replacing the entire servo mechanism?

The described repair replaces the worn gear inside the existing servo mechanism. Inspect the drive to confirm the fault before selecting the repair.

Part Number / PN

52107068045, 52100309476, 52107120189, 658515673112

SKU: KL52107068045.
