Brass MMI Screen Mechanism Gear Repair Kit - Audi A8 D3 - 4E0857273D

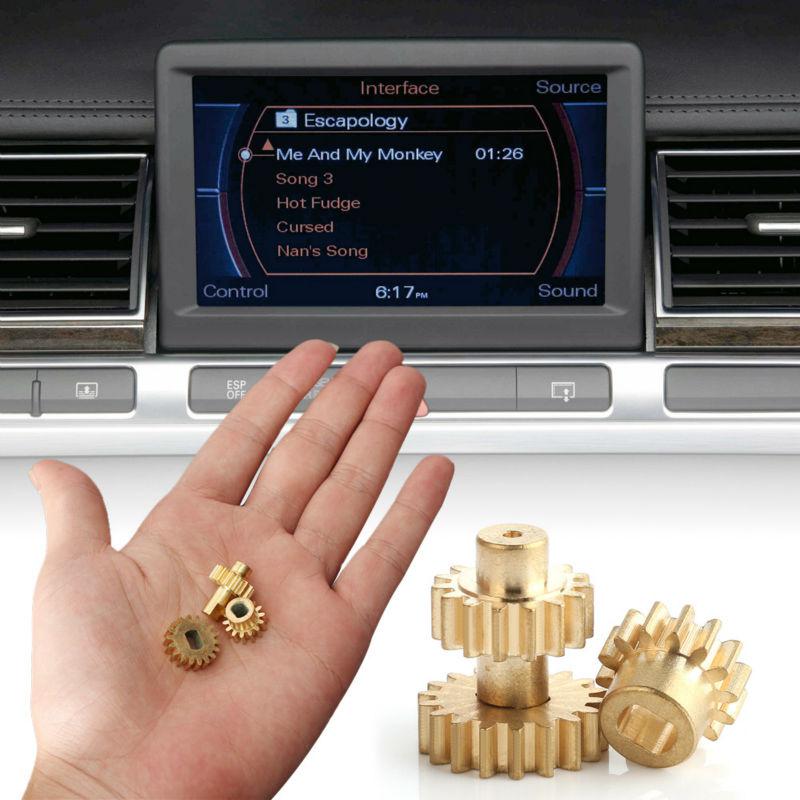

These brass replacement gears repair the MMI screen opening mechanism on the listed Audi A8 D3 application. Damaged original plastic gears can cause cracking noises, jerky movement or a screen that sticks in one position; inspect the mechanism before repair.

Applications

• Audi A8 D3 - MMI screen opening mechanism.

Reference and Mechanism Selection

Compare 4E0857273D and additional reference 658515673143 with the original screen mechanism and gear mounting.

When to Inspect the Gears

• Cracking or clicking noises.
• Jerky or uneven screen movement.
• The screen sticks in one position.
• Visible wear or broken gear teeth.

Identify the damaged gears before replacement. The original mechanism contains three plastic gears.

Material and Repair Scope

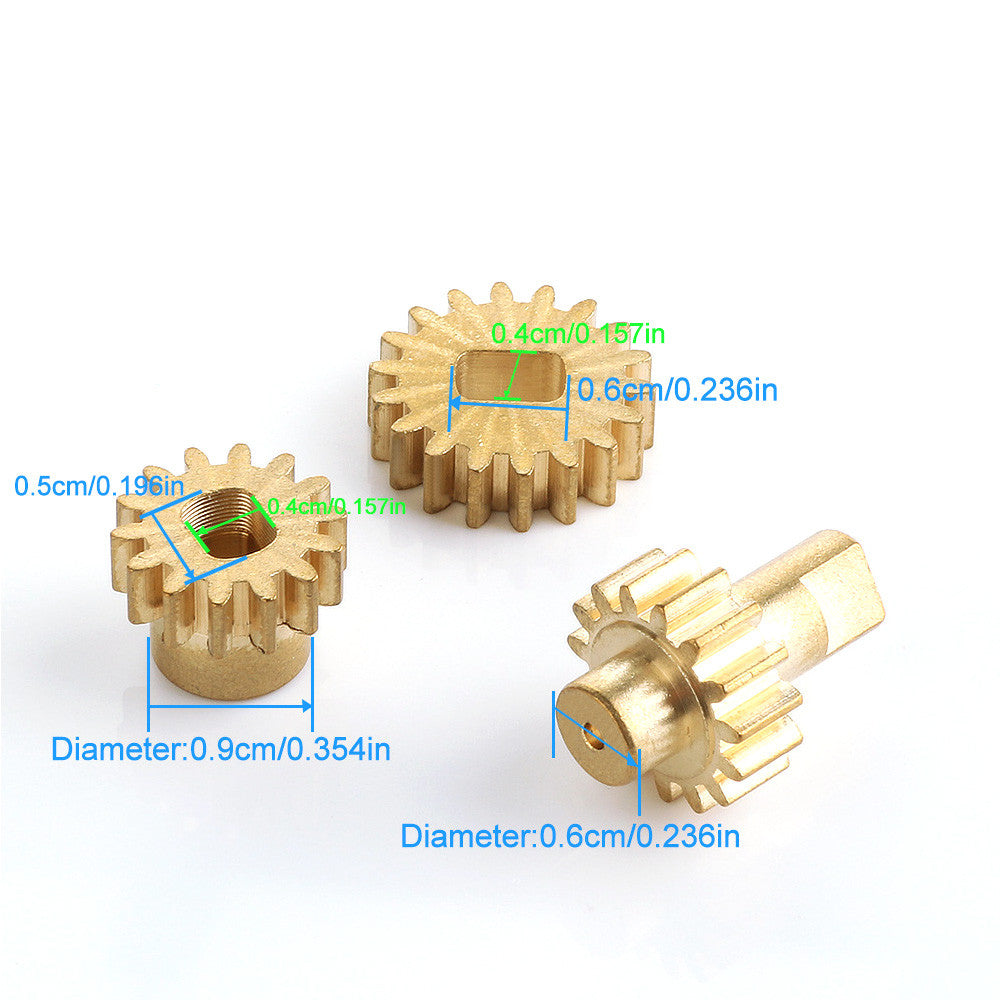

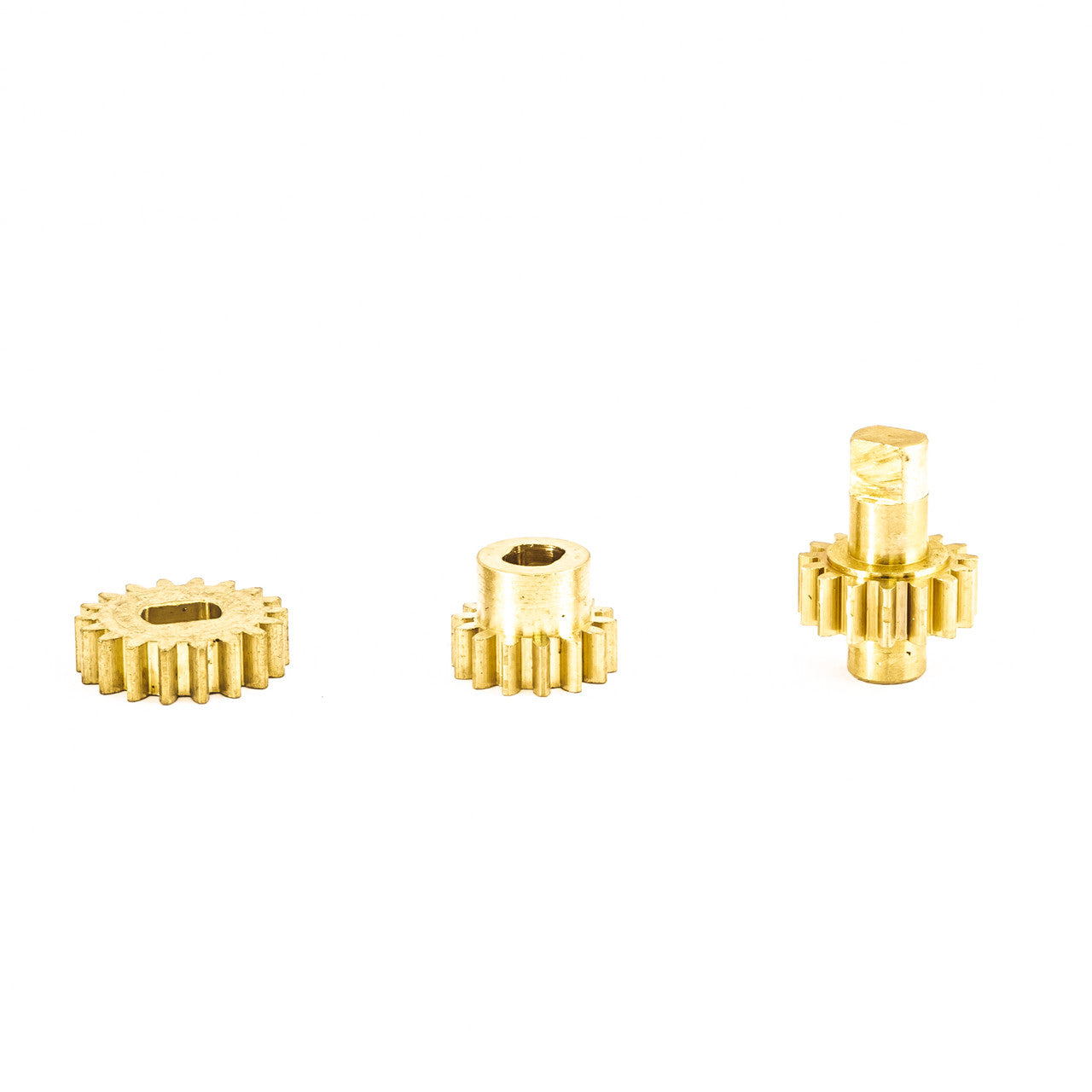

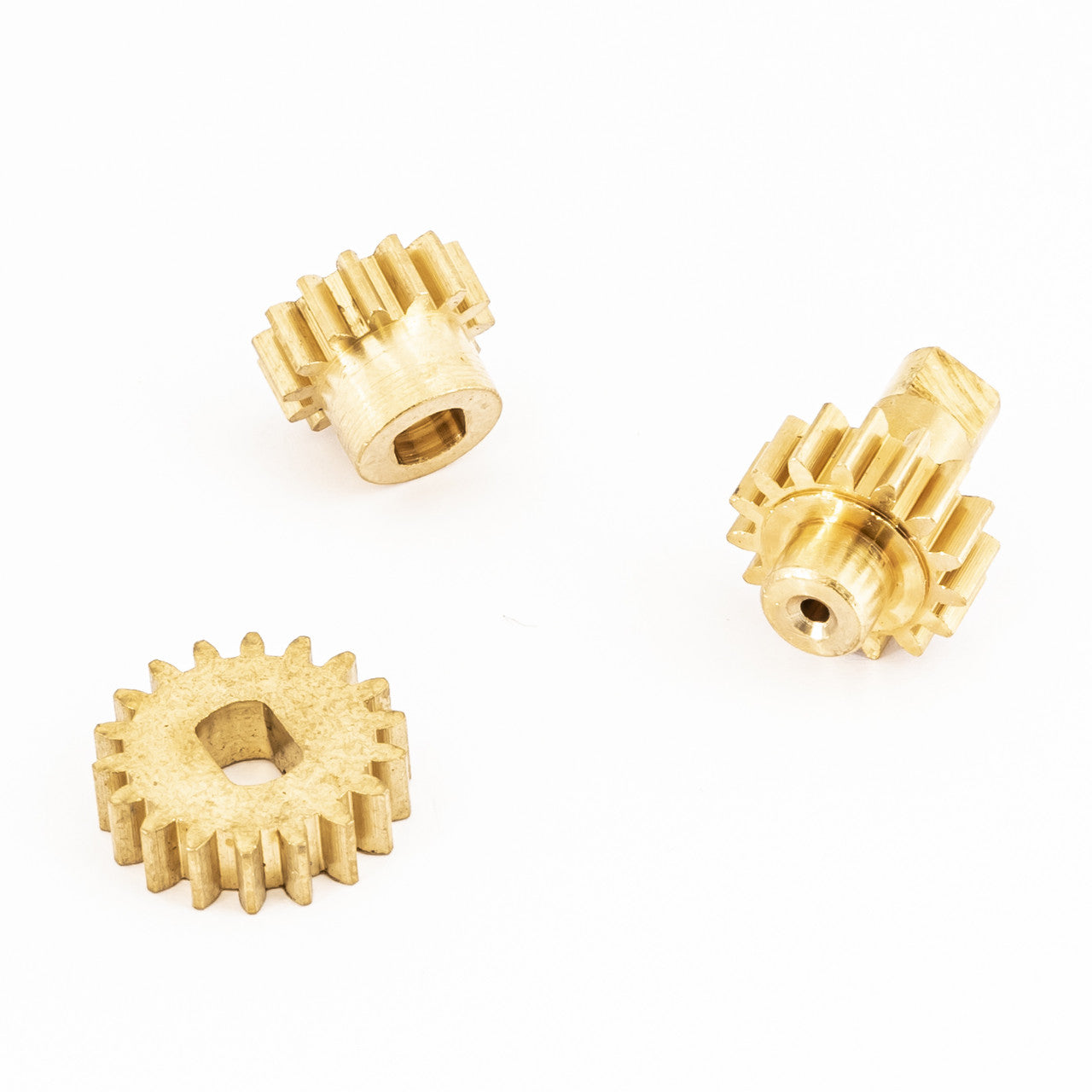

Replacement gear material: brass. The gears replace the original plastic components instead of replacing the complete screen mechanism. Lubricate the replacement gears before fitting.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What material are the replacement gears?

Brass.

Should the gears be lubricated?

Yes. Lubricate them before installation.

When should I test the mechanism?

Check operation before putting everything back into place and completing reassembly.

Part Number / PN

4E0857273D,658515673143

SKU: KL4E0857273D.

Related repair components

Screen Removal

• Use a thin flat tool, such as a precision screwdriver. Open the monitor, raise the retainers and pull out the air vent.
• Remove the clip-mounted key holder front panel before removing the central trim strip. Carefully release the fragile strip retainers from their grooves and disconnect its plug.
• Undo the wooden trim fixing bolts and remove the trim, releasing the retainer at the top left and then the other side.
• Undo the wooden dashboard fixing bolts on the right of the steering wheel. The whole panel and the left dashboard vent do not need to be removed. Move the right-hand panel aside to release the monitor fixings.

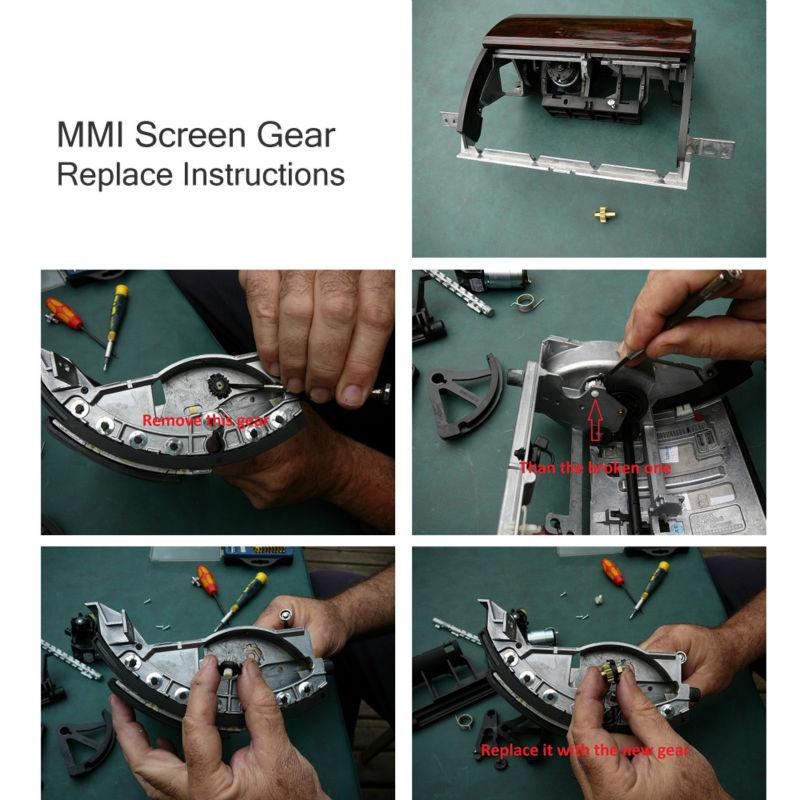

Gear Replacement and Reassembly

• Remove the upper wooden trim from its clips and slots if needed for access; otherwise avoid scratching it.
• Remove the drive motor to make room for gear removal.
• Lift the upper plate with a screwdriver and move the retainer underneath so the central section moves back.
• Remove the damaged gears, lubricate the replacements well and fit them in place.
• Refit the upper trim and test the screen mechanism before final installation.
• Reassemble the screen mechanism in reverse order.
