Air Suspension Strut Repair Kit – Land Rover Range Rover L322 (2003–2012) | OEM RNB501530 RNB000740

Worn or leaking air suspension struts on Land Rover Range Rover L322 (2003–2012) cause sagging, bouncing, and air suspension faults. This repair kit restores correct strut sealing and function for struts RNB501530, RNB501520, RNB000750, and RNB000740.

Fits OEM #RNB501530.

When to Inspect This Part

• vehicle takes too long to rise
• air compressor cycles too frequently
• air-suspension warning or fault
• vehicle sags after parking
• compressor overheats or becomes noisy
• system builds pressure slowly or not at all

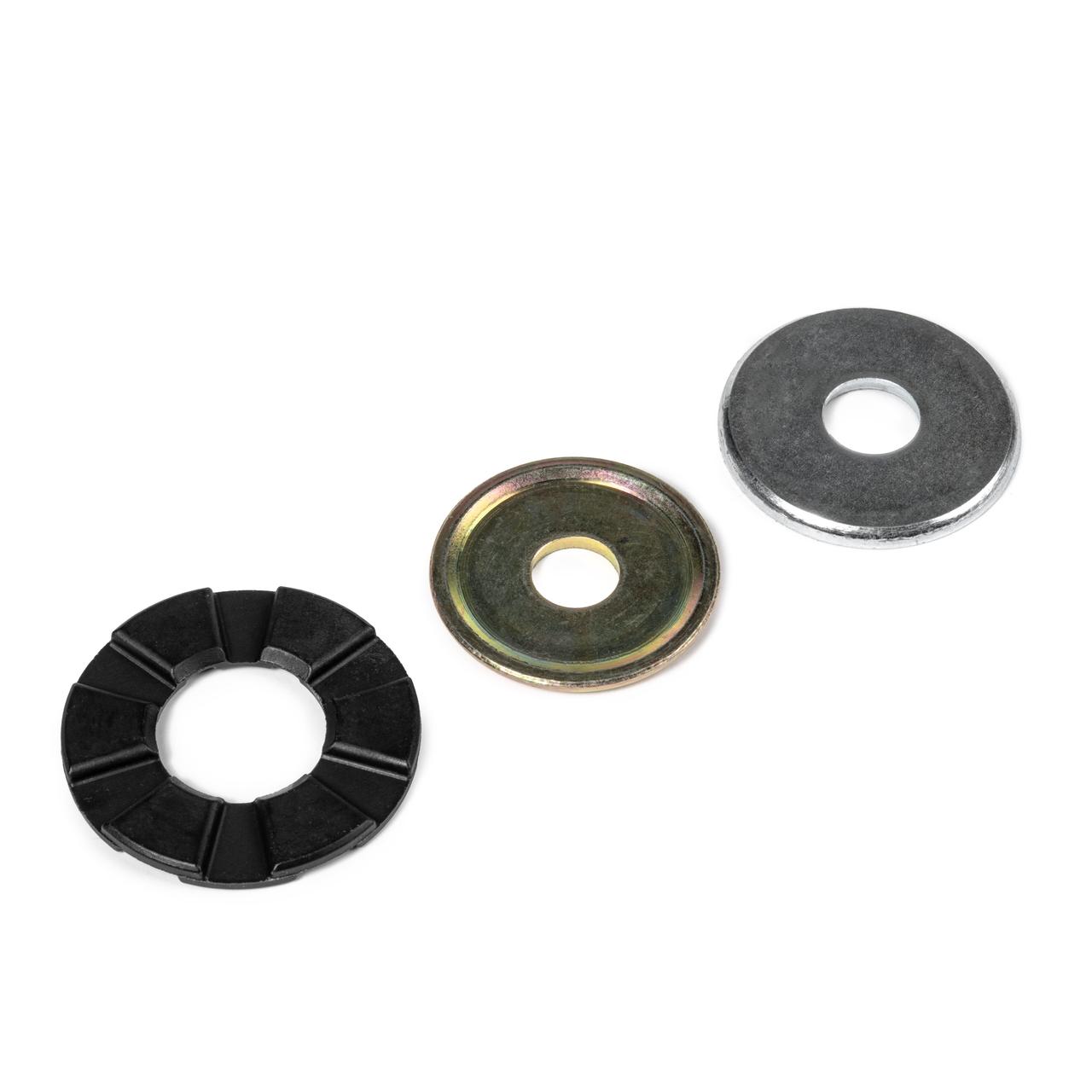

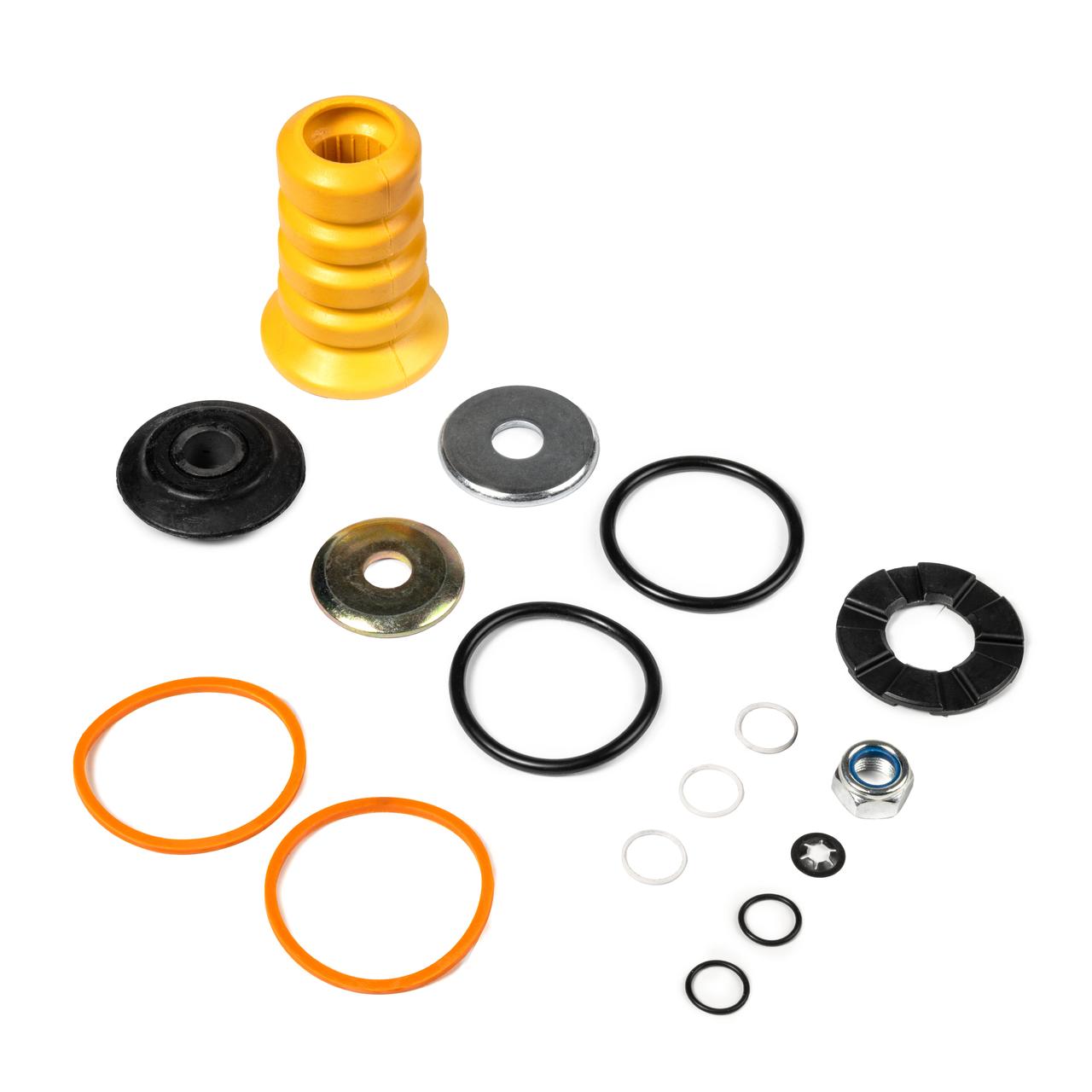

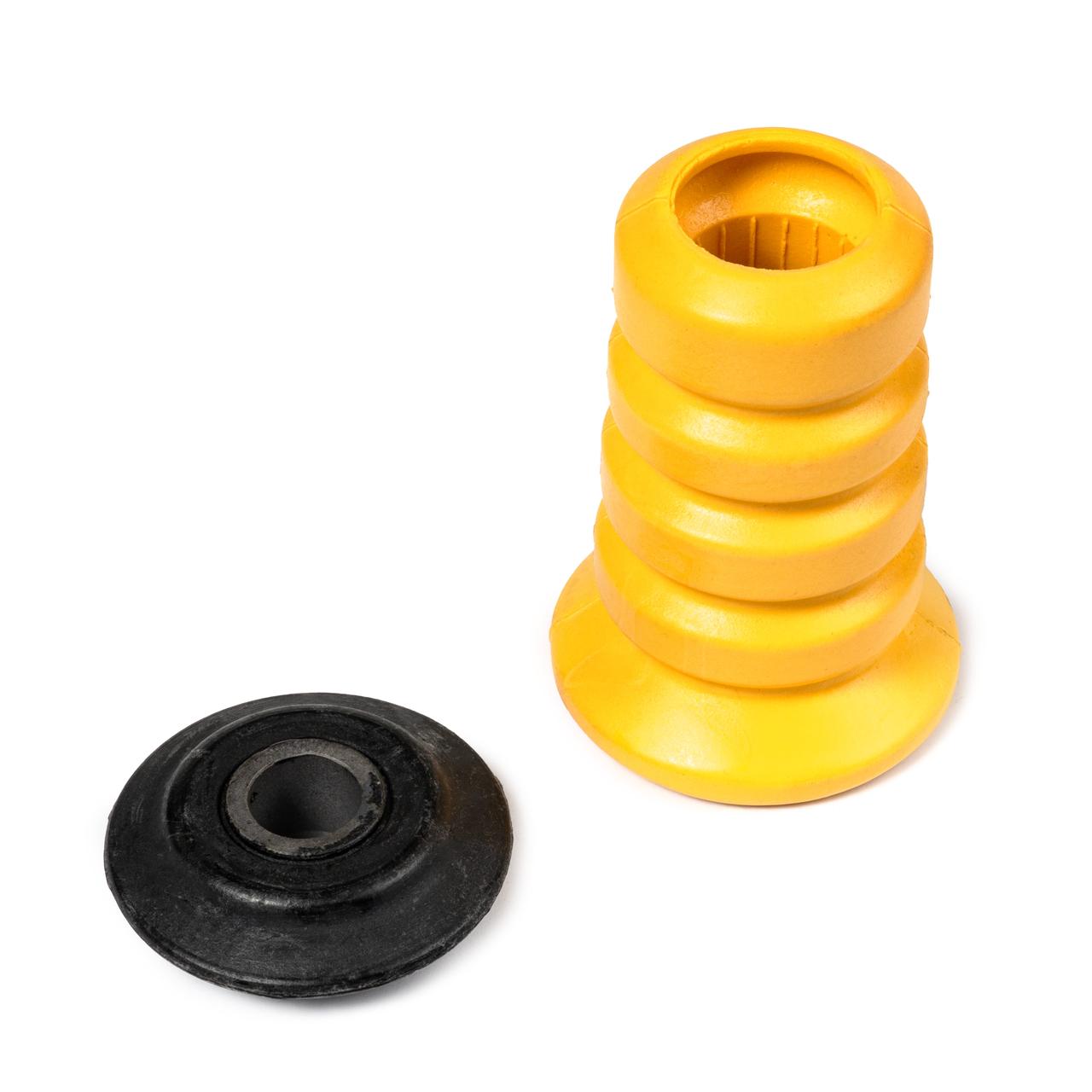

What's Included

• Repair components supplied for this SKU and shown in the product photos; no complete surrounding assembly is included

Important Limitations

Repair the compressor only after checking the air springs, lines, reservoir, and valve block for leaks. A compressor kit will not correct an external air leak.

OEM Part Numbers and Vehicle Fitment

Additional confirmed fitment

• 2012 Land Rover Range Rover Autobiography Sport Utility 4-Door 5.0L 5000CC 305Cu. In. V8 GAS DOHC Supercharged
• 2012 Land Rover Range Rover Autobiography Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Supercharged
• 2012 Land Rover Range Rover Base Sport Utility 4-Door 5.0L 5000CC 305Cu. In. V8 GAS DOHC Supercharged
• 2012 Land Rover Range Rover HSE Lux Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
• 2012 Land Rover Range Rover HSE Sport Utility 4-Door 5.0L 5000CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
• 2012 Land Rover Range Rover HSE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
• 2012 Land Rover Range Rover Supercharged Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Supercharged
• 2011 Land Rover Range Rover Base Sport Utility 4-Door 5.0L 5000CC 305Cu. In. V8 GAS DOHC Supercharged
• 2011 Land Rover Range Rover HSE Sport Utility 4-Door 5.0L 5000CC 305Cu. In. V8 GAS DOHC Naturally Aspirated
• 2011 Land Rover Range Rover HSE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
• 2011 Land Rover Range Rover Supercharged Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Supercharged
• 2010 Land Rover Range Rover Base Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Supercharged
• 2010 Land Rover Range Rover HSE Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Naturally Aspirated
• 2010 Land Rover Range Rover Supercharged Sport Utility 4-Door 5.0L 5000CC V8 GAS DOHC Supercharged
• 2009 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
• 2009 Land Rover Range Rover Supercharged Sport Utility 4-Door 4.2L 4196CC V8 GAS DOHC Supercharged
• 2008 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
• 2008 Land Rover Range Rover Supercharged Sport Utility 4-Door 4.2L 4196CC V8 GAS DOHC Supercharged
• 2008 Land Rover Range Rover Supercharged Sport Utility 4-Door 4.2L 4197CC 256Cu. In. V8 GAS DOHC Supercharged
• 2007 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
• 2007 Land Rover Range Rover Supercharged Sport Utility 4-Door 4.2L 4196CC V8 GAS DOHC Supercharged
• 2007 Land Rover Range Rover Supercharged Sport Utility 4-Door 4.2L 4197CC 256Cu. In. V8 GAS DOHC Supercharged
• 2006 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
• 2006 Land Rover Range Rover Supercharged Sport Utility 4-Door 4.2L 4196CC V8 GAS DOHC Supercharged
• 2006 Land Rover Range Rover Supercharged Sport Utility 4-Door 4.2L 4197CC 256Cu. In. V8 GAS DOHC Supercharged
• 2005 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4394CC 268Cu. In. V8 GAS DOHC Naturally Aspirated
• 2005 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4398CC V8 GAS DOHC Naturally Aspirated
• 2004 Land Rover Range Rover Base Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
• 2004 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4398CC V8 GAS DOHC Naturally Aspirated
• 2003 Land Rover Range Rover Base Sport Utility 4-Door 4.4L 4394CC V8 GAS DOHC Naturally Aspirated
• 2003 Land Rover Range Rover HSE Sport Utility 4-Door 4.4L 4398CC V8 GAS DOHC Naturally Aspirated

Part Number / PN

RNB501530, RNB501520, RNB000750, RNB000740

Important Fitment Check

Before ordering, compare the part design, dimensions, connectors, and every available OEM/P/N marking with the part installed on the vehicle. Matching OEM/P/N RNB501530 is the primary fitment check.

FAQ

How do I confirm fitment for this Air Suspension Strut Repair Kit?

Compare the exact OEM/P/N and physical design with the installed part. The primary reference is RNB501530. Do not select the part by vehicle model alone.

What symptoms may indicate a problem with this Air Suspension Strut Repair Kit?

Confirmed symptoms include vehicle takes too long to rise, air compressor cycles too frequently, air-suspension warning or fault, vehicle sags after parking. Diagnose the original assembly before ordering so another fault is not mistaken for this part.

What is included with this Air Suspension Strut Repair Kit?

The confirmed kit contents are: Repair components supplied for this SKU and shown in the product photos; no complete surrounding assembly is included.

Does this listing include the complete surrounding assembly?

Repair the compressor only after checking the air springs, lines, reservoir, and valve block for leaks. A compressor kit will not correct an external air leak.

What should be checked before installation?

Check the OEM/P/N, dimensions, connectors, orientation, and condition of the mating components. Installation should follow the correct service procedure for the specific vehicle and assembly.
