Wabco Air Suspension Compressor Repair Kit - Audi / Range Rover / BMW - 7L0616007B

This Wabco air suspension compressor repair kit is for the listed Audi, Range Rover and BMW applications. It replaces the cylinder, piston ring, desiccant and fitting components when diagnosis confirms the required compressor repair.

Applications

• Audi A6 C6.
• Audi Q7.
• Range Rover L322.
• BMW E53.
• Additional listed make contexts: Mercedes and Volkswagen - match the compressor number.

Compressor Selection

Main designation: 7L0616007B. The exact lowercase form 7l0616007b and all additional compressor references are retained below. Match the installed compressor and component design.

When to Inspect the Air Suspension

• The vehicle does not rise despite compressor operation, or rises slowly.
• The compressor starts too frequently.
• Air suspension faults appear.
• The vehicle sags after parking.
• The compressor overheats or becomes noisy.
• System pressure builds slowly.

Diagnose the compressor and air system to establish the cause before choosing the repair.

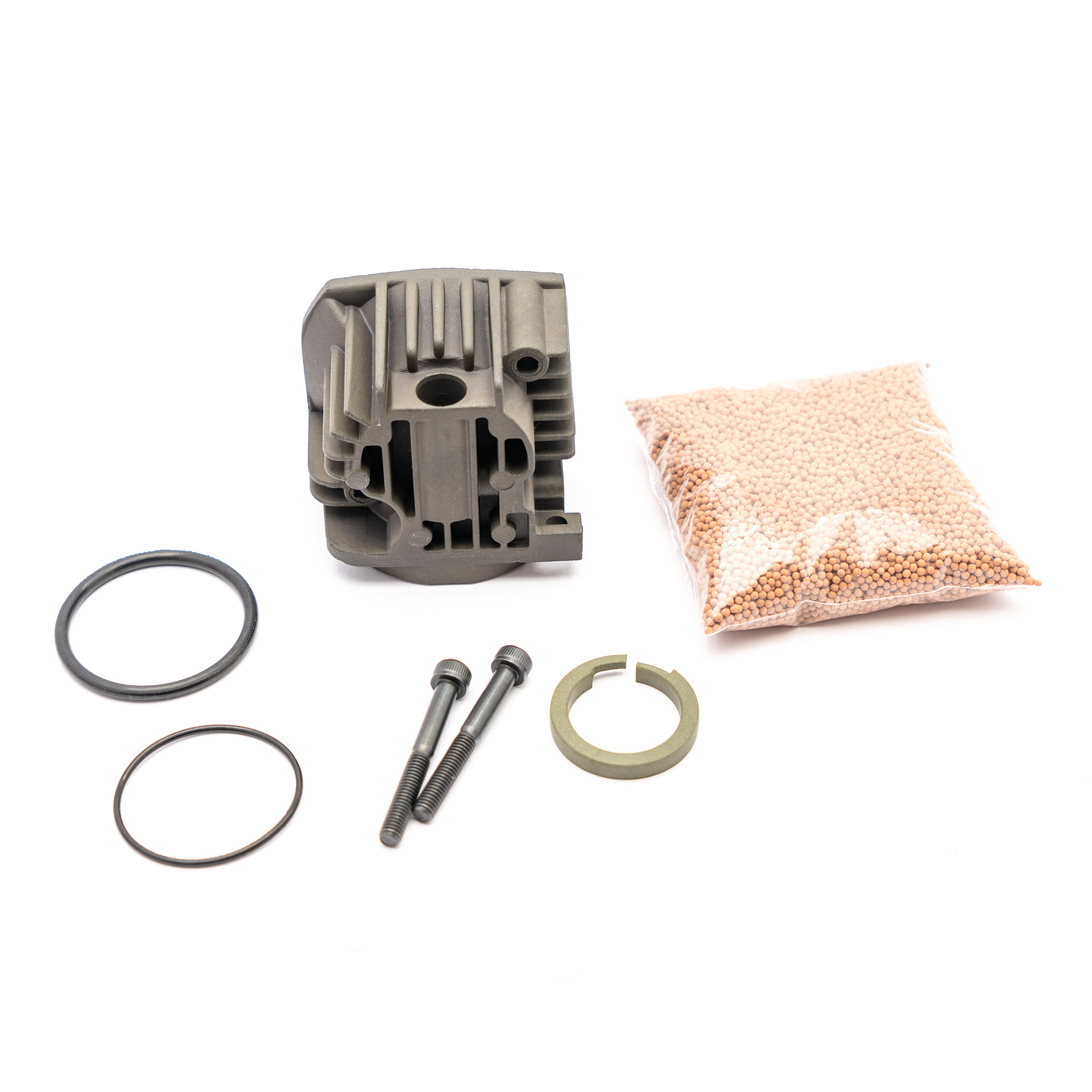

Kit Contents

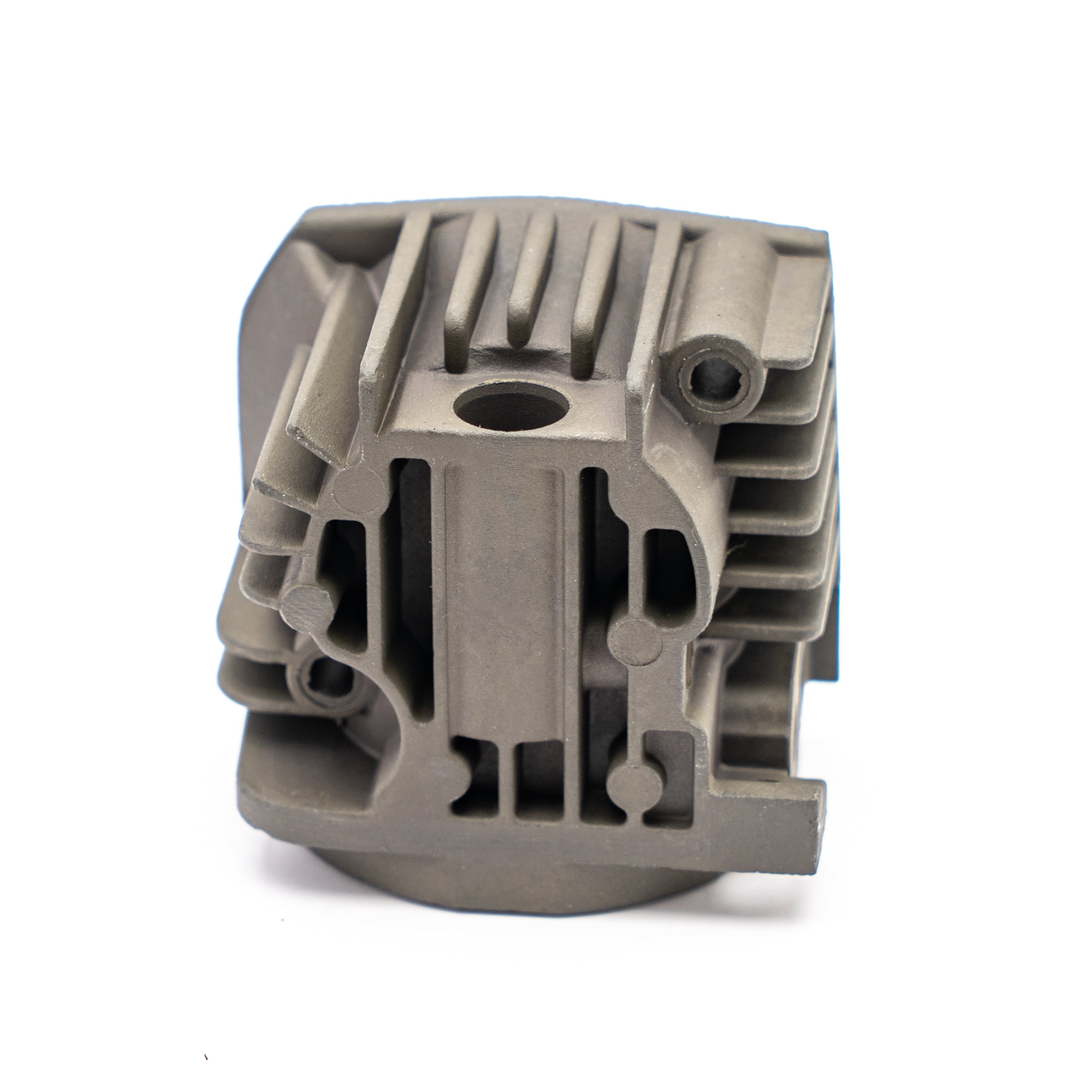

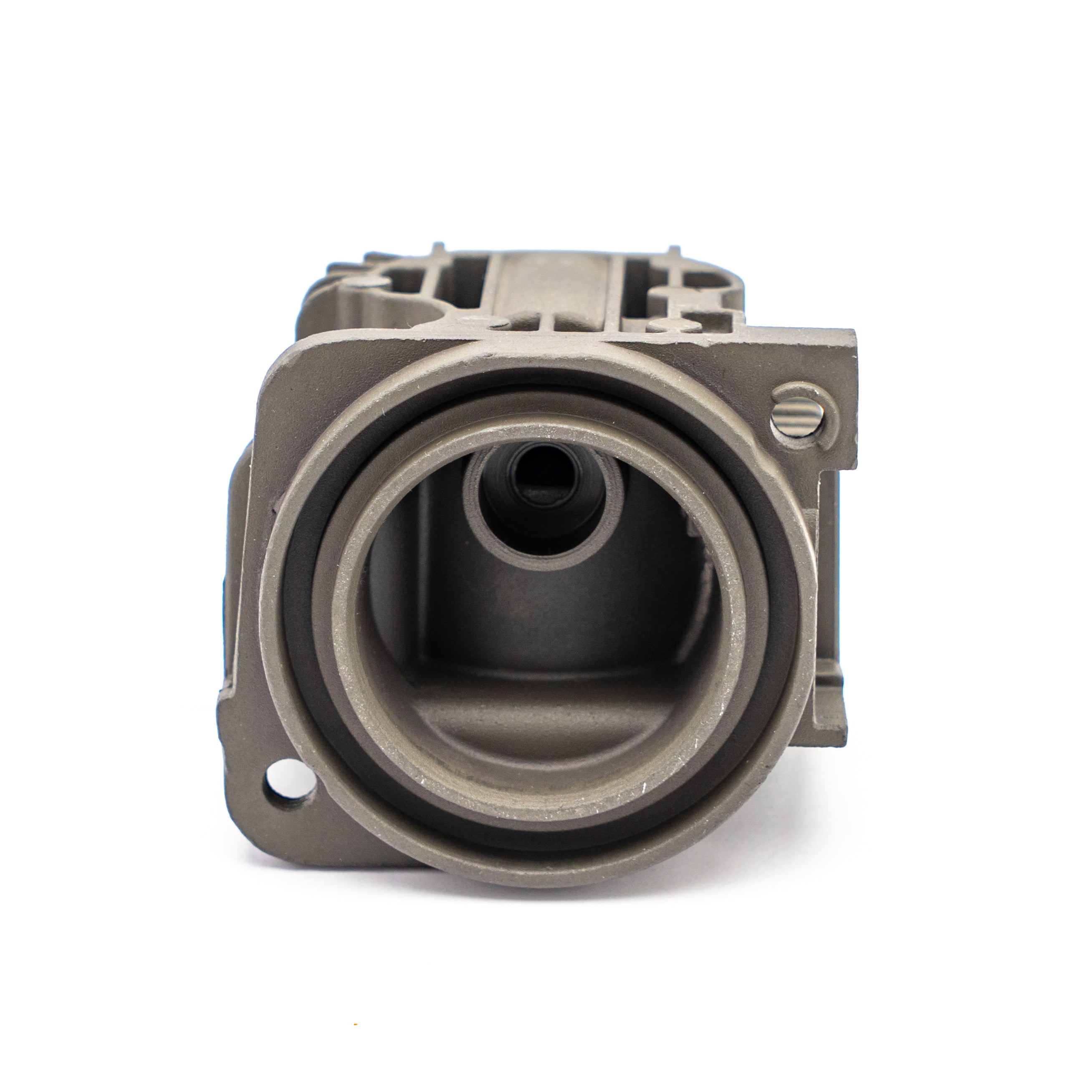

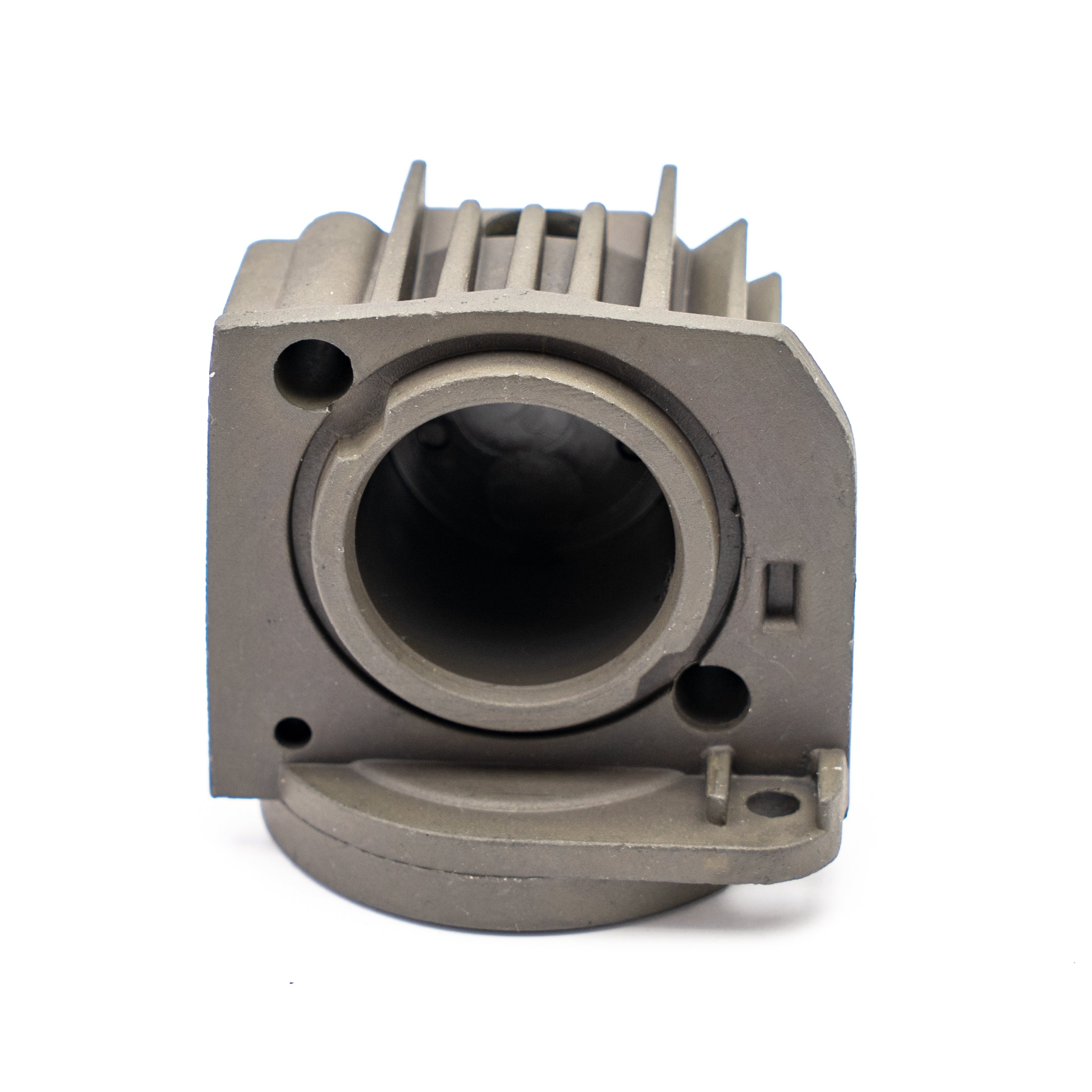

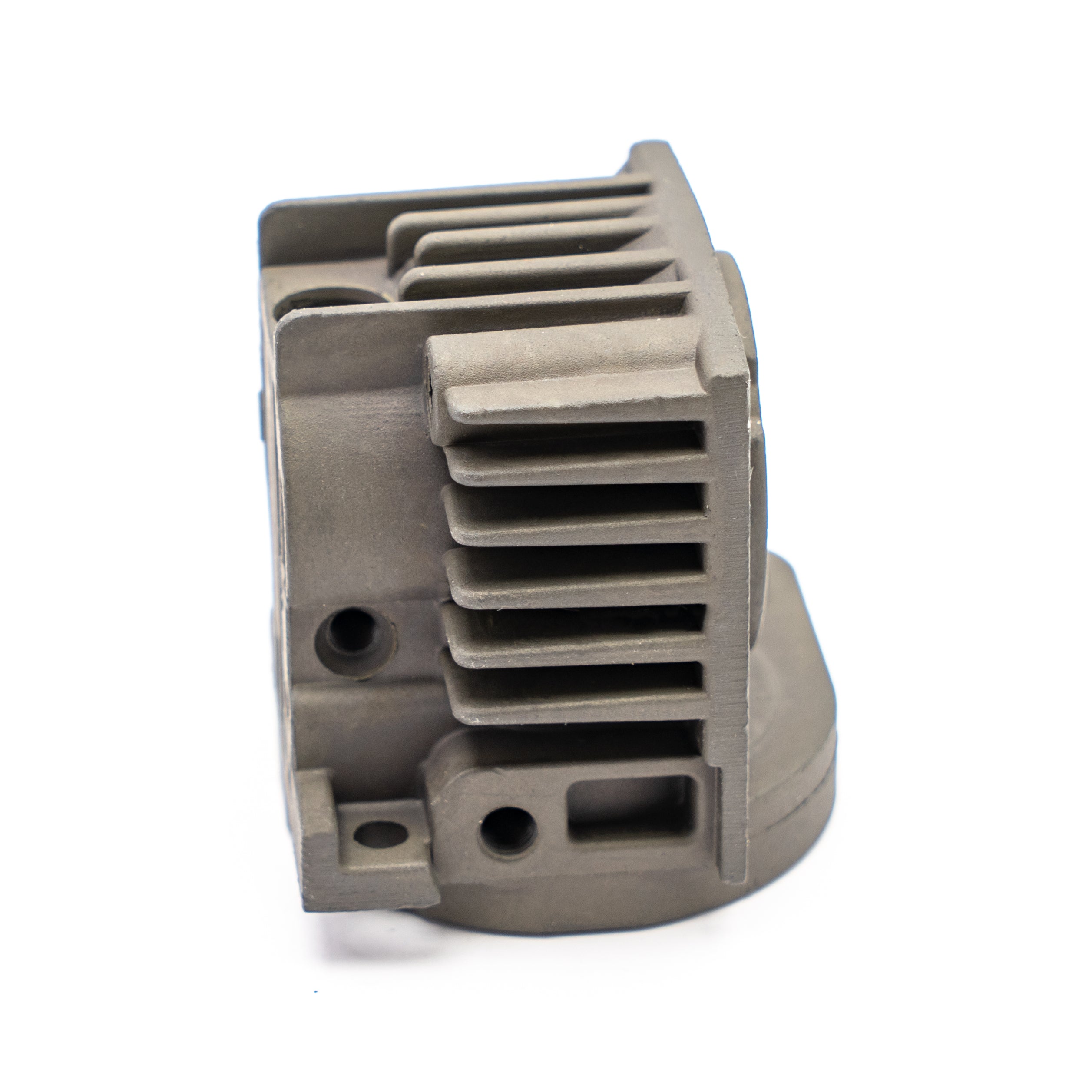

• 1 compressor cylinder.

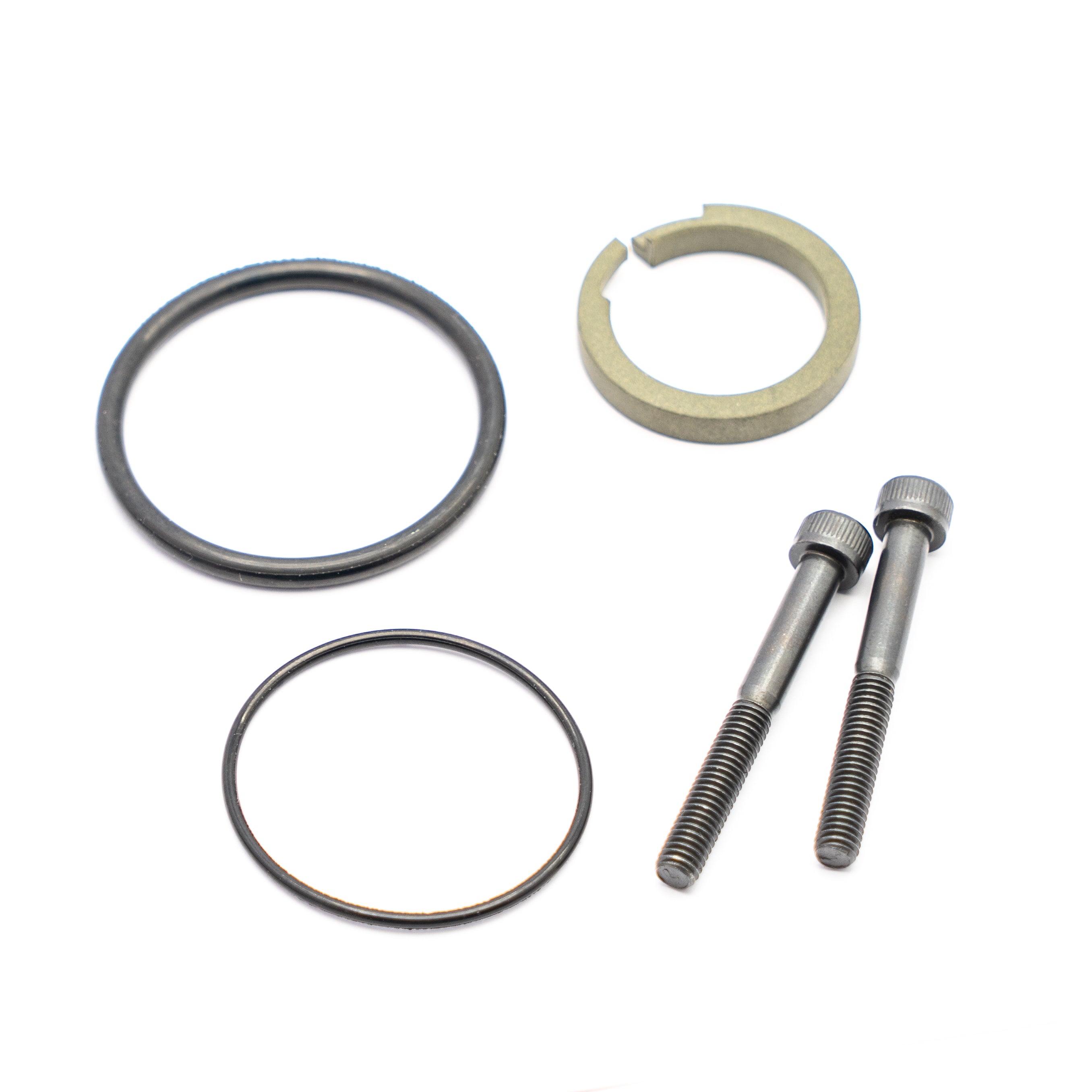

• 1 piston ring.
• 1 silica-gel desiccant portion.
• 2 bolts.
• 2 sealing rings.

Repair Scope

Check the air springs, pipes, reservoir and valve block for leaks before compressor repair. The kit repairs the listed compressor components, rather than external leaks that cause repeated compressor starts.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Is this a complete compressor?

No. It is the repair kit with the components listed above.

Will it repair a leaking air spring or pipe?

No. External system leaks require separate repair.

What determines the correct kit?

Match the original compressor number, marking and component design; the car model alone does not confirm the version.

Part Number / PN

7l0616007b,7l0616007h,7l0616007a,7l0698030,7l0616006d,7l0698007d,4154033020,7l0616007,7l8616006,95535890104,7l8616007,95535890105,95535890103,95535890102,rql000014,rql000011,rql000010,4154034040,37 22 6753864,4154031080,rqg500140,rqg500110,rqg000020,rqc000020,rqb000190,lr015089,lr010375,lr006201,415 403 300 0,4l0698007,4l0698007c,4f0616005e,4154031090,37226787617,4154031130,4154031230,4f0616005b,7l8616006f,7l8616006d,4154033040,37226779712,37226753862,37220151015,4l0698007b,10069801,6753864

SKU: KL7L0616007B.
