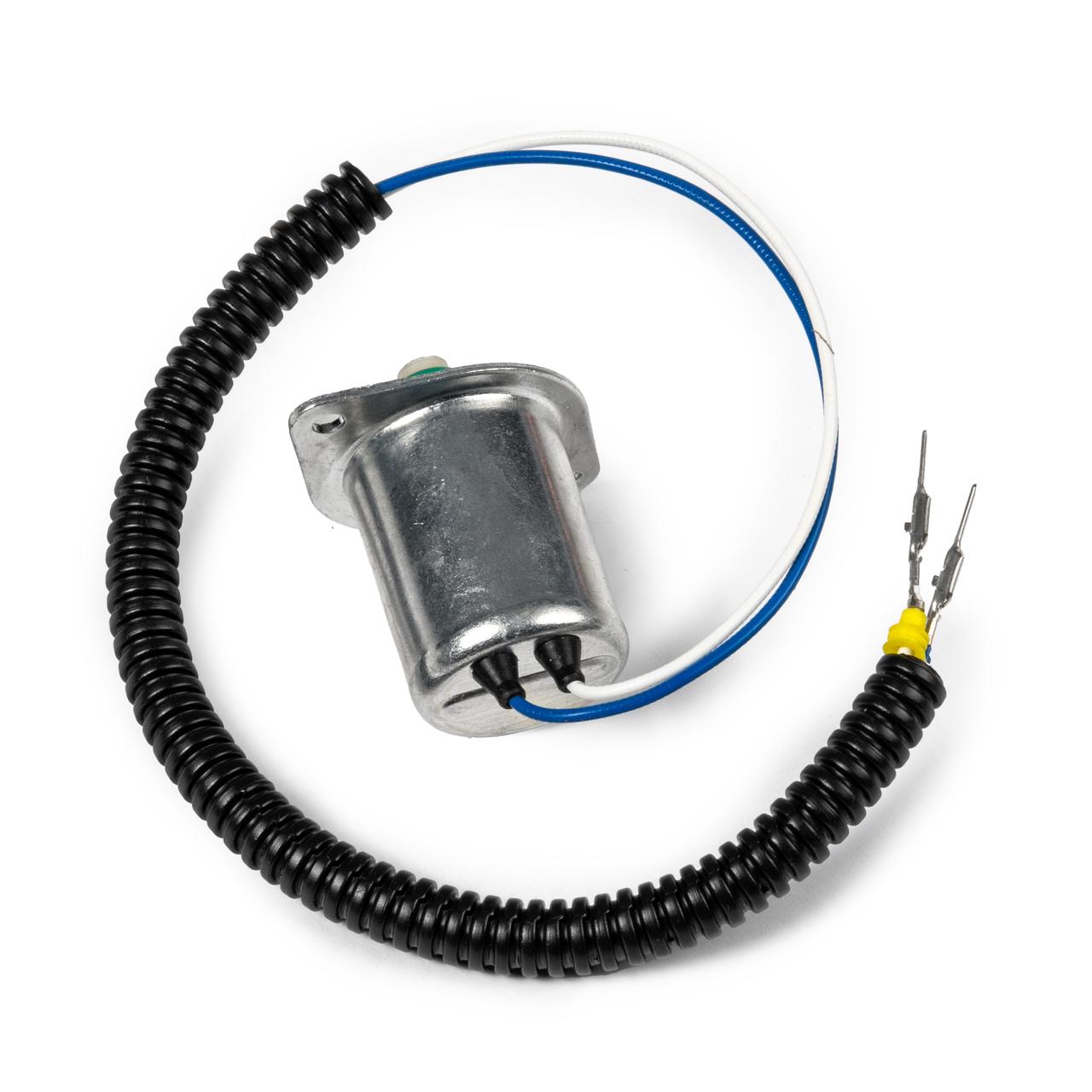

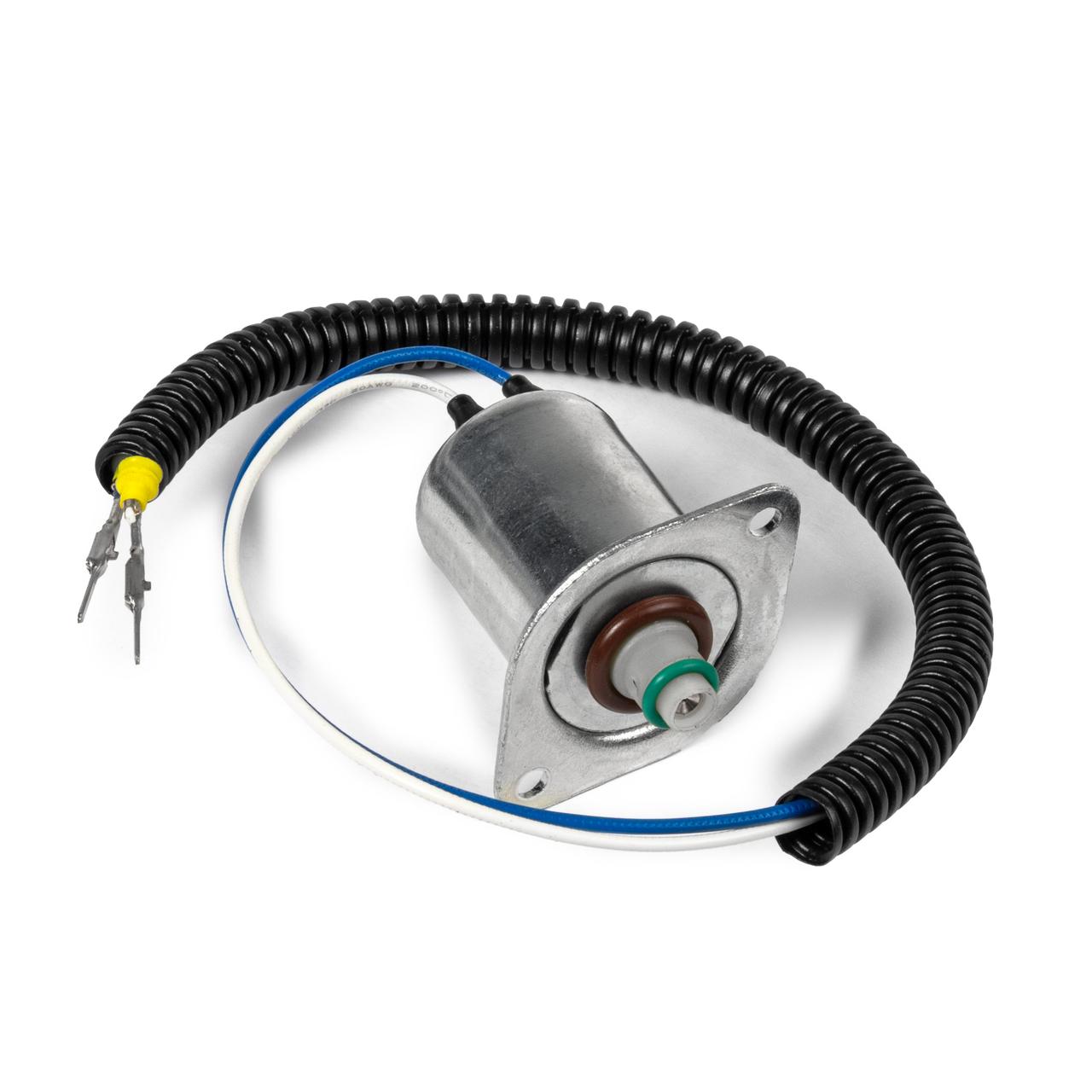

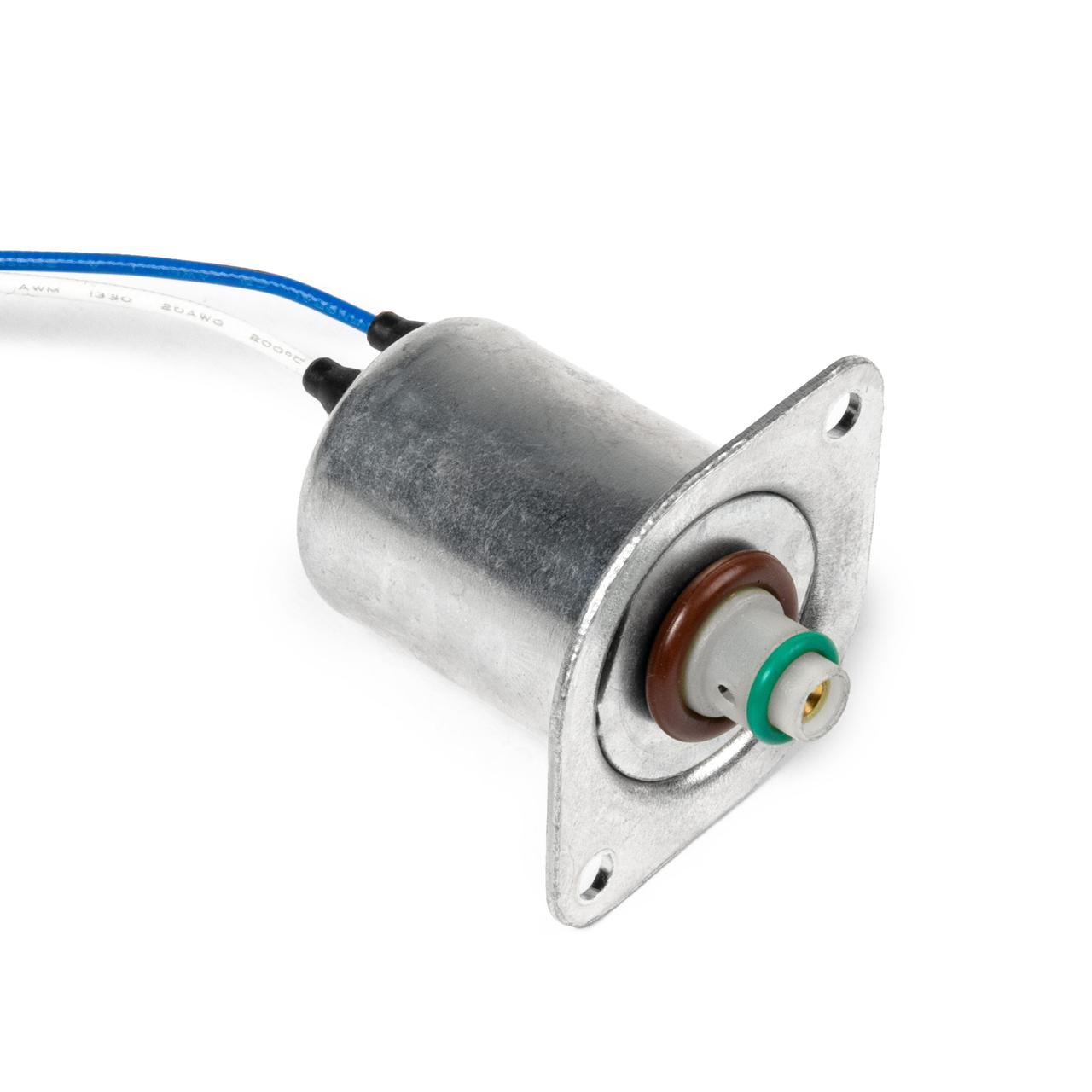

Air Release Valve - Hitachi Air Suspension Compressor - Land Rover - LR010376

This air release valve is a repair component for the Hitachi air suspension compressors used in the Land Rover and Range Rover applications below. Match the full original compressor reference and the installed valve before choosing the repair.

Applications

• Land Rover Discovery 3, 4 (L319) - 2005-2012.
• Range Rover Sport (L320) - 2005-2012.
• Range Rover Vogue (L322) - 2006-2012.
• Additional vehicle designation: Land Rover Discovery III (TAA) - 2004-2009.
• Additional vehicle designation: Land Rover Discovery IV (LA) - from 2009.
• Additional vehicle designation: Land Rover Range Rover Sport (LS) - 2005-2013.

When to Inspect the Air Suspension

• The vehicle rises slowly after starting.
• The compressor runs too often.
• Air suspension faults appear.
• The vehicle sags after parking.
• The compressor overheats or is noisy.
• Pressure builds slowly.

Diagnose the affected compressor and complete air suspension system before repair.

Repair Limits and External Leaks

Check for leaks in the air springs, pipes, reservoir and valve block. Repairing the compressor component will not fix an external system leak that causes frequent compressor starts.

Compressor and Valve Selection

Valve selection reference: LR010376. Compare the complete original Hitachi compressor number, valve shape and mounting. The reference forms below include full compressor numbers, related references and shortened markings; use the full installed number for selection.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Is this a complete compressor?

No. It is the air release valve for the listed Hitachi compressor applications.

Does the vehicle model alone confirm fitment?

No. Match the complete original compressor number and valve design.

Part Number / PN

LR061663,LR045444,LR038148,LR044016,LR012800,LR045251,LR015303,LR037065,LR023964,LR010376,LR025111,LR041777,LR044360,LR010375,LR015089,LR011837,LR032902,RQG500017,RQG500018,RQG500019,RQG500040,RQG500041,RQG500060,RQG500061,RQG500062,RQG500070,RQG500071,RQG500072,RQG500080,RQG500090,RQG500100,RQG500110,RQG500130,RQG500140,RQG500150,RQG500160,LR072537,LR069691,RQG500016,LR038118,LR061888,6H22-19G525-BF,6H22-19G525-ad,rqg500120,RQL500050,072537,061888,061663,045444,038148,044016,012800,045251,015303,037065,023964,010376,025111,044360,010375,015089,011837,032902,19G525

SKU: KLLR010376.
