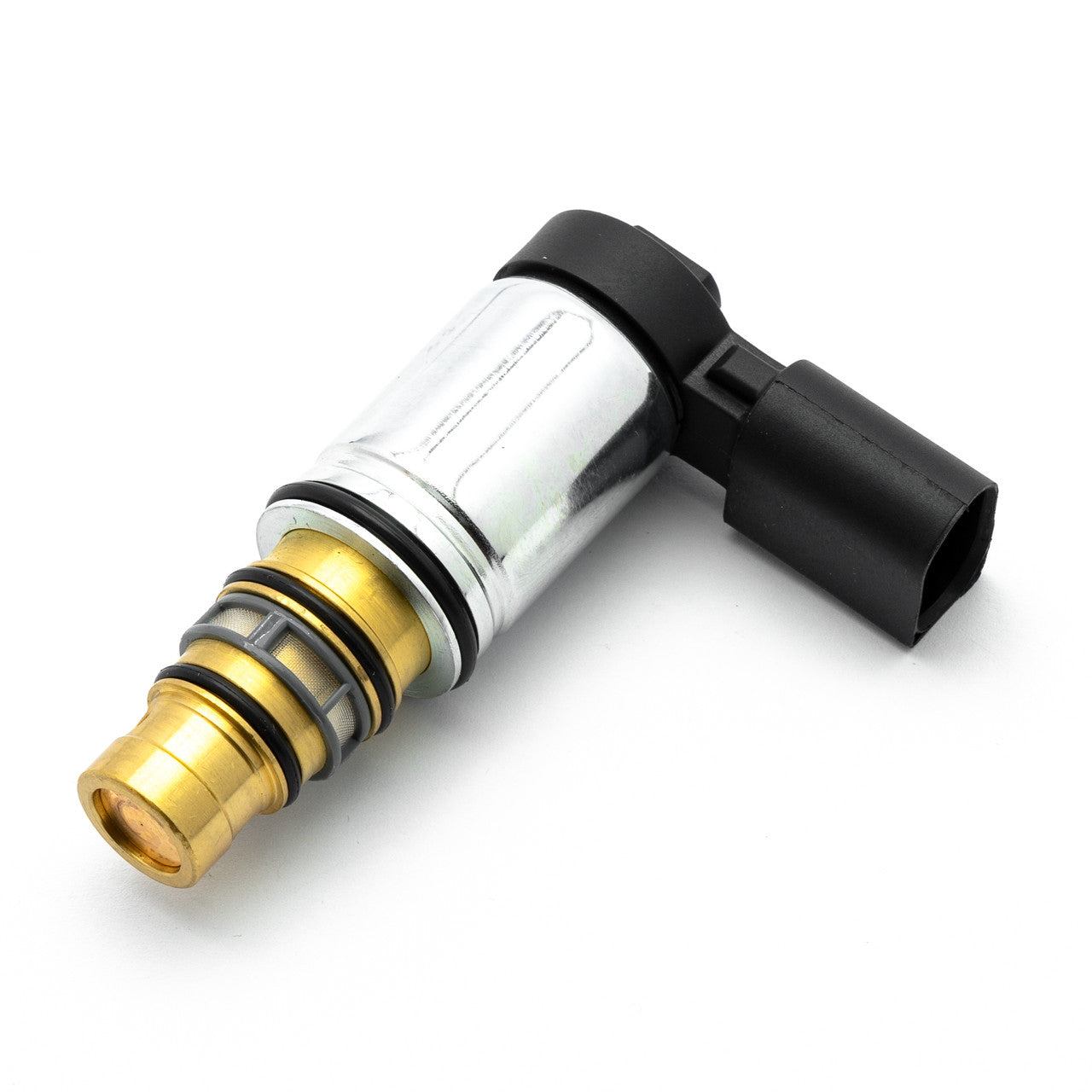

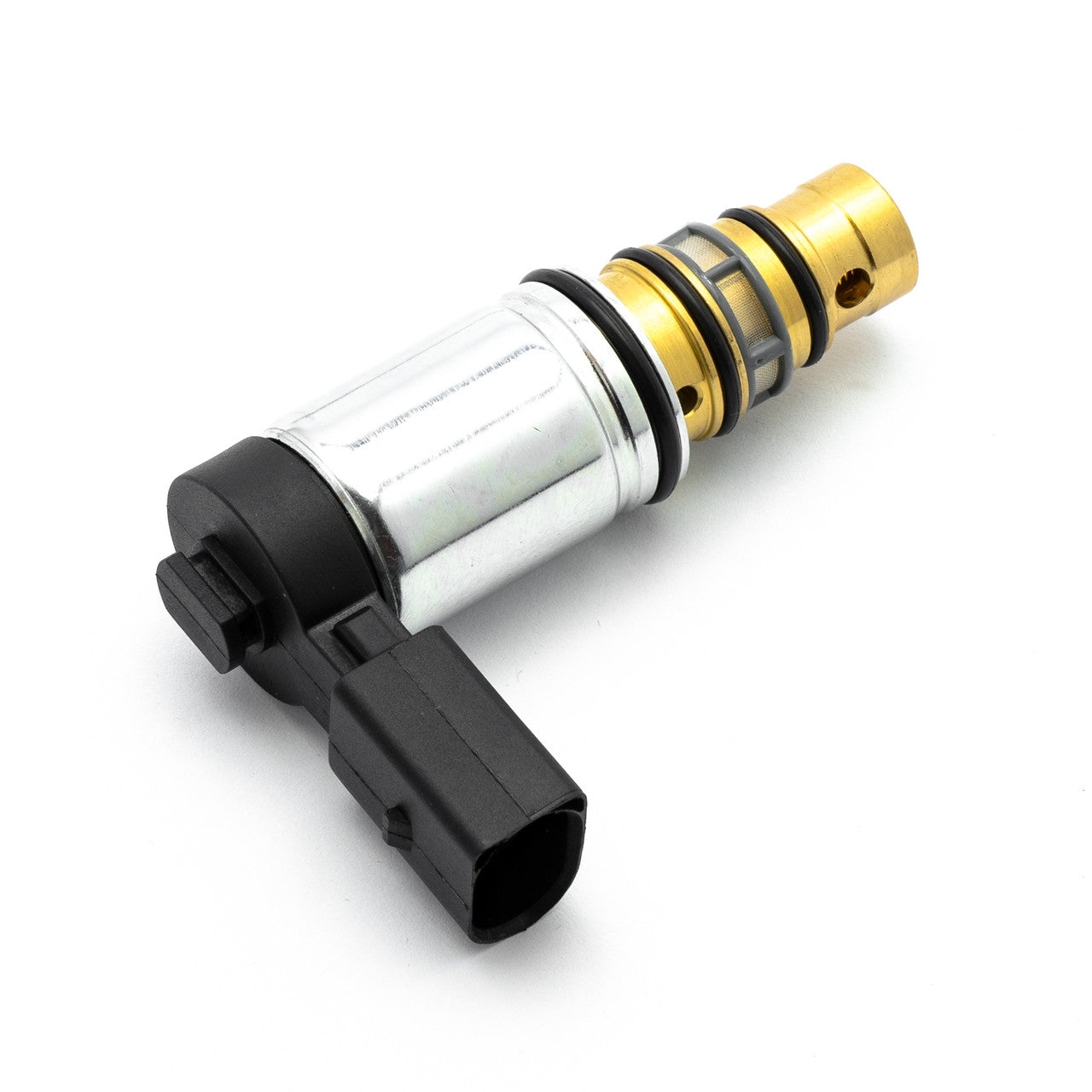

A/C Compressor Control Valve - PXE16 - Reference 1K0808820

This control valve regulates the A/C compressor on matching PXE16 assemblies. Select it by the original valve appearance and complete compressor marking; the application list is for guidance only.

Applications

• AUDI A3
• VOLKSWAGEN GOLF
• VOLKSWAGEN GTI
• VOLKSWAGEN JETTA
• VOLKSWAGEN PASSAT
• VOLKSWAGEN TIGUAN
• Volkswagen Touran

Compressor and Valve Design

Compressor type: PXE16. Additional reference strings: 4568, 4569, 4571, 4572, 4573, 4574, 8675, 8676, 8680, EX019, B01HC6GZSK, RKX, 1K0 820 808, EV-019 and 5Q0 816 193. Match the full installed marking and valve appearance; short or unclassified strings alone do not establish fitment.

When to Inspect the A/C System

• Intermittent, absent, partial or slow cooling.
• Weak cabin cooling, including after refrigerant charging.
• Unstable A/C pressure.
• Incorrect compressor operation.
• Compressor or control-valve faults.

Confirm the cause by diagnosis. Check compressor marking, valve shape, connector condition and system pressure. Contamination or low refrigerant can require another repair; valve replacement is appropriate only if the mechanical compressor is serviceable and the valve fault is confirmed.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which compressor types are listed?

PXE16.

How should I select the valve?

Compare the original valve appearance, compressor marking and complete reference, including the connector design.

Is this the entire compressor?

No. This product is the control valve; confirm its fault and inspect the A/C system before replacement.

Part Number / PN

1K0808820,5Q0816193,1K0260839,1K0820803S,1K820859F,1K0260859F,1K0820803E,1K0820803F,1K0820803G,1K0820803H,1K0820803J,1K0820803K,1K0820803L,1K0820803N,1K0820803P,1K0820803T,1K0820808A,1K0820859C,1K0820859D,1K0820859E,1K0820859F,1K0820859H,1K0820859M,1K0820859P,1K0820859Q

SKU: KLKH24.

• Volkswagen
• Audi
