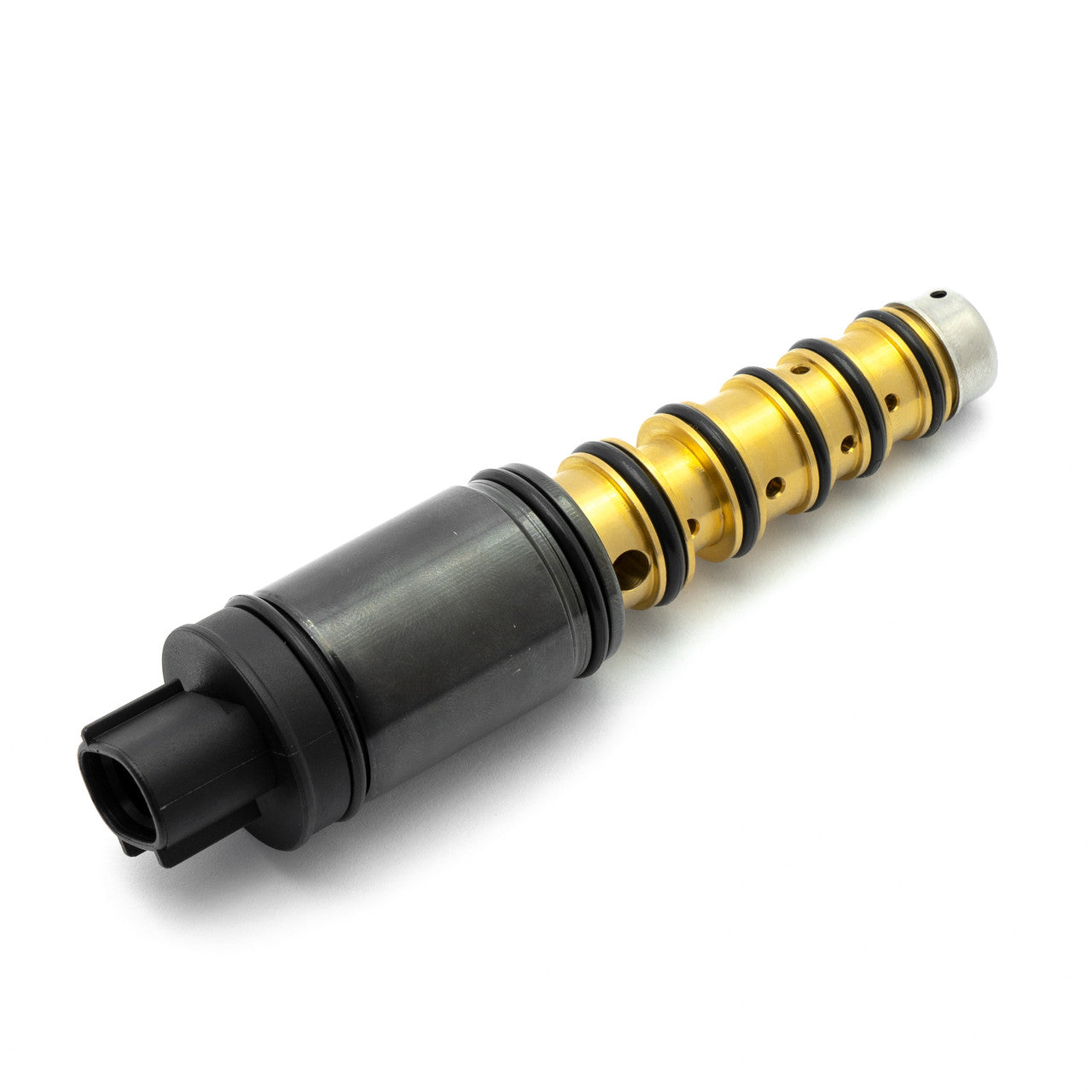

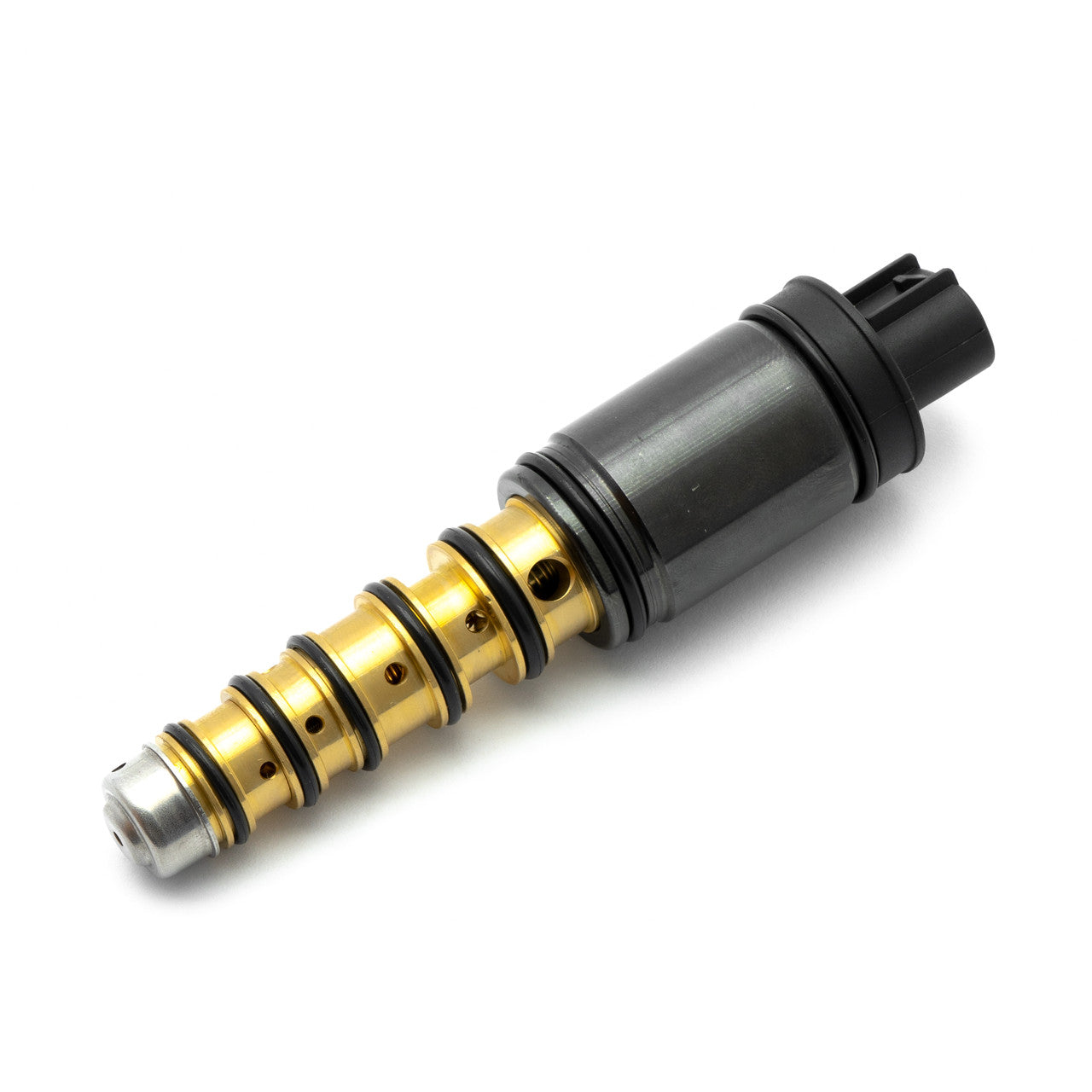

A/C Compressor Control Valve - Denso 7SEH17C - Reference 447260-1105

This control valve regulates the A/C compressor on matching Denso 7SEH17C, 6SEU16C and 6SEU14C assemblies. Compare the original valve appearance and compressor marking; the vehicle application list is a selection guide only.

Applications

• Toyota Highlander 2.7L 2009-2013
• Toyota Venza 2.7L 2009-2015
• Toyota Venza 3.5L 2009-2013
• Toyota Corolla 1.8, 2.4L 2009-2010
• Toyota Matrix 2.4L 2009-2012
• Toyota RAV4 2.4L 2006-2008
• Toyota Camry 2.4L 2007-2009
• Toyota Sienna 3.5L 2007-2010
• Scion xB all 2008-2014
• Scion xD all 2008-2014
• Lexus ES350 all 2007-2012
• Lexus GS460 4.6L 2008-2011
• Lexus LS460 4.6L 2007-2015
• Lexus IS-F 5.0L 2008-2014
• Dodge / Chrysler Dodge Avenger 2.4L 2008-2014
• Dodge / Chrysler Journey 2.4L 2009-2014
• Dodge / Chrysler Caliber 2.0L 2009-2012
• Dodge / Chrysler Caliber 2.4L 2009-2012
• Dodge / Chrysler 200 2.4L 2011-2014

Compressor and Valve Selection

Compare Denso 7SEH17C, 6SEU16C and 6SEU14C markings, the valve appearance and connector condition. Additional reference strings 7SBH17C, 6SBU16C, 447260, CG447260 and CG447190 remain in the reference list; compare the complete installed marking rather than selecting by a short string alone.

When to Inspect the A/C System

• Intermittent, absent, partial or slow cooling.
• Weak cabin cooling, including after refrigerant charging.
• Unstable A/C pressure.
• Incorrect compressor operation.
• Compressor or control-valve faults.

Confirm the cause by diagnosis. Check compressor marking, valve shape, connector condition and system pressure. Contamination or low refrigerant can require another repair; valve replacement is appropriate only if the mechanical compressor is serviceable and the valve fault is confirmed.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Can I select by vehicle model alone?

No. Compare valve appearance, compressor marking and complete reference.

Is this a complete compressor?

No. It is the compressor control valve.

Will a valve fix low refrigerant or system contamination?

Not by itself. Diagnose pressure, refrigerant condition and compressor operation before replacement.

Part Number / PN

7SEH17C,6SEU16C,6SEU14C,447260-1106,447260-1117,447260-1102,447260-1292,CG447260-2352,682-50359,447260-1494,CG447190-6854,CG447190-6850,CG447260-1207,CG447260-1206,447260-1496,447260-1218,8832048280,447260,CG447260,CG447190,447260-1105,7SBH17C,6SBU16C

SKU: KLKH18.
