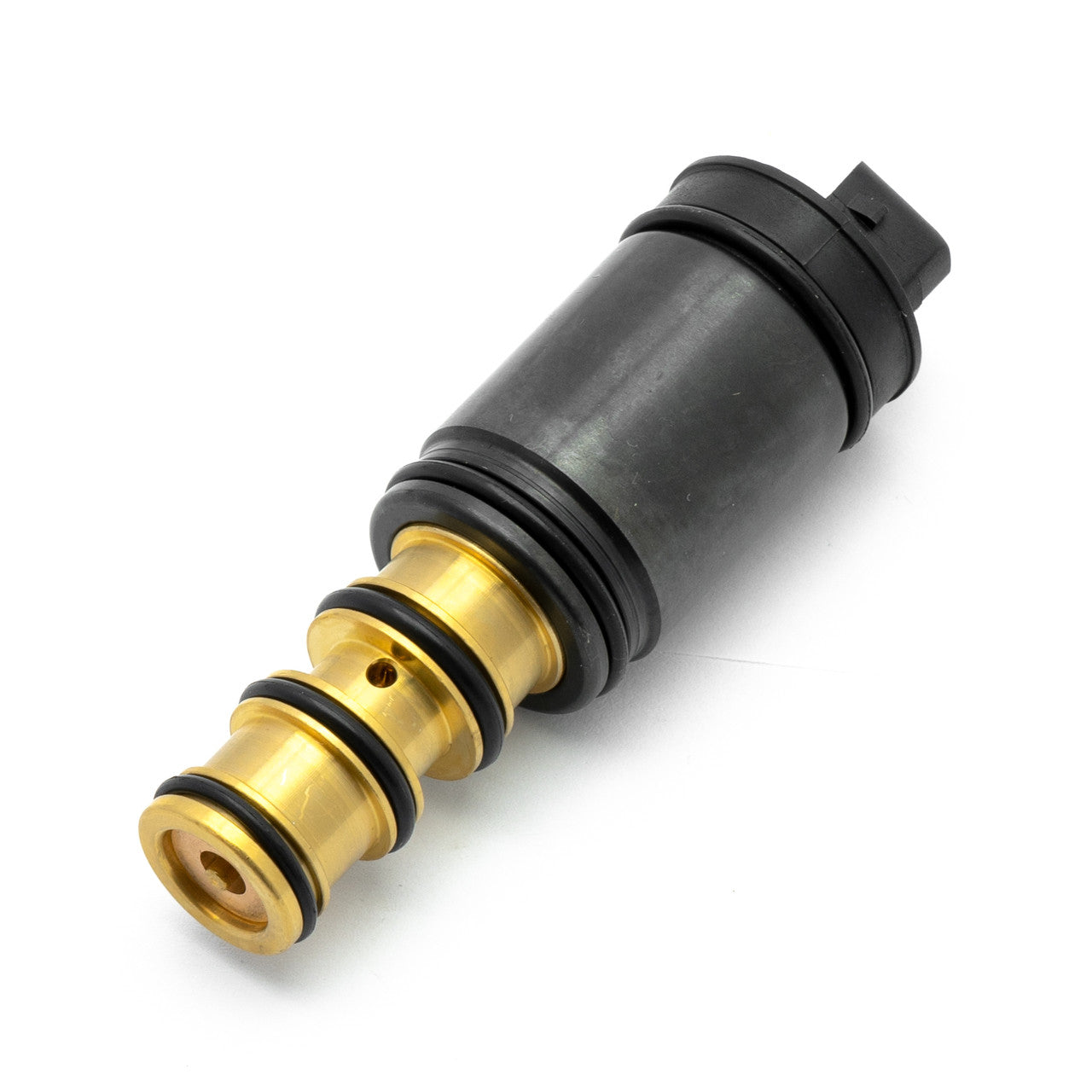

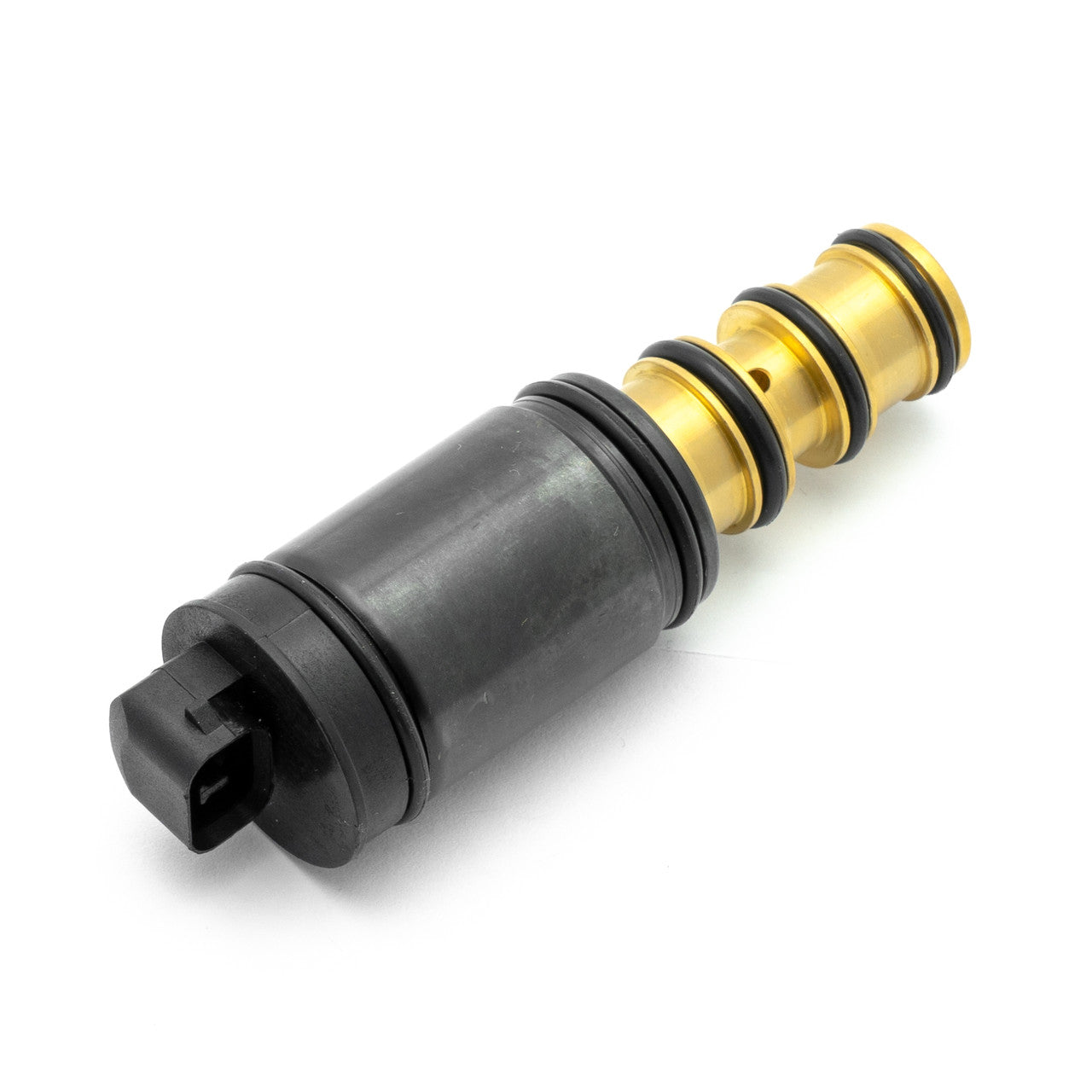

This control valve regulates the A/C compressor on matching Denso assemblies. Select it by the original valve appearance and complete compressor marking; the application list is for guidance only.
Applications
- Dodge Caliber 1.8L 2.0L 2.4L 2007-2008
- Jeep Compass 2.0L 2.4L 2007-2008
- Jeep Patriot 2.0L 2.4L 2007-2008
- Lexus GS300 3.0L 2006
- Lexus GS350 3.5L 2007-2015
- Lexus IS250 2.5L 2006-2015
- Lexus IS350 3.5L 2006-2015
- Lexus RX350 3.5L 2007-2012
- Pontiac Vibe 1.8L 2009-2010
- Scion xB 2.4L 2008-2014
- Scion xD 1.8L 2008-2014
- Toyota Avalon 3.5L 2005-2015
- Toyota Camry 2.4L 3.5L 2005-2007
- Toyota Corolla 1.8L 2.4L 2009-2015
- Toyota Matrix 1.8L 2.4L 2009-2015
- Toyota Yaris 1.5L 2006-2017

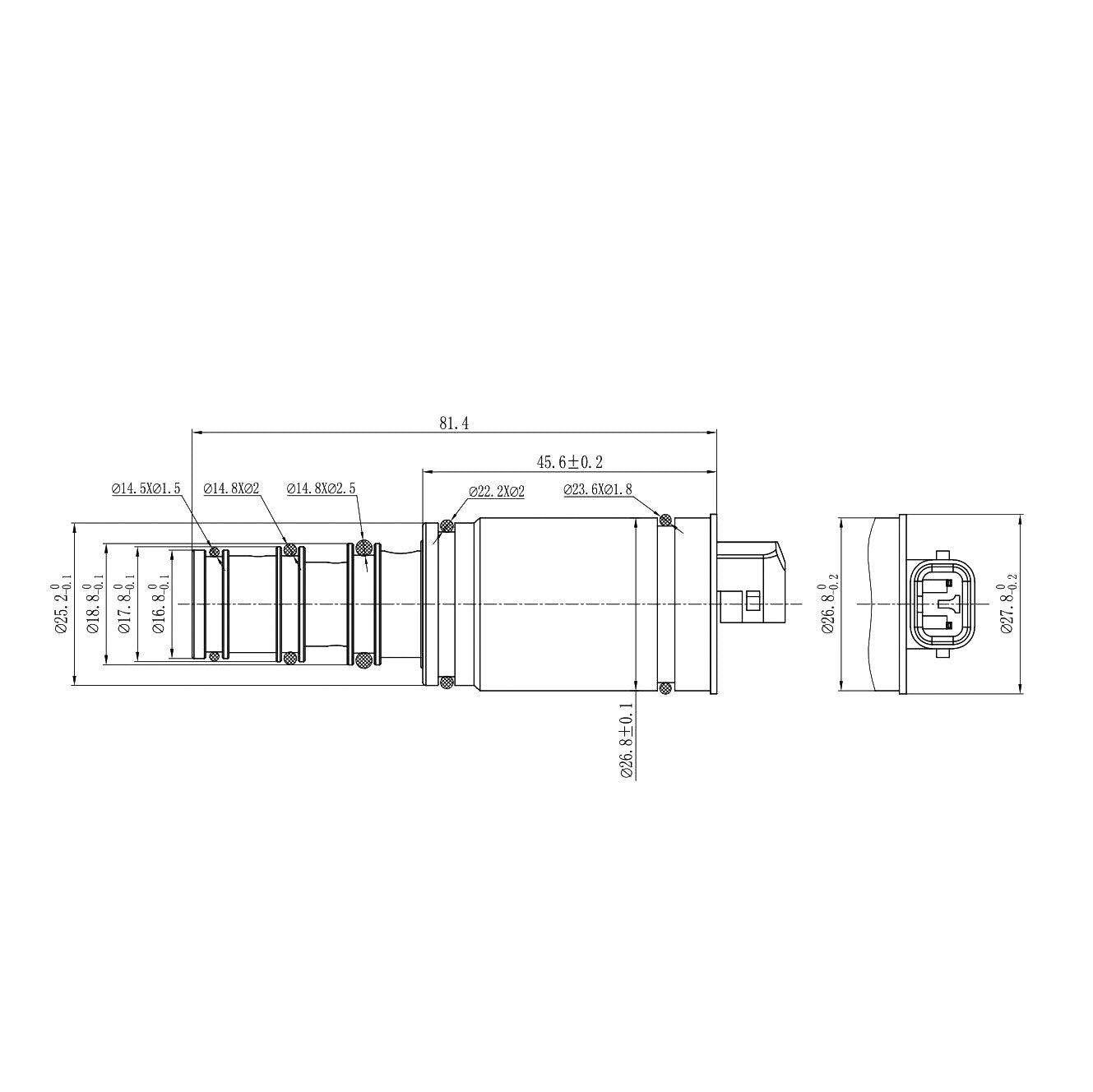

Compressor and Valve Design
Denso compressor types: 5SE09C, 5SE12C and 5TSE10C. Connector angle: 90 degrees. References: 447260-4201 and 4472604202; 447260 is an additional short reference. Match the full compressor marking, connector and valve appearance.
When to Inspect the A/C System
- Intermittent, absent, partial or slow cooling.
- Weak cabin cooling, including after refrigerant charging.
- Unstable A/C pressure.
- Incorrect compressor operation.
- Compressor or control-valve faults.
Confirm the cause by diagnosis. Check compressor marking, valve shape, connector condition and system pressure. Contamination or low refrigerant can require another repair; valve replacement is appropriate only if the mechanical compressor is serviceable and the valve fault is confirmed.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
Which compressor types are listed?
5SE09C / 5SE12C / 5TSE10C.
How should I select the valve?
Compare the original valve appearance, compressor marking and complete reference, including the connector design.
Is this the entire compressor?
No. This product is the control valve; confirm its fault and inspect the A/C system before replacement.
Part Number / PN
5SE09C,5SE12C,5TSE10C,4472604202,447260,447260-4201
SKU: KLKH16.
