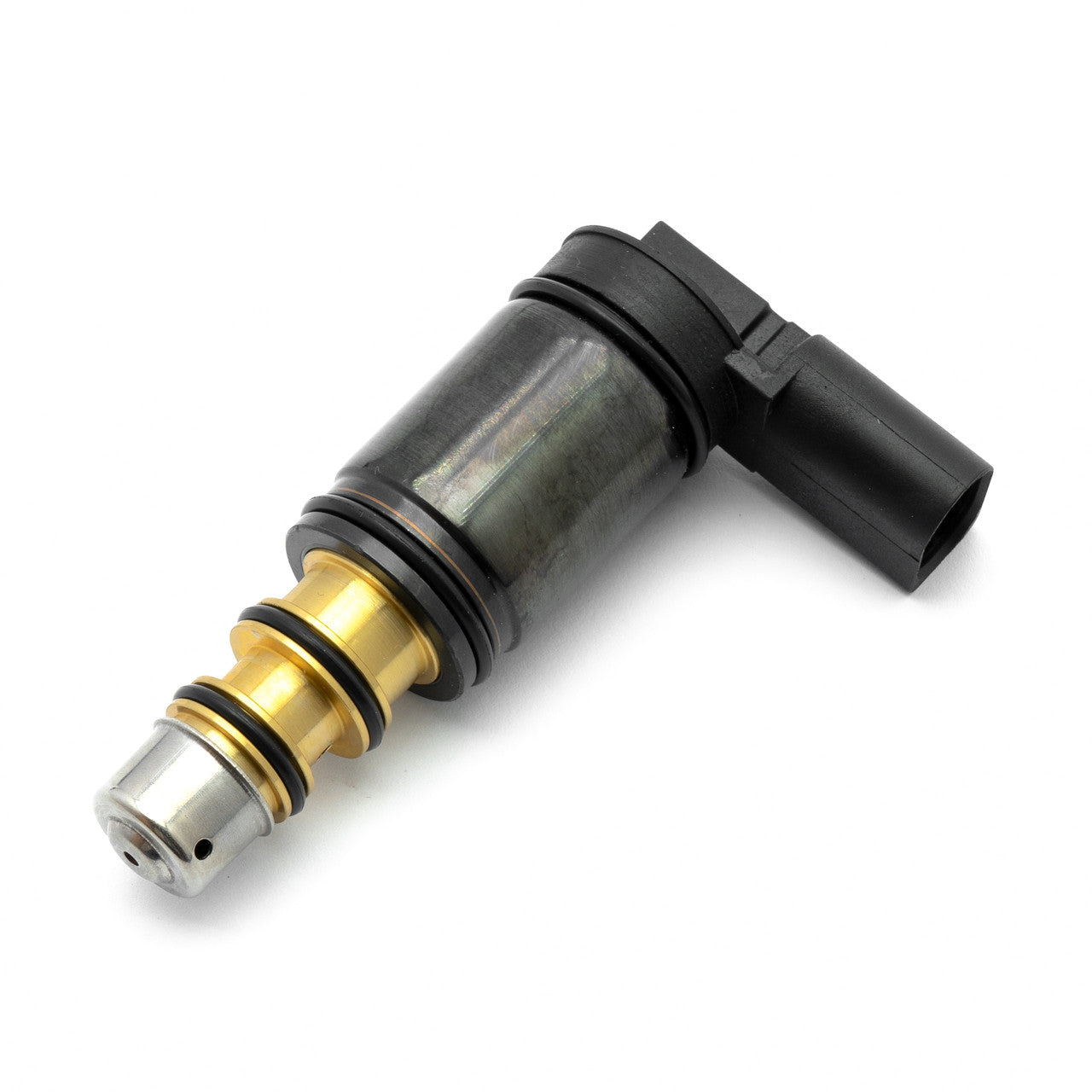

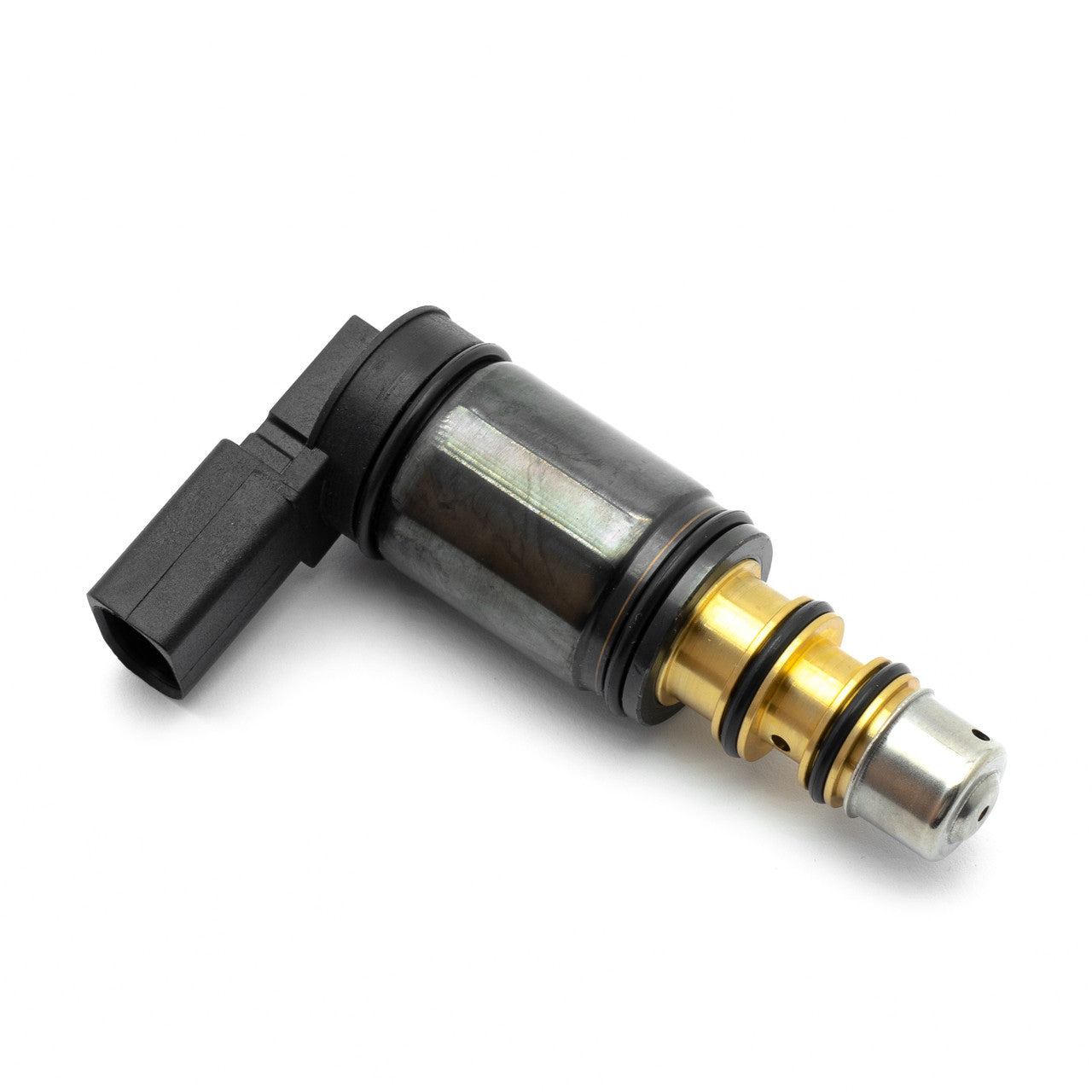

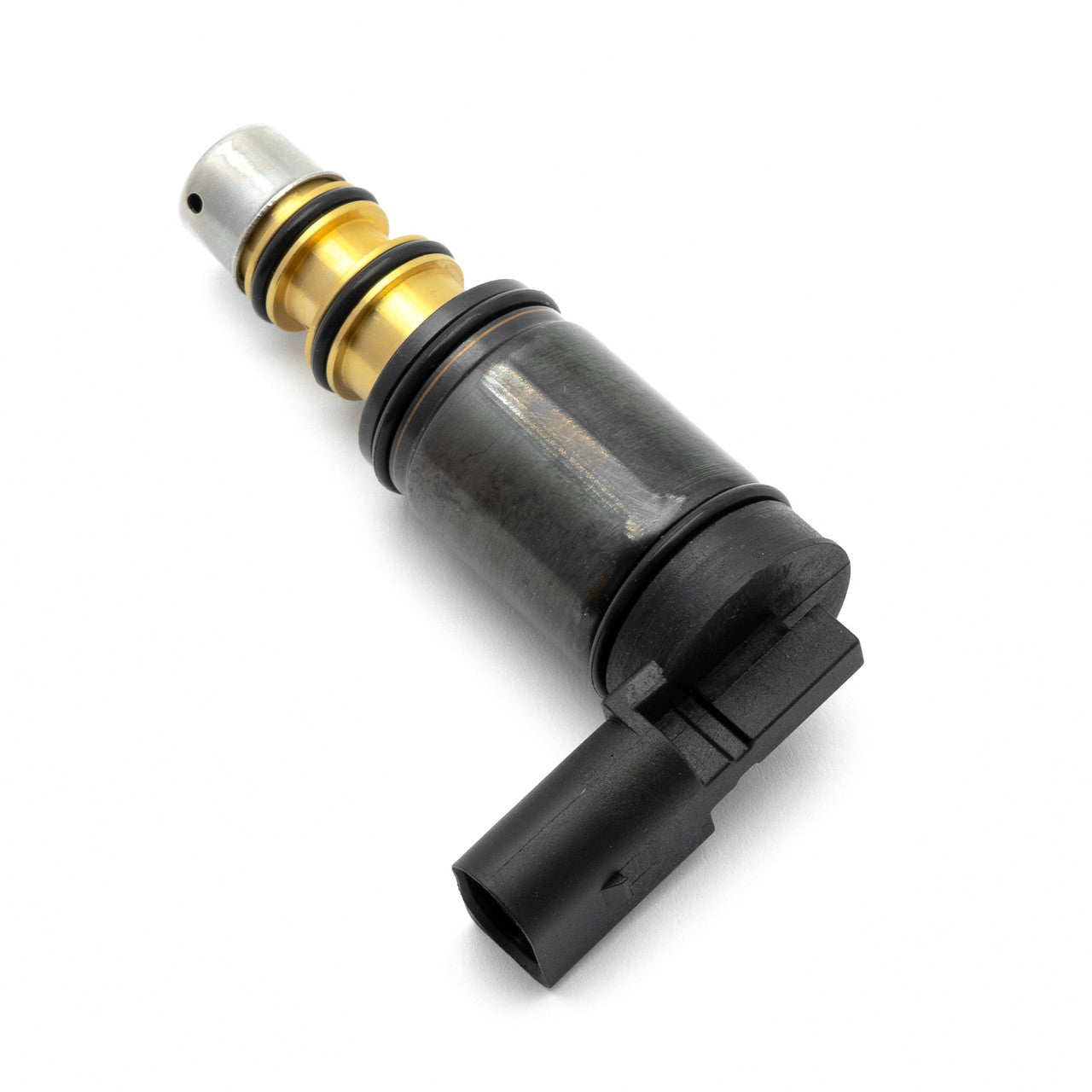

This control valve regulates the A/C compressor on matching Denso assemblies. Select it by the original valve appearance and complete compressor marking; the application list is for guidance only.
Applications
- AUDI A3
- AUDI A4
- VOLKSWAGEN GOLF
- VOLKSWAGEN GTI
- VOLKSWAGEN JETTA
- VOLKSWAGEN PASSAT
- Volkswagen Tiguan
Compressor and Valve Design
Denso compressor types: 6SEU14C and 7SEU16C. Additional exact reference forms: 5q0 820 803, 1K0 820 859S and 5q0 820 803f. Compare all reference forms below and the valve appearance.
When to Inspect the A/C System
- Intermittent, absent, partial or slow cooling.
- Weak cabin cooling, including after refrigerant charging.
- Unstable A/C pressure.
- Incorrect compressor operation.
- Compressor or control-valve faults.
Confirm the cause by diagnosis. Check compressor marking, valve shape, connector condition and system pressure. Contamination or low refrigerant can require another repair; valve replacement is appropriate only if the mechanical compressor is serviceable and the valve fault is confirmed.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
Which compressor types are listed?
6SEU14C / 7SEU16C.
How should I select the valve?
Compare the original valve appearance, compressor marking and complete reference, including the connector design.
Is this the entire compressor?
No. This product is the control valve; confirm its fault and inspect the A/C system before replacement.
Part Number / PN
6SEU14C,7SEU16C,5q0820803,1K0820859S,5q0820803f,1K0260859F,1K0820808AX,1K0820859E,1K0820859J,K0820859M,1K0820859P,1K0820859T,2E0820803C,2E0820803D,4F0260805AE,4F0260805AL,4F0260805AN,4F0260805AP,4F0260805T,5C082080,5K0820803GX,5Q0820803L,8E0260805CB,8K0260805E,8W5820803A,45162
SKU: KLKH11.
