Gaskets and seals in BMWs serve to precisely separate working environments: lubricants, coolants, exhaust gases, and charged air. Unlike many other brands, BMW engines have complex housing assemblies and precise tolerances, which means that the quality of the sealing elements determines not only the tightness but also the service life of the entire unit.
All modern BMW M-, N-, and B-series engines operate at elevated temperatures: 105–115°C stable operating point (source: BMW TIS). Under such conditions, low-quality materials quickly harden, lose elasticity, and delaminate. Gaskets perform the following functions:
- block the flow of oil between covers, channels, and housings;
- prevent antifreeze leakage under pressure;
- seal the intake for accurate air metering and correct MAF/MAP operation;
- ensure stable pressure in the crankcase;
- prevent air from being sucked into the vacuum circuits.
In BMWs, even a small leak can have a serious effect: mixture depletion, detonation, compression drop, incorrect lambda signal correction, increased pressure in the crankcase, oil leakage onto hot parts of the turbine. All this leads to expensive repairs.
Typical causes of gasket failure in BMW cars
All causes are related to temperature, material aging, and pressure. For BMWs, they are exacerbated by design features:
- High engine operating temperature (clearly regulated by a thermostat at 105–112°C).
- Aluminum blocks and cylinder heads that change geometry when heated.
- Thin composite valve covers that deform with age.
- Complex intake and crankcase ventilation, where even a micro-leak changes the operation of the entire system.
- Constant contact with aggressive substances — oil, antifreeze, gasoline vapors.
The most common problems faced by BMW owners:
- Oil leak from under the valve cover gasket (common for N42, N46, N52).
- Air suction under the intake manifold (common problem for M54, M52TU).
- Oil seepage on the filter reduction valve housing (especially on N52/N53).
- Antifreeze leakage from under the water pump or thermostat.
- Oil leaking from under the oil pan.
- Crankcase ventilation valve leak due to worn seal.
Each of these cases requires high-quality gaskets, not random cheap copies that wear out in six months.

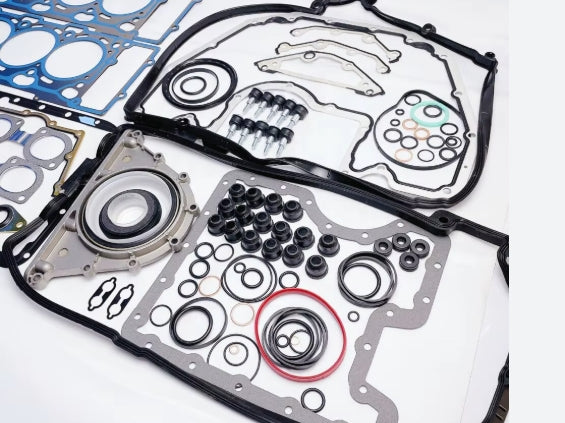

Types of gaskets and seals used in BMW
We have tried to cover the most common repair kits used by BMW owners.
BMW oil filter and cup repair kit
This is one of the most common gasket repair kits for BMW. The oil pan is a complex assembly with oil and cooling channels, so the gasket between the housing and the block is thermally loaded and wears out quickly.
Signs of oil filter housing and gasket failure in BMW:
- oil leaks onto the generator (critical for safety);
- there is an oil smell under the hood;
- the engine is wet in the area of the oil pan.
A high-quality BMW oil filter housing and gasket repair kit includes:
- cup housing gasket (Viton/FKM);
- heat exchanger gasket (if installed);
- filter element seal.
Klifex uses seals with increased heat resistance that can withstand 150°C without deformation (the original rubber begins to harden after 80–90 thousand km).
BMW water pump gaskets
On BMW engines, the water pump is secured to the block with four bolts and has a round or oval gasket. It dries out due to constant contact with antifreeze.
Common symptoms of a damaged BMW water pump gasket:
- loss of antifreeze from under the pump bolts;
- traces of crystallization on the housing;
- smell of antifreeze after driving;
- increase in operating temperature.
The water pump gasket repair kit should include the main pump gasket, flange seals, and pipe ring. Klifex makes them from stable EPDM, which is not destroyed by G11/G12/G13 antifreeze.
BMW intake manifold repair kit
BMWs are very sensitive to air suction in the intake. Manifold leak = incorrect mixture = unstable idle = P0171/P0174 errors = increased fuel consumption.
The BMW intake manifold repair kit includes:
- intake channel rings;
- DISA valve seals;
- PCV outlet ring;
- vacuum valve gaskets.
Practical example: BMW M54
In this engine, even a small suction device causes the revs to “float.” After replacing the BMW intake manifold repair kit from Klifex, in 92% of cases, idle speeds stabilize without additional repairs (statistics from BMW forums and ISTA services).
BMW oil filter and housing gaskets
This is another version of seals used in BMWs with cartridge filters. A typical problem is that the rubber hardens, oil leaks out, and internal pressure drops. The result is dirty oil and accelerated wear of vanos and hydraulic compensators.
The repair kit includes:
- filter seal ring;
- upper and lower cup gaskets;
- PCV cover seal (depending on the engine).
BMW oil cap valve
The BMW oil cap valve is a check valve in the filler neck cap. Not everyone knows that BMWs have a valve in the cap that regulates pressure in the ventilation system. If the valve is dirty:
- the engine smokes when the cap is unscrewed;
- the pressure in the crankcase increases;
- oil begins to leak from under the gaskets;
- a whistling sound appears in the valve cap area.
Where to buy gaskets and seals for BMW cars in the US?
Klifex is one of the most renowned manufacturers of repair kits in the EU and the US. Our BMW seal kits exceed the quality of most manufacturers. We have been producing spare parts and repair kits for BMW for over 10 years. The company specializes in:
- BMW PCV repair kits;
- BMW valve cover gaskets;
- BMW oil pan gaskets;
- BMW intake manifold repair kits;
- BMW DISA membranes;
- BMW EGR membranes and vacuum pumps.
All gaskets are manufactured using laser cutting technology with tolerance control, heat-resistant vulcanized silicone, and Viton seals with a service life of 150–200 thousand km.
Our advantages:
- Premium materials: Viton/FKM for oil circuits, EPDM for antifreeze, reinforced silicone for PCV, high-density NBR for intake.
- All gaskets are manufactured in compliance with OEM tolerances, correspond to the original BMW dimensions, and therefore fit without displacement and ensure complete tightness.
- Klifex gaskets withstand SAE 0W–20 ... 10W–60 engine oils, G12+ antifreeze, gasoline vapors, and temperatures up to 160°C.
- BMW engines often have “micro-leaks” that are invisible but affect the mixture. Klifex seals are denser than the original.
- Each seal kit comes with additional small seals that are not included in the original.
FAQ on BMW gaskets and seals
-
Which main gaskets most often fail in BMWs?
The most common wear and tear occurs on the valve cover gasket, oil pan gasket, heat exchanger gasket, oil filter cover gasket, thermostat housing gasket, water pump gasket, and crankcase ventilation valve gasket. This is due to temperature cycles and rubber aging.
-
Why does the valve cover gasket leak in BMWs?
The reason is the loss of rubber elasticity and increased crankcase gas pressure. On N42, N46, N52, N54, and B-series engines, this is a typical symptom of gasket aging.
-
What materials are used to manufacture BMW gaskets?
The main materials are polymer rubber (NBR, FKM), silicone, graphite, and metal gaskets for high-temperature components. The choice of material depends on pressure, temperature, and contact with oil.
-
How to understand that the crankcase pan gasket has started to leak ?
Signs: oil stains on the edge of the pan, the smell of oil, a gradual decrease in oil level. Often occurs after 150-200 thousand km or when the bolts are tightened incorrectly -
Is it possible to drive with a leaking valve cover gasket?
It is not recommended. Oil can get on the exhaust manifold, creating a fire hazard and accelerating the deterioration of the wiring. -
Why is the thermostat housing gasket replaced on a BMW?
It is responsible for the tightness of the cooling system. Its wear leads to coolant loss, air pockets, and engine overheating. -
Does the condition of the oil filter seal affect oil pressure?
Yes. If the seal becomes hardened or deformed, leaks and a drop in operating pressure occur, which is dangerous for the shaft bearings. -
Why is it important to replace the crankcase ventilation (PCV) seals? ?
Loss of sealing causes incorrect system pressure, increased oil consumption, and unstable engine operation. In BMW engines this is especially critical. -
What is the lifespan of the oil cooler gasket in BMW?
On average 80–150 thousand kilometers. High temperatures and contact with hot oil accelerate rubber degradation. -
What causes coolant leakage in the water pump area?
Damage to the sealing ring or deformation of the seating surface. In BMW engines, the pump is often integrated with the thermostat, so the problem is complex. -
Can universal gaskets be used instead of original BMW ones?
Not recommended. Many BMW components have precise seating dimensions, so universal seals will lead to leaks. -
Does overheating affect the lifespan of BMW seals?
Yes, overheating drastically reduces their lifespan. The rubber loses its shape, microcracks appear, and the part can no longer hold pressure. -
Why are DISA valve gaskets frequently replaced in BMW?
Due to high temperatures and constant valve movement. A worn seal leads to air leaks, mixture errors, and loss of engine power. -
Why is a turbocharger seal repair kit installed?
Old wastegate ring seals or actuator shaft seals may cause uncontrolled boost or whistling. A repair kit restores sealing and stable turbocharger performance. -
When should the BMW exhaust manifold gasket be replaced?
When unusual noise appears, exhaust smell is present under the hood, or O2 sensor errors occur due to air leaks. -
Can leakage from under the valve cover affect spark plug operation?
Yes. Oil can enter the spark plug wells, causing misfires and corrosion of the ignition coils. -
What temperature can FKM gaskets withstand in BMW engines?
Up to 200–230 degrees Celsius depending on the specification. Therefore, FKM is used in components exposed to hot oil. -
Why is it recommended to replace seals when cleaning the intake manifold?
After removing the manifold, old seals deform and no longer provide the required tightness. -
How to determine whether the issue is with the oil cooler gasket and not the oil pan?
If oil appears in the area between the engine block and the filter, while the oil pan is dry, this indicates an oil cooler gasket failure. -
Should Klifex repair kits be used for replacing BMW seals
Yes, because the kits are made of heat-resistant materials, compatible with original fitments, and allow economical restoration of the component without buying expensive new parts.
