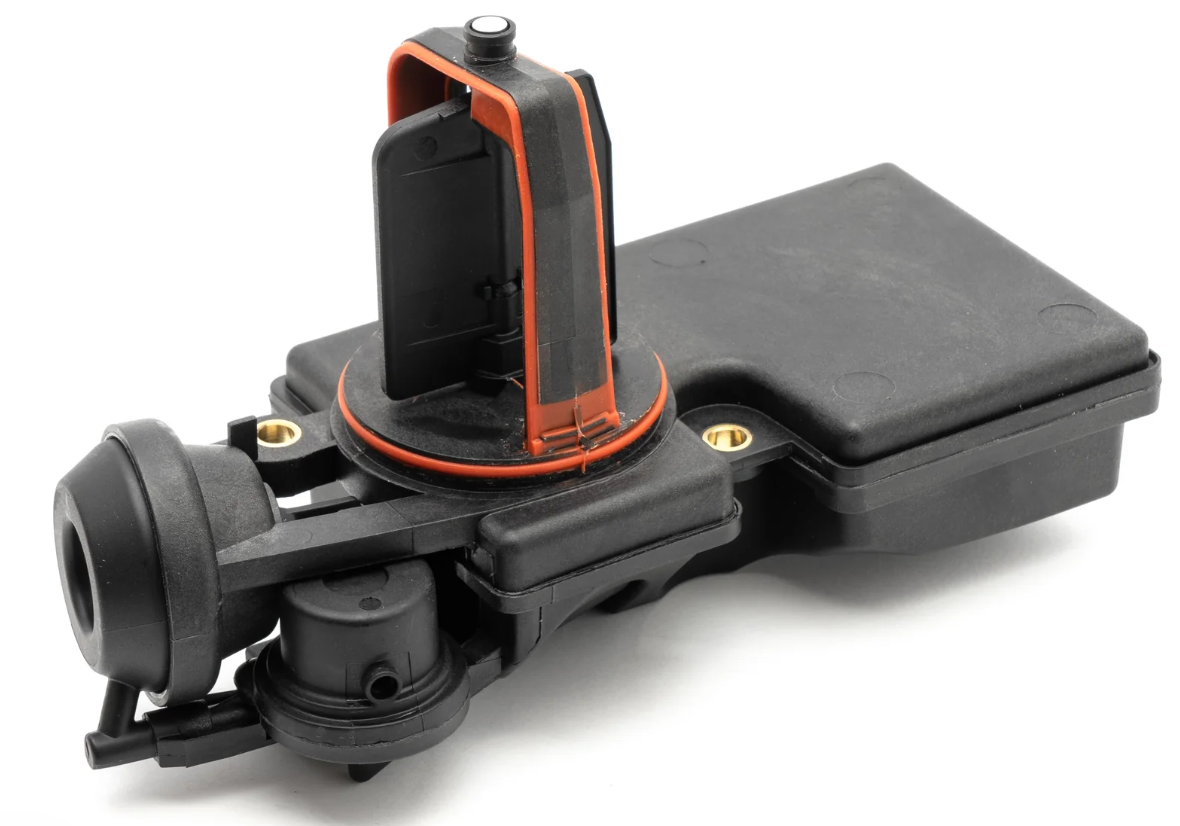

How to restore a DISA BMW valve using a repair kit

How to restore a DISA BMW valve using a repair kit

What is a DISA valve and its role in the BMW intake system

The DISA (Differenzierte Sauganlage) valve is part of the variable length intake manifold system that controls the air flow into the engine cylinders. Its main purpose is to change the geometry of the intake tract depending on the engine speed in order to optimize torque at low and medium speeds without losing power at high speeds. DISA is installed on gasoline inline engines of BMW M54, M52TU, N42, N46, N52, BMW E46, E39, E53 X5, E60, E83 X3, Z4 and other series.

The DISA valve works in conjunction with an electric drive (servomotor) that rotates the flap inside the manifold housing. At low revs, the flap blocks part of the channels — the air takes a long path, creating more turbulence and improving cylinder filling. At high revs, the valve opens and the air takes a short path, providing maximum flow for power.

This technology allows the engine to be both economical at low revs and powerful at high revs, which is why it is often referred to as the “mechanical equivalent of a turbocharger for naturally aspirated engines.”

How the DISA valve works

The DISA system is controlled by the DME (ECU) electronic control unit via a vacuum or electromechanical actuator. The algorithm is as follows:

  1. Up to 3500 rpm — the damper is closed, the air flow passes through a long channel, creating a resonance effect that increases torque.
  2. After 4000–4200 rpm — the electric drive rotates the damper shaft, and it opens a short channel. The air flow increases, and the engine gains power.
  3. When the speed decreases, the ECU returns the damper to its original position.

The BMW DISA works due to a mechanical shaft and plastic gears, which wear out over time. On average, the service life of a standard BMW DISA valve is 100-150 thousand km, after which problems begin.

Typical DISA valve failures

Due to high temperatures and constant movement of the damper, the DISA valve gradually wears out. The most common problems are:

  • Breakage of the plastic damper shaft. The shaft breaks the socket and falls into the manifold, which can even lead to fragments entering the cylinder.
  • Wear or depressurization of the sealing ring, causing “left” air to enter the system, which causes mixture depletion and lambda probe errors.
  • Backlash in the housing, the damper begins to rattle, creating a rattling sound at idle speed.
  • Failure of the vacuum drive. In newer engines, the valve is electric, but in older ones, vacuum is used, which often sucks in air through cracked hoses.

Signs of a faulty DISA valve:

  • unstable idling,
  • decreased traction at low revs,
  • jerking during acceleration,
  • errors P0171, P0174, P1519, P1161,
  • distinctive rattling from the intake manifold..

How to check the DISA valve?

It is possible to check the DISA valve independently without complex equipment:

  1. Remove the valve from the manifold by unscrewing several Torx screws and disconnecting the electric drive connector.
  2. Inspect the damper shaft. If it wobbles or has fallen out, it needs to be replaced or repaired.
  3. Check the vacuum membrane, disconnect the hose, and create a vacuum. If it holds, the membrane is intact; if not, there is a leak.
  4. Inspect the sealing ring. If it is stiff or cracked, this is the cause of air suction.
  5. Listen to the housing. When shaken, a serviceable valve should not make any extraneous noises.

What is the BMW DISA valve repair kit?

BMW DISA valve repair kit is a set of all the necessary parts that not only eliminate all factory design flaws, backlash, and noise, but also make the system durable thanks to a metal shaft that can withstand over 250,000 km of mileage. The kit includes:

  • a new stainless steel axle;
  • a precisely centered bearing;
  • a Viton seal (resistant to high temperatures);
  • a lock washer for securing the shaft;
  • a reinforced sealing ring for the housing;
  • installation instructions.

You can buy an original BMW DISA valve repair kit on our website in the relevant section.

How to install a BMW DISA valve repair kit?

The repair of a DISA valve is not a very complicated procedure and can even be done at home if you follow the steps in order.

Step 1. Removing the valve

  1. Turn off the ignition.
  2. Disconnect the valve power connector (or vacuum hose, if it is a mechanical version).
  3. Unscrew the 2–4 Torx screws that secure the valve to the manifold.
  4. Carefully pull the valve out of its seat — the sealing ring may stick, so do not use a screwdriver to avoid damaging the plastic.

Step 2. Disassembling the DISA valve

  1. Remove the rear cover of the valve by prying it off with a plastic spatula.
  2. Remove the old plastic damper shaft — it is usually broken or cracked.
  3. Remove the seal and check the condition of the diaphragm.
  4. Clean the housing of dust and debris from old parts.

Step 3. Installing the new shaft

  1. Take the new shaft from the DISA repair kit
  2. Insert it into the seat with the new bearing — the movement should be smooth, without play.
  3. Install the metal damper (if included in the kit) in the same position as the original.
  4. Secure the shaft with a lock washer.
  5. Check the tightness of the membrane — when a vacuum is created, the damper should move and remain in place without falling for 5–10 seconds.

Step 4. Installing the rubber seals

  1. Replace the old body ring with a new one from the repair kit.
  2. Lightly lubricate it with silicone grease to prevent twisting during installation.
  3. Replace the cover and secure it with bolts.

Step 5. Installing the DISA valve in place

  1. Insert the DISA into the intake manifold, making sure that the seal fits snugly into the socket.
  2. Tighten the bolts to a torque of 8 N·m, but do not overtighten, as the plastic may crack.
  3. Connect the connector or hose.
  4. Start the engine and check its operation — the revs should be stable, and there should be no rattling noise.

After installing the DISA repair kit, the damper moves smoothly, without play, and the intake system is sealed again.

How to check the performance of the DISA after repair?

  • During idle operation, the engine sound should be even, without metallic rattling.
  • When pressing the gas pedal, there should be no dips in the 2500–4000 rpm range.
  • OBD diagnostics should not show errors P0171–P0174.
  • Visually, the housing should be clean, without leaks, and the seals should not allow air to pass through.

According to the results of tests at BMW service centers, after installing the Klifex DISA repair kit, dynamics improve by up to 10%, and fuel consumption decreases by 0.3–0.5 l/100 km.

FAQ about the BMW DISA valve

1. Why is there a rattling or clanking noise coming from the intake manifold of my BMW?

This is a typical symptom of a worn or broken DISA valve shaft. Inside the housing, the damper has play and, when the speed changes, it starts to hit the walls. The sounds are especially noticeable at idle and up to 3000 rpm. If you delay repairs, the shaft may fall out and get into the intake tract, with disastrous consequences: debris will be sucked into the cylinders, damaging the valves and pistons. The solution is to install a  DISA repair kit from Klifex  with a metal shaft that completely eliminates backlash.

2. How to understand that  the DISA valve isn’t working or is stuck?
Signs include:

  • unstable RPM when moving from 2000 to 4000 rpm;
  • a noticeable “flat spot” or loss of power during acceleration;
  • fault codes P0171, P0174, or P1519 on a scanner;
  • a distinct rattling noise from the intake side.

To check it, remove the valve and manually rotate the flap — if it doesn’t lock into place or returns with a delay, the actuator isn’t functioning properly.

3. Can the DISA valve be repaired if the flap shaft is broken?
Yes, and this is the most common type of repair. In standard BMW valves, the axle is made of plastic, which breaks its socket at high temperatures.  The DISA Klifex repair kit replaces it with stainless steel, adds a bearing and a retaining ring. This repair completely eliminates backlash and restores the valve to its factory tightness. If the housing is damaged or cracked, it must be replaced entirely.

4. How to check the DISA valve vacuum drive?
Old M52TU/M54 engines use a vacuum diaphragm. To check it, remove the hose and create a vacuum (for example, with your mouth or a vacuum pump). If the flap moves and stays in position for 5–10 seconds, the diaphragm is intact. If air leaks and the flap returns immediately, the actuator needs to be repaired or replaced.

5. Is it possible to drive without a DISA valve?
Theoretically, yes, the engine will run. But without the DISA valve, the balance between the long and short intake channels is disrupted. The result is weak torque at low revs, sluggish acceleration, an increase in fuel consumption by 1–1.5 l/100 km, and mixture errors. Some owners try to simply block the hole, but this is only a temporary solution — the ECU will still register errors due to pressure fluctuations in the intake.

6. Why are there still errors with the lambda sensors after replacing the DISA valve or repair kit
The BMW intake system is very sensitive to air suction. If the seal is not checked after repair or the seating ring is slightly misaligned, air will bypass the mass flow sensor (MAF) and the control unit will register a lean mixture. Check the housing sealing ring — it should be elastic and fit snugly against the manifold. In the Klifex DISA repair kit, it is made of Viton material, which does not harden even at 150°C.

7. How long does the Klifex DISA repair kit last?
The service life exceeds 200-250 thousand km. The metal axle does not deform, and the Viton seals remain elastic throughout the entire service life of the engine. For comparison: the original BMW plastic valve often fails after only 100-120 thousand km.

8. Is it necessary to reprogram the ECU or make adjustments after repairing the DISA?
No, the DISA valve does not require electronic calibration. After installation, the ECU repair kit “adjusts” itself over several operating cycles. However, it is recommended to reset the mixture adaptations (via INPA or ISTA-D) to eliminate residual air errors.

9. How to find out if the DISA valve opens while driving?
There are two ways to check this:

  1. Through OBD Live Data in the INPA or Torque program — observe the “DISA Valve Position” parameter. It should change when transitioning from 3000 to 4000 rpm.
  2. Physically, with the valve removed, simply apply 12V power to the contacts. If the drive activates and the damper moves, the mechanics are working. If there is no response, the problem is with the electric drive or wiring.

10. What should you do if the valve still rattles after installing the repair kit?
If the repair kit is installed correctly and the noise persists, check the following:

  • the fastening of the DISA housing to the manifold — sometimes the bolts are not tightened enough;
  • the vacuum membrane — it can “suck” air and create resonance;
  • the surrounding parts of the manifold (resonator silencer).
  • In rare cases, the problem is in another intake area, such as the crankcase ventilation system (CVS), which creates a similar noise.

12. How to distinguish an original DISA valve from a counterfeit?
Genuine BMW valves have BMW/Pierburg engraving and an aluminum lever inside. Chinese copies are usually made entirely of plastic, are lighter in weight, and the drive gear has backlash right out of the box. The easiest way is not to buy a new one, but to restore the original using a DISA repair kit from Klifex.

13. Can the DISA valve affect fuel consumption?
Yes, significantly. When the damper is open at low revs, the engine receives too much air, and the control unit adds fuel. As a result, consumption increases by 1–2 liters. After the valve is restored, the mixture normalizes and consumption returns to normal.

14. Why did the engine become quieter after DISA repair?
Because the damper backlash is eliminated and the resonance in the intake tract disappears. When the damper is closed, the air flow becomes uniform and the pressure in the manifold stabilizes. This is immediately noticeable, as the engine runs more smoothly and the idle sound becomes “velvety,” like in a new car.

15. What is the service life of a DISA valve after restoration?
With a repair kit, the valve lasts on average twice as long as the original — over 200,000 km. In many restored systems, there is not even the slightest backlash after 150,000 km of mileage.
