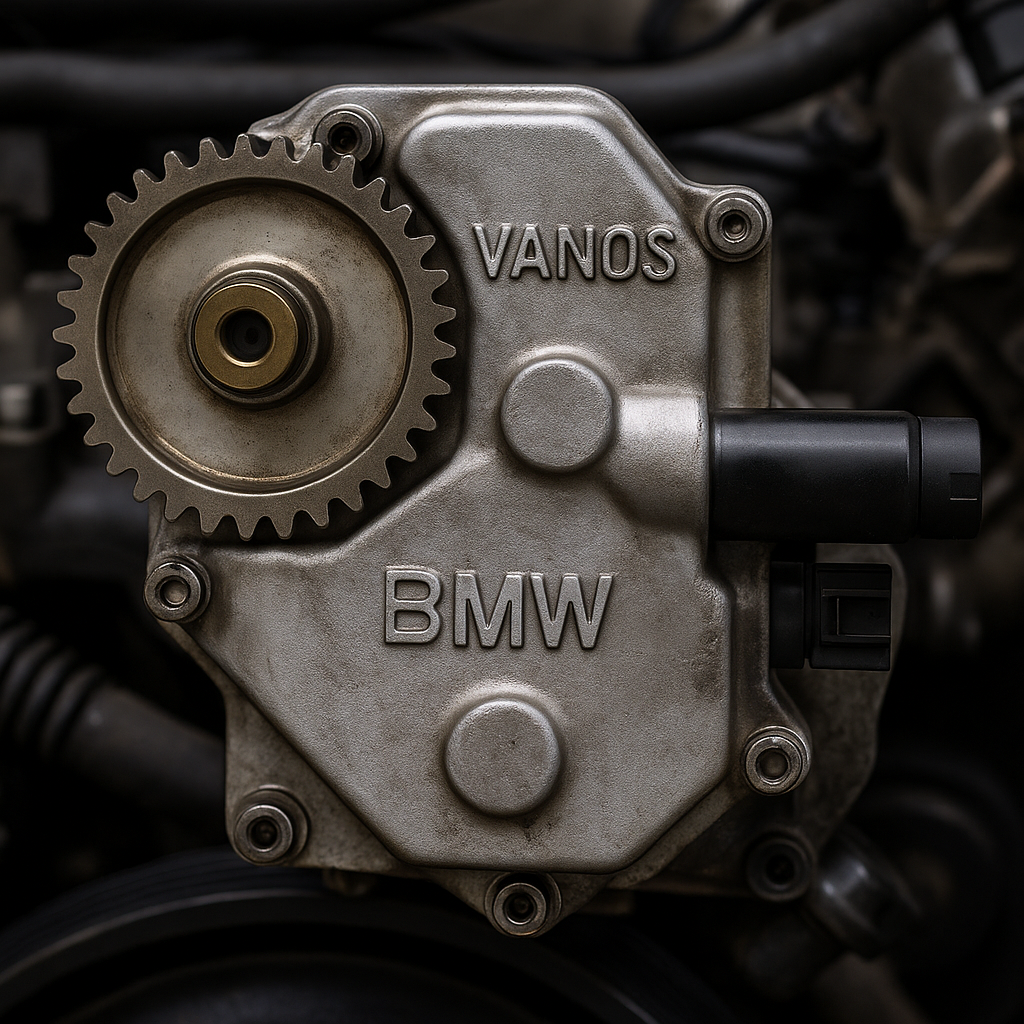

Gas distribution system in BMW cars

The gas distribution system (GDS) is the heart of a four-stroke engine, coordinating the opening and closing of valves so that air and fuel enter each cylinder at the right moment and exhaust gases are removed without loss. Without precise timing of the gas distribution phases, the engine cannot operate efficiently, even if the rest of the systems are in good working order.

In the classic BMW timing system, the crankshaft is connected to the camshaft via a belt or chain. When the piston moves up, the valves close and the mixture is compressed; when it moves down, the intake or exhaust opens. All this must happen with an accuracy of a few degrees of crankshaft rotation.

However, static valve timing has a serious limitation. The optimal valve opening time depends on the load and engine speed. At low speeds, high torque is required, and at high speeds, maximum power is required. A single fixed phase distribution cannot be effective across the entire range.

To solve this problem, BMW engineers introduced VANOS (Variable Nockenwellen Steuerung) in 1992, a variable valve timing system that became the basis for the subsequent Double VANOS and Valvetronic technologies.

What is VANOS in BMW

The VANOS system is a mechanism for adjusting the position of the camshaft relative to the crankshaft, which changes the valve opening time depending on engine speed and load. VANOS allows BMW engines to run more smoothly, increases power, and reduces fuel consumption and emissions.

The first VANOS systems appeared on M50TU engines in 1992 (BMW E36 320i, 325i). It was a single-channel system that only adjusted the intake camshaft.

In 1996, Double VANOS appeared — a dual-channel system that regulates both camshafts (intake and exhaust). This design provides even more precise phase control and is used in virtually all BMW gasoline engines with the indices M52TU, M54, M56, N42, N46, N52, N54, N62, etc.

The main components of the BMW VANOS system are:

• hydraulic mechanism for moving the camshaft gear;
• electromagnetic valves (solenoids) that control the oil supply;
• check valves and oil channels;
• sealing rings (O-rings), which wear out over time;
• electronic control unit (DME), which sets the phase change algorithm

How the BMW VANOS system works

VANOS operates on the basis of hydraulic oil pressure, which is supplied to the control chambers built into the camshaft gear housing. The engine electronics analyze signals from the crankshaft position, camshaft, oil temperature, throttle valve, and RPM sensors. Depending on the conditions, it sends a signal to the solenoid, which opens the pressure supply to the required chamber.

For example:

• At low revs (up to 2500 rpm), the system shifts the phases towards later valve opening, improving idling and reducing fuel consumption.
• At medium and high speeds (from 3000 to 6000 rpm), the phases are shifted towards early opening, which improves cylinder filling and power.

In BMW Double VANOS systems, this process is synchronized for intake and exhaust, allowing for a perfect balance of torque and power across the entire range.

For example, in the BMW M54B30 engine (231 hp), the Double VANOS system changes the phases in the range up to 40° of the crankshaft, which gives a torque increase of up to 320 Nm at 3500 rpm without losing stability at idle speed.

Typical BMW VANOS malfunctions and their consequences

The BMW VANOS system operates in a harsh environment — high temperature, pressure, and constant contact with engine oil — so seals, valves, and even the pistons of the hydraulic block wear out over time.

Main problems with BMW VANOS:

• Wear of rubber seals (O-rings) and loss of tightness leads to a decrease in oil pressure, and the system cannot shift phases. Symptoms: loss of power, jerks when accelerating, error P1520–P1523.
• Contamination of solenoids — electromagnetic valves do not open or freeze. The engine “floats” at idle, fuel consumption increases.
• Mechanical wear of the gear, typical for older M52/M54 engines, when the rod begins to wobble.
• Noise during start-up means that oil is not retained in the hydraulic block due to leaky seals, and the system fills with air at each start.
• Phase sensor errors complicate diagnostics because the system can go into emergency mode (fixed phases).

Ignoring the BMW VANOS problem leads to:

• a loss of up to 15-20% of power;
• unstable idling;
• an increase in fuel consumption by 1-2 l/100 km;
• accelerated wear of the timing chain due to incorrect tension;
• detonation during acceleration.

BMW VANOS repair kit

Manufacturers produce repair kits for all types of VANOS (single-channel, dual-channel, Double VANOS). The BMW VANOS repair kits includes:

• Viton fluororubber seals, resistant to temperatures up to 250°C;
• Plastic or metal guide rings;
• Piston rod seals;
• Cover and housing gaskets.

The advantage of using BMW VANOS repair kits is that they eliminate the main weak link in the factory system — the aging of conventional rubber seals. After installing the repair kit, the pressure in the system is restored, the engine runs more smoothly, and the traction at medium revs becomes stable.

How to install a BMW VANOS repair kit

Replacing the VANOS repair kit is one of the most effective procedures for restoring BMW engine dynamics, which in most cases completely eliminates jerks, vibrations, unstable idling, and “diesel” noise during start-up. Below is a detailed instruction describing the process in as much detail as possible so that even a mechanic with no experience working with the system can perform the repair correctly.

1. Preparation for work

Before starting, make sure that the engine has cooled down completely and the battery is disconnected. It is more convenient to work in a warm, clean garage with good lighting.

Required tools:

• set of Torx heads, hex keys, 10–19 mm wrenches;
• camshaft retainers (BMW special tool);
• torque wrench;
• plastic seal pliers;
• sealant, engine oil, clean wipes;
• Klifex repair kit (Viton seals, guide rings, housing gaskets).

Important: Before disassembly, photograph the initial position of all hoses, connectors, and fasteners—this will greatly facilitate reassembly.

2. Removal of attachments and access to VANOS

1. Remove the decorative plastic engine cover.
2. Remove the intake manifold and the upper part of the air filter to provide access to the front of the cylinder head.
3. Disconnect the connectors of the VANOS solenoid valves (solenoids).
4. Unscrew the valve mechanism cover (it is advisable to replace the gasket after reassembly).
5. Install the camshaft retainers to prevent them from shifting when removing the block.
6. Remove the timing chain or belt from the camshaft gears (mark the position with a marker for accurate reinstallation).

At this stage, you will have direct access to the aluminum VANOS housing, which is bolted to the cylinder head.

3. Removing the VANOS unit

1. Unscrew all the bolts securing the housing to the cylinder head (usually 6–8).
2. Carefully remove the unit without using metal tools to pry it off, as this may damage the sealing surfaces.
3. Note that some oil may leak from the unit, so place a container underneath it.
4. After removal, inspect the housing: if there are cracks, dents, or abrasions, repair is not advisable and replacement is necessary.

4. Disassembly and diagnostics

Place the VANOS unit on a clean table covered with cloth or soft paper.

1. Unscrew the cover of the hydraulic block.
2. Remove the pistons (there are two in Double VANOS) for the intake and exhaust camshafts.
3. Pay attention to the location of each piston, the direction of movement, and the type of seals — they must be assembled in exactly the same sequence.
4. Remove the old seals with plastic pliers or a wooden stick.
5. Inspect the oil supply channels; if you see carbon deposits or dirt, clean them with a special spray for hydraulic systems.
6. Wash the parts with brake cleaner or high-octane gasoline and dry them with compressed air.

Check the pistons for play—even a minimal discrepancy of more than 0.1 mm indicates wear on the housing.

5. Installing the repair kit

1. Take the seals from the BMW VANOS repair kit, they are made of Viton fluororubber, which can withstand temperatures up to 250°C.
2. Lubricate the new rings with a thin layer of engine oil to prevent them from jamming during installation.
3. Install the seals in the grooves, making sure they are not twisted.
4. Replace the guide rings that stabilize the piston stroke.
5. Install new VANOS housing and cover gaskets.
6. If the kit contains new bolts, use them, as the old ones may be stretched.

Important: do not apply sealant to the hydraulic channels, as this will clog the oil system.

6. Assembling the VANOS hydraulic unit

1. Install the pistons in the corresponding cylinders and check the smoothness of movement by hand.
2. If movement is stiff, remove and check the fit of the seals.
3. Cover the housing with the cover and tighten the bolts crosswise with a torque of 10–12 N·m.
4. Connect the solenoids, check the integrity of the sealing rings under them.
5. Install the unit on the cylinder head, tighten the bolts to a torque of 25–28 N·m.

Before final assembly, check that the timing chain is correctly positioned — even a single tooth misalignment will result in synchronization errors.

7. Reverse assembly of the engine

1. Install the timing belt or chain, using the markings as a guide.
2. Check the tension and ensure there is no slack.
3. Install the valve cover with a new gasket.
4. Connect all connectors and hoses, check the fastenings.
5. Fill the engine with the required type of engine oil.
6. Start the engine and let it run for 10–15 minutes.

After starting, a short-term “diesel” rattling is possible — this is normal until the oil completely fills the hydraulic block.

8. Typical mistakes when replacing the VANOS repair kit

• installing seals “dry” without lubrication;
• incorrect orientation of the pistons;
• forgotten camshaft retainers (phase shift);
• use of sealant in oil supply channels;
• under-tightened cover bolts (oil leakage due to pressure).

If everything is done correctly, VANOS will resume full operation and the engine will regain its factory torque and power characteristics.

How to check the performance of BMW VANOS after repair?

After installing the BMW VANOS repair kit, it is recommended to perform diagnostics using the available diagnostic tools. Check for the absence of errors P1519–P1523, stable idling without fluctuations, and smooth phase shift when pressing the gas pedal (visible in real time in the parameters).

Visually, you can hear if there is any noise or “diesel rattling” when cold. The driving dynamics should be good, the car should pull evenly, without dips, and acceleration should be stable.

If all indicators are normal, the system is working correctly. Usually, after repair, the BMW engine becomes quieter, responds better to the gas pedal, and regains its original elasticity.

After installing the repair kit, most owners note that the engine starts to run “quieter,” vibration at idle disappears, and fuel consumption decreases by approximately 0.5–0.8 l/100 km.

FAQ about BMW VANOS

1. Why does a BMW engine rattle like a diesel engine during a cold start?
This is one of the most common symptoms of a VANOS malfunction. After standing overnight, oil drains from the hydraulic block, and the system operates without pressure when started. The valves shift unevenly, causing mechanical rattling. This usually disappears after 5-10 seconds. If the sound lasts longer, the seals have completely lost their tightness or there is play in the pistons. The Klifex BMW VANOS repair kit completely eliminates this effect.

2. How to understand that the VANOS in a BMW is faulty?
Typical signs:

• the engine “pulls” only at high revs;
• there are noticeable jerks when accelerating;
• vibration when idling;
• errors P1519–P1523 in the scanner;
• increased fuel consumption.

If the engine has lost its elasticity and behaves “heavily” up to 3000 rpm, in 80% of cases the cause is wear on the VANOS seals..

3. What happens if you drive with a faulty VANOS?
Driving with damaged seals leads to a drop in pressure in the system, the camshafts are not synchronized, the phases are shifted, and the engine operates outside its optimal parameters. This increases fuel consumption to 2 l/100 km, reduces power by 15-20%, accelerates wear on the timing chain, and causes detonation during acceleration. According to BMW service centers, ignoring the problem can reduce the engine's service life by 30-40 thousand km.

4. How much does it cost to restore the VANOS system and is it worth repairing?
A new Double VANOS unit costs €600–800. A BMW VANOS repair kit at the Klifex store costs about $30–40. The result is the same: the pressure and operation of the system are fully restored. If the housing has no mechanical damage, repair is economically justified. After a high-quality replacement of the seals, the system's service life increases to 150-200 thousand km.

5. Can a faulty VANOS cause unstable revs or engine stalling?
Yes. If the gas distribution phases are shifted, the air/fuel ratio is disturbed, causing vibration, a drop in revs, or engine stalling. After repairing the VANOS, the revs stabilize. If the “floating” revs remain, check the crankcase ventilation valve (CVV), which often works in tandem with VANOS and also affects idling.

6. How to check VANOS solenoid valves?
Use a multimeter to measure the coil resistance — it should be 7–9 ohms. Then connect the valve to 12V — the piston should move smoothly, without jamming. If the rod sticks, it can be cleaned with an injector cleaner. However, if the coil is mechanically worn or the channels are clogged, it is better to replace the valve.

7. Which is better: to repair VANOS or replace it with a new one?
In 9 out of 10 cases, repair is more cost-effective. The mechanism itself rarely wears out; the main problem is with the seals. New seals from the BMW VANOS repair kit are resistant to high temperatures and aggressive oil additives, so they last 2-3 times longer than standard ones. Replacement is only necessary if the housing is cracked or the gear teeth are damaged.

8. How to reset VANOS adaptations after repair?
After replacing the seals, you need to reset the adaptations in the engine control unit using the INPA, ISTA-D, or Carly programs. Without this, the DME unit may continue to operate using the old parameters. After resetting, turn on the ignition for 30 seconds, then start the engine. Within 5-10 minutes, the system will adjust to the new phases on its own.

9. What engine oil is best to use to make VANOS last longer?
For BMW M52/M54 engines, 5W-40 or 0W-40 with BMW LL-01 approval is recommended,nfor N52/N54 — 5W-30 LL-04. Poor-quality or old oil leaves deposits in the solenoids, which reduces pressure and clogs the channels. Therefore, the oil should be changed every 8–10 thousand km, regardless of the “Longlife” recommendations.

10. Where to buy VANOS BMW repair kit?
BMW VANOS repair kits can be ordered on our website https://klifex.net/collections/vanos-bmw-repair-kits. We specialize in the restoration of VANOS, DISA, heater valves, PCV, and other systems. Our repair kits are made from materials that exceed factory standards for heat and chemical resistance.
