General overview of a car's fuel system
The fuel system of any car consists of a tank, fuel lines, a pump, filters, pressure regulators, and injectors. Its task is to steadily supply fuel to the cylinders in the required amount and at a precise rate. The electronic control unit constantly changes the injection duration according to the load, temperature, speed, and mixture condition. If at least one of the elements is unstable, the engine loses its smoothness, fuel consumption increases, and mixture composition errors occur. The injectors bear the greatest load in this system, so their condition directly affects the engine's service life, exhaust cleanliness, and dynamics.
Gasoline engine injectors
Gasoline injectors operate in relatively mild conditions compared to diesel injectors, but they are still subject to high temperature cycles and the effects of deposits. A classic injector has an electromagnetic valve that opens under the action of current, and the sprayer forms an injection pattern. There are two main systems: MPI distributed injection and GDI direct injection.
In MPI systems, fuel is injected into the intake manifold before the valves. This ensures better cleaning of the valves from carbon deposits and increases the service life of the injector. Such injectors work on average 150-250 thousand kilometers, depending on the quality of gasoline and the cleanliness of the filter.
In GDI systems, fuel is fed directly into the combustion chamber under high pressure. The spray pattern must be as accurate as possible, so the nozzle holes are very thin and sensitive to contamination. The main problems with GDI injectors are carbon deposits from the combustion chamber temperature, clogged holes, incorrect spray pattern, and performance degradation. The service life of such injectors is usually less than 120-180 thousand kilometers, especially when using low-quality gasoline.
Typical signs of gasoline injector malfunction:
- Uneven idling;
- Misfires;
- Black exhaust;
- Increased fuel consumption;
- Difficult hot start.
Diesel engine injectors
The operation of diesel injectors is much more complex, as the system operates under high pressure and requires precise control. There are several types of diesel injectors, each with its own characteristics and typical malfunctions.
Common Rail injectors
The most common type, where fuel at a pressure of 1200-2000 bar is supplied to the accumulator ramp, and the injectors open on command from the ECU. The sprayers have very fine calibrated holes, and a high-precision needle operates inside. Typical problems:
- Wear of the needle and seat;
- Seal failure;
- Excessive fuel return to the return line;
- Sprayer coking;
- Copper washer burnout.
The service life of Common Rail injectors depends on fuel quality and filtration and is usually 150-250 thousand kilometers.
Piezoelectric injectors
These injectors are used in modern BMW, Mercedes, and VAG diesel engines. Piezo crystals change their geometry under the action of current and instantly open the valve. The injectors provide precise multiphase injection, but are very sensitive to fuel quality. Main malfunctions:
- Degradation of the piezo element;
- Corrosion of the body;
- Leaks at the joints;
- Unstable operation at minimum stroke.
The service life of such injectors is often lower than standard, approximately 120-180 thousand kilometers.
Injectors Pump injectors
Pump injectors were used in older VAG diesel engines. Each injector has its own mini pump and is driven by the timing shaft. The system is quite reliable but difficult to repair, with problems relating to hydraulic wear, cracks in the housing, and loss of seal integrity.

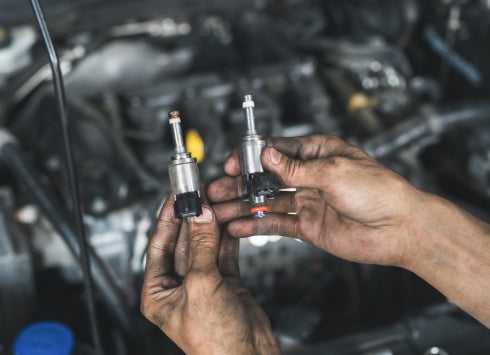

Repair of the fuel system using injector repair kits
Repairing fuel injectors is one of the most effective ways to restore performance and allows you to return the injector to its factory specifications, ensure correct fuel delivery, correct injection pattern, and stable pressure in the system. The table below shows the cost of a new injector for different types of car fuel systems and the cost of repair using an injector repair kit, which can be purchased on the Klifex website. Buying new injectors is not profitable in any case, except when the injector is mechanically damaged to such an extent that it cannot be repaired with a repair kit.
|
Nozzle type / system |
New 1 pc |
Renovated 1 pc |
Repair with repair kit |
Savings |
|
Bosch Common Rail (solenoid) |
250–450 $ |
120–200 $ |
45–90 $ |
65–80 % |
|
Bosch CRIN (piezo) |
350–650 $ |
180–280 $ |
70–120 $ |
65–75 % |
|
Delphi Common Rail |
220–380 $ |
110–170 $ |
40–80 $ |
60–75 % |
|
Delphi piezo |
350–500 $ |
150–250 $ |
70–110 $ |
60–70 % |
|
Denso Common Rail |
280–480 $ |
130–200 $ |
50–90 $ |
65–75 % |
|
Denso piezo |
400–700 $ |
200–300 $ |
80–130 $ |
65–70 % |
|
Siemens/VDO Common Rail |
300–500 $ |
140–220 $ |
45–85 $ |
65–80 % |
|
PDE/PD pump-nozzle |
350–600 $ |
160–250 $ |
70–120 $ |
60–70 % |
Injector repair kits are effective in the following cases:
- When the injector leaks due to damaged seals;
- When the spray nozzle is clogged with carbon deposits or resins;
- When the copper washer on the diesel injector is burnt out or has lost its shape;
- When the filter mesh allows contaminants to pass through;
- When the injector has a normal electronic part, but a worn mechanical assembly.
In such situations, complete replacement of the injector is impractical, and repair with a high-quality repair kit can save 50 to 80% of the cost compared to a new part.
Why is it more cost-effective to use an injector repair kit?
In 90% of cases, only the consumable elements of the injector wear out — seals, sprayers, washers, valves. The repair kit replaces only those components that fail.
The body and electronic part of the injector are almost always in normal condition and do not require complete replacement of the expensive original injector.
After proper repair, the injector works almost like new, because in branded injector repair kits (such as Klifex), the precision of the components corresponds to the original, and the quality of the materials is often higher than in complete injectors from the factory.
What is included in a high-quality injector repair kit?
The set varies depending on the type of system (MPI, GDI, Common Rail, piezoelectric, pump-nozzle), but usually includes:
- sealing rings of various diameters
- heat-resistant rubber or fluororubber sleeves
- copper washers for diesel injectors
- filter screens
- spray nozzles
- locking rings, retaining elements
- gaskets
All components in repair kits are made of materials that are resistant to temperature, pressure, and aggressive fuel additives. For diesel systems operating at pressures of 1600–2000 bar, the accuracy and quality of the geometry of the elements is important.
Step-by-step instructions for repairing injectors using a repair kit
-
Preparing the vehicle
It is necessary to release the pressure in the fuel system, disconnect the battery, and prepare access to the fuel rail or injector seat. This is a mandatory step, as high pressure may remain in the system. -
Injector removal
The injector is removed as carefully as possible, avoiding damage to the seat. This is especially important for diesel engines, as improper removal can cause skewing or chip formation on the injector seat. -
Complete inspection of the injector
The condition of the sprayer, tightness, integrity of the body, reverse discharge level, and needle movement are assessed. In gasoline injectors, special attention is paid to the contamination of the mesh, and in diesel injectors, to the condition of the copper washer and sealing cone. -
Disassembling the injector
The injector is disassembled according to its type. Special tools are required for GDI and Common Rail. Disassembly provides access to all consumables. -
Removing old elements
Old seals, gaskets, screens, and other elements are removed because after dismantling, they can no longer ensure tightness and correct pressure. -
Cleaning components
The injector body is cleaned of dirt, resin, and carbon deposits. If necessary, an ultrasonic bath or bench chemical cleaning is used. Cleaning must be thorough so that the new elements work on a clean surface. -
Installation of repair kit elements
All seals, washers, filter screens, new sprayers, and other elements are installed according to the repair kit instructions. It is important to install each component correctly, as even a slight misalignment can cause leakage or an incorrect spray pattern. -
Assembling the injector
The injector is assembled in reverse order. Check the smoothness of the needle, the tightness of all components, and the integrity of the body. -
Installing the injector in the engine
The injector is installed with a new copper washer (for diesel) or a heat-resistant seal (for gasoline). The bolts are tightened according to the torques specified by the engine manufacturer. Violation of the tightening torque may cause misalignment of the injector or leakage. -
Testing the vehicle
After installation, the pressure in the fuel rail, injector corrections, and injection stability are checked, as well as engine behavior during cold and hot starts. It is important to ensure that there are no external leaks or pressure drops.
Why is it important to use high-quality repair kits?
In fuel systems, especially diesel ones, the working pressure reaches thousands of bars, and the temperature can fluctuate greatly. That is why cheap analogues do not provide a precise fit, wear out quickly, or immediately leak. High-quality injector repair kits, such as Klifex, are created with dimensional accuracy, resistance to fuel and chemical additives, heat-resistant materials, full compatibility with the injector type, and 100% compliance with the original injectors in mind.
This is not only a saving, but also a guarantee of stable engine operation after repair.
FAQ on repairing a car's fuel system
1. Why does the engine run smoothly at idle, but stalls under load — could the injector be to blame?
Yes. If one or more injectors supply insufficient or uneven fuel (e.g., due to contamination or wear), the engine does not receive the required amount of fuel under load, resulting in “drops” or flashes of traction loss. At the same time, the system may “work” at idle, but not perfectly. In this situation, you should diagnose the injectors, check the fuel supply, the condition of the spray nozzle, and the corrections in the engine control unit.
2. What symptoms indicate that an injector needs cleaning or replacement?
Symptoms include: sudden misfires, uneven engine idling, increased fuel consumption, revving (chaotic tachometer), difficult starts, black or white smoke from the exhaust. If these symptoms are combined with error codes (e.g., injector errors, corrections), it is recommended to remove and check the injectors.
3. What is the service life of gasoline engine injectors?
For gasoline engines with injection systems (port or direct), the typical service life is approximately 150-250 thousand kilometers, provided that high-quality fuel is used, filters are changed in a timely manner, and there is no foreign contamination. In GDI (direct injection) systems, the service life is approximately 120-180 thousand km due to higher temperatures and greater sensitivity of the injectors to carbon deposits.
4. What is the main difference between gasoline and diesel injectors, and how does it affect repairs?
The main difference is pressure and design. In diesel engines, injectors operate at much higher pressures, have a more complex design (e.g., piezoelectric valves, pump injectors), and are subject to more severe operating conditions. Because of this, repairing diesel injectors is more difficult and often requires a special test bench, precise calibration, and professional kits. In gasoline systems, the conditions are more “mild,” making cleaning or replacement easier.
5. How many kilometers do diesel injectors usually “last”?
The typical service life of a modern Common Rail system is about 150-250 thousand kilometers, provided that the fuel and filtration are of high quality. In the case of piezoelectric injectors, the service life is approximately 120-180 thousand km. Again, it depends on operating conditions, maintenance, and fuel quality. Damage due to contamination or poor fuel can significantly reduce the service life.
6. Why does the engine still not run perfectly after replacing the injector?
There may be several reasons:
- The injector is installed incorrectly (the seal is damaged, the washer has not been replaced)
- The injector is not adapted (in modern cars, you need to “link” the new injector to the ECU)
- The problem is not only in the injector, but in another part of the fuel system (fuel pump, filter, pressure in the rail)
- There are deposits left in the system that affect fuel supply or atomization.
Therefore, after replacement, it is important to perform a complete diagnosis, check the fuel pressure, the condition of the filters, and the injector settings.
7. Is it possible to “flush” the injectors without dismantling them, and how effective is this?
Yes, there are methods for “flushing” injectors without dismantling them, using special flushing agents, bench procedures, and injecting cleaners into the fuel. However, this is only effective in cases of minor contamination. If the injector has internal wear, the valve does not hold well, or the sprayer is severely clogged, such “flushing” will not give the desired result. As noted in studies, when the injector is “restricted,” simple cleaning rarely solves the problem.
8. Does fuel quality affect the service life of injectors, and how exactly?
Yes. Substandard fuel contains impurities, water, and resins that can clog the injector screen, damage the seal, or wear out the valve. This is especially critical in diesel engines, where micron-sized particles can destroy sealed surfaces and create supply instability. Choose the Right Injector Using high-quality fuel, regularly replacing filters, and avoiding “running on empty” help extend the service life of injectors.
9. Is it possible to replace only one injector if the rest are working normally?
Yes, but this only makes sense if the other injectors are indeed in good working order. If the corrections in the injector control unit are fairly close, you can replace one. But if there is a significant difference between the injectors, it is better to replace or repair the entire set to avoid uneven engine operation.
10. What will happen if I drive with a faulty injector, and how dangerous is it?
The danger lies in the following:
- Poor injection leads to an uneven mixture, resulting in increased temperature, overheating, and damage to engine components. Intake Cleaning
- In gasoline engines, there is a risk of damage to the catalytic converter due to excess fuel or misfires.
- In diesel engines, poor combustion plus increased emissions, soot, and possible cylinder or valve failure.
Therefore, there is a high probability of more significant repair costs in the future.
11. How to determine if the problem is really with the injector and not with the fuel pump or filter?
Diagnostics should be performed: check the fuel pressure (in the rail or fuel line), evaluate the flow rate in each injector, check the condition of the fuel filter and pump. If the pressure in the system is normal, but there is uneven fuel supply, injector errors, then it is probably the injector. If the pressure is unstable or low, there may be a problem with the pump or filter. A handy way to check the injectors is to remove the rail and connect it to the pump. If the spray pattern is uneven or the injector is clogged, you will notice it immediately.
12. How to choose the right injector repair kit?
You need to check whether the kit is compatible with your specific injection system (MPI, GDI, Common Rail, piezo, pump-injector). The kit should include seals, washers, screens, new filter elements — everything that can wear out.
13. Is it necessary to adapt the system via the ECU after repairing the injectors?
In modern cars, this is often the case. The engine control unit must “teach” the new element or adjust the fuel supply according to the new parameters. If this is not done, there may be a conflict with the factory settings, which will lead to incorrect operation and increased fuel consumption.
14. How does engine overheating affect the service life of injectors?
Overheating leads to the destruction of seals, changes in material properties, and deterioration of tightness. In diesel injectors, high temperatures in the combustion chamber accelerate the wear of the needle and sprayer, which reduces the service life of the system.
15. What are the advantages of using a repair kit instead of completely replacing the injector?
A repair kit saves money because instead of an expensive new injector, the existing one is restored with a correct fit. With the right selection and installation, the result can be equivalent to a new part.
15. How long does it take to repair an injector using a repair kit?
It depends on the engine and access, but on average, dismantling and installing an injector with restoration takes 1–2 hours per injector in an average car. If the work is complex (diesel with a pump injector), the process may take longer.
16. Can a universal repair kit be used for different injection systems?
Not recommended. Different systems (MPI, GDI, Common Rail) have different pressures, designs, and sizes. A universal kit may not provide the required tightness or spray pattern, which will lead to a repeat failure. It is better to select a kit for a specific model and engine.
17. How does the condition of the fuel filter affect the operation of the injectors?
The fuel filter protects the injectors from contamination particles. If the filter is clogged, it can cause insufficient fuel supply, increased wear on the injectors, and contamination of the sprayers. Regular filter replacement significantly increases the service life of the injectors.
18. How to extend the life of the injectors?
- Use high-quality fuel.
- Replace the fuel filter according to the schedule.
- Avoid driving with an empty tank (as impurities from the bottom may get sucked in).
- Regularly diagnose the fuel system (pressure, corrections, injector condition).
- When removing the injectors, use new seals and washers
